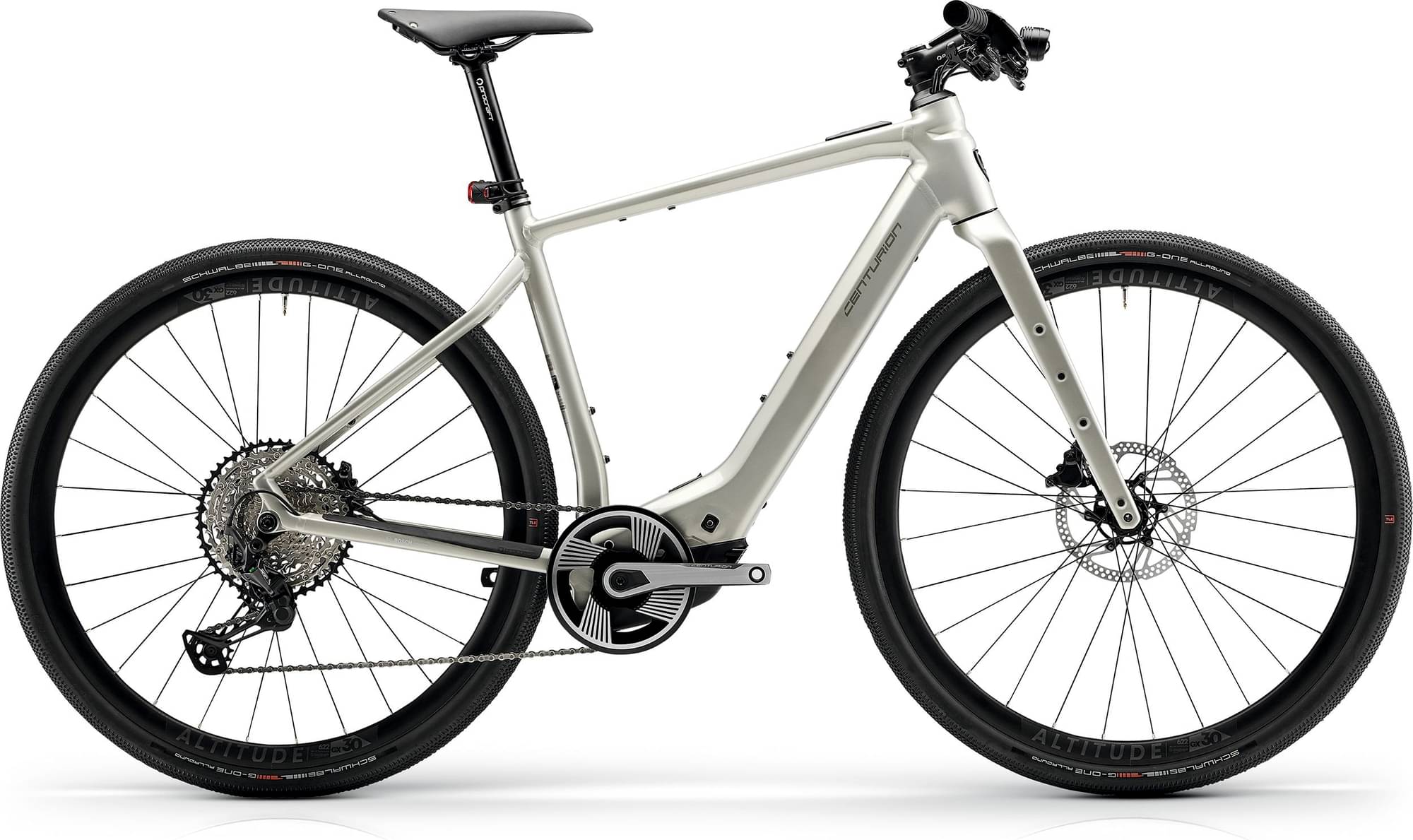

centurion Speeddrive R2000 D 2024
2024 E-bike
Weight | 16.2 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset XT -
Suspension Rigid -
Motor Bosch 250W 55Nm hub-drive -
Battery BOSCH Compact PowerTube 400Wh, fest verbaut, horizontal -
Drivetrain 1 × 12 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Speeddrive D R intube, Material: Aluminium, 28", Steuerrohr: 1.5" straight, Ausfallende: 12x142, Bremsaufnahme: Flatmount 160mm, UDH Schaltauge, Rahmenkennung: ABP102A
Suspension Fork
CENTURION Carbon road/gravel III, max. Zuladung: 3kg pro Seite bei Nutzung aller 3 Schraubpunkte
Drivetrain
Rear Derailleur
SHIMANO Deore XT, RD-M8100-12, 1x12, Hyperglide+
Shift Levers
SHIMANO Deore XT, SL-M8100-IR12, I-Spec EV, Hyperglide+
Cassette
SHIMANO SLX, CS-M7100, 10-51T, Hyperglide+
Crank
CENTURION R Pro II Gen4, Länge: 170mm (S, M), 175mm (L, XL), CK-790
Chain
SHIMANO SLX, CN-M7100, Hyperglide+
Pedals
VP VPE-889P
Wheels
Front Hub
SHIMANO HB-TC500-12 / SHIMANO FH-TC500-MS, Centerlock, 12x100, Centerlock, 12x142, Microspline
Rear Hub
SHIMANO HB-TC500-12 / SHIMANO FH-TC500-MS, Centerlock, 12x100, Centerlock, 12x142, Microspline
Rims
PROCRAFT Altitude GX30, IW 23mm, tubless ready
Spokes
PROCRAFT stainless 2.0
Tires
SCHWALBE G-One Allround 45-622, Evolution Line, TLE, Super Ground
Brakes
Brakes
TRP HD-EU818
Brake Levers
TRP HD-EU818
Cockpit
Stem
PROCRAFT Comp II, Winkel: 7°, Länge: 100
Handlebar
PROCRAFT Flat Pro, Durchmesser: 31.8mm, Breite: 660mm (S), 680mm (M, L, XL), Rise: 0mm, backsweep: 8°
Seat
Saddle
PROCRAFT Retro II
Seatpost
PROCRAFT Pro III, Durchmesser: 30.9mm, Länge: 350mm (S), 400mm (M, L, XL)
Motor & Battery
Motor
BOSCH SX, max. 55 Nm, 250 W
Battery
BOSCH Compact PowerTube 400Wh, fest verbaut, horizontal
Charger
BOSCH Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack | 573 mm | 594 mm | 615 mm | 636 mm |
| Top Tube Length | 544 mm | 565 mm | 586 mm | 607 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1053 mm | 1070 mm | 1087 mm | 1104 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
