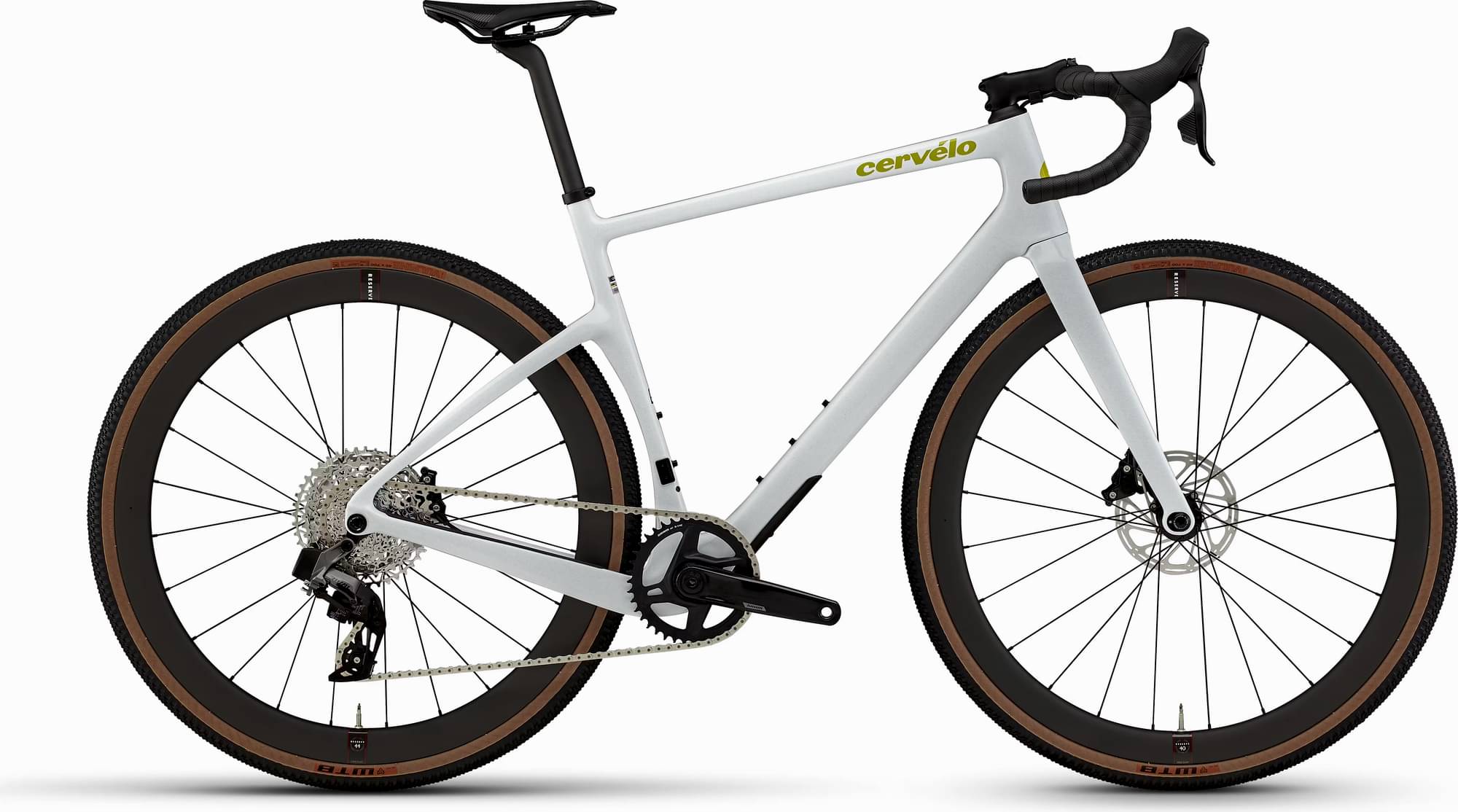

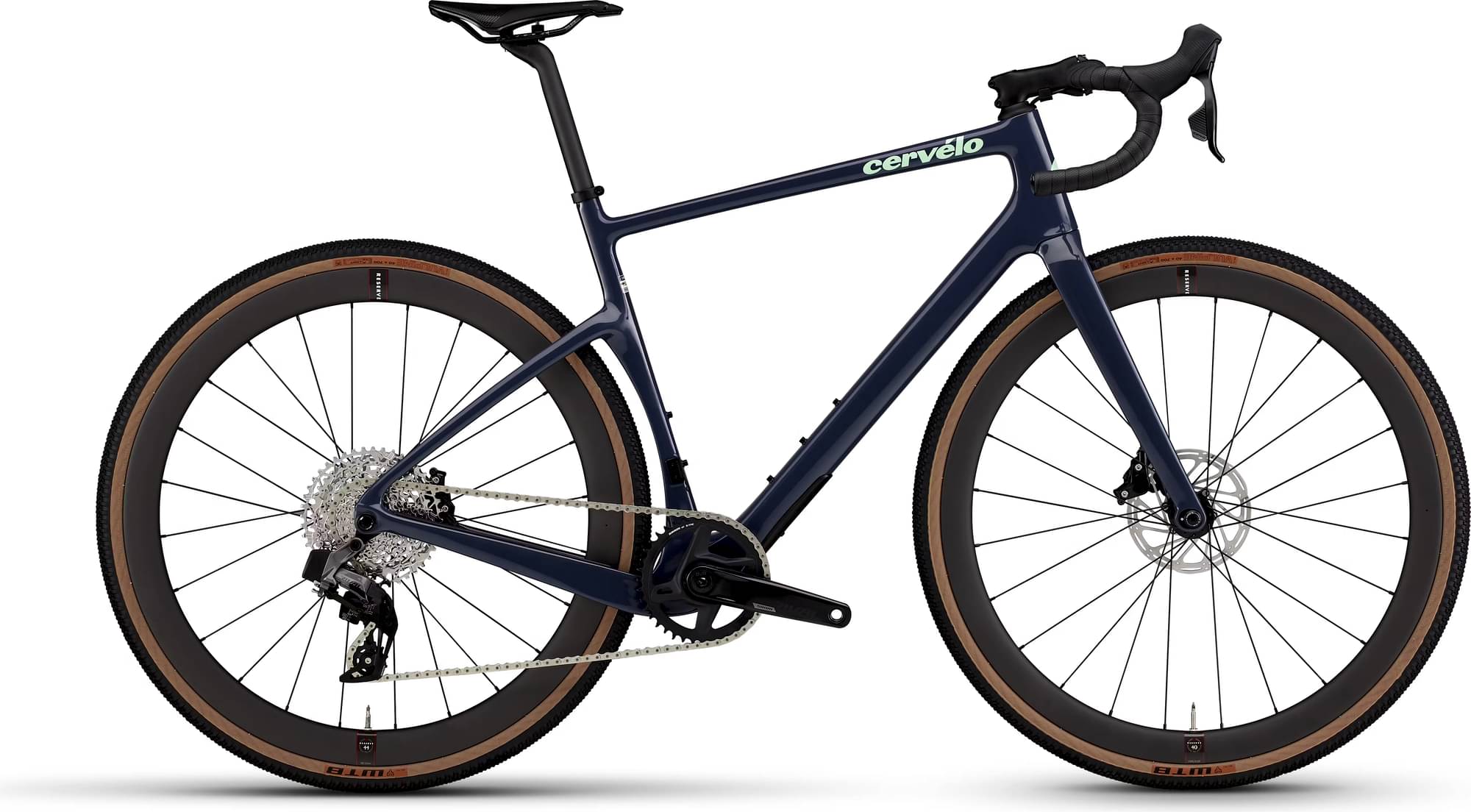

Cervélo Áspero Rival XPLR AXS 1 2024
2024 Road
Estimate price |
6,746$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival XPLR AXS, Rival AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered Aspero Fork
Drivetrain
Rear Derailleur
SRAM Rival XPLR AXS, 12 speed
Shift Levers
SRAM Rival AXS, 12 speed
Cassette
SRAM Rival XPLR, 10-44, 12 Speed
Crank
SRAM Rival, 40T, DUB Wide
Bottom Bracket
SRAM DUB Wide, T47 BBright
Chain
SRAM Rival, 12 speed
Wheels
Rims
Front: Reserve 40, 25.5mm IW, Zipp 76, 24H, centerlock, tubeless compatible Rear: Reserve 44, 25mm IW, Zipp 176,12x142mm, XDR freehub, 24H, centerlock, tubeless compatible
Tires
WTB Vulpine TCS Light Fast Rolling Dual DNA 60tpi 700x40c
Brakes
Brakes
SRAM Rival
Cockpit
Stem
Cervélo ST36 Alloy, w Cable Management
Handlebar
Cervélo AB09 Carbon, 31.8mm clamp, 16 degree flare
Headset
FSA IS2 1-1/4 x 1-1/2
Seat
Saddle
Prologo Dimension STN
Seatpost
Cervélo SP19 Carbon 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.365 mm | 1.398 mm | 1.43 mm | 1.461 mm | 1.49 mm | 1.518 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 273 mm | 273 mm | 275 mm | 275 mm |
| Front Center | 577 mm | 587 mm | 597 mm | 614 mm | 631 mm | 648 mm |
| Rake | 52 mm | 49 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 65 mm | 65 mm | 65 mm | 64 mm | 65 mm | 65 mm |
| Stack | 505 mm | 530 mm | 555 mm | 580 mm | 605 mm | 630 mm |
| Reach | 370 mm | 379 mm | 388 mm | 397 mm | 406 mm | 415 mm |
| Top Tube Length | 512 mm | 532 mm | 553 mm | 575 mm | 591 mm | 608 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 83 mm | 107 mm | 133 mm | 159 mm | 188 mm | 214 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 990 mm | 999 mm | 1010 mm | 1028 mm | 1046 mm | 1063 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 76 mm | 76 mm | 73 mm | 73 mm |
| Standover Height | 681 mm | 704 mm | 733 mm | 757 mm | 784 mm | 808 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
