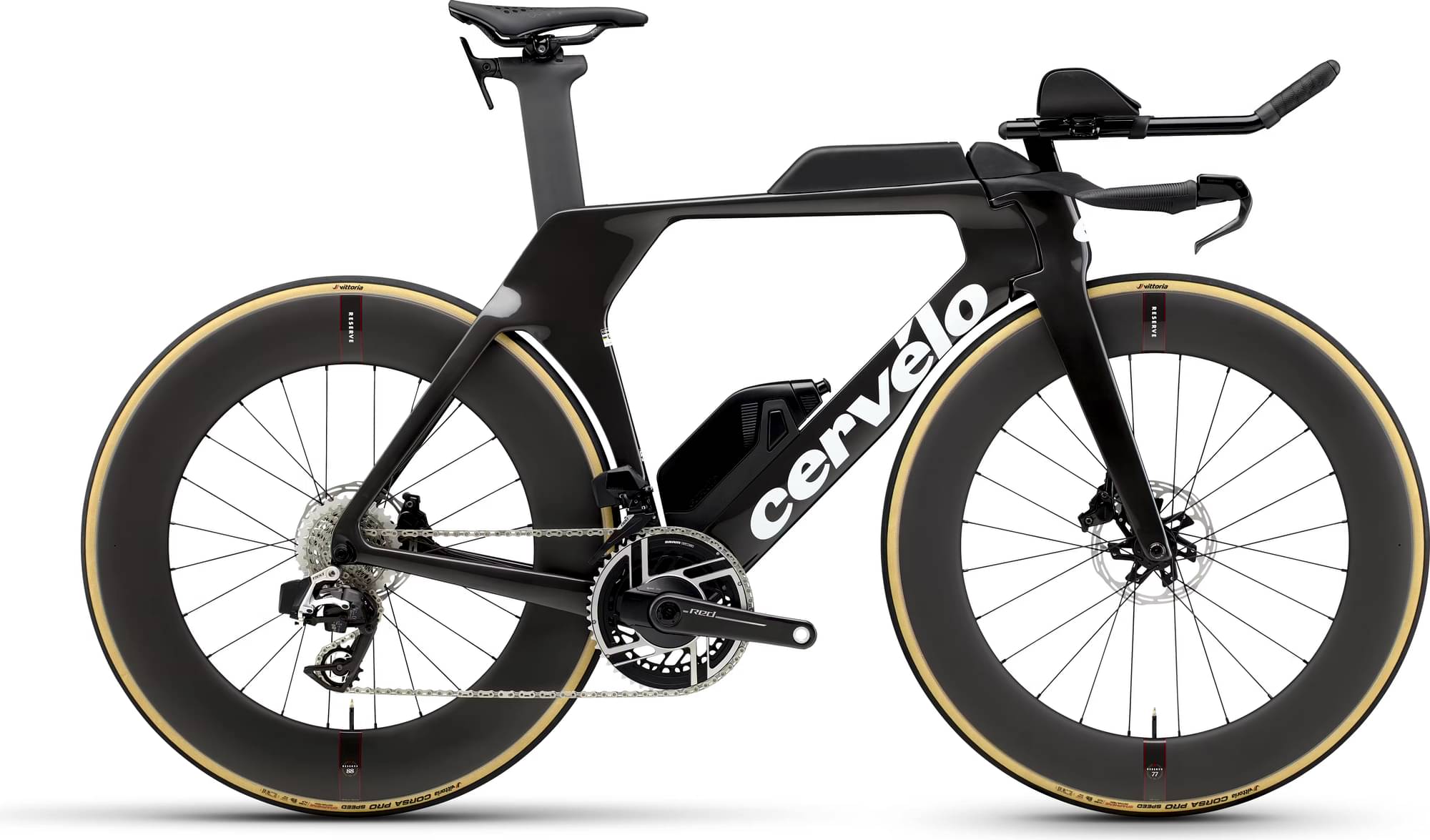

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset RED AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered P5 Fork
Drivetrain
Rear Derailleur
SRAM Red AXS, 12 speed
Front Derailleur
SRAM Red AXS, 12 speed
Shift Levers
SRAM AXS Blip controller
Cassette
SRAM Red, 10-33, 12 Speed
Crank
SRAM Red AXS, 50/37T, DUB, with power meter
Bottom Bracket
SRAM DUB Ceramic, BBright
Chain
SRAM Red, 12 speed
Wheels
Rims
Rear: Reserve 88 TA, Zipp ZR1 SS, 12x142mm, XDR freehub, 24h, centerlock, tubeless compatible Front: Reserve 77 TA, Zipp ZR1 SS, 12x100mm, 24H, centerlock, tubeless compatible
Tires
Corsa Pro Speed TLR 700x29 OR Corsa Pro TLR G2.0 OEM 700x29mm
Brakes
Brakes
SRAM Red
Brake Levers
SRAM S900 Aero
Cockpit
Handlebar
P5 CarbonBasebar/EX14 Riser/Carbon Extensions
Headset
FSA IS2 1-1/8 x 1-3/8
Seat
Saddle
Prologo Dimension Tri Nack
Seatpost
Cervélo SP23 Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.185 mm | 1.187 mm | 1.186 mm | 1.192 mm | 1.2 mm | 1.222 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm | 261 mm | 262 mm |
| Front Center | 582 mm | 583 mm | 602 mm | 622 mm | 640 mm | 654 mm |
| Rake | 52 mm | 43 mm | 43 mm | 43 mm | 43 mm | 40.4 mm |
| Stack | 461 mm | 482 mm | 498 mm | 516 mm | 535 mm | 556 mm |
| Reach | 389 mm | 406 mm | 420 mm | 433 mm | 446 mm | 455 mm |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.4 ° |
| Head Tube Length | 58.5 mm | 70.7 mm | 88 mm | 106.9 mm | 126.8 mm | 147.8 mm |
| Wheelbase | 975 mm | 976 mm | 995 mm | 1015 mm | 1033 mm | 1048 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 74 mm |
| Standover Height | 739 mm | 759 mm | 775 mm | 792 mm | 812 mm | 906 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
