Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, FSA -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered R3 Fork for Disc Brake
Drivetrain
Rear Derailleur
Ultegra 6800, 11 spd
Front Derailleur
Ultegra 6800, 11 spd
Shift Levers
ST-RS685
Cassette
Ultegra 6800, 11 spd, 11-25
Crank
FSA SLK 52x36
Bottom Bracket
FSA PF30
Chain
Ultegra 11 spd
Wheels
Rims
HED Ardennes Plus GP Disc
Tires
Continental Grand Sport Race 700x25c
Brakes
Brakes
BR-RS805
Disk Rotors
RT99 140mm
Cockpit
Stem
FSA SLK
Handlebar
FSA Energy Compact
Headset
FSA IS2 1-1/8 x 1-3/8”
Seat
Saddle
fi’zi:k Antares VS
Seatpost
FSA SLK
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.403 mm | 1.436 mm | 1.468 mm | 1.499 mm | 1.528 mm | 1.556 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 575 mm | 575 mm | 587 mm | 604 mm | 620 mm |
| Rake | 53 mm | 53 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 63 mm | 54 mm | 57 mm | 56 mm | 55 mm | 55 mm |
| Stack | 505 mm | 530 mm | 555 mm | 580 mm | 605 mm | 630 mm |
| Reach | 360 mm | 369 mm | 378 mm | 387 mm | 396 mm | 405 mm |
| Top Tube Length | 516 mm | 531 mm | 548 mm | 564 mm | 581 mm | 597 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 70.5 ° | 72.2 ° | 73.1 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 108 mm | 128 mm | 148 mm | 173 mm | 199 mm | 225 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 970 mm | 970 mm | 970 mm | 982 mm | 999 mm | 1016 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 693 mm | 723 mm | 753 mm | 784 mm | 815 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

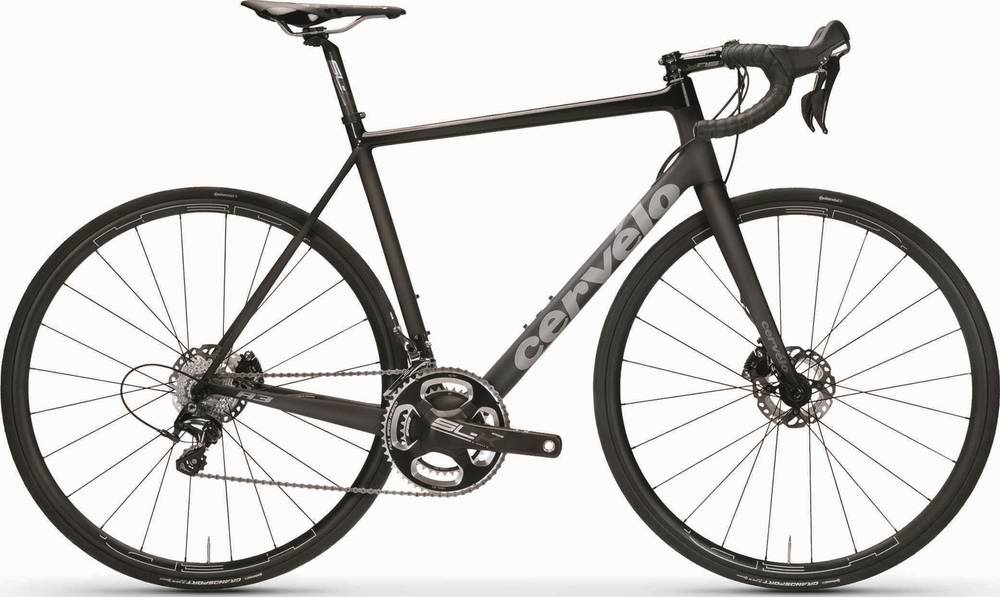

R3d Ultegra 6800 completes the Cervelo R3d model. There are 2 bikes that carry this model name.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4500$. In conclusion, this bike price is 34.33% higher than the price of the average Race bike.
R3d Ultegra 6800 components
Fork material
R3d Ultegra 6800 has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
As for the wheels, Cervélo R3d Ultegra 6800 2017, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Cervélo R3d Ultegra 6800 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
