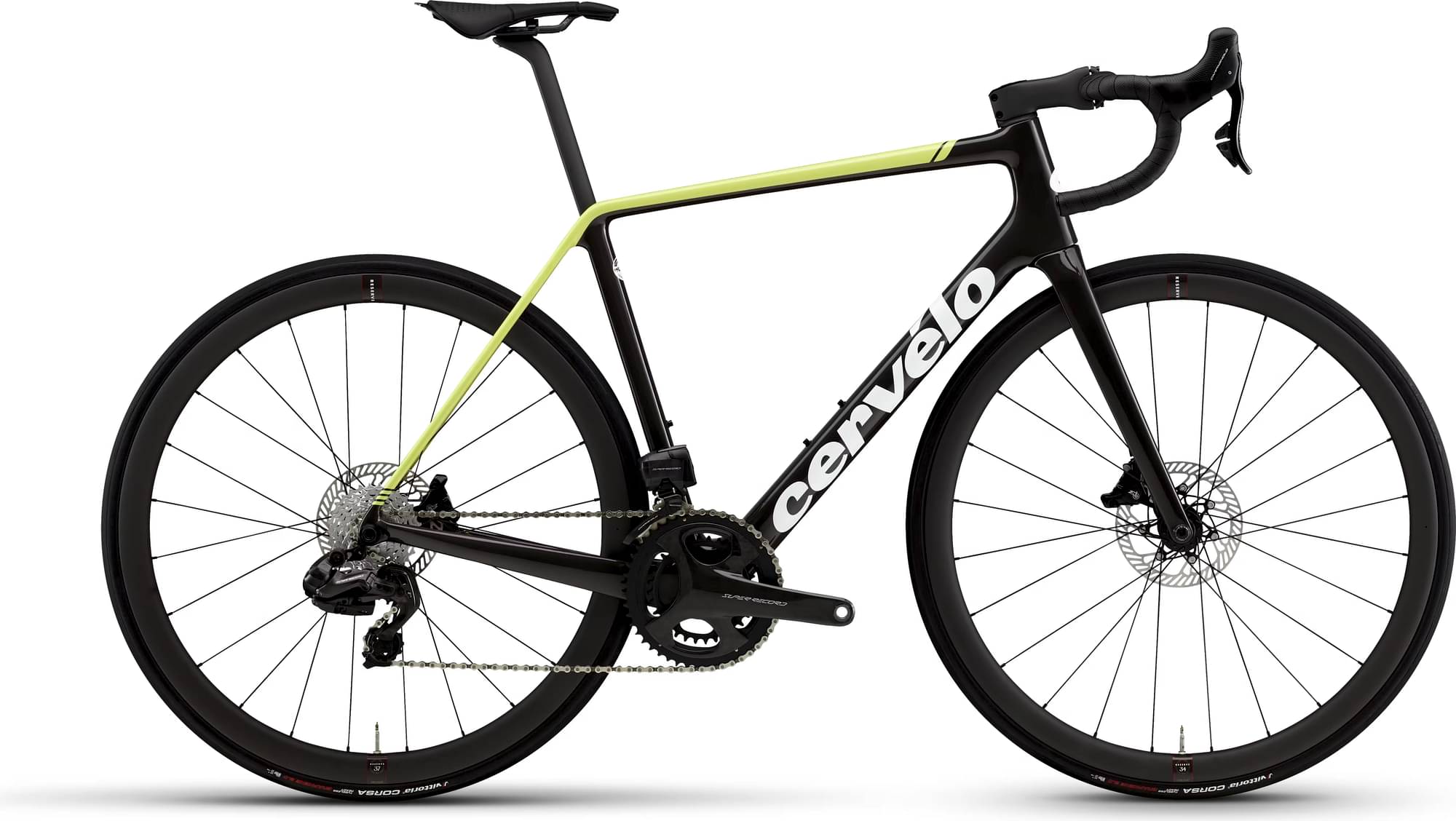

Cervélo R5 Super Record Wireless 2024
2024 Road
Estimate price |
14,541$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Super Record Wireless -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered R5 Fork
Drivetrain
Rear Derailleur
Campagnolo Super Record Wireless, 12 speed
Front Derailleur
Campagnolo Super Record Wireless, 12 speed
Shift Levers
Campagnolo Super Record Wireless, 12 speed
Cassette
Campagnolo Super Record Wireless, 10-29, 12 Speed
Crank
Campagnolo Super Record Wireless, 48/32, 12 Speed
Bottom Bracket
Campagnolo Pro-tech BBright
Chain
Campagnolo Chorus, 12 speed
Wheels
Rims
Front: Reserve 34, 23mm IW, Zipp ZR1 SS, 24H, centerlock, tubeless compatible Rear: Reserve 37, 21.6mm IW, Zipp ZR1 SS,12x142mm, N3W freehub, 24H, centerlock, tubeless compatible
Tires
Corsa Pro TLR blk-blk G2.0 OEM 700x26c
Brakes
Brakes
Campagnolo Super Record
Cockpit
Stem
Cervélo ST31 Carbon
Handlebar
Cervélo HB13 Carbon, 31.8mm clamp
Headset
FSA IS2 1-1/4 x 1-1/2
Seat
Saddle
Prologo Scratch M5 Nack
Seatpost
Cervélo SP24 Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.369 mm | 1.407 mm | 1.439 mm | 1.47 mm | 1.5 mm | 1.528 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 264 mm | 264 mm | 266 mm | 266 mm |
| Front Center | 574 mm | 576 mm | 578 mm | 594 mm | 611 mm | 628 mm |
| Rake | 57.5 mm | 51.5 mm | 45.5 mm | 45.5 mm | 45.5 mm | 45.5 mm |
| Trail | 57.3 mm | 57.3 mm | 57.3 mm | 57.3 mm | 57.3 mm | 57.3 mm |
| Stack | 497 mm | 522 mm | 547 mm | 572 mm | 597 mm | 622 mm |
| Reach | 363 mm | 371 mm | 380 mm | 389 mm | 398 mm | 407 mm |
| Top Tube Length | 515 mm | 531 mm | 548 mm | 564 mm | 581 mm | 598 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 93 mm | 114 mm | 137 mm | 163 mm | 192 mm | 218 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 972 mm | 974 mm | 977 mm | 994 mm | 1011 mm | 1028 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 69 mm | 69 mm |
| Standover Height | 695 mm | 724 mm | 755 mm | 778 mm | 800 mm | 824 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
