Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered S2 Fork
Drivetrain
Rear Derailleur
105 5800, 11 spd
Front Derailleur
105 5800, 11 spd
Shift Levers
105 5800, 11 spd
Cassette
105 5800, 11 spd, 11-25
Crank
ROTOR 2D
Bottom Bracket
ROTOR PF30
Chain
105 11 spd
Wheels
Rims
RS010
Tires
Continental Grand Sport Race 700x23c
Brakes
Brakes
105 5800
Cockpit
Stem
3T ARX
Handlebar
3T Ergonova
Headset
FSA IS2 1-1/8 x 1-3/8"
Seat
Saddle
Selle Royal Seta
Seatpost
Cervélo Carbon, Aero
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.403 mm | 1.436 mm | 1.468 mm | 1.499 mm | 1.528 mm | 1.556 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 575 mm | 575 mm | 587 mm | 604 mm | 620 mm |
| Rake | 53 mm | 53 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 63 mm | 54 mm | 57 mm | 56 mm | 55 mm | 55 mm |
| Stack | 505 mm | 530 mm | 555 mm | 580 mm | 605 mm | 630 mm |
| Reach | 360 mm | 369 mm | 378 mm | 387 mm | 396 mm | 405 mm |
| Top Tube Length | 516 mm | 531 mm | 548 mm | 564 mm | 581 mm | 597 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 70.5 ° | 72.2 ° | 73.1 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 108 mm | 128 mm | 148 mm | 173 mm | 199 mm | 225 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 970 mm | 970 mm | 970 mm | 982 mm | 999 mm | 1016 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 693 mm | 723 mm | 753 mm | 784 mm | 815 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

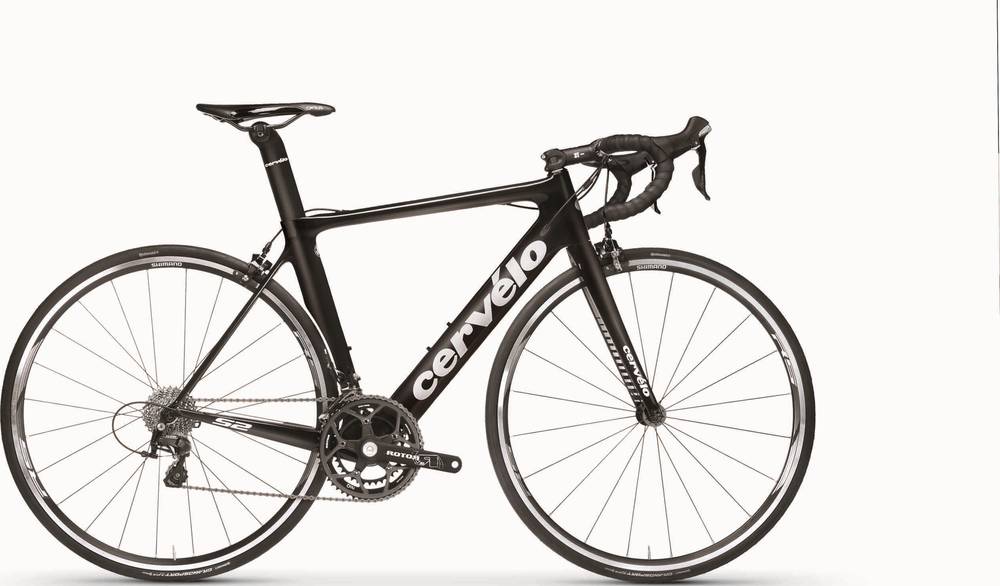

S2 105 5800 completes the Cervelo S2 model. There are 2 bikes that carry this model name.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Aero bikes average price
If you want to purchase a solid Aero bike, it is important to know that the average cost is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Cervélo S2 105 5800 price was 2800$. If we compare this with the average Aero bike cost we notice that the price is 50.39% lower.
S2 105 5800 components
Fork material
S2 105 5800 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Cervélo S2 105 5800 2017, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The S2 105 5800 has Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
