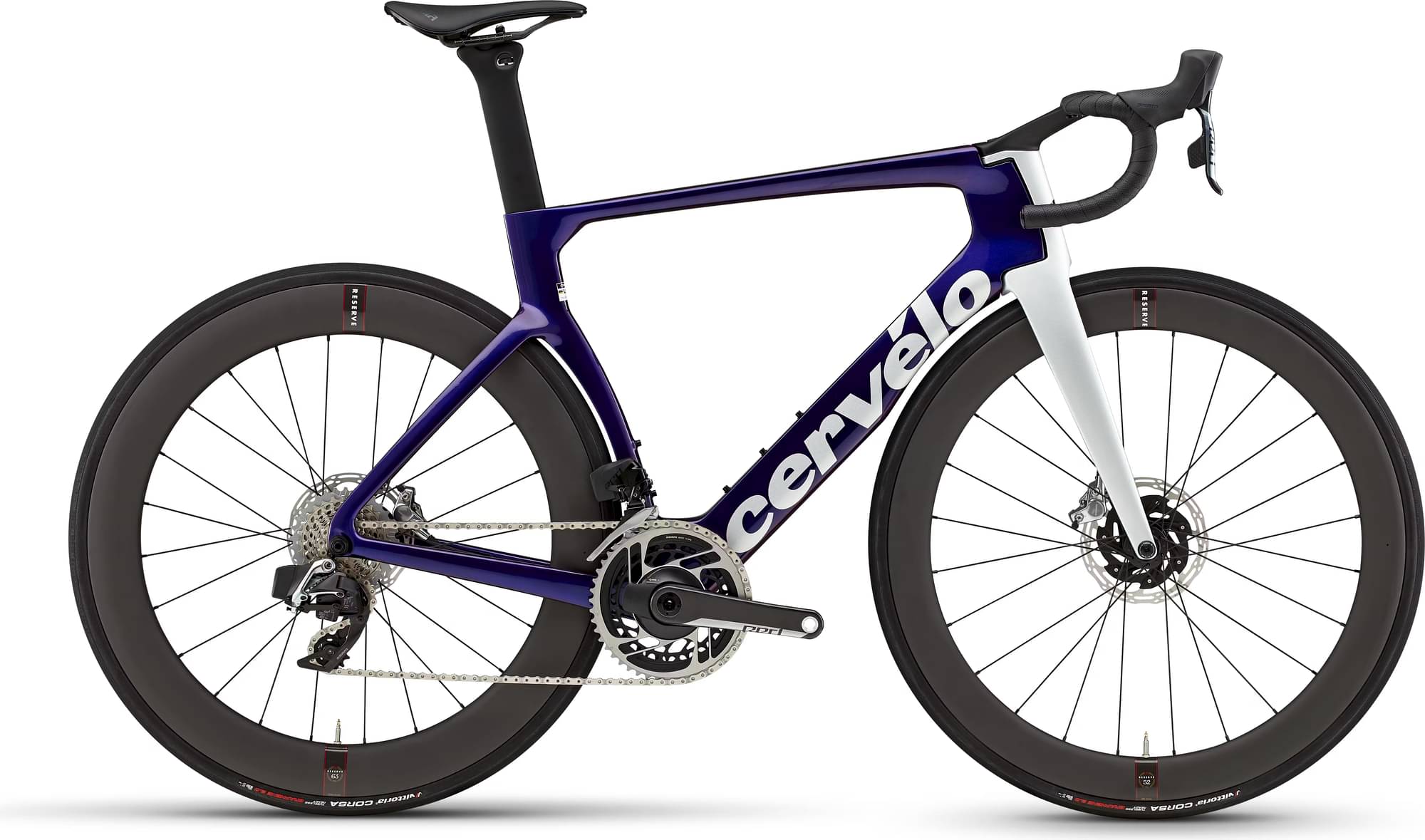

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset RED AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Bayonet S5 Fork
Drivetrain
Rear Derailleur
SRAM Red AXS, 12 speed
Front Derailleur
SRAM Red AXS, 12 speed
Shift Levers
SRAM Red AXS, 12 speed
Cassette
SRAM Red, 10-33, 12 Speed
Crank
SRAM Red AXS, 48/35T, DUB, with power meter
Bottom Bracket
SRAM DUB Ceramic, BBright
Chain
SRAM Red, 12 speed
Wheels
Rims
Rear: Reserve 63, 24.4mm IW, Zipp ZR1 SS,12x142mm, XDR freehub, 24h, centerlock, tubeless compatible Front: Reserve 52, 25.4 IW, Zipp ZR1 SS, 24H, centerlock, tubeless compatible
Tires
Vittoria Corsa TLR G 700x28c
Brakes
Brakes
SRAM Red
Cockpit
Stem
Cervélo ST35 Carbon
Handlebar
Cervélo HB14 Carbon
Headset
FSA IS2 1-1/8 x 1-3/8
Seat
Saddle
Selle Italia NOVUS BOOST EVO SuperFlow Carbon
Seatpost
Cervélo SP20 Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.351 mm | 1.38 mm | 1.411 mm | 1.441 mm | 1.466 mm | 1.487 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 266 mm | 266 mm | 268 mm | 268 mm |
| Front Center | 579 mm | 580 mm | 581 mm | 588 mm | 604 mm | 617 mm |
| Rake | 58 mm | 52 mm | 46 mm | 43 mm | 43 mm | 43 mm |
| Trail | 56.1 mm | 56.1 mm | 56.2 mm | 56.2 mm | 56.2 mm | 56.2 mm |
| Stack | 496 mm | 519 mm | 542 mm | 565 mm | 588 mm | 608 mm |
| Reach | 367 mm | 376 mm | 384 mm | 392 mm | 401 mm | 409 mm |
| Top Tube Length | 520 mm | 535 mm | 550 mm | 565 mm | 581 mm | 595 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 69 mm | 87 mm | 109 mm | 130 mm | 157 mm | 178 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 973 mm | 974 mm | 975 mm | 982 mm | 999 mm | 1013 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 67 mm | 67 mm |
| Standover Height | 715 mm | 736 mm | 754 mm | 782 mm | 813 mm | 832 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
