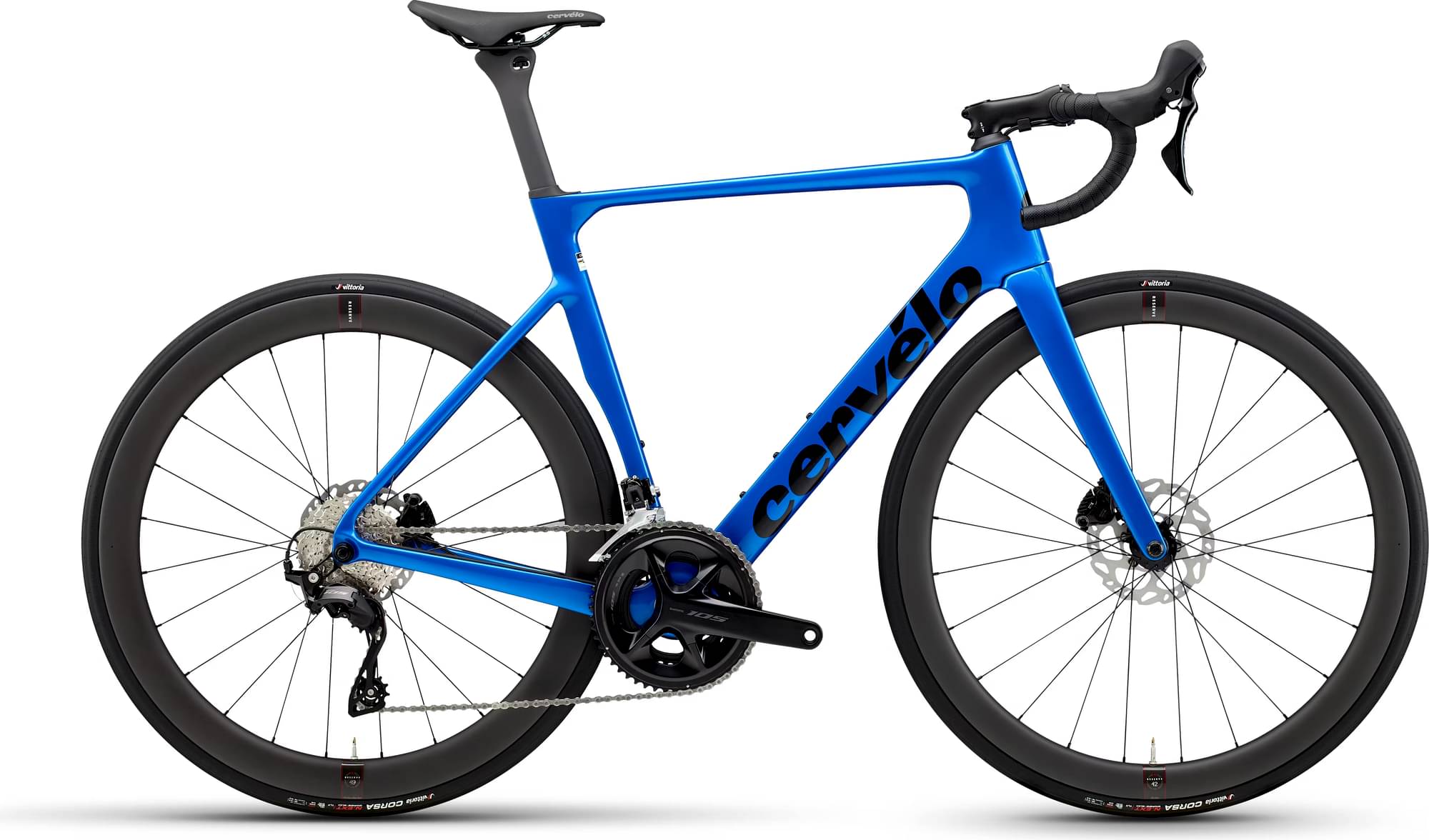

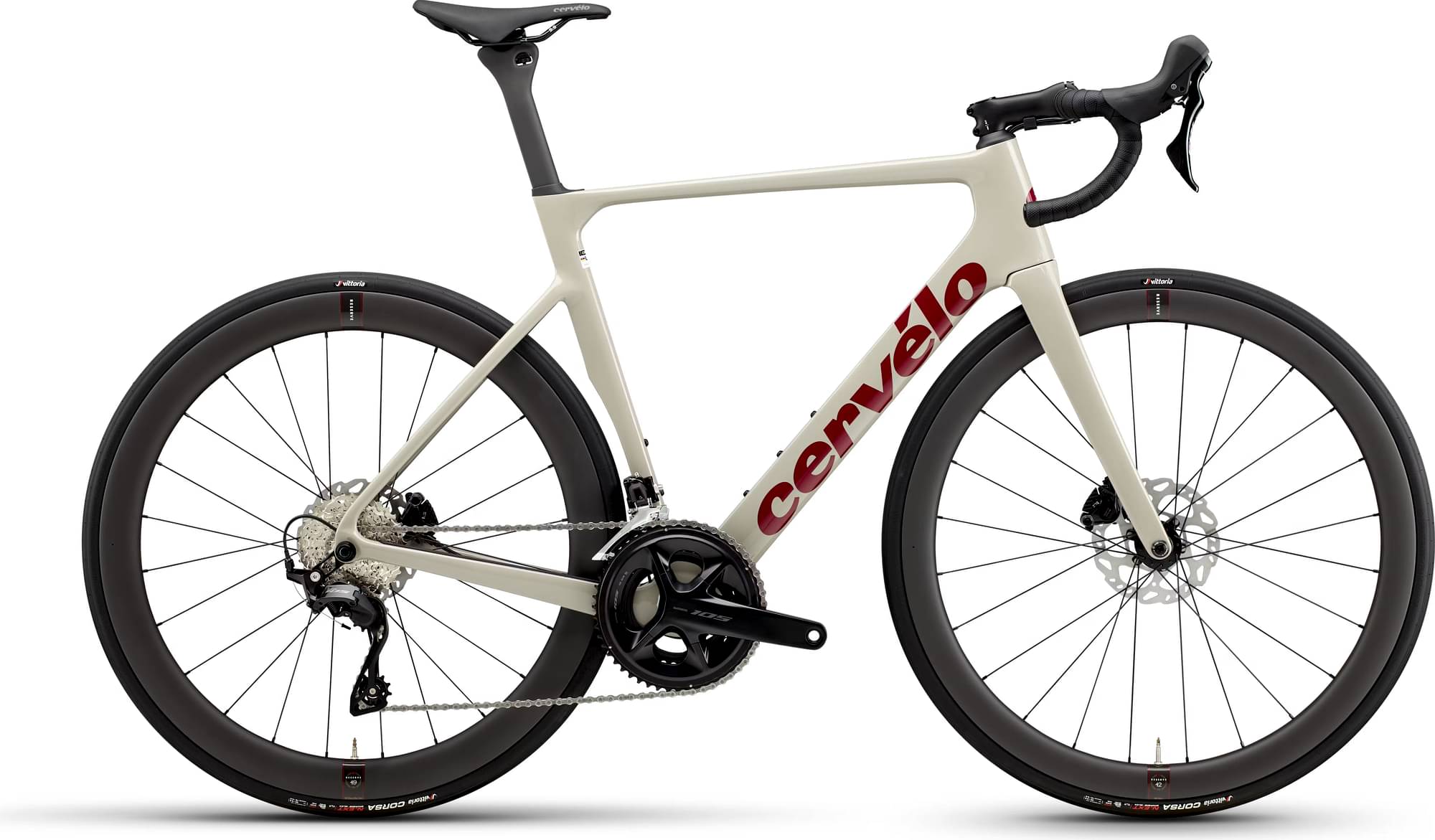

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered Soloist Fork
Drivetrain
Rear Derailleur
Shimano 105, R7100, 12 speed
Front Derailleur
Shimano 105, R7100, 12 speed
Shift Levers
Shimano 105, R7120, 12 speed
Cassette
Shimano 105, 11-34, 12 Speed
Crank
Shimano 105 R7100, 52/36T, 12 Speed
Bottom Bracket
FSA, T47 BBright, 24mm spindle
Chain
Shimano M7100, 12 speed
Wheels
Rims
Front: Reserve 40, 25.5mm IW, Zipp 76, 24H, centerlock, tubeless compatible Rear: Reserve 44, 25mm IW, Zipp 176,12x142mm, HG freehub, 24H, centerlock, tubeless compatible
Tires
Corsa N.EXT TLR G2.0 700x28c
Brakes
Brakes
Shimano 105
Cockpit
Stem
Cervélo ST36 Alloy
Handlebar
Cervélo Alloy, 31.8mm clamp
Headset
FSA IS2 1-1/4 x 1-1/2
Seat
Saddle
Selle Italia Model X SuperFlow FeC
Seatpost
Cervélo SP27 Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.353 mm | 1.377 mm | 1.41 mm | 1.441 mm | 1.471 mm | 1.5 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 264 mm | 264 mm | 266 mm | 266 mm |
| Front Center | 574 mm | 576 mm | 578 mm | 595 mm | 611 mm | 628 mm |
| Rake | 57.5 mm | 51.5 mm | 45.5 mm | 45.5 mm | 45.5 mm | 45.5 mm |
| Trail | 57.3 mm | 57.3 mm | 57.3 mm | 57.3 mm | 57.3 mm | 57.3 mm |
| Stack | 491 mm | 515 mm | 540 mm | 565 mm | 590 mm | 615 mm |
| Reach | 363 mm | 374 mm | 383 mm | 392 mm | 401 mm | 410 mm |
| Top Tube Length | 516 mm | 532 mm | 548 mm | 565 mm | 581 mm | 598 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 86 mm | 106 mm | 130 mm | 156 mm | 184 mm | 211 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 972 mm | 974 mm | 977 mm | 994 mm | 1011 mm | 1028 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 69 mm | 69 mm |
| Standover Height | 708 mm | 748 mm | 774 mm | 798 mm | 824 mm | 848 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
