Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo Carbon, T4 Fork
Cockpit
Headset
FSA IS2 1-1/8 x 1-1/8"
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.19 mm | 1.19 mm | 1.2 mm | 1.21 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 586 mm | 609 mm | 626 mm | 643 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 61 mm | 58 mm | 60 mm | 61 mm |
| Stack | 473 mm | 489 mm | 507 mm | 526 mm |
| Reach | 396 mm | 410 mm | 424 mm | 436 mm |
| Top Tube Length | 526 mm | 548 mm | 564 mm | 580 mm |
| Seat Tube Length | 510 mm | 530 mm | 545 mm | 560 mm |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 90 mm | 105 mm | 125 mm | 145 mm |
| Chainstay Length | 371 mm | 371 mm | 371 mm | 371 mm |
| Wheelbase | 949 mm | 972 mm | 989 mm | 1006 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 737 mm | 753 mm | 771 mm | 790 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview

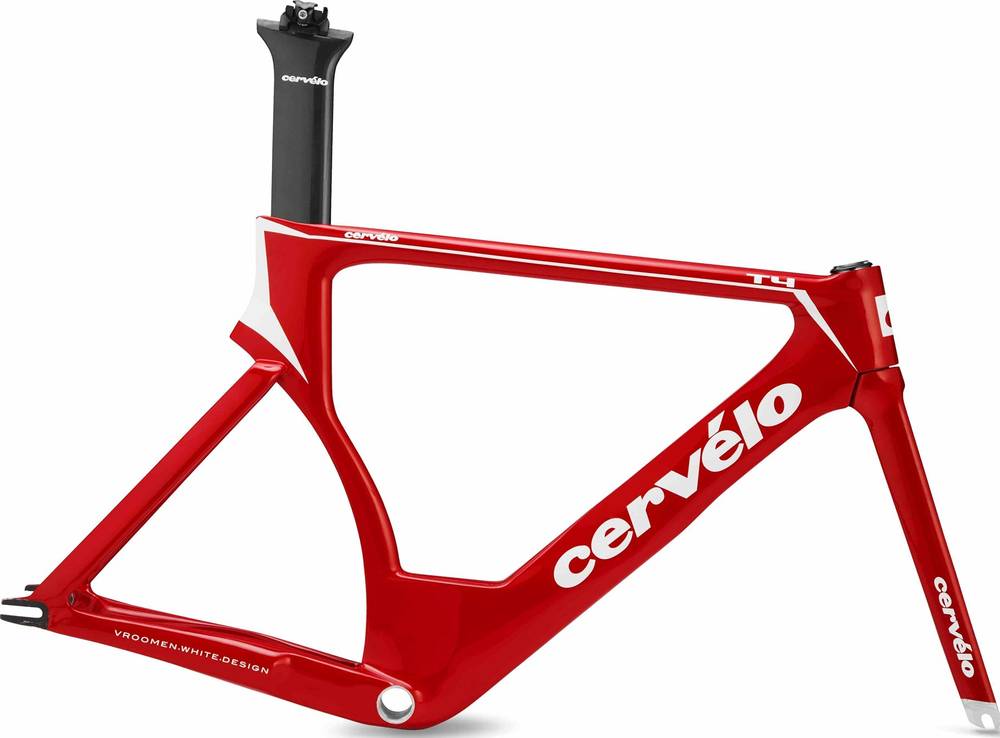

T4 Frame belongs to the Cervelo T4 model. Cervélo released 2 frames variations of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Track frames
If you want to purchase a solid Track frame, it is important to know that the average cost is 2508$. However, this doesn’t mean that if you spend less money on a Track frame, you couldn’t get a decent one. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4500$. Comparing the average cost of a Track frame to this one, you will see that T4 Frame price is 79.43% higher.
Overview of components
Fork material
When it comes to the fork, this frame has a carbon one, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
