Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo Carbon, T4 Fork
Cockpit
Headset
FSA IS2 1-1/8 x 1-1/8"
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.19 mm | 1.19 mm | 1.2 mm | 1.21 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 586 mm | 609 mm | 626 mm | 643 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 61 mm | 58 mm | 60 mm | 61 mm |
| Stack | 473 mm | 489 mm | 507 mm | 526 mm |
| Reach | 396 mm | 410 mm | 424 mm | 436 mm |
| Top Tube Length | 526 mm | 548 mm | 564 mm | 580 mm |
| Seat Tube Length | 510 mm | 530 mm | 545 mm | 560 mm |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 90 mm | 105 mm | 125 mm | 145 mm |
| Chainstay Length | 371 mm | 371 mm | 371 mm | 371 mm |
| Wheelbase | 949 mm | 972 mm | 989 mm | 1006 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 737 mm | 753 mm | 771 mm | 790 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model

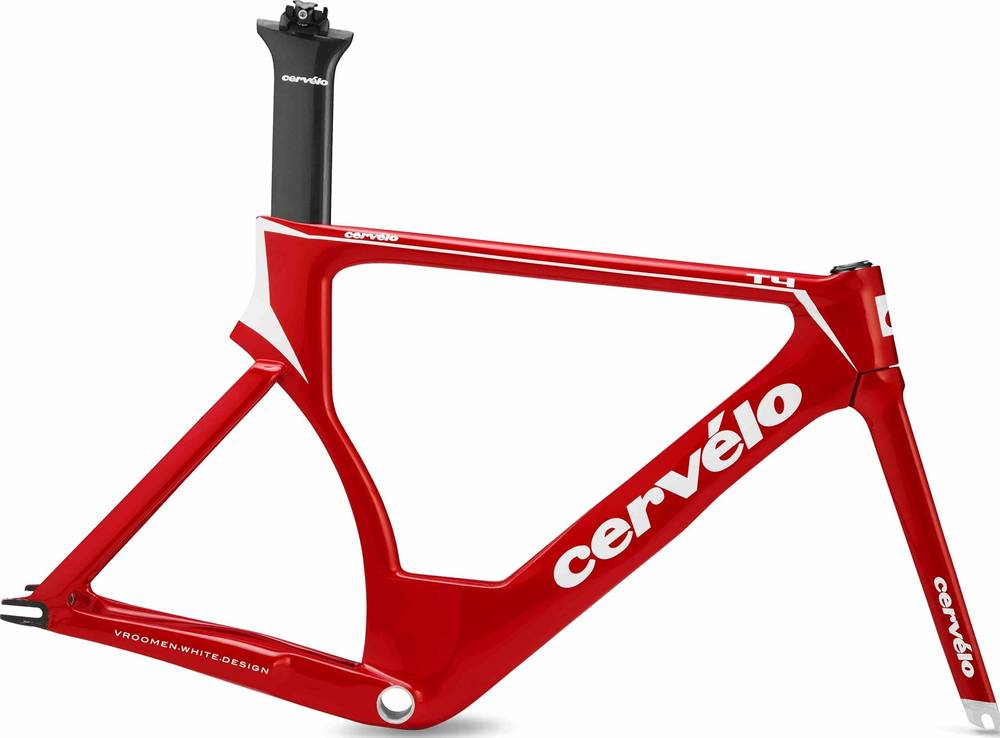

T4 Frame completes the Cervelo T4 model. There are 2 frames that carry this model name.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Track frames average price
According to our math, the average price for a trustworthy Track frame is 2508$. However, you could also get a good Track frame even if you pay a lower amount than the average price. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2018 for 4500$. Comparing this to the average Track frame price, we see that the price is 79.43% more expensive.
T4 Frame components
Fork material
The fork on this frame is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
