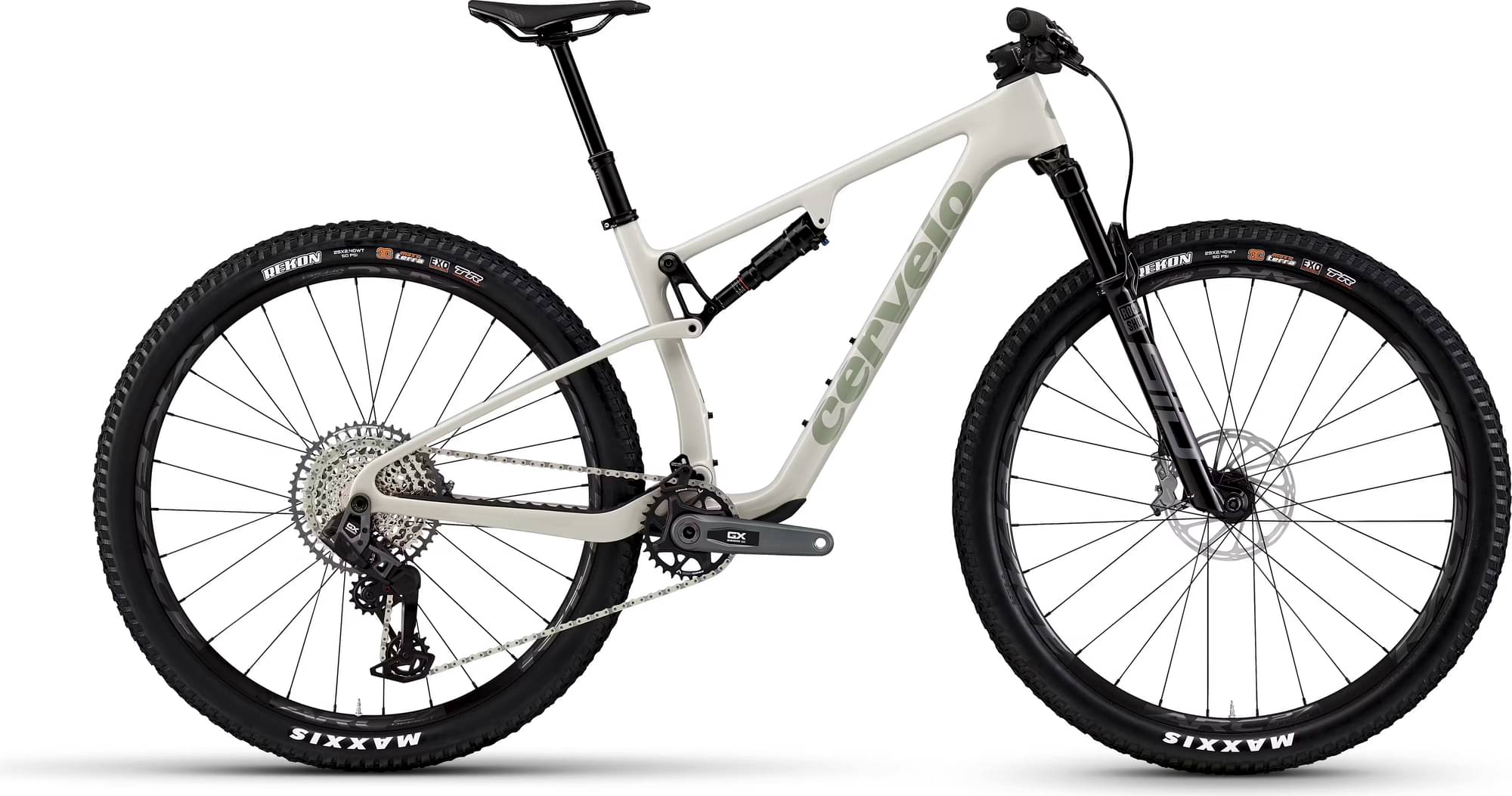

Cervélo ZFS-5 120 GX AXS 2024
2024 Mountain
Estimate price |
7,798$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Fork RockShox SID Select+
-
Groupset GX Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Rockshox SID Select+, DebonAir spring, 3 position crown-adjusted Charger Race Day damper, tapered steerer, 15x110mm Maxle Stealth, 44mm offset, 120mm
Rear Shock
Rockshox SIDLuxe Select+, RL 3 position damper, 190 x 45mm
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS, 12 speed
Shift Levers
SRAM GX AXS Rocker
Cassette
SRAM GX Eagle, 10-52, 12 speed
Crank
SRAM GX Eagle, 32T, Boost 148 DUB
Bottom Bracket
SRAM DUB, BSA 73mm
Chain
SRAM GX, 12 speed
Wheels
Rims
Rear: Race Face ARC Offset 27, 27mm IW, DT Swiss 370, 12x148mm, XD freehub, 28H, 6 bolt, tubeless compatible Front: Race Face ARC Offset 27, 27mm IW, DT Swiss 370, 15x110mm, 24H, 6 bolt, tubeless compatible
Tires
Maxxis Rekon, EXO 60 TPI, 29x2.4
Brakes
Brakes
SRAM Level Bronze 4 Piston
Brake Levers
SRAM Level Bronze Stealth 4 Piston
Cockpit
Stem
Race Face Aeffect R Alloy, 35mm clamp, 0 degree
Handlebar
Race Face Turbine R, 35mm clamp, 780mm width, 20mm rise
Headset
FSA IS2 1-1/2 x 1-1/2
Seat
Saddle
Prologo Dimension NDR T4.0
Seatpost
OneUp V2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.387 mm | 1.326 mm | 1.281 mm | 1.238 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 332 mm |
| Front Center | 692 mm | 718 mm | 746 mm | 779 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 105 mm | 105 mm | 105 mm | 105 mm |
| Stack | 584 mm | 590 mm | 601 mm | 614 mm |
| Reach | 421 mm | 445 mm | 469 mm | 496 mm |
| Top Tube Length | 561.6 mm | 589.1 mm | 617.3 mm | 649.1 mm |
| Seat Tube Angle | 76.5 ° | 76.3 ° | 76.2 ° | 76 ° |
| Head Tube Angle | 67.8 ° | 67.8 ° | 67.8 ° | 67.8 ° |
| Head Tube Length | 96 mm | 102 mm | 114 mm | 128 mm |
| Chainstay Length | 432 mm | 435 mm | 437 mm | 440 mm |
| Wheelbase | 1120 mm | 1149 mm | 1180 mm | 1215 mm |
| Bottom Bracket Drop | 42 mm | 42 mm | 42 mm | 42 mm |
| Standover Height | 746 mm | 744 mm | 744 mm | 744 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
