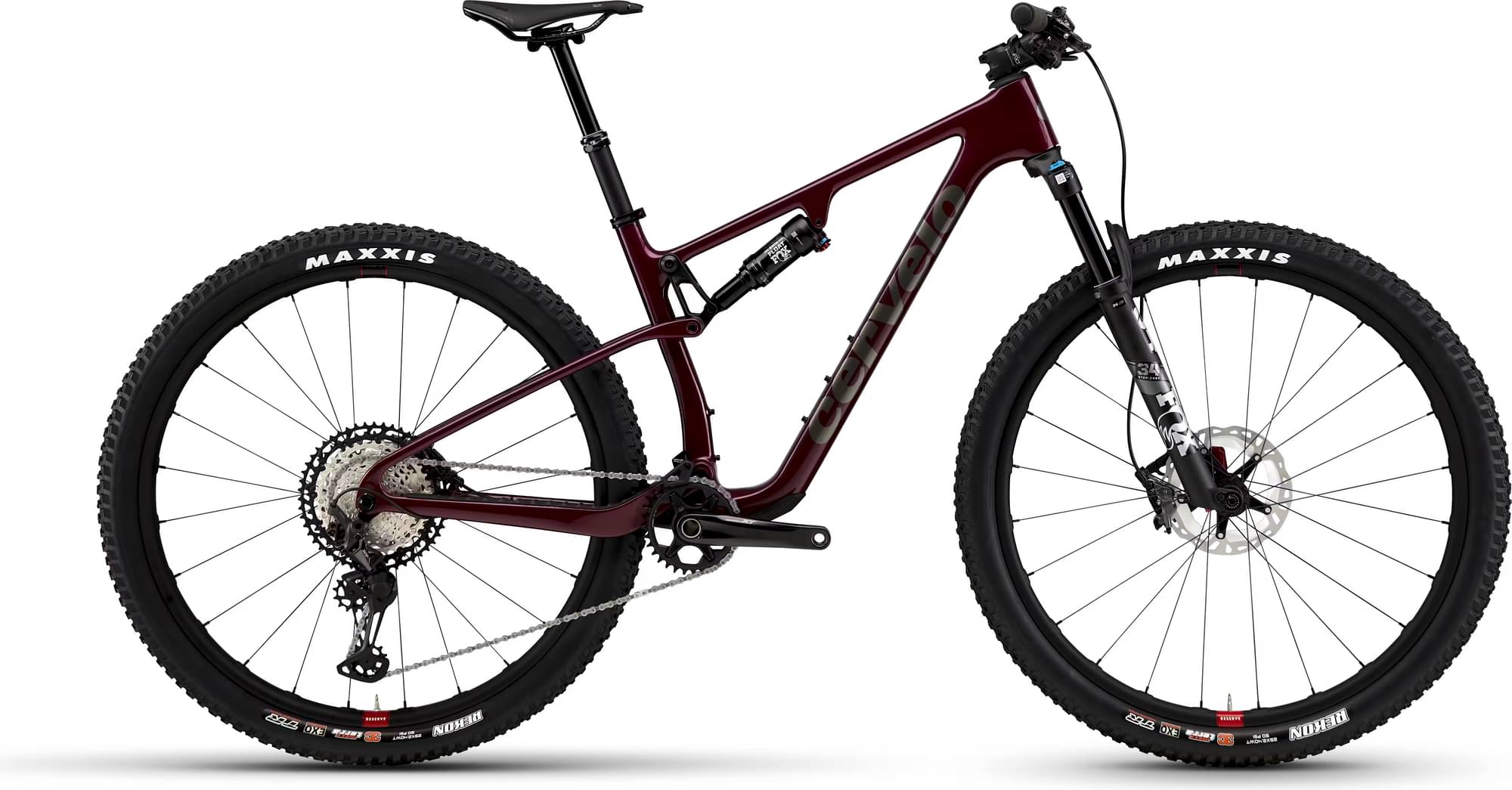

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Fork Fox Performance Elite Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Fox Performance Elite 34 Step-cast, FLOAT EVOL air spring, Fit 4 3-position crown-adjusted damper, tapered steerer, 15x110mm, Kabolt axle, 44mm offset, 120mm travel
Rear Shock
Fox Performance Elite FLOAT, 2 position damper, 190mm x 45mm
Drivetrain
Rear Derailleur
Shimano XT, M8100 SGS, 12 speed
Shift Levers
Shimano XT, M8100, 12 speed
Cassette
Shimano M8100, 10-51, 12 speed
Crank
Shimano XT, M8120 32T, 12 speed
Bottom Bracket
Shimano XT, BSA 73mm
Chain
Shimano M8100, 12 speed
Wheels
Rims
Reserve 28 XC, 28mm IW, DT Swiss 350,12x148mm, MS freehub, 24H, centerlock, tubeless compatible, Reserve 28 XC, 28mm IW, DT Swiss 350,12x148mm, MS freehub, 24H, centerlock, tubeless compatible
Tires
Maxxis Rekon, EXO 60 TPI, 29x2.4
Brakes
Brakes
Shimano XT 4 piston
Brake Levers
Shimano XT M8100 4 Piston
Cockpit
Stem
Race Face Aeffect R Alloy, 35mm clamp, 0 degree
Handlebar
Race Face Next R Carbon, 35mm clamp, 780mm width, 20mm rise
Headset
FSA IS2 1-1/2 x 1-1/2
Seat
Saddle
Prologo Dimension NDR T4.0
Seatpost
Fox Transfer Performance
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.387 mm | 1.326 mm | 1.281 mm | 1.238 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 332 mm |
| Front Center | 692 mm | 718 mm | 746 mm | 779 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 105 mm | 105 mm | 105 mm | 105 mm |
| Stack | 584 mm | 590 mm | 601 mm | 614 mm |
| Reach | 421 mm | 445 mm | 469 mm | 496 mm |
| Top Tube Length | 561.6 mm | 589.1 mm | 617.3 mm | 649.1 mm |
| Seat Tube Angle | 76.5 ° | 76.3 ° | 76.2 ° | 76 ° |
| Head Tube Angle | 67.8 ° | 67.8 ° | 67.8 ° | 67.8 ° |
| Head Tube Length | 96 mm | 102 mm | 114 mm | 128 mm |
| Chainstay Length | 432 mm | 435 mm | 437 mm | 440 mm |
| Wheelbase | 1120 mm | 1149 mm | 1180 mm | 1215 mm |
| Bottom Bracket Drop | 42 mm | 42 mm | 42 mm | 42 mm |
| Standover Height | 746 mm | 744 mm | 744 mm | 744 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
