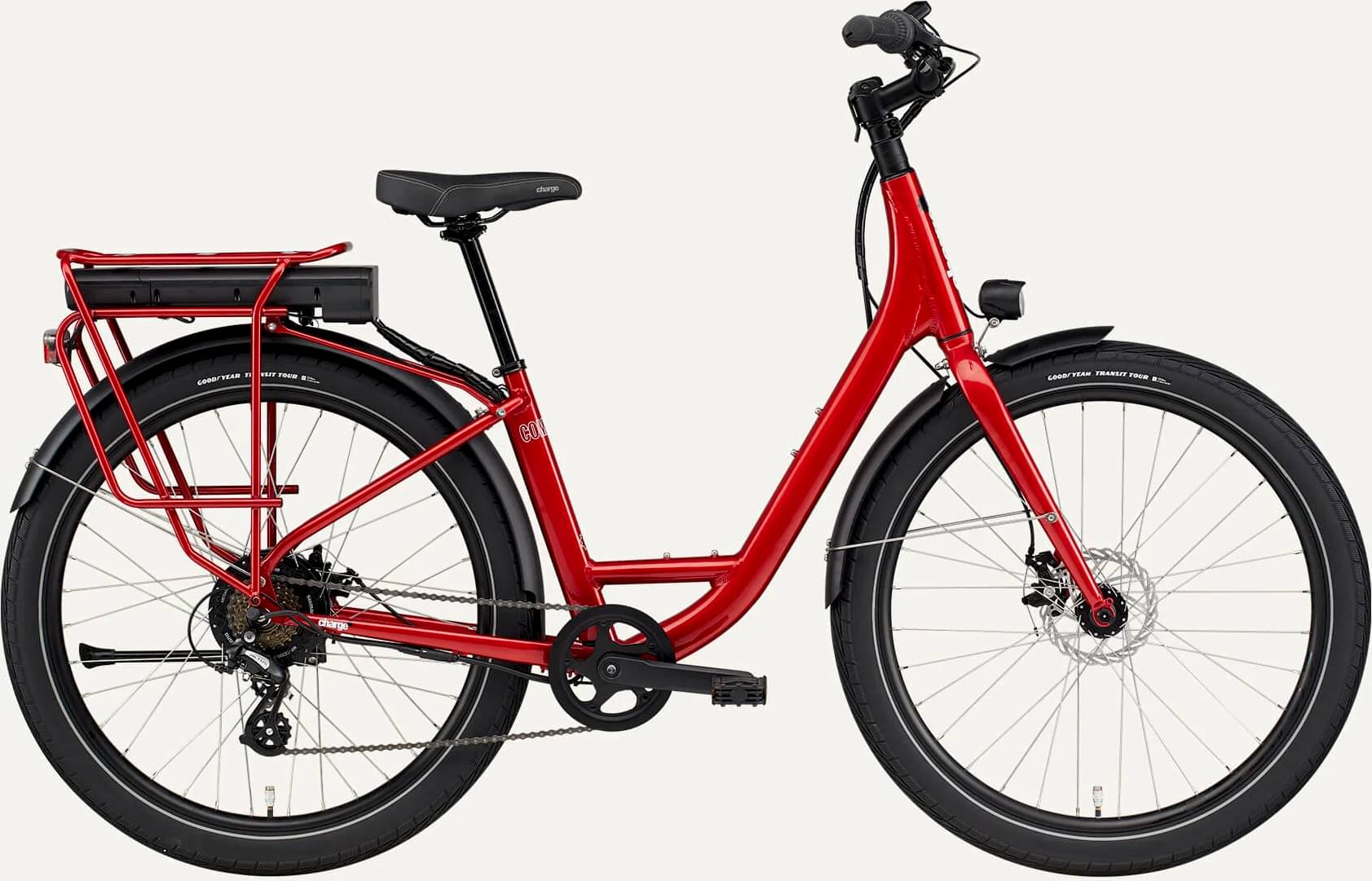

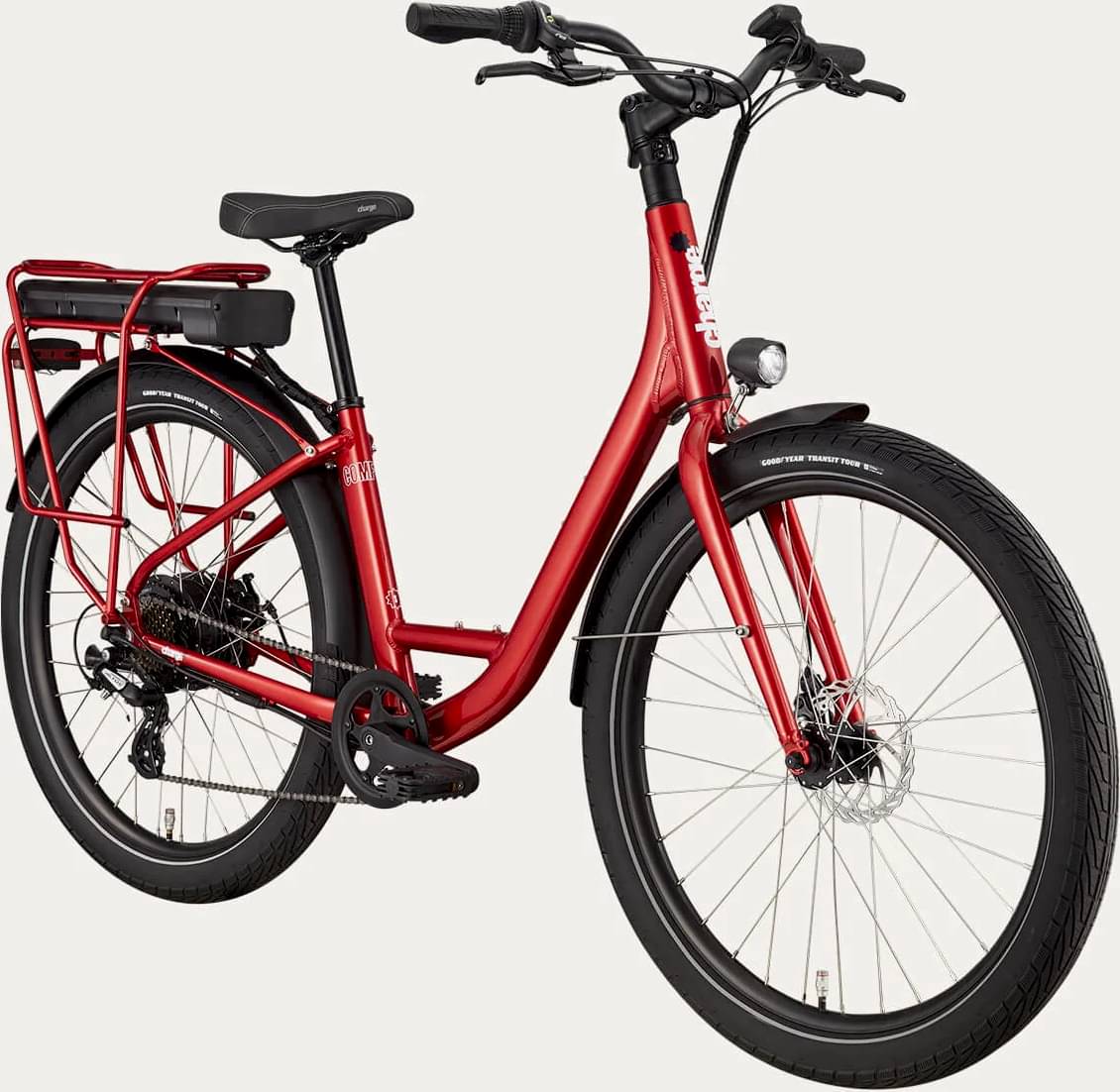

charge Comfort 2 Step-Thru 2024
2024 E-bike
Estimate price |
1,899$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Suspension Rigid -
Motor Bafang 250W hub-drive -
Battery 36V, 11.6 Ah (418Wh) Removable Rechargeable Li Ion Battery with Samsung Cells. -
Drivetrain 1 × 7 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lightweight and durable 6061 Aluminum
Suspension Fork
Lightweight 6061 aluminum (1 1/8” steerer)
Drivetrain
Rear Derailleur
7 speed
Shift Levers
7 speed shifter with optical gear display
Crank
Alloy 38 teeth. (Length: 170mm)
Chain
7 speed
Pedals
Fiberglass reinforced folding Nylon pedal. (Size: 9/16)
Wheels
Rims
Front: 27.5" alloy, 32 hole double wall rim, with alloy loose ball bearing hub, Rear: 27.5" alloy, 36 hole double wall rim, with Bafang Hub Drive Motor
Tires
Goodyear Transit Tour 27.5 x 2.6” puncture resistant with reflective sidewalls
Brakes
Brakes
Cable actuated disc brakes with 160mm rotors front and rear
Cockpit
Stem
90 degree rotateable stem with +7 degree rise. (Size: 31.8mm)
Handlebar
Lightweight 6061 Aluminum with 60mm rise to provide heads up, confident handling. (Size: 31.8)
Grips
Charge Comfort Ergo Soft Rubber Grip
Seat
Saddle
Ergonomic Charge Comfort+ Saddle. Width: 205 mm
Seatpost
Lightweight and durable 6061 Aluminum. 27.2 diameter x 300 length
Motor & Battery
Motor
250W Bafang hub geared motor
Battery
36V, 11.6 Ah (418Wh) Removable Rechargeable Li Ion Battery with Samsung Cells.
Charger
36V, 2 Amp Battery Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.706 mm |
| Bottom Bracket Height | 282 mm |
| Front Center | 659 mm |
| Rake | 60 mm |
| Trail | 56 mm |
| Stack | 650 |
| Reach | 381 mm |
| Top Tube Length | 597 mm |
| Seat Tube Angle | 71.5 ° |
| Seat Tube Length | 419 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 168 mm |
| Chainstay Length | 465 mm |
| Wheelbase | 1113 mm |
| Bottom Bracket Drop | 76 mm |
| Standover Height | 429 mm |
| Wheels | 650 |
| Rider Min Height | 120 cm |
