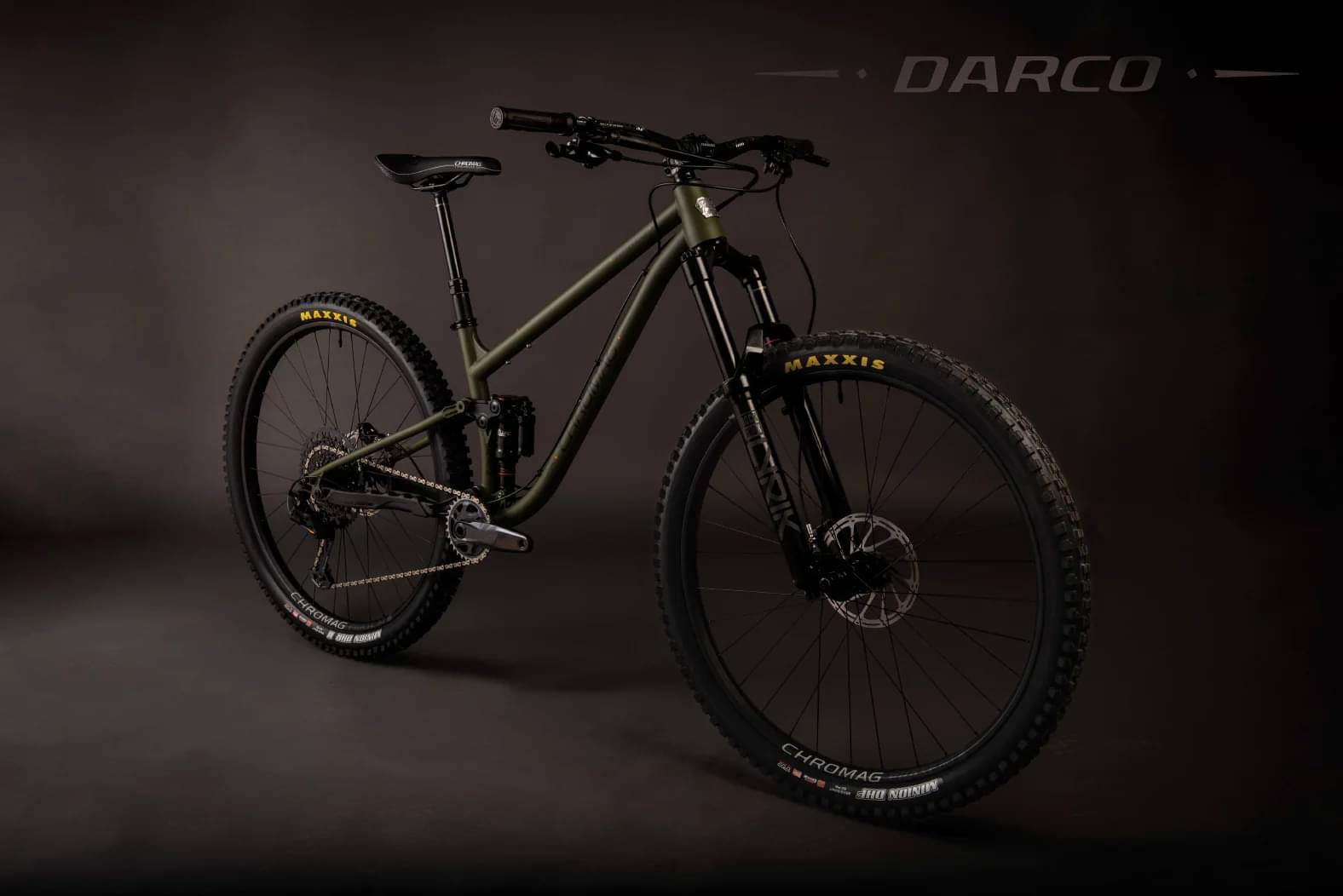

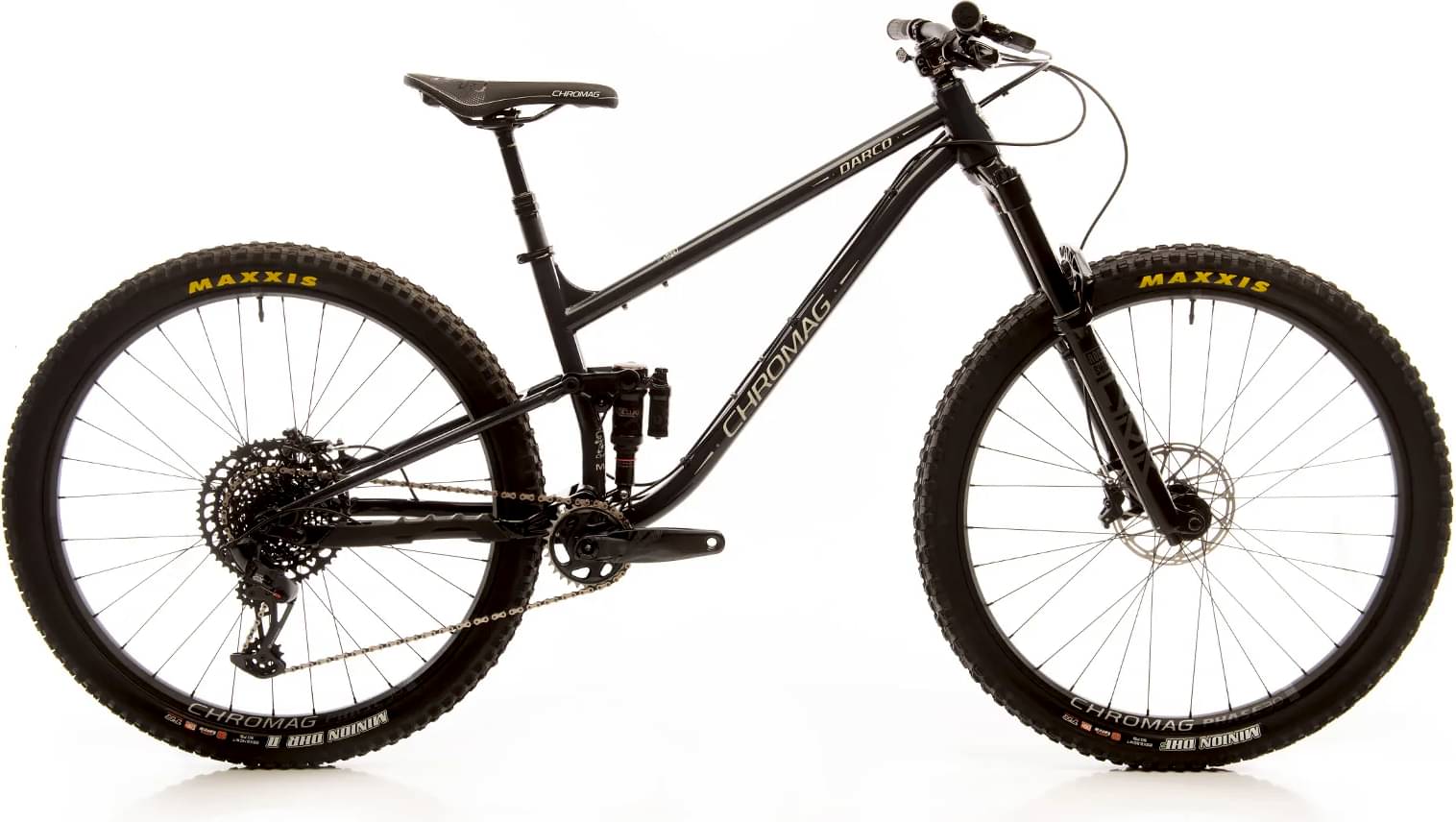

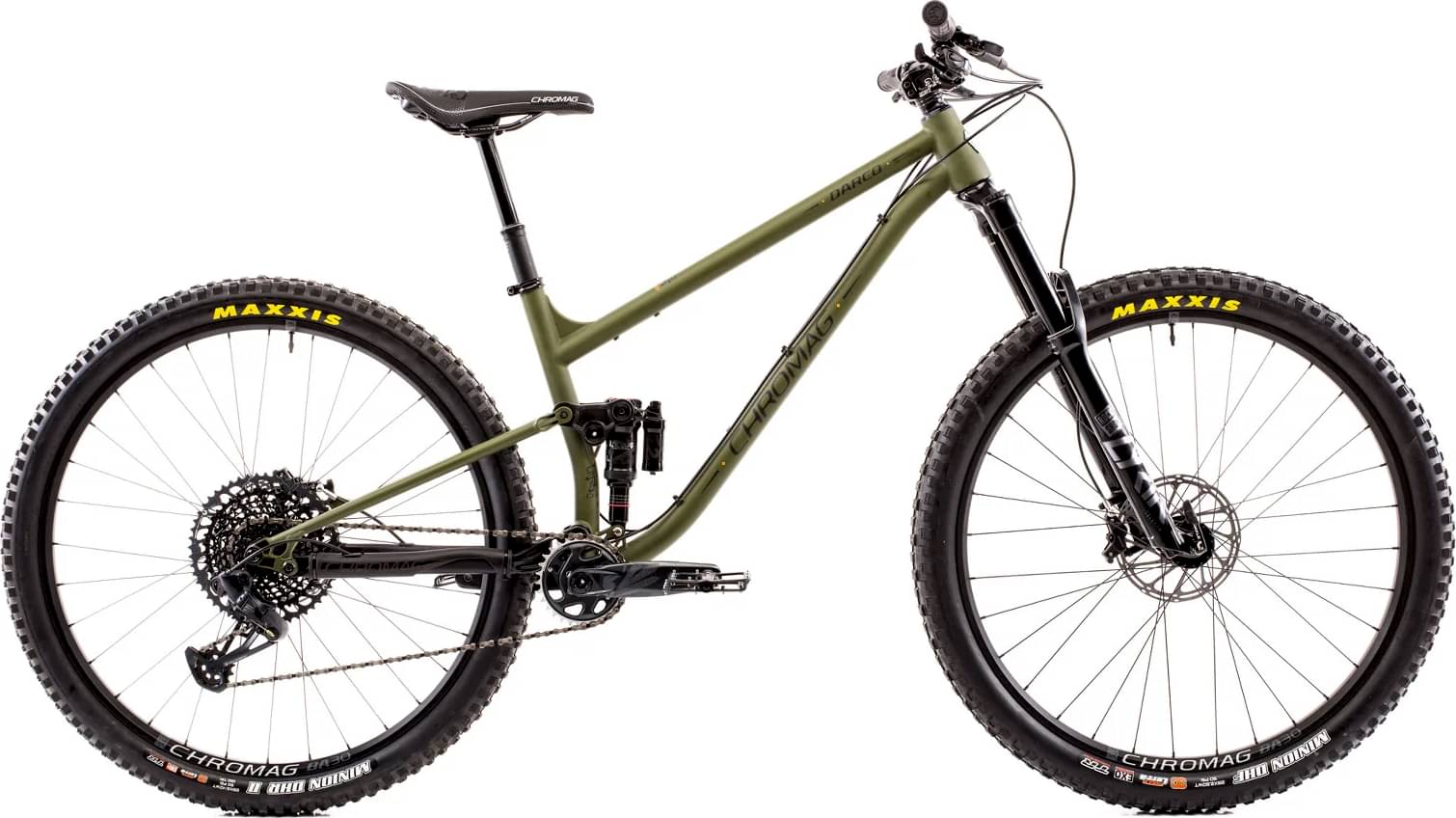

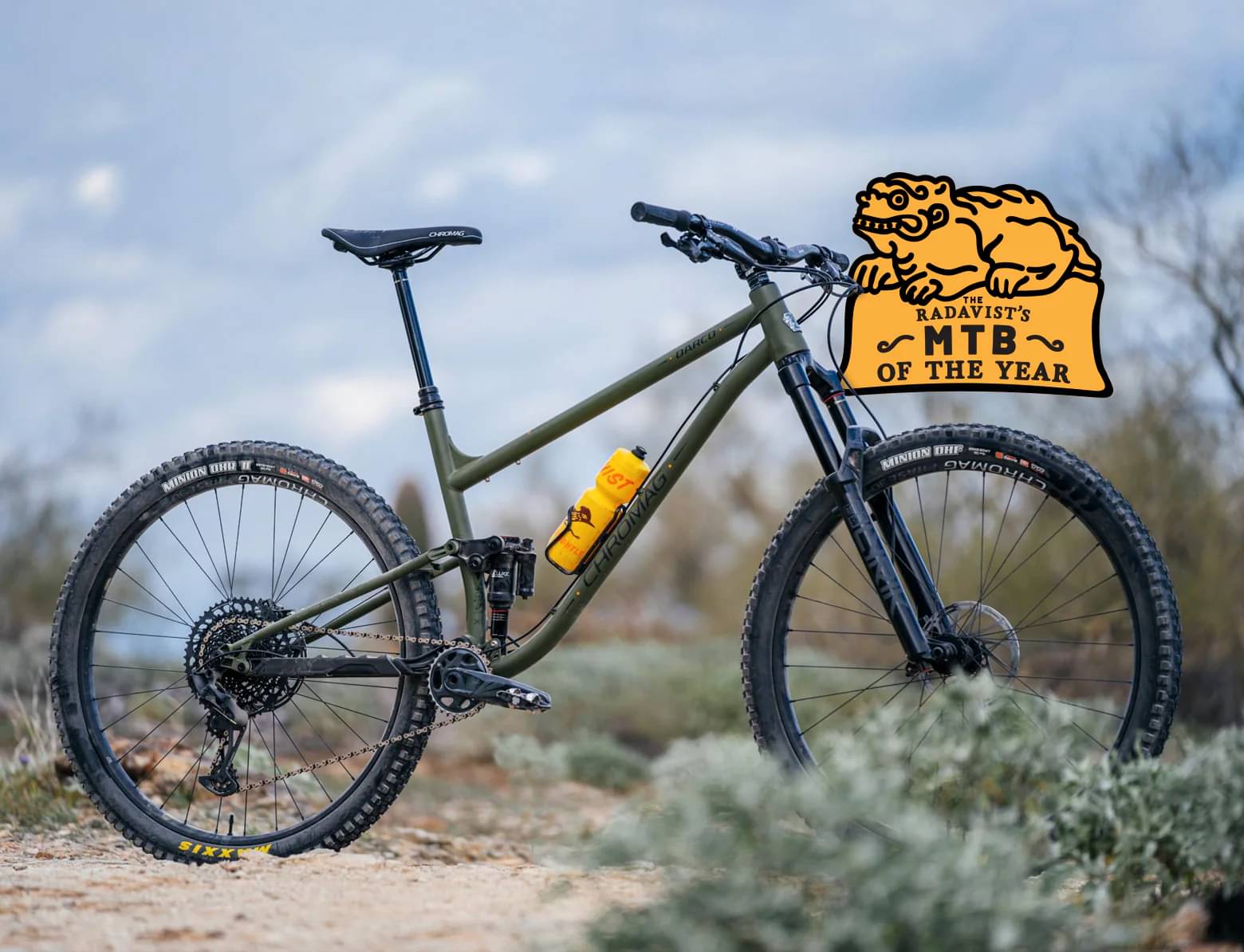

Chromag Darco G2 2024
2024 Mountain
Estimate price |
4,238$
Weight | 15.76 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Travel Front 160mm -
Travel Rear 120mm -
Fork RockShox Lyrik Select+
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 165cm
MD
163cm - 174cm
MD/LG
172cm - 183cm
LG
181cm - 192cm
XL
190cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Rockshox Lyrik Select+ 160mm, 0 Tokens
Rear Shock
Rockshox Super Deluxe Air Ultimate, 2 Tokens
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM GX Eagle 10-52t
Crank
SRAM GX 170mm
Bottom Bracket
73mm Threaded
Chain
SRAM GX Eagle
Wheels
Front Hub
Chromag R4
Rear Hub
Chromag R4
Rims
Chromag 29" Phase30
Tires
Maxxis Minion DHF/DHR
Brakes
Brakes
SRAM Code RSC
Cockpit
Stem
Chromag HiFi BSX 40mm
Handlebar
Chromag OSX 25mm Rise, 800mm
Grips
Chromag Format
Headset
44-56 Semi Integrated
Seat
Saddle
Chromag Trailmaster DT
Seatpost
RockShox Reverb
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.371 mm | 1.307 mm | 1.269 mm | 1.228 mm | 1.208 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 782 mm | 804 mm | 824 mm | 852 mm | 873 mm |
| Rake | 44 mm | 44 mm | 44 mm | 43 mm | 44 mm |
| Trail | 134 mm | 134 mm | 134 mm | 135 mm | 134 mm |
| Stack | 617 mm | 617 mm | 622 mm | 631 mm | 640 mm |
| Reach | 450 mm | 472 mm | 490 mm | 514 mm | 530 mm |
| Top Tube Length | 581 mm | 603 mm | 622 mm | 648 mm | 666 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 350 mm | 380 mm | 410 mm | 440 mm | 470 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1214 mm | 1236 mm | 1256 mm | 1284 mm | 1305 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 677 mm | 707 mm | 736 mm | 765 mm | 795 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 163 cm | 172 cm | 181 cm | 190 cm |
| Rider Max Height | 165 cm | 174 cm | 183 cm | 192 cm | 200 cm |
