Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Travel Front 170mm -
Fork RockShox ZEB Ultimate
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 165cm
MD
163cm - 174cm
MD/LG
172cm - 183cm
LG
181cm - 192cm
XL
190cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components

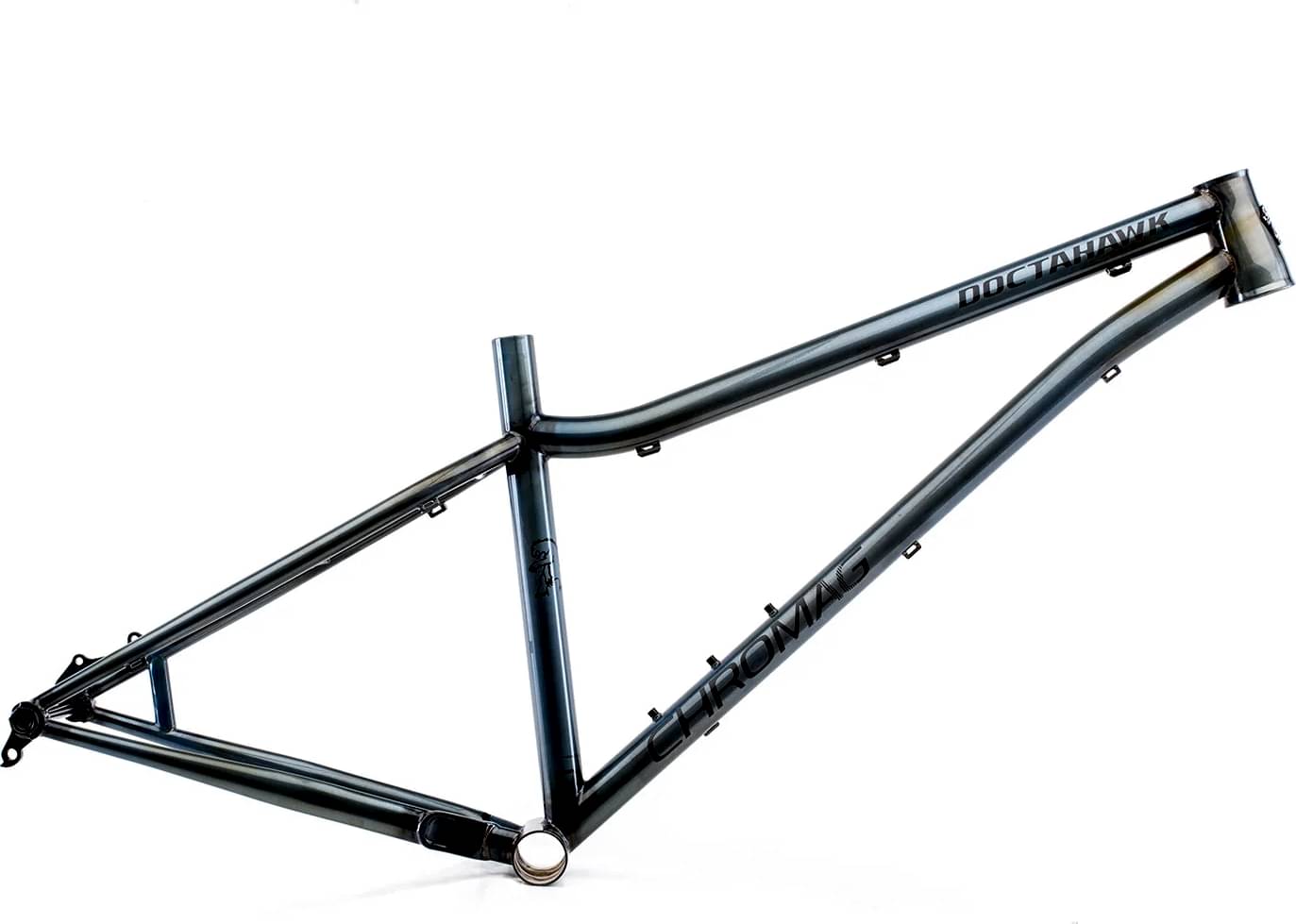

Frame
Suspension Fork
Rock Shox Zeb Ultimate 170mm Boost 110x15mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Shift Levers
SRAM X01 Eagle
Cassette
SRAM X01 Eagle 10-52t
Crank
SRAM X1 170mm
Bottom Bracket
92mm Press Fit (PF92)*
Chain
SRAM X01 Eagle
Wheels
Front Hub
Chromag R4
Rear Hub
Chromag R4
Rims
Chromag 29" Phase30
Tires
Maxxis Minion DHF/DHR
Brakes
Brakes
SRAM Code RSC
Cockpit
Stem
Chromag HiFi 40mm
Handlebar
Chromag OSX 25mm Rise, 800mm
Grips
Chromag Format
Headset
44-56 Semi Integrated
Seat
Saddle
Chromag Trailmaster DT
Seatpost
RockShox Reverb
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.487 mm | 1.415 mm | 1.352 mm | 1.302 mm | 1.257 mm |
| Bottom Bracket Height | 323 mm | 323 mm | 323 mm | 323 mm | 323 mm |
| Front Center | 780 mm | 802 mm | 828 mm | 862 mm | 892 mm |
| Rake | 38 mm | 38 mm | 42 mm | 46 mm | 46 mm |
| Trail | 152 mm | 152 mm | 148 mm | 143 mm | 143 mm |
| Stack | 638 mm | 638 mm | 638 mm | 647 mm | 656 mm |
| Reach | 429 mm | 451 mm | 472 mm | 497 mm | 522 mm |
| Top Tube Length | 581 mm | 602 mm | 623 mm | 651 mm | 678 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 356 mm | 382 mm | 419 mm | 445 mm | 482 mm |
| Head Tube Angle | 62.5 ° | 62.5 ° | 62.5 ° | 62.5 ° | 62.5 ° |
| Head Tube Length | 105 mm | 105 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 435 mm | 435 mm |
| Wheelbase | 1201 mm | 1223 mm | 1249 mm | 1293 mm | 1323 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Standover Height | 669 mm | 694 mm | 730 mm | 756 mm | 792 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 163 cm | 172 cm | 181 cm | 190 cm |
| Rider Max Height | 165 cm | 174 cm | 183 cm | 192 cm | 200 cm |
