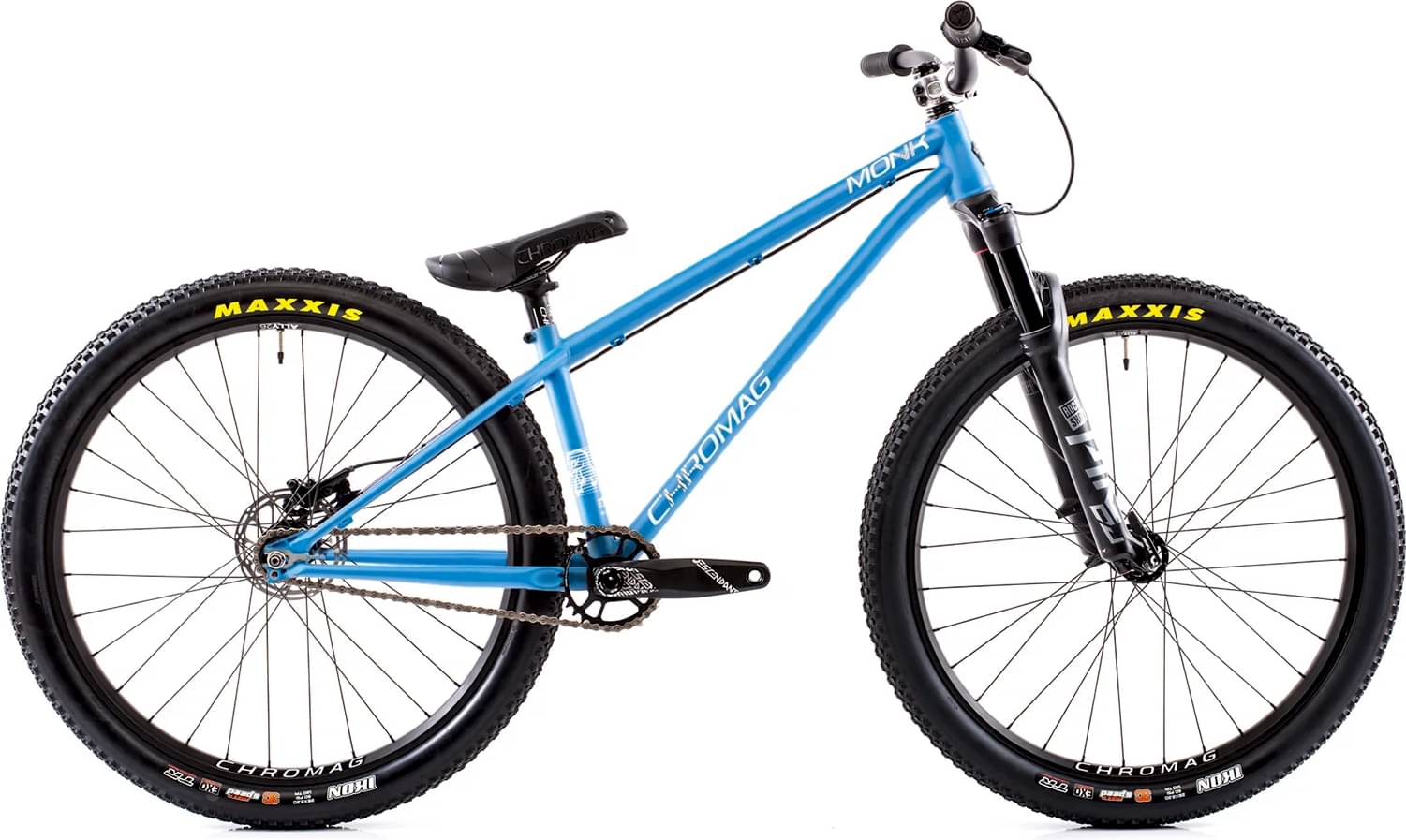

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

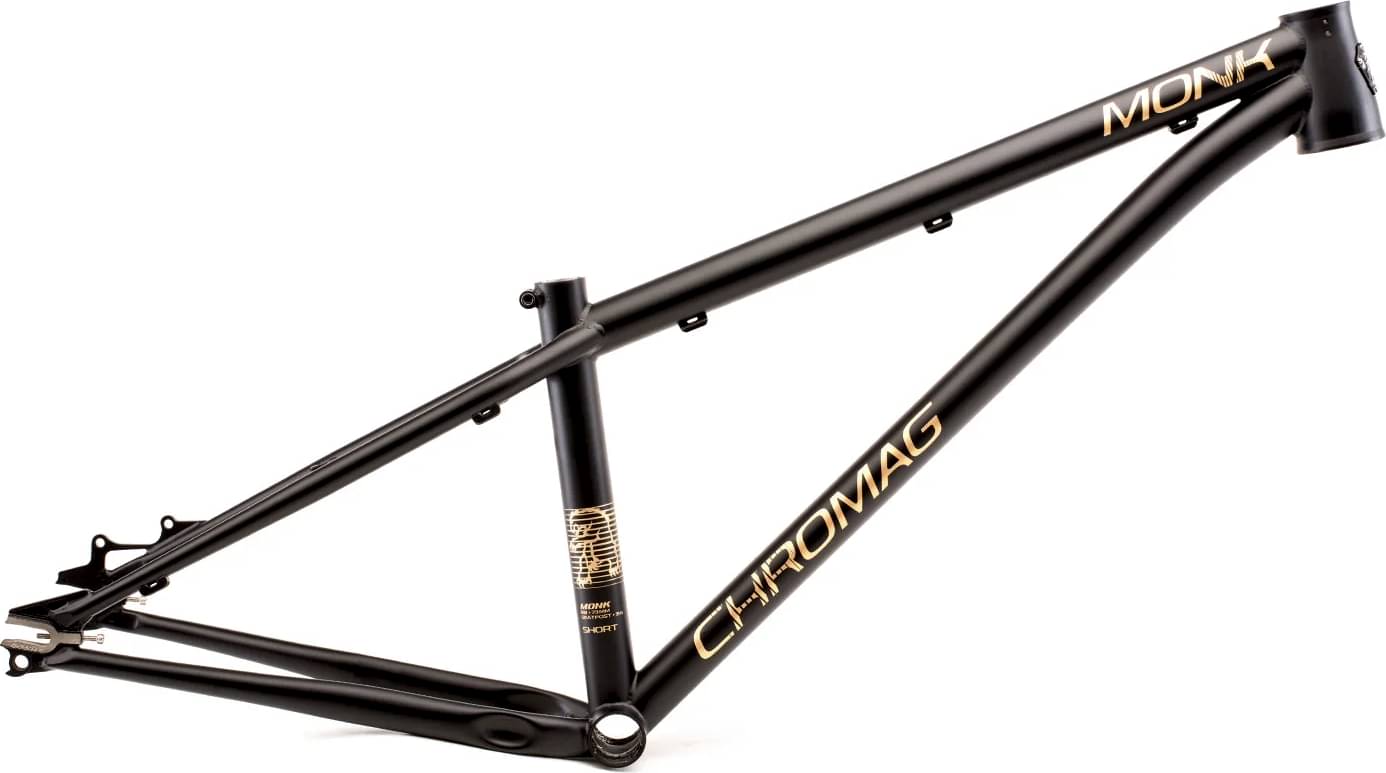

Frame Steel -
Travel Front 100mm -
Fork RockShox Pike DJ
-
Groupset Truvativ Descendant -
Suspension Hardtail -
Drivetrain Single Speed -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
X-Short
137cm - 168cm
Short
160cm - 178cm
Long
170cm - 188cm
X-Long
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components

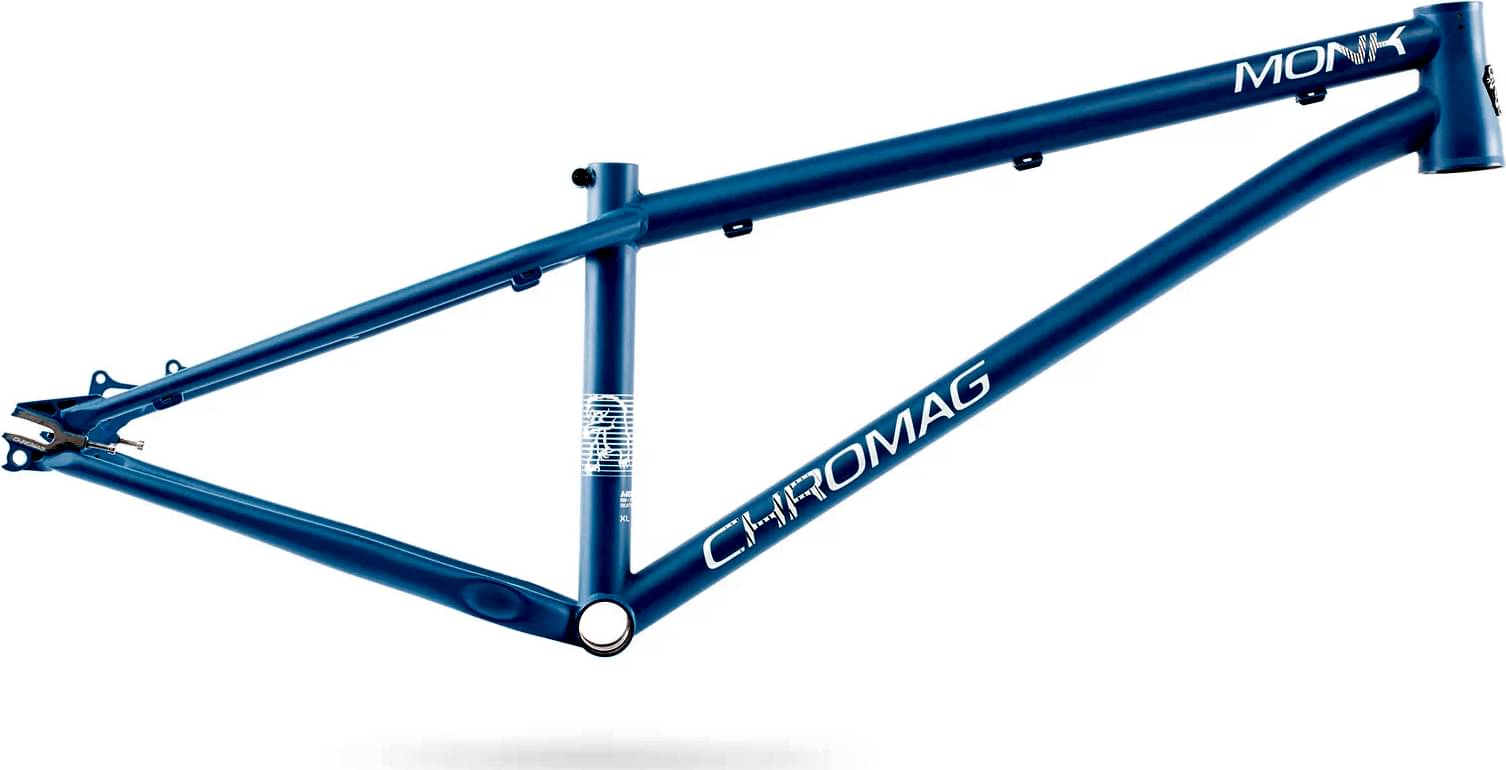

Frame
Suspension Fork
Rock Shox Pike DJ 100mm, 100x15mm
Drivetrain
Cassette
16t Single Speed
Crank
Descendant 170mm
Bottom Bracket
73mm Threaded
Chain
SS
Wheels
Front Hub
Chromag D1 4 pawl 32h
Rear Hub
Chromag D1 4 pawl 32h
Rims
Chromag Ally 26" 32h
Tires
Maxxis Ikon
Brakes
Brakes
SRAM Level (Rear Only)
Cockpit
Stem
Chromag HiFi BSX 31mm
Handlebar
Chromag FU40 40mm Rise, 800mm
Grips
Chromag Wax

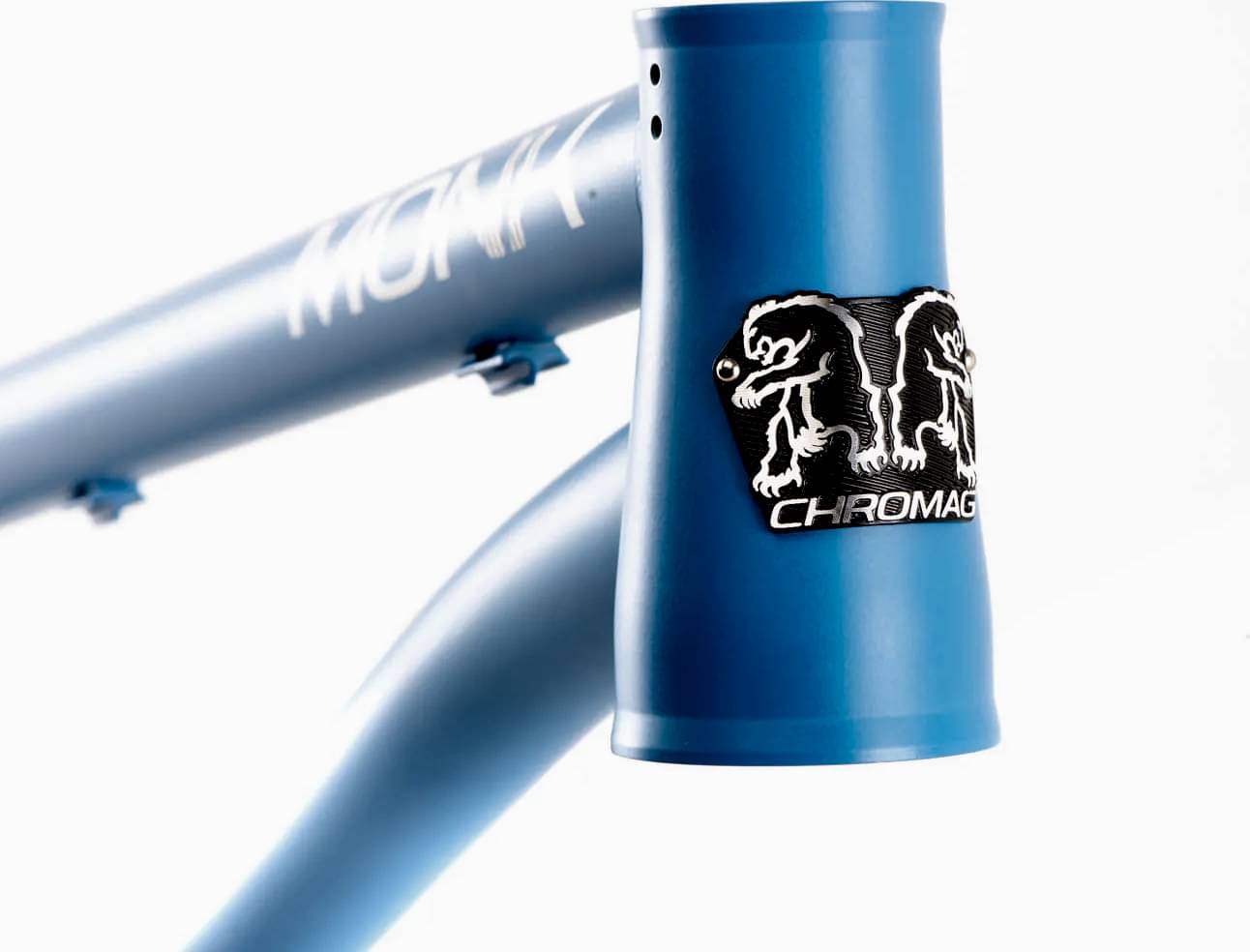

Headset
44-56 Semi Integrated
Seat
Saddle
Chromag Overture
Seatpost
Chromag Bassix 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | X-Short | Short | Long | X-Long |
|---|---|---|---|---|
| Stack Reach Ratio | 1.442 mm | 1.354 mm | 1.276 mm | 1.248 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm | 318 mm |
| Front Center | 614 mm | 639 mm | 664 mm | 689 mm |
| Rake | 35 mm | 35 mm | 35 mm | 28 mm |
| Trail | 88 mm | 88 mm | 88 mm | 95 mm |
| Stack | 555 mm | 555 mm | 555 mm | 574 mm |
| Reach | 385 mm | 410 mm | 435 mm | 460 mm |
| Top Tube Length | 520 mm | 545 mm | 570 mm | 595 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 310 mm | 310 mm | 310 mm | 310 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 115 mm |
| Chainstay Length | 381 mm | 381 mm | 381 mm | 381 mm |
| Wheelbase | 993 mm | 1018 mm | 1043 mm | 1068 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 619 mm | 619 mm | 619 mm | 619 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 137 cm | 160 cm | 170 cm | 180 cm |
| Rider Max Height | 168 cm | 178 cm | 188 cm | 198 cm |
