Bike details
Overview
Key information split into simple groups.

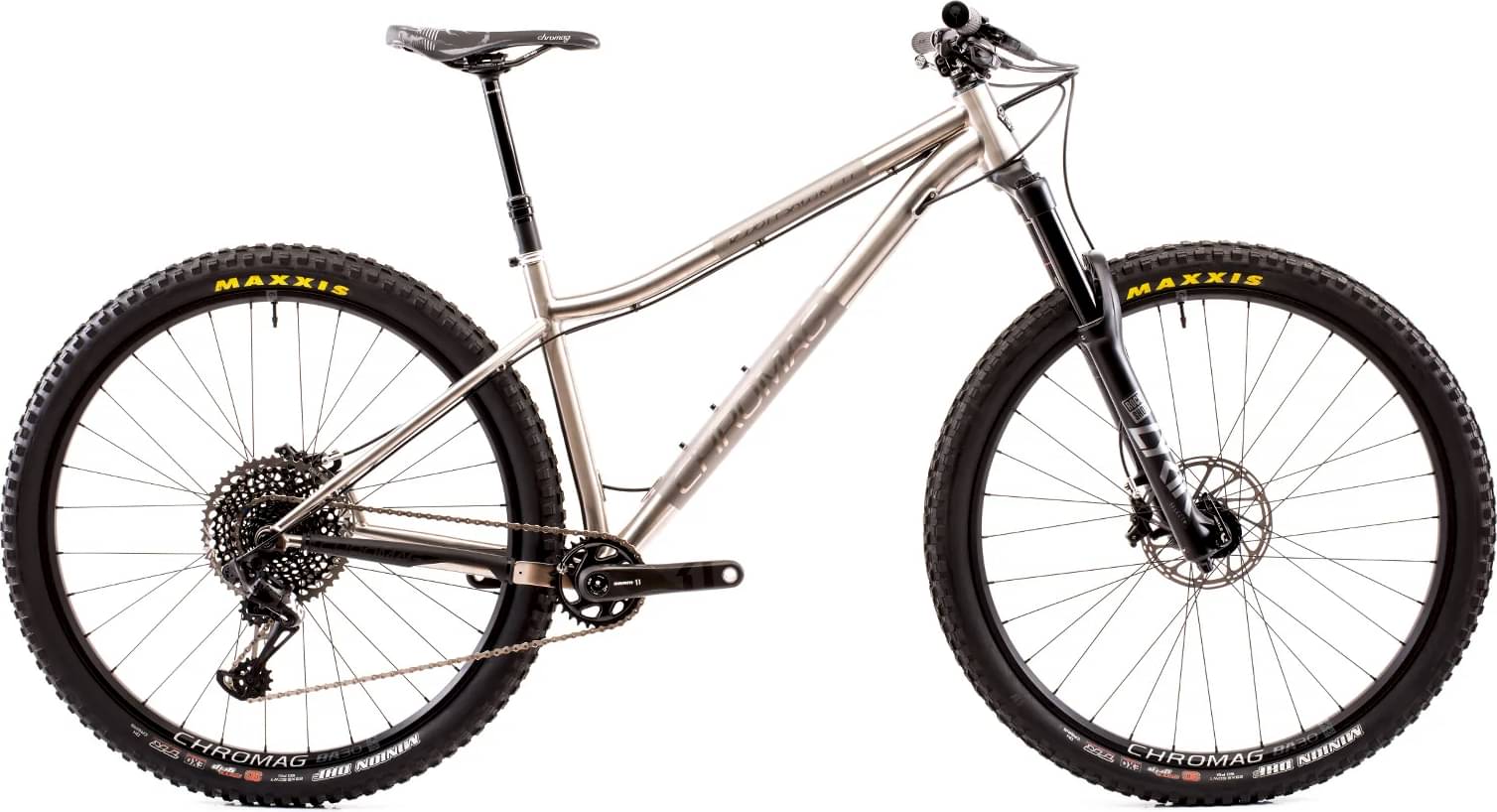

Bike summary
-
-
Frame Titanium -
Travel Front 160mm -
Fork RockShox Lyrik Select+
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 165cm
MD
163cm - 174cm
MD/LG
172cm - 183cm
LG
181cm - 192cm
XL
190cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components

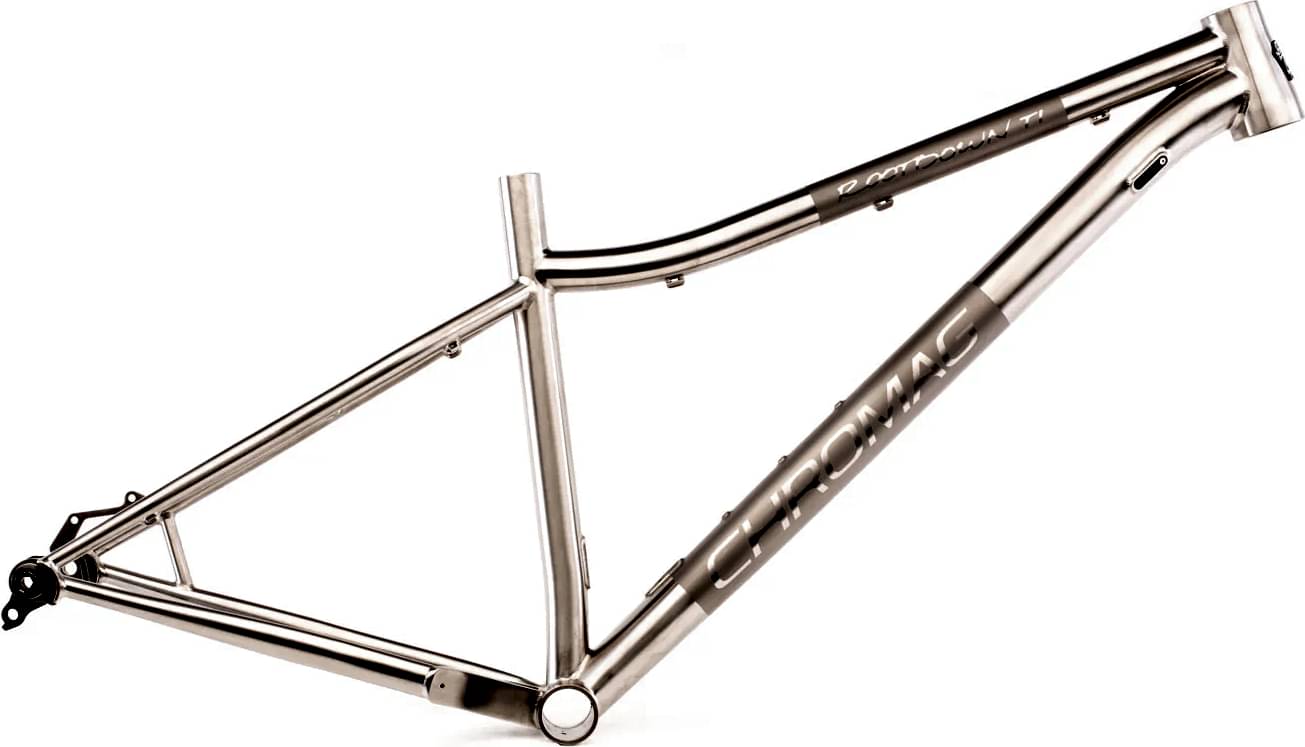

Frame
Suspension Fork
Rock Shox Lyrik Select+ 160mm Boost 110x15mm
Drivetrain
Rear Derailleur
SRAM X0 Transmission
Shift Levers
SRAM AXS Pod
Cassette
SRAM X0 Eagle Transmission
Crank
X0 Eagle Transmission 170mm

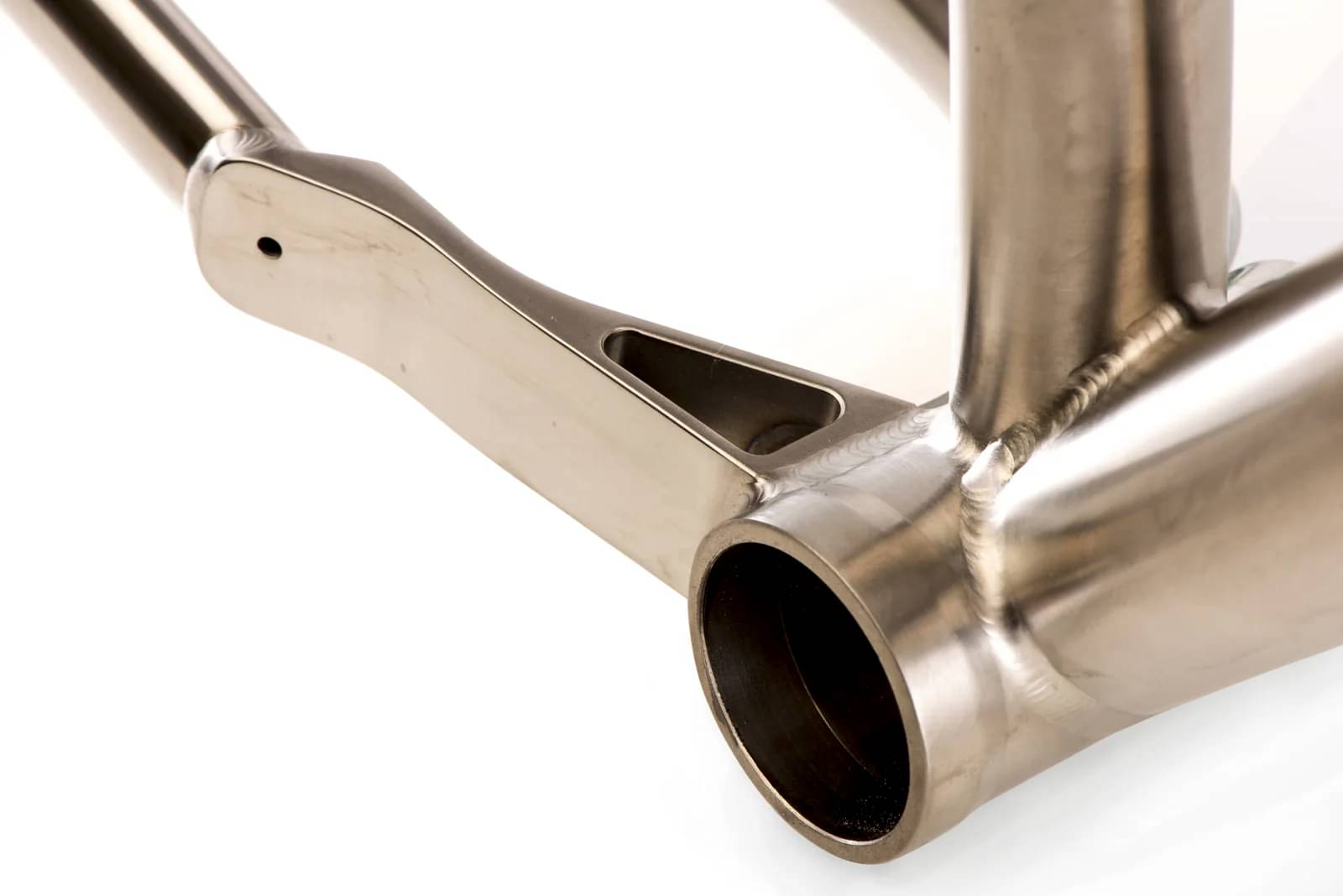

Bottom Bracket
92mm Press Fit (PF92)*
Chain
SRAM X0 Transmission Flattop
Wheels
Front Hub
Chromag R4
Rear Hub
Chromag R4
Rims
Chromag 29" Phase30
Tires
Maxxis Minion DHF/DHR
Brakes
Brakes
SRAM Code RSC
Cockpit
Stem
Chromag HiFi BSX 40mm
Handlebar
Chromag OSX 25mm Rise, 800mm
Grips
Chromag Format
Headset
44-56 Semi Integrated
Seat
Saddle
Chromag Trailmaster DT
Seatpost
RockShox Reverb AXS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.496 mm | 1.413 mm | 1.38 mm | 1.331 mm | 1.306 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 762 mm | 787 mm | 808 mm | 836 mm | 857 mm |
| Rake | 51 mm | 51 mm | 51 mm | 50 mm | 51 mm |
| Trail | 126 mm | 126 mm | 126 mm | 127 mm | 126 mm |
| Stack | 630 mm | 630 mm | 639 mm | 648 mm | 657 mm |
| Reach | 421 mm | 446 mm | 463 mm | 487 mm | 503 mm |
| Top Tube Length | 578 mm | 603 mm | 622 mm | 648 mm | 667 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 368 mm | 406 mm | 431 mm | 456 mm | 494 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1177 mm | 1202 mm | 1223 mm | 1251 mm | 1272 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 677 mm | 714 mm | 738 mm | 762 mm | 799 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 163 cm | 172 cm | 181 cm | 190 cm |
| Rider Max Height | 165 cm | 174 cm | 183 cm | 192 cm | 200 cm |
