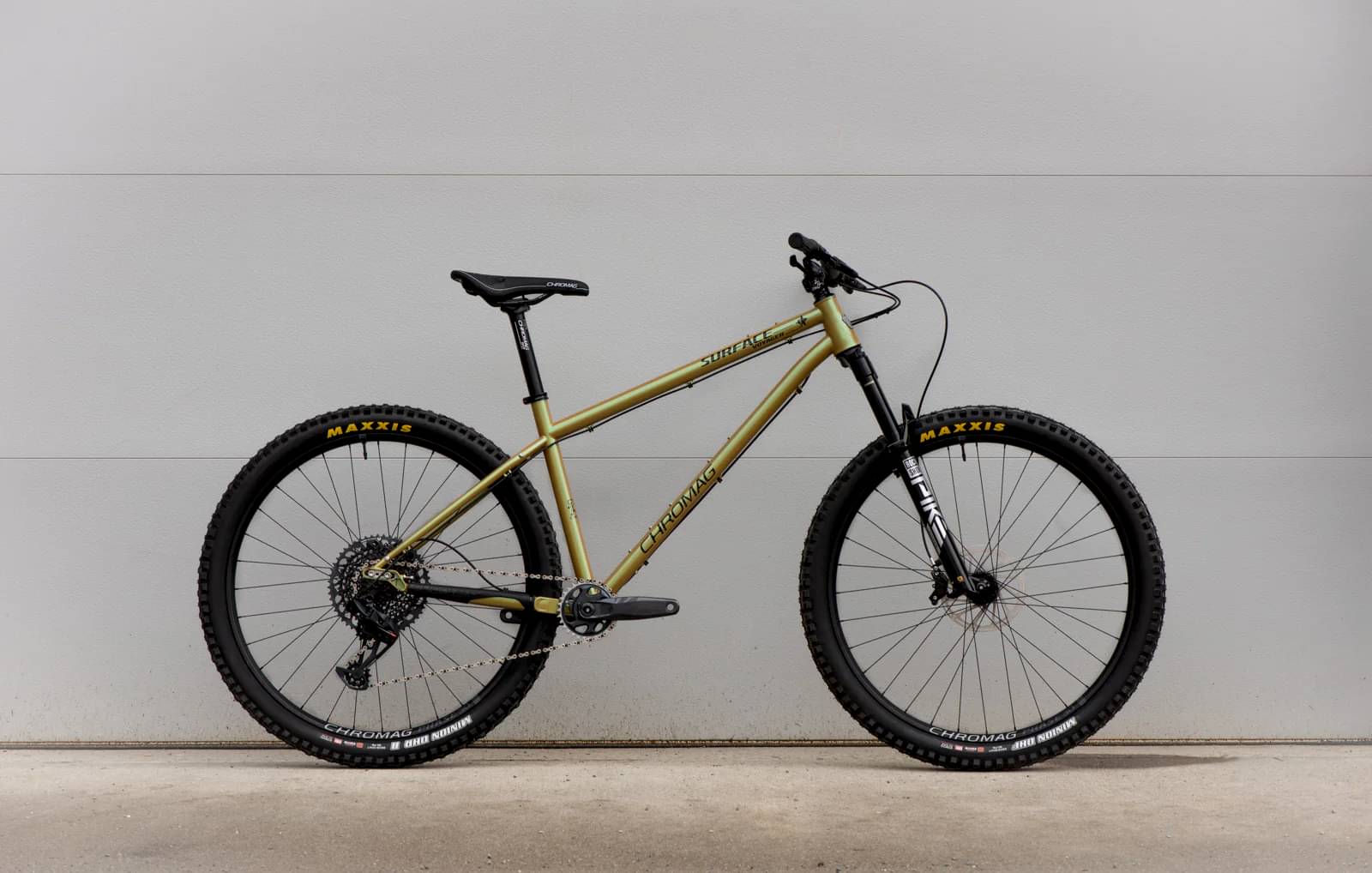

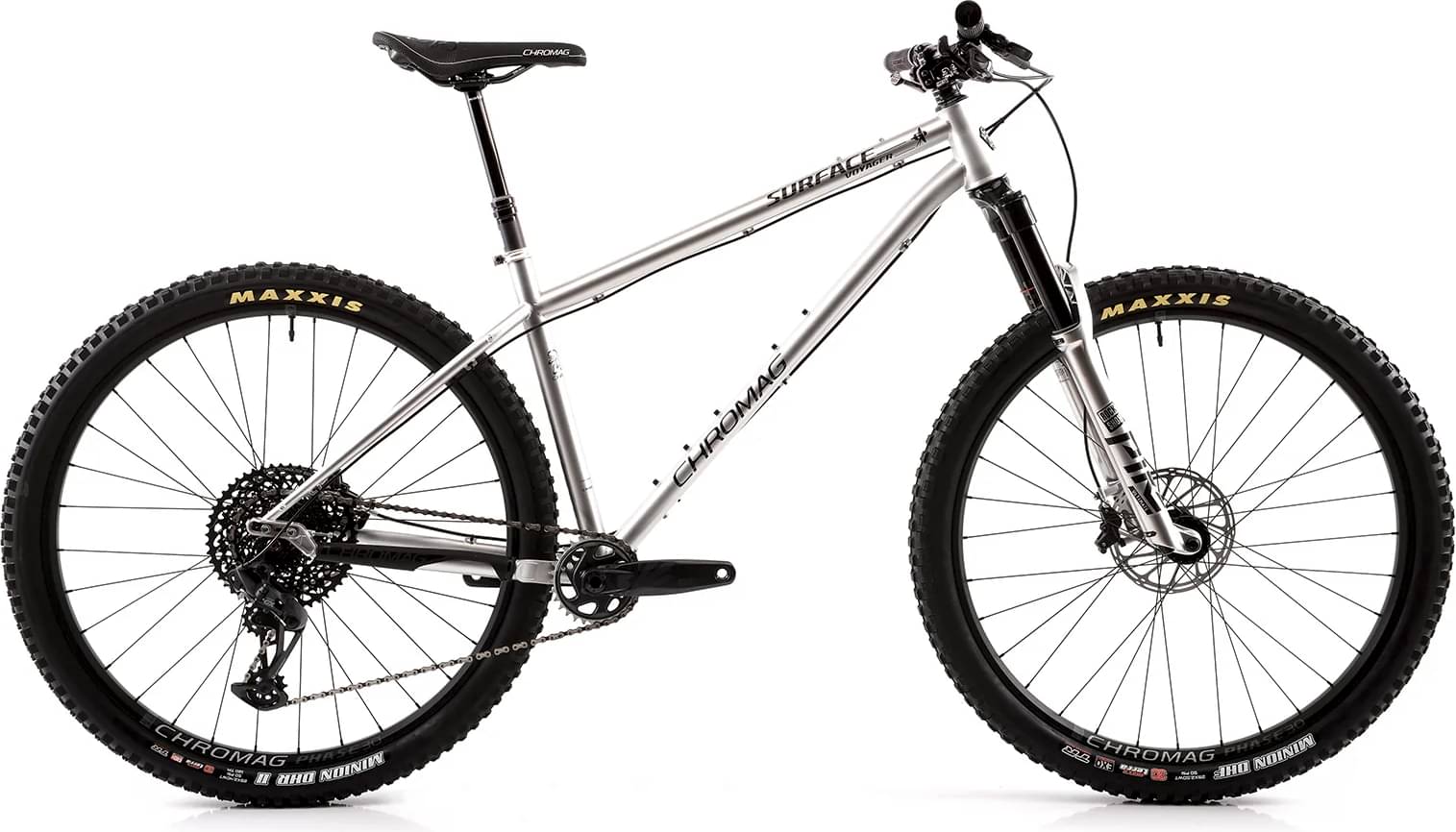

Chromag Surface Voyager GX 2024
2024 Mountain
Estimate price |
4,346$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

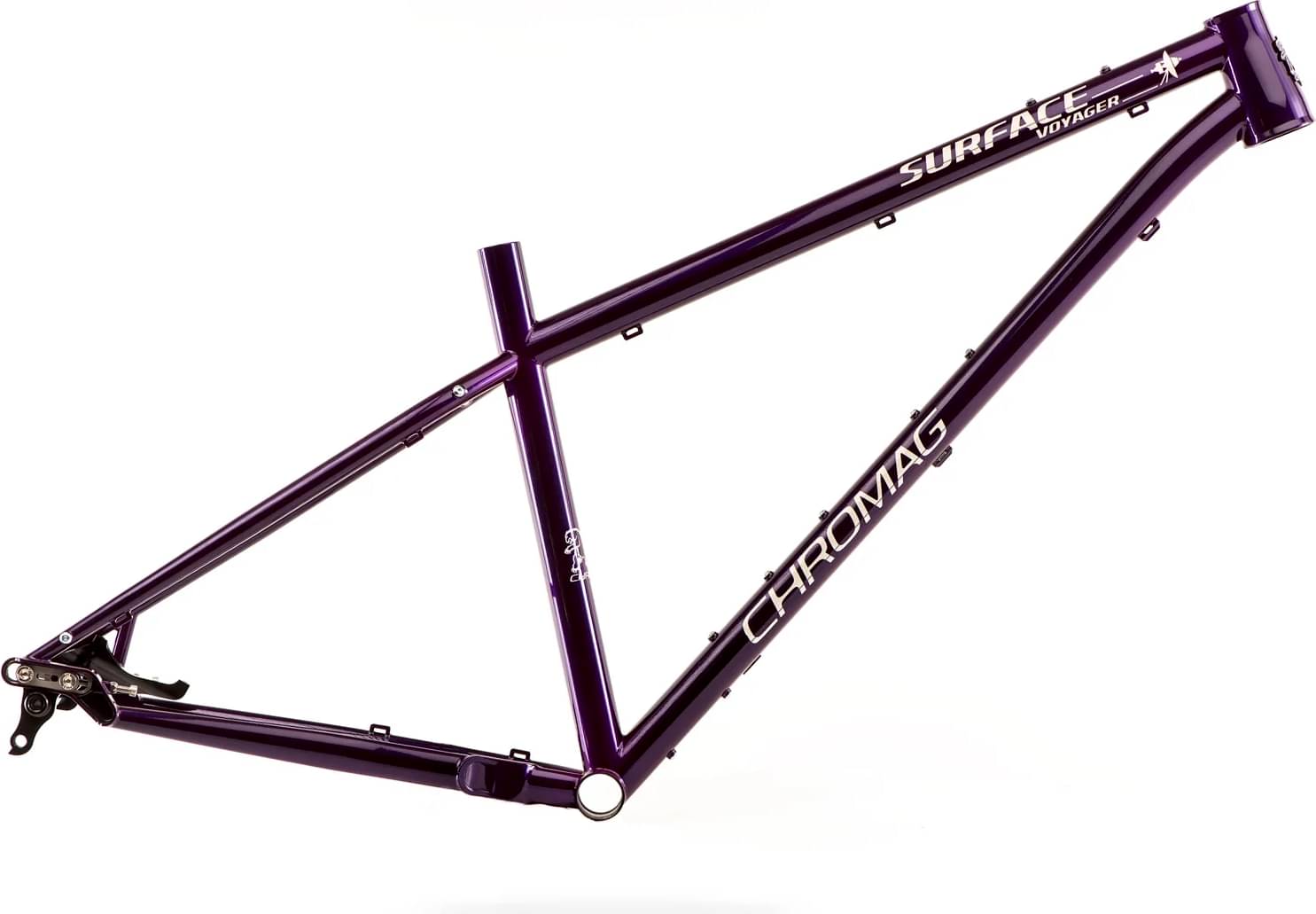

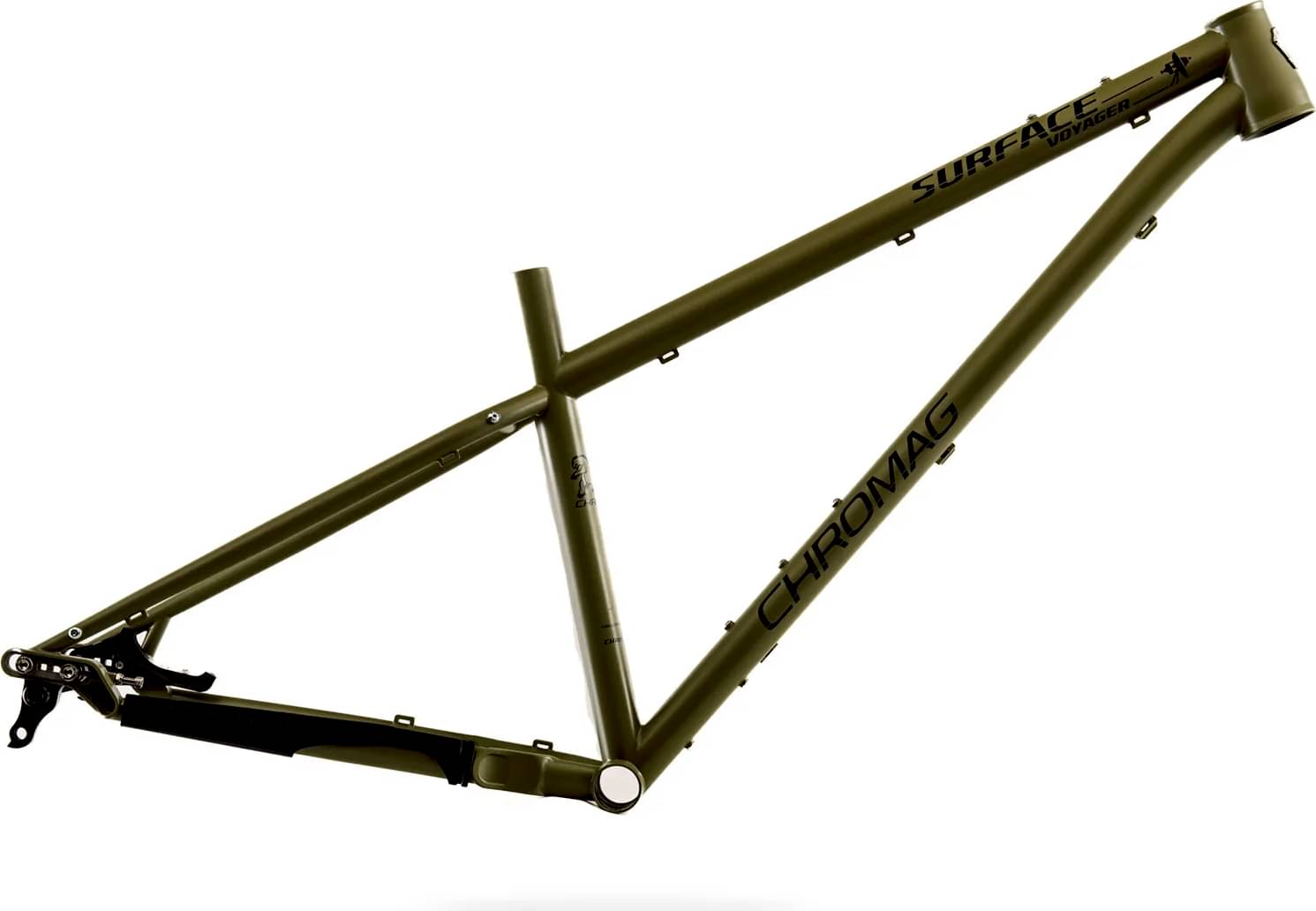

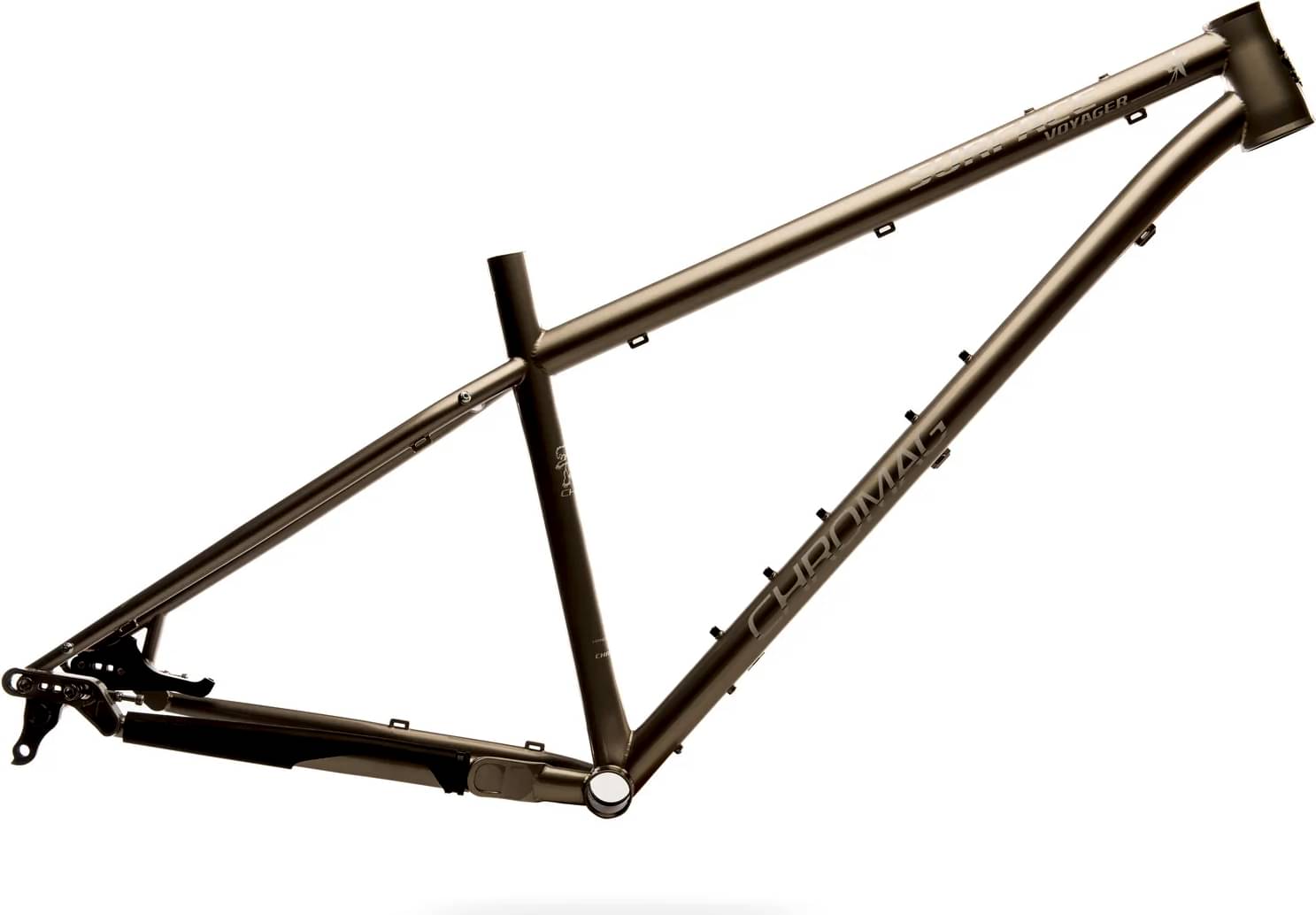

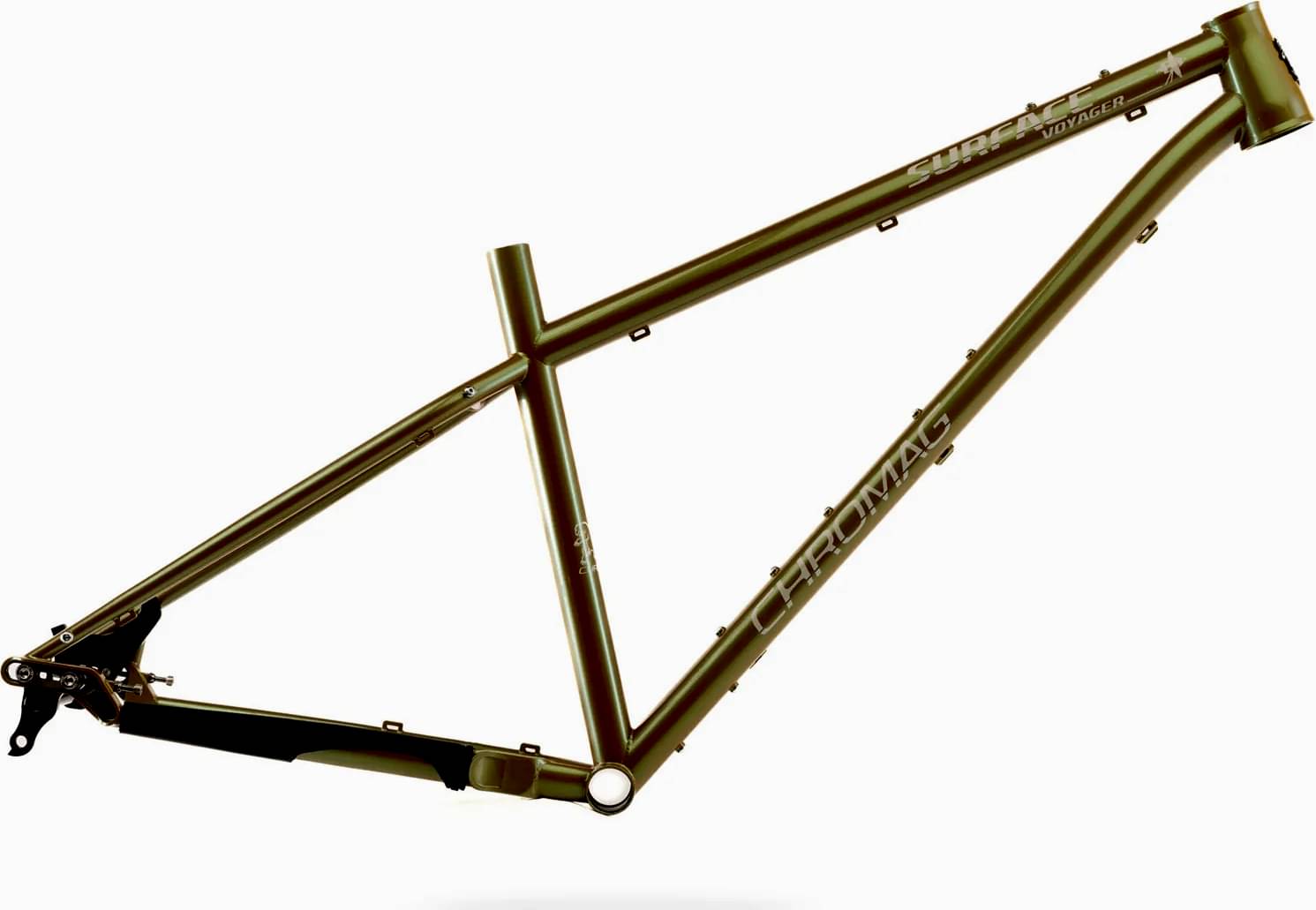

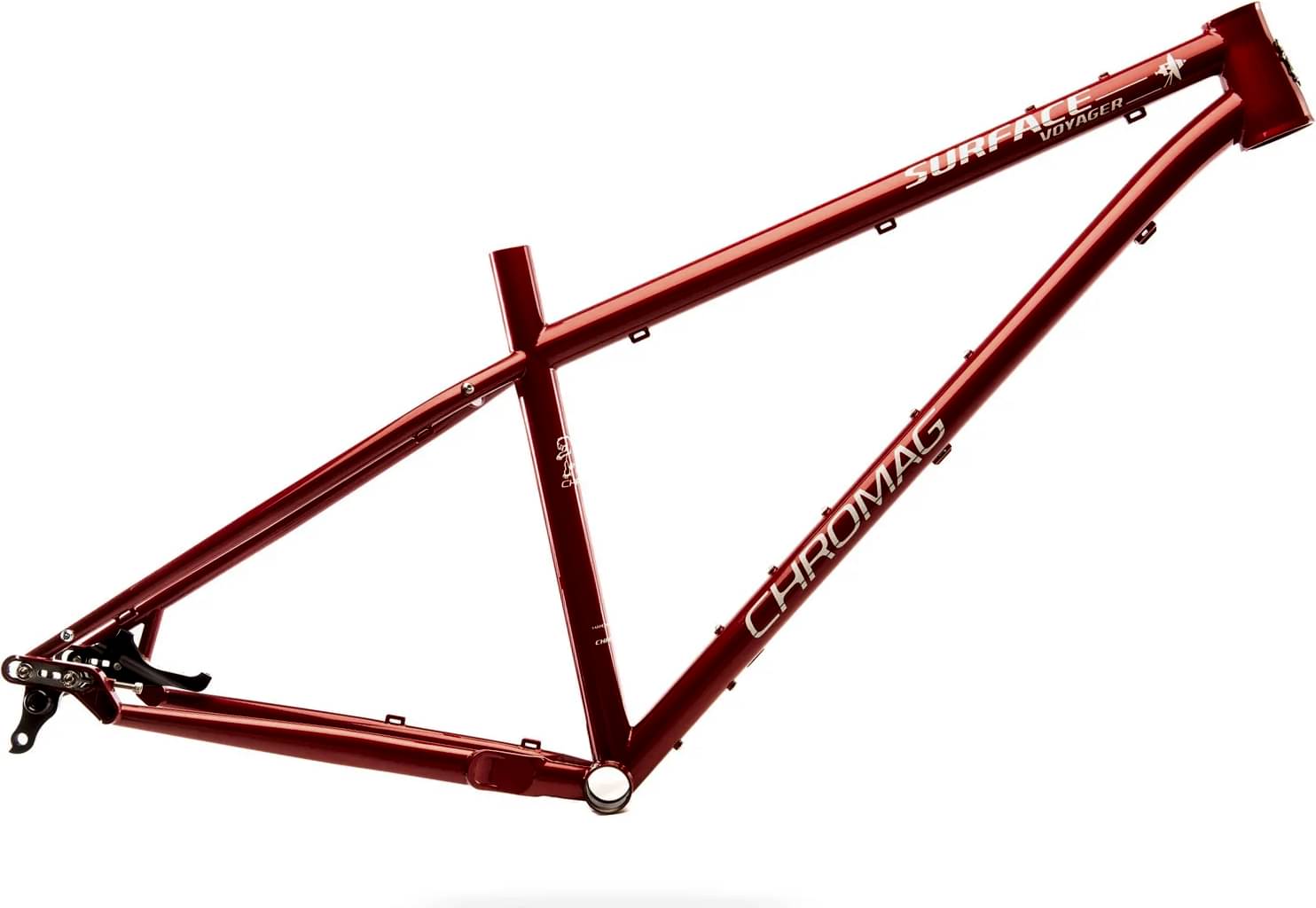

Frame Steel -
Travel Front 140mm -
Fork RockShox Pike Ultimate
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes SRAM Code RSC Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 165cm
MD
163cm - 174cm
MD/LG
172cm - 183cm
LG
181cm - 192cm
XL
190cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox Pike Ultimate 140mm Boost 110x15mm
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM GX Eagle 10-52t
Crank
SRAM GX 170mm
Bottom Bracket
73mm Threaded
Chain
SRAM GX Eagle
Wheels
Front Hub
Chromag R4
Rear Hub
Chromag R4
Rims
Chromag 29" Phase30
Tires
Maxxis Minion DHF/DHR
Brakes
Brakes
SRAM Code RSC
Cockpit
Stem
Chromag HiFi BSX 40mm
Handlebar
Chromag OSX 25mm Rise, 800mm
Grips
Chromag Format
Headset
44-56 Semi Integrated
Seat
Saddle
Chromag Trailmaster DT
Seatpost
RockShox Reverb
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.399 mm | 1.367 mm | 1.318 mm | 1.294 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 730 mm | 755 mm | 776 mm | 805 mm | 825 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 125 mm | 125 mm | 125 mm | 125 mm | 125 mm |
| Stack | 624 mm | 624 mm | 633 mm | 642 mm | 651 mm |
| Reach | 421 mm | 446 mm | 463 mm | 487 mm | 503 mm |
| Top Tube Length | 577 mm | 602 mm | 621 mm | 647 mm | 665 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 368 mm | 406 mm | 431 mm | 456 mm | 494 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1150 mm | 1175 mm | 1196 mm | 1225 mm | 1245 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 677 mm | 714 mm | 738 mm | 762 mm | 799 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 163 cm | 172 cm | 181 cm | 190 cm |
| Rider Max Height | 165 cm | 174 cm | 183 cm | 192 cm | 200 cm |
