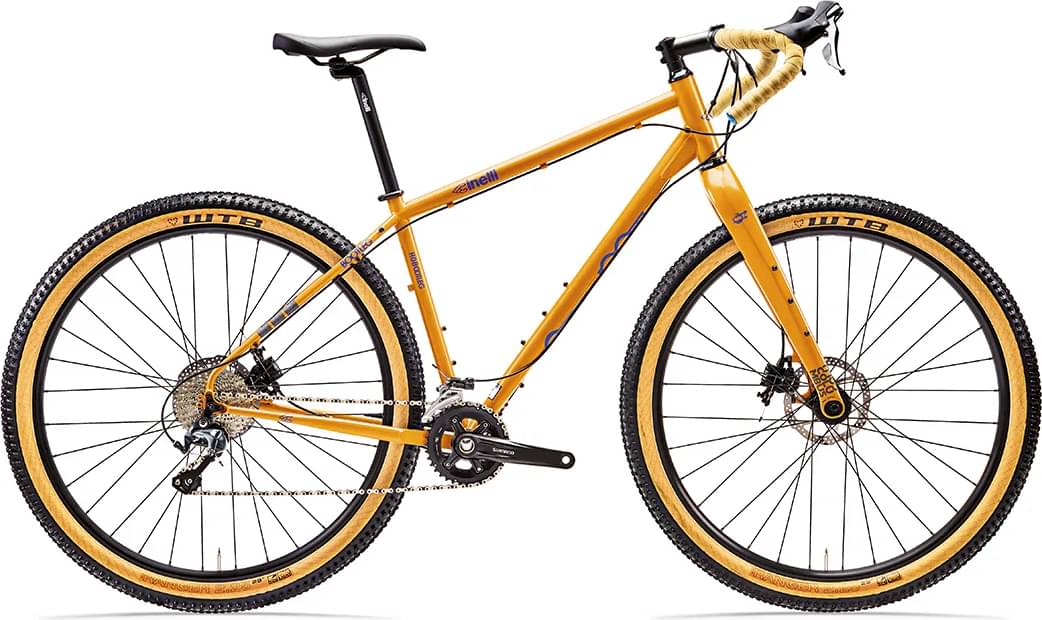

Cinelli HOBOOTLEG GEO – SHIMANO TIAGRA MIX 2X 2024
2024 Road
Estimate price |
2,559$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Columbus Cromor Double Butted Steel
Suspension Fork
Columbus Carbon Futura Adventure
Drivetrain
Rear Derailleur
Shimano Tiagra RD-4700-Gs / 10 Speed / Long Cage
Shift Levers
Shimano Tiagra ST-4700
Cassette
Shimano CS-HG500-10 / 10 Speed / 11-34T
Crank
Prowheel (MPL-501-TT) / 36/26T / S 170 - M 170 - L 175 - XL 175
Bottom Bracket
BSA 73 mm
Chain
Kmc X10
Wheels
Rims
Shining (DB-30) 6 Bolt/ Formula Hub Ft. (DC-711) Re. (DHT-1485)
Tires
WTB Ranger / 29X2,25 / Tan Sidewall
Brakes
Brakes
TRP HY/RD (MD-C705C)
Cockpit
Stem
Cinelli 6061 Ø 31,8 Angle 6° H 40 mm / S 90 - M 90 - L 100 - XL 100
Handlebar
Cinelli Largo / Ø 31,8 / XS 560 - S 560 - M 560 - L 560 - XL 560
Headset
ZS 44/28,6 | EC 44/40
Seat
Saddle
WTB Volt
Seatpost
Cinelli 6061 Ø 27,2 L 350
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.713 mm | 1.699 mm | 1.67 mm | 1.684 mm |
| Front Center | 642 mm | 657 mm | 682 mm | 697 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 87 mm | 79 mm | 80 mm | 80 mm |
| Stack | 620 mm | 644 mm | 663 mm | 682 mm |
| Reach | 362 mm | 379 mm | 397 mm | 405 mm |
| Top Tube Length | 540 mm | 570 mm | 600 mm | 620 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 400 mm | 460 mm | 510 mm | 550 mm |
| Head Tube Angle | 68 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 133 mm | 153 mm | 173 mm | 193 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1083 mm | 1098 mm | 1123 mm | 1138 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
