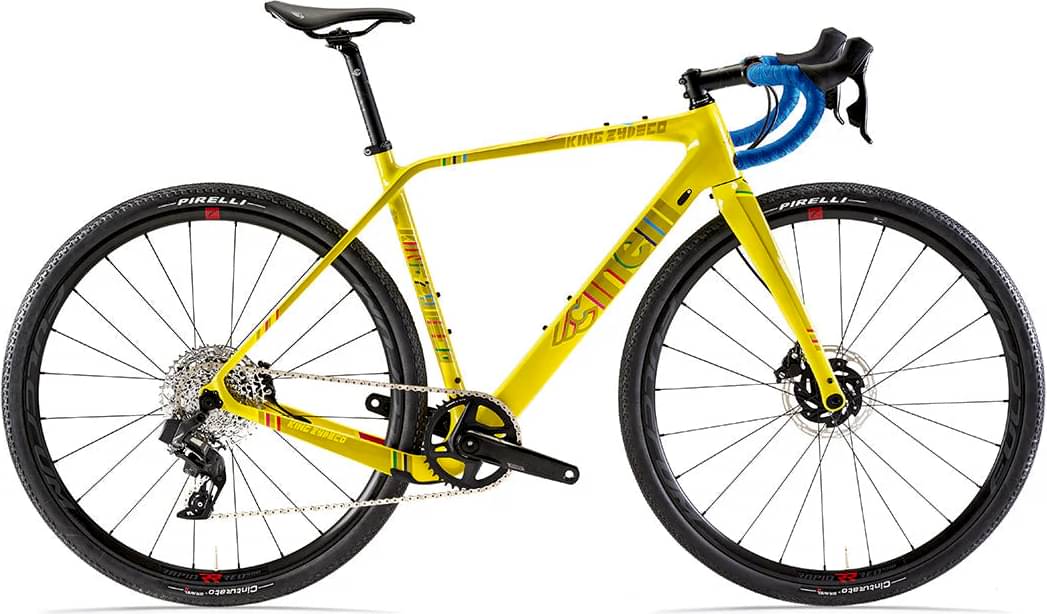

Cinelli KING ZYDECO – RIVAL 1X AXS XPLR 2024
2024 Road
Estimate price |
4,817$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival XPLR AXS, Rival AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Columbus Carbon Monocoque
Suspension Fork
Columbus Futura Cross 1-1/8” - 1-1/2” Carbon Monoc.
Drivetrain
Rear Derailleur
SRAM Rival AXS XPLR
Shift Levers
SRAM Rival AXS
Cassette
SRAM Rival XPLR 10/44t
Crank
SRAM Rival 1 Wide 40t
Bottom Bracket
BB386EVO 86,5 x 46 mm
Chain
SRAM Rival
Wheels
Rims
Fulcrum Rapid Red 500 DB
Tires
WTB Riddler 700x37 Tan Sidewall
Brakes
Brakes
SRAM Rival Hydro Disc
Cockpit
Stem
Cinelli Vai
Handlebar
Cinelli Vai
Headset
IS 42/28,6 | IS 52/40 Columbus Compass 1-1/2” (Included)
Seat
Saddle
SSM Shortfit
Seatpost
Cinelli Vai Ø 27,2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.399 mm | 1.447 mm | 1.481 mm | 1.498 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 588 mm | 595 mm | 602 mm | 621 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 76 mm | 64 mm | 59 mm | 58 mm |
| Stack | 519 mm | 550 mm | 576 mm | 599 mm |
| Reach | 371 mm | 380 mm | 389 mm | 400 mm |
| Top Tube Length | 530 mm | 550 mm | 570 mm | 590 mm |
| Seat Tube Angle | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 480 mm | 510 mm | 530 mm | 550 mm |
| Head Tube Angle | 70 ° | 71.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 100 mm | 130 mm | 150 mm | 175 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1010 mm | 1018 mm | 1024 mm | 1044 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 745 mm | 776 mm | 800 mm | 821 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
