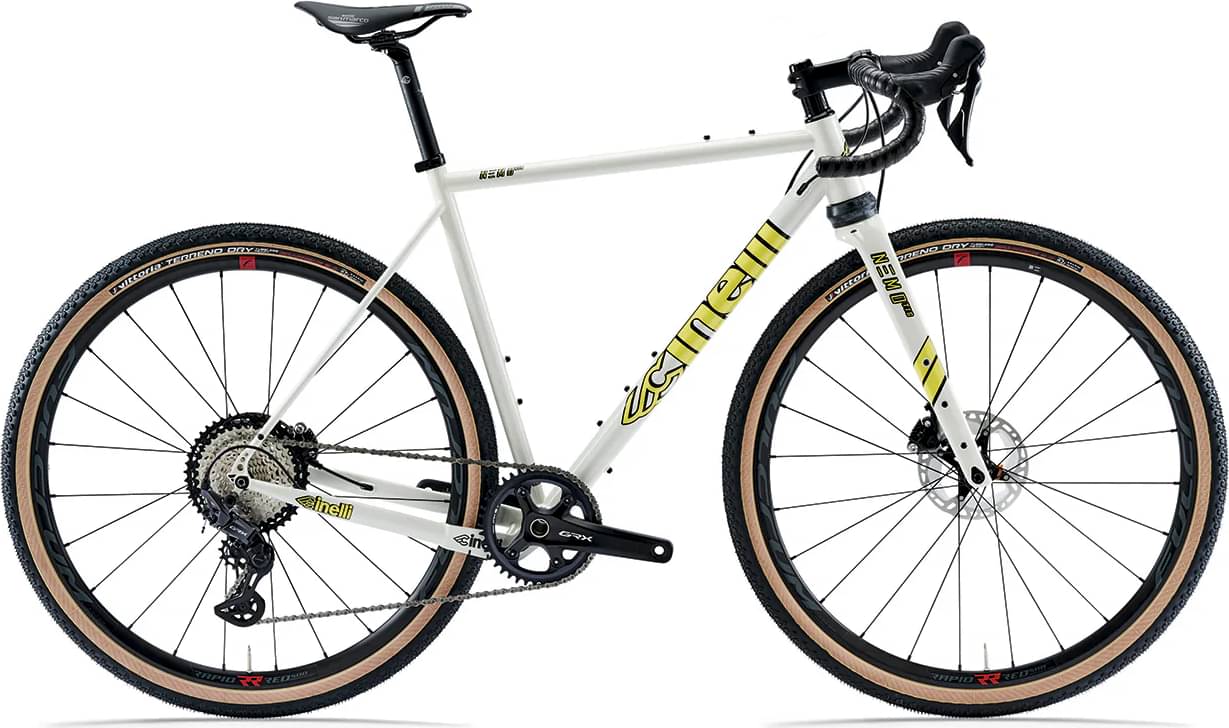

Cinelli NEMO TIG GRAVEL – EKAR – SUSPENDED 2024
2024 Road
Estimate price |
6,166$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Columbus Spirit HSS Tubeset
Suspension Fork
Hiride Sterra 1-1/4” - 1-1/2” Columbus 1-1/8” - 1-1/2” Carbon Monoc.
Drivetrain
Rear Derailleur
Campagnolo Ekar
Shift Levers
Campagnolo Ekar
Cassette
Campagnolo Ekar 9-42T
Crank
Campagnolo Ekar 40T
Bottom Bracket
T47 68 mm
Chain
Campagnolo Ekar
Wheels
Rims
Fulcrum Rapid Red 500 DB
Tires
Vittoria Terreno Dry 700x47
Brakes
Brakes
Campagnolo Ekar
Cockpit
Stem
Alu 6061
Handlebar
Cinelli Swamp Cinelli Swamp
Headset
IS 42/28,6 | IS 52/40 (rigid fork). IS 42/33 | IS 52/40 (hiride)
Seat
Saddle
SSM Shortfit
Seatpost
Cinelli Vai Ø 27,2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.519 mm | 1.455 mm | 1.449 mm | 1.441 mm | 1.45 mm | 1.464 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm | 281 mm | 281 mm | 281 mm |
| Front Center | 613 mm | 632 mm | 633 mm | 638 mm | 642 mm | 658 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 74 mm | 71 mm | 65 mm | 59 mm | 57 mm | 56 mm |
| Stack | 568 mm | 569 mm | 578 mm | 591 mm | 603 mm | 622 mm |
| Reach | 374 mm | 391 mm | 399 mm | 410 mm | 416 mm | 425 mm |
| Top Tube Length | 528 mm | 548 mm | 565 mm | 585 mm | 600 mm | 615 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 540 mm | 560 mm | 590 mm | 610 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 115 mm | 115 mm | 120 mm | 130 mm | 140 mm | 160 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1034 mm | 1054 mm | 1054 mm | 1059 mm | 1063 mm | 1079 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
