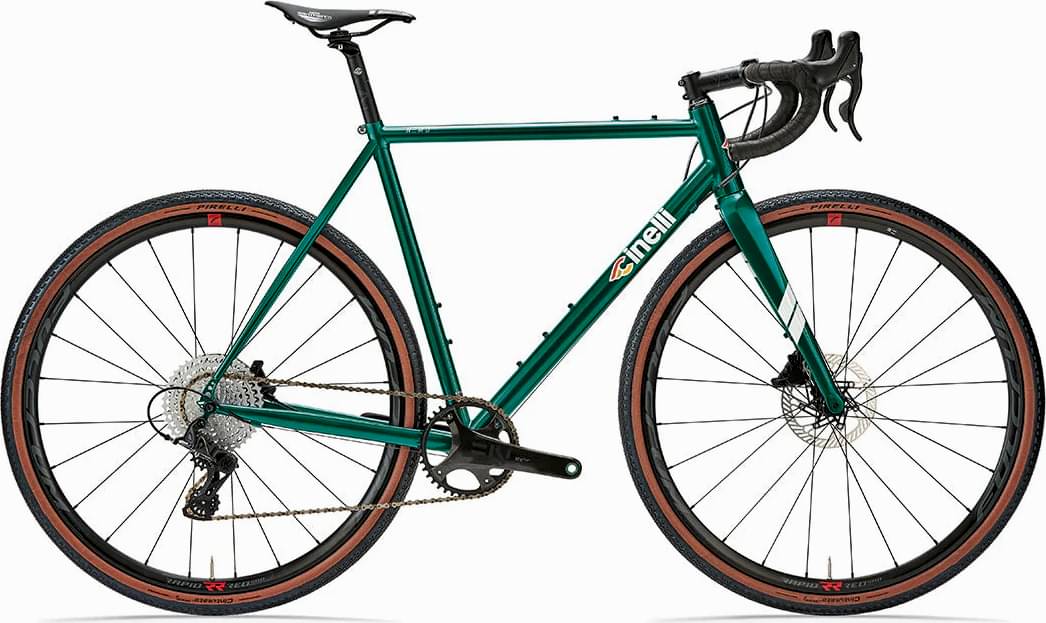

Cinelli NEMO TIG GRAVEL – GREEN SPECIAL FRAME SET EXPO 2024
2024 Road
Estimate price |
2,897$
Weight | 2.35 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Steel -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Columbus Spirit HSS Tubeset
Suspension Fork
Columbus Futura Gravel 1-1/8” - 1-1/4” Carbon Monoc.
Drivetrain
Bottom Bracket
BSA 68 mm / Press Fit 86,5 x 41 (Custom)
Brakes
Brakes
Flat Mount Disc Brake, rotor size up to 160 mm
Cockpit
Headset
IS 42/28,6 | IS 47/33
Seat
Seatpost
Ø 27,2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.362 mm | 1.374 mm | 1.44 mm | 1.455 mm | 1.468 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm | 281 mm | 281 mm |
| Front Center | 582 mm | 594 mm | 597 mm | 596 mm | 616 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 74 mm | 74 mm | 66 mm | 61 mm | 62 mm |
| Stack | 508 mm | 522 mm | 550 mm | 563 mm | 587 mm |
| Reach | 373 mm | 380 mm | 382 mm | 387 mm | 400 mm |
| Top Tube Length | 514 mm | 525 mm | 540 mm | 554 mm | 579 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 100 mm | 115 mm | 140 mm | 150 mm | 175 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1003 mm | 1015 mm | 1018 mm | 1017 mm | 1036 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
