Cinelli NEMO TIG ROAD – FRAME-KIT 2025

2025 Road

Estimate price | 2,908$

Weight | 2.39 kg

Open compare Use advisor

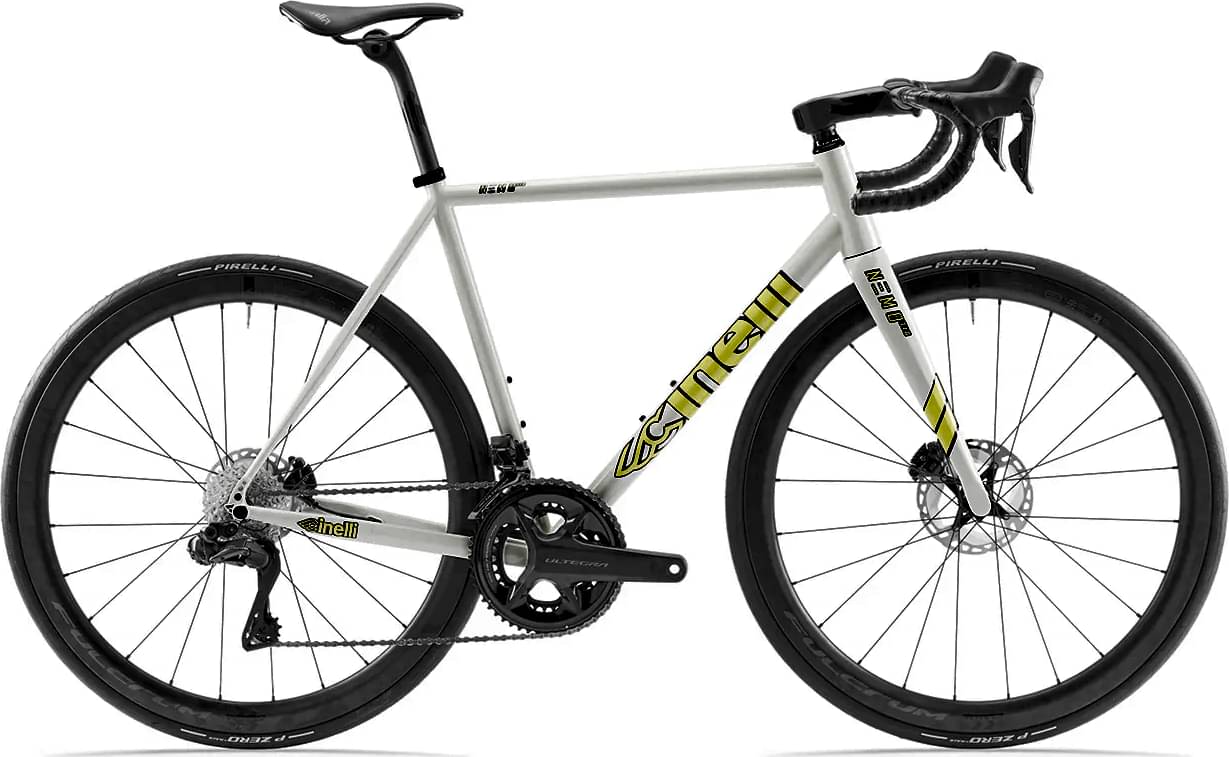

Cinelli Nemo Tig Road Frame Kit 2025

Bike details

Overview

Key information split into simple groups.

Frame summary

Category
- Road
- |
- Race
Frame Steel
Suspension Rigid
Brakes Hydraulic Disc

Sizing

Recommended size guide.

XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Columbus Spirit HSS Tubeset

Suspension Fork

Columbus Trittico Carbon Road

Drivetrain

Bottom Bracket

T47 68 mm

Brakes

Brakes

Flat Mount Disc Brake, rotor size up to 160 mm

Cockpit

Headset

IS 42/28,6 | IS 52/40

Seat

Seatpost

Ø 27,2 mm

Fit data

Geometry

Numbers for sizing and ride feel.

Size	XS	SM	MD	LG	XL	XXL
Stack Reach Ratio	1.379 mm	1.421 mm	1.431 mm	1.468 mm	1.489 mm	1.525 mm
Bottom Bracket Height	266 mm	266 mm	266 mm	266 mm	266 mm	266 mm
Front Center	572 mm	579 mm	585 mm	590 mm	605 mm	614 mm
Rake	45 mm	45 mm	45 mm	45 mm	45 mm	45 mm
Trail	68 mm	65 mm	59 mm	56 mm	56 mm	53 mm
Stack	509 mm	530 mm	548 mm	568 mm	588 mm	613 mm
Reach	369 mm	373 mm	383 mm	387 mm	395 mm	402 mm
Top Tube Length	510 mm	525 mm	545 mm	555 mm	575 mm	590 mm
Seat Tube Angle	74.5 °	74 °	73.5 °	73.5 °	73 °	73 °
Seat Tube Length	480 mm	510 mm	540 mm	560 mm	590 mm	610 mm
Head Tube Angle	71 °	71.5 °	72.5 °	73 °	73 °	73.5 °
Head Tube Length	110 mm	130 mm	145 mm	165 mm	185 mm	210 mm
Chainstay Length	410 mm	410 mm	410 mm	410 mm	415 mm	415 mm
Wheelbase	972 mm	978 mm	985 mm	990 mm	1010 mm	1019 mm
Bottom Bracket Drop	70 mm	70 mm	70 mm	70 mm	70 mm	70 mm
Wheels	700	700	700	700	700	700
Rider Min Height	158 cm	165 cm	169 cm	177 cm	183 cm	186 cm
Rider Max Height	167 cm	173 cm	180 cm	186 cm	191 cm	194 cm
