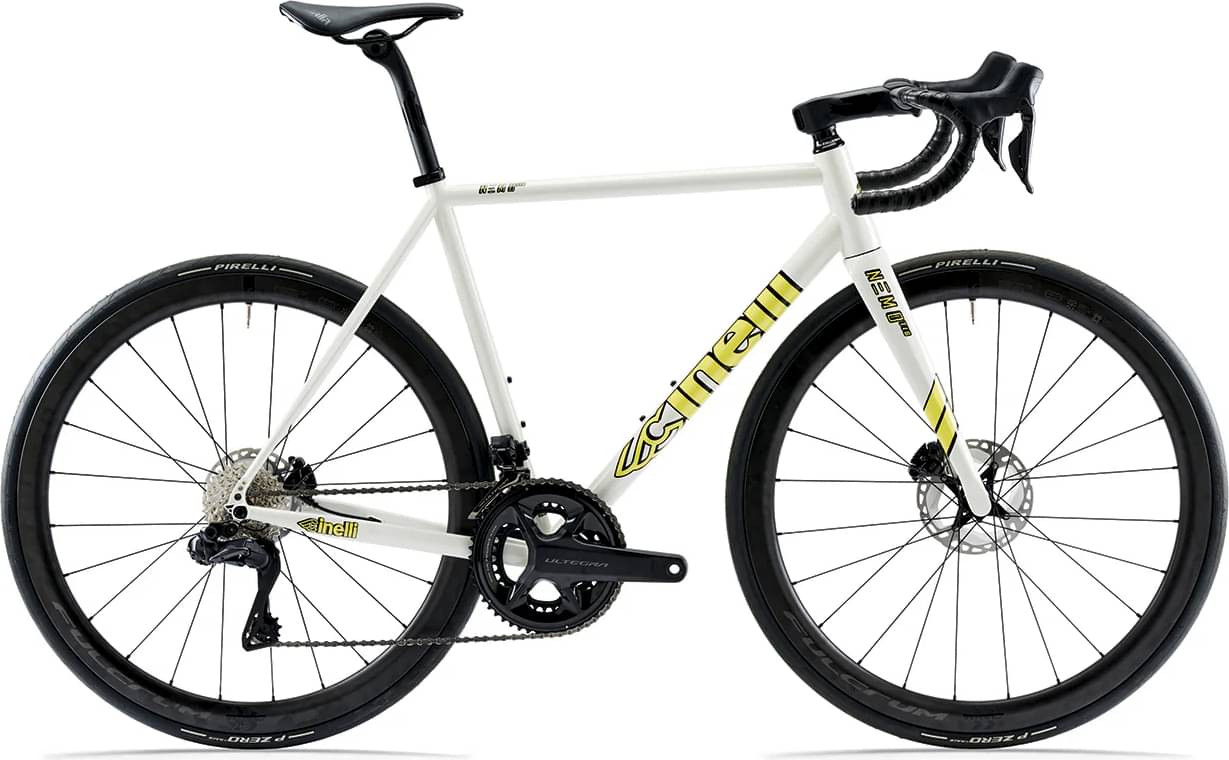

Cinelli NEMO TIG ROAD – ULTEGRA DISC DI2 + COLUMBUS TRITTICO 2025
2025 Road
Estimate price |
7,387$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset Ultegra, Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano Ultegra Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Columbus Spirit HSS Tubeset
Suspension Fork
Columbus Trittico Carbon Road
Drivetrain
Rear Derailleur
Shimano Ultegra R8150
Shift Levers
Shimano Ultegra R8170
Cassette
Shimano Ultegra R8101 11/30t
Crank
Shimano Ultegra R8100 52/36t
Bottom Bracket
T47 68 mm
Chain
Shimano R8100
Wheels
Rims
Fulcrum 600
Tires
Vittoria Zaffiro Pro 700x28
Brakes
Brakes
Shimano Ultegra R8170
Cockpit
Stem
Cinelli Vai
Handlebar
Cinelli Vai
Headset
IS 42/28,6 | IS 52/40
Seat
Saddle
Selle Italia Model X
Seatpost
Cinelli Vai Ø 27,2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.379 mm | 1.421 mm | 1.431 mm | 1.468 mm | 1.489 mm | 1.525 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 572 mm | 579 mm | 585 mm | 590 mm | 605 mm | 614 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 65 mm | 59 mm | 56 mm | 56 mm | 53 mm |
| Stack | 509 mm | 530 mm | 548 mm | 568 mm | 588 mm | 613 mm |
| Reach | 369 mm | 373 mm | 383 mm | 387 mm | 395 mm | 402 mm |
| Top Tube Length | 510 mm | 525 mm | 545 mm | 555 mm | 575 mm | 590 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 590 mm | 610 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72.5 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 165 mm | 185 mm | 210 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 415 mm | 415 mm |
| Wheelbase | 972 mm | 978 mm | 985 mm | 990 mm | 1010 mm | 1019 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
