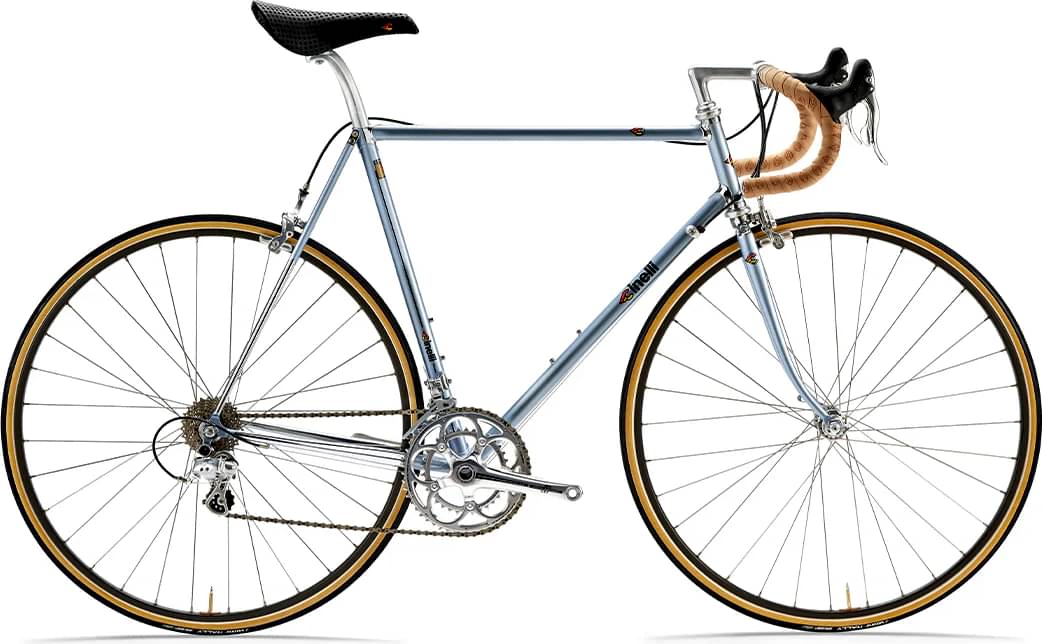

Cinelli SUPERCORSA – FRAME SET 2024
2024 Road
Estimate price |
2,753$
Weight | 2.5 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Steel -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Columbus SL Double Butted Tubeset
Suspension Fork
Columbus SL 1” Threaded
Drivetrain
Bottom Bracket
ITA 70 mm
Brakes
Brakes
Standard Rim Brake
Cockpit
Headset
EC 30/25,4-24TPI | EC 30/26
Seat
Seatpost
Ø 27,2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 49cm | 63cm | 64cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.299 mm | 1.313 mm | 1.569 mm | 1.584 mm |
| Bottom Bracket Height | 270 mm | 267 mm | 263 mm | 263 mm |
| Front Center | 557 mm | 571 mm | 619 mm | 620 mm |
| Rake | 50 mm | 50 mm | 45 mm | 45 mm |
| Trail | 67 mm | 58 mm | 57 mm | 60 mm |
| Stack | 486 mm | 495 mm | 626 mm | 635 mm |
| Reach | 374 mm | 377 mm | 399 mm | 401 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 73 ° | 73 ° |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 81 mm | 88 mm | 216 mm | 226 mm |
| Chainstay Length | 401 mm | 402 mm | 410 mm | 410 mm |
| Wheelbase | 948 mm | 963 mm | 1018 mm | 1019 mm |
| Bottom Bracket Drop | 66 mm | 69 mm | 73 mm | 73 mm |
| Wheels | 700 | 700 | 700 | 700 |
