Cinelli SUPERCORSA PISTA – FRAME SET 2023

2023 Road

Estimate price | 2,792$

Weight | 2.45 kg

Open compare Use advisor

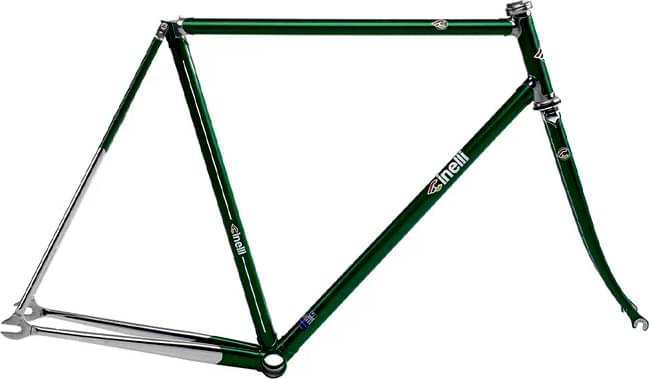

Cinelli Supercorsa Pista Frame Set 2023

Bike details

Overview

Key information split into simple groups.

Frame summary

Category
- Road
- |
- Race
Frame Steel
Suspension Rigid

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Columbus Sirit Super Pista Double Butted Tubeset

Suspension Fork

Columbus SL Pista 1” Threaded

Drivetrain

Bottom Bracket

ITA 70 mm

Brakes

Brakes

/

Cockpit

Headset

EC 30/25,4-24TPI | EC 30/26

Seat

Seatpost

Ø 27,2 mm

Fit data

Geometry

Numbers for sizing and ride feel.

Size	49cm	50cm	51cm	52cm	53cm	54cm	55cm	56cm	57cm	58cm	59cm	60cm
Bottom Bracket Height	276 mm	276 mm	276 mm	276 mm	276 mm	276 mm	276 mm	276 mm	276 mm	276 mm	276 mm	276 mm
Front Center	567 mm	567 mm	568 mm	569 mm	571 mm	572 mm	575 mm	578 mm	580 mm	585 mm	583 mm	586 mm
Rake	35 mm	35 mm	35 mm	35 mm	35 mm	35 mm	35 mm	35 mm	35 mm	35 mm	35 mm	35 mm
Stack	488 mm	500 mm	505 mm	515 mm	520 mm	532 mm	542 mm	553 mm	562 mm	567 mm	578 mm	588 mm
Seat Tube Angle	75 °	75 °	75 °	75 °	75 °	75 °	75 °	74.6 °	74 °	74 °	74 °	74 °
Head Tube Angle	72 °	73 °	73 °	73 °	73 °	74 °	74 °	74.5 °	74.6 °	74.7 °	75 °	75 °
Head Tube Length	88 mm	96 mm	101 mm	111 mm	118 mm	127 mm	137 mm	147 mm	157 mm	166 mm	176 mm	186 mm
Chainstay Length	388 mm	388 mm	388 mm	388 mm	388 mm	388 mm	388 mm	388 mm	390 mm	390 mm	390 mm	390 mm
Wheelbase	946 mm	946 mm	948 mm	949 mm	951 mm	952 mm	955 mm	958 mm	962 mm	967 mm	965 mm	968 mm
Bottom Bracket Drop	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm
Wheels	700	700	700	700	700	700	700	700	700	700	700	700
