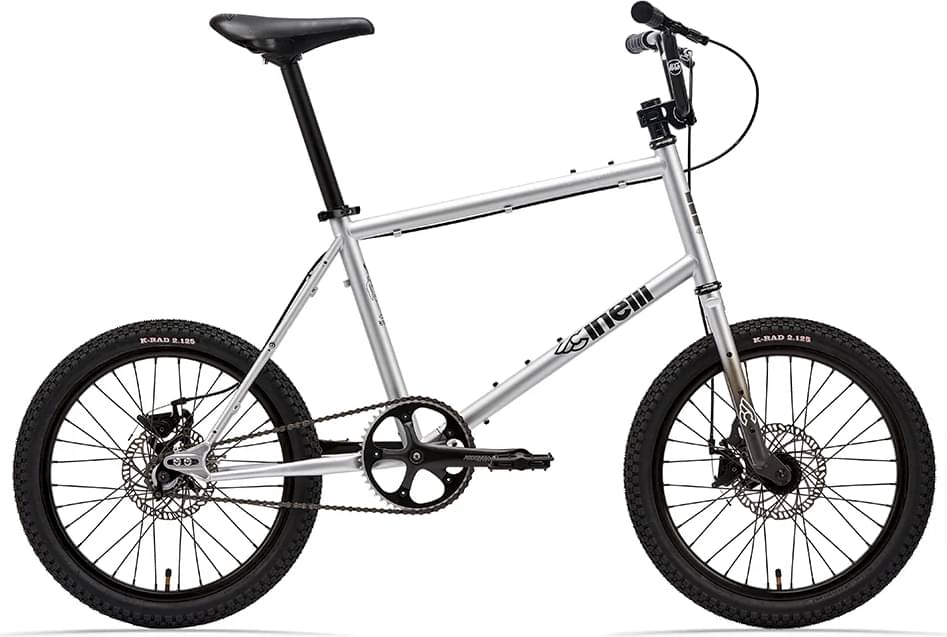

Cinelli TUTTO MINI SILVER BOOTLEG – FRAME-KIT 2024
2024 Urban
Estimate price |
989$
Weight | 3.85 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Steel -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Steel
Suspension Fork
Steel 1-1/8”
Drivetrain
Bottom Bracket
BSA 68 mm
Brakes
Brakes
Front & Rear Disc PM 160
Cockpit
Headset
EC 34/28,6 | EC 34/30
Seat
Seatpost
Ø 31,6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Stack Reach Ratio | 1.223 mm | 1.236 mm |
| Front Center | 547 mm | 596 mm |
| Rake | 25 mm | 25 mm |
| Stack | 455 mm | 503 mm |
| Reach | 372 mm | 407 mm |
| Top Tube Length | 520 mm | 570 mm |
| Seat Tube Angle | 72 ° | 72 ° |
| Seat Tube Length | 360 mm | 420 mm |
| Head Tube Angle | 73 ° | 73 ° |
| Head Tube Length | 185 mm | 235 mm |
| Chainstay Length | 400 mm | 400 mm |
| Wheelbase | 945 mm | 994 mm |
| Bottom Bracket Drop | 30 mm | 30 mm |
| Wheels | 20" | 20" |
