Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Columbus Carbon Monocoque
Suspension Fork
Columbus Disc 1-1/8” - 1-1/2” Monocoque
Drivetrain
Rear Derailleur
SHIMANO 105 / 11 Speed
Shift Levers
SHIMANO 105
Cassette
SHIMANO 105 / 11-32T
Crank
SHIMANO RS / 11 Speed / 52-36T, Size 170 (XS) 172.5 (S/M/L) 175 (XL)
Bottom Bracket
SHIMANO / BSA 68mm
Chain
KMC (X11)
Wheels
Rims
SHIMANO RS-170 / Center lock
Tires
Vittoria Zaffiro fold / 700x25c
Brakes
Brakes
SHIMANO 105 Hydraulic / Front 160mm Rear 140mm Disc Rotor
Cockpit
Stem
CINELLI 6061 Stem, Size 90 (XS) 100 (S/M) 110 (L/XL)
Handlebar
CINELLI 6061 Handlebar / Ø 31,8 / Drop 131mm - Reach 55mm, Size 40 (XS/S) 42 (M/L/XL)
Headset
IS 42/28,6 | IS 52/40
Seat
Saddle
CINELLI SSM Squadra
Seatpost
CINELLI 6061 Seat Post/ Ø31,6 / L350
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.43 mm | 1.44 mm | 1.48 mm | 1.48 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 566 mm | 577 mm | 578 mm | 600 mm | 614 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 71 mm | 67 mm | 66 mm | 59 mm | 51 mm |
| Stack | 513 mm | 532 mm | 549 mm | 582 mm | 596 mm |
| Reach | 362 mm | 371 mm | 380 mm | 393 mm | 403 mm |
| Top Tube Length | 498 mm | 518 mm | 538 mm | 565 mm | 581 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 500 mm | 520 mm | 540 mm | 568 mm | 584 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 115 mm | 135 mm | 155 mm | 180 mm | 200 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm |
| Wheelbase | 969 mm | 981 mm | 973 mm | 1003 mm | 1017 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 742 mm | 762 mm | 782 mm | 802 mm | 819 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

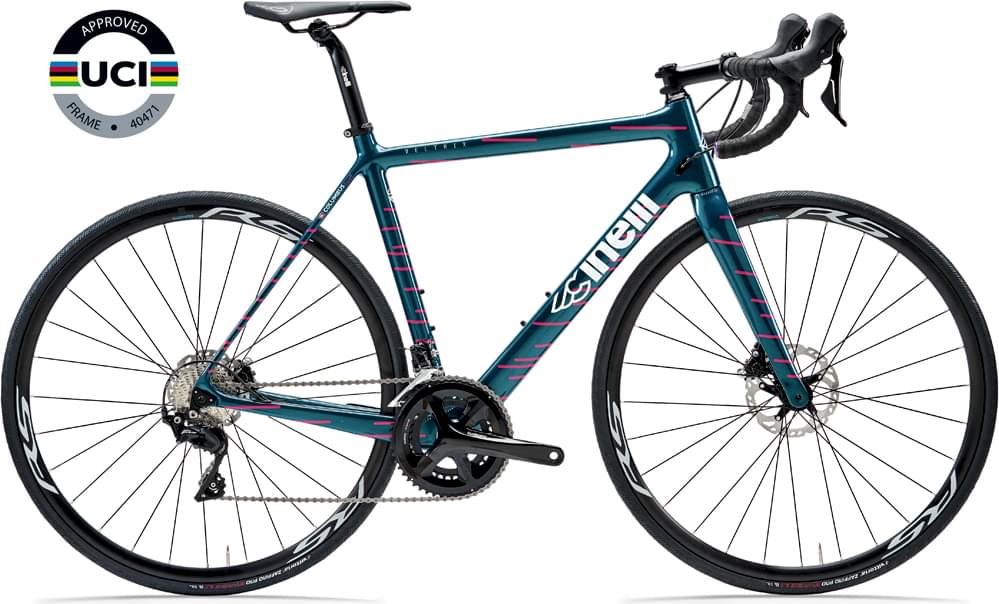

Veltrix Disc is part of the Cinelli Veltrix model. Cinelli released 4 bikes variations of this model so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
According to our math, the average price for a trustworthy Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The wheels on Veltrix Disc are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cinelli Veltrix Disc is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Cinelli Veltrix Disc bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
