Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
COLUMBUS Carbon Monocoque
Suspension Fork
COLUMBUS Disc 1-1/8” Carbon Monocoque
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 / 11 Speed
Shift Levers
Shimano Ultegra Di2 ST-R8060
Cassette
Shimano Ultegra / 11-25T
Crank
Shimano Ultegra / 52-36T, Size 170 (XS) 172.5 (S/M/L) 175 (XL)
Bottom Bracket
Shimano / SM-BB72-41
Chain
Shimano Ultegra
Wheels
Rims
Fulcrum Racing 600
Tires
VITTORIA Zaffiro Pro / 700x25c
Brakes
Brakes
Shimano Ultegra direct mount rear / TRP Aero V-brake front
Cockpit
Stem
Cinelli WYSIWYG 6061, 75 (XS) 95 (S/M/L/XL)
Handlebar
Cinelli WYSIWYG Carbon 420mm
Headset
IS 42/28.6 | IS 42/30
Seat
Saddle
SSM Shortfit
Seatpost
Cinelli WYSIWYG Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.25 mm | 1.27 mm | 1.23 mm | 1.23 mm | 1.23 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 564 mm | 563 mm | 584 mm | 603 mm | 623 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 69 mm | 59 mm | 59 mm | 58 mm | 59 mm |
| Stack | 466 mm | 481 mm | 491 mm | 508 mm | 525 mm |
| Reach | 374 mm | 380 mm | 398 mm | 412 mm | 426 mm |
| Top Tube Length | 499 mm | 510 mm | 531 mm | 549 mm | 568 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 449 mm | 528 mm | 537 mm | 554 mm | 571 mm |
| Head Tube Angle | 71 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 61 mm | 72 mm | 82 mm | 99 mm | 118 mm |
| Chainstay Length | 393 mm | 393 mm | 393 mm | 393 mm | 393 mm |
| Wheelbase | 944 mm | 944 mm | 965 mm | 985 mm | 1004 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

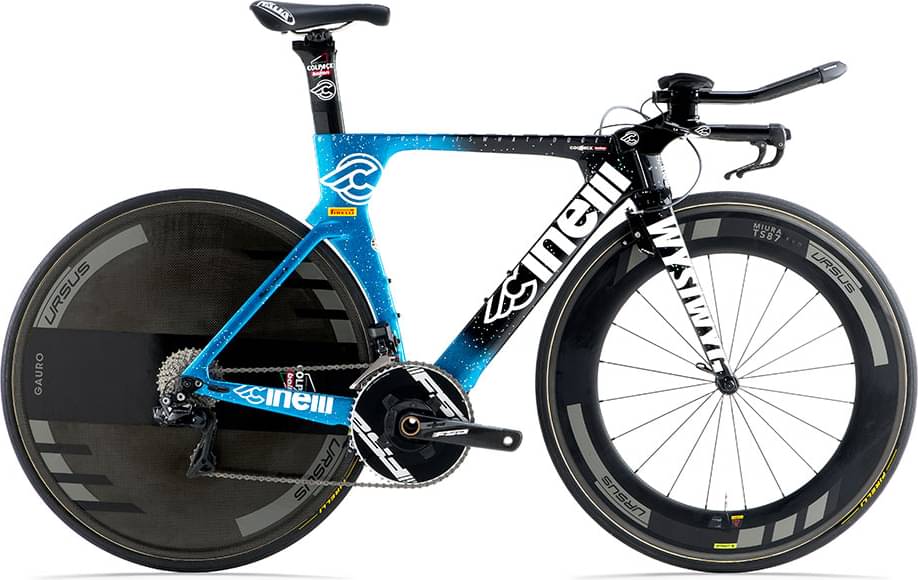

WYSIWYG Ultegra Di2 is part of the Cinelli Wysiwyg model. Cinelli released 2 bikes variations of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Triathlon bikes average price
Our math shows that the average cost of a dependable Triathlon bike is 4177$. However, even though the average price of a Triathlon bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
WYSIWYG Ultegra Di2 components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on WYSIWYG Ultegra Di2 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The WYSIWYG Ultegra Di2 comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Cinelli WYSIWYG Ultegra Di2 bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
