Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Bottom Bracket
BSA 34,7 mm X 24 TPI
Cockpit
Stem
90 - 100 mm (WITH EXTENSION)
Headset
CONICAL 1.1/8”
Seat
Seatpost
MODULAR OFFSET 0 : -30 mm OPTIONAL MODULAR OFFSET 30 : 0 mm;
Fit data

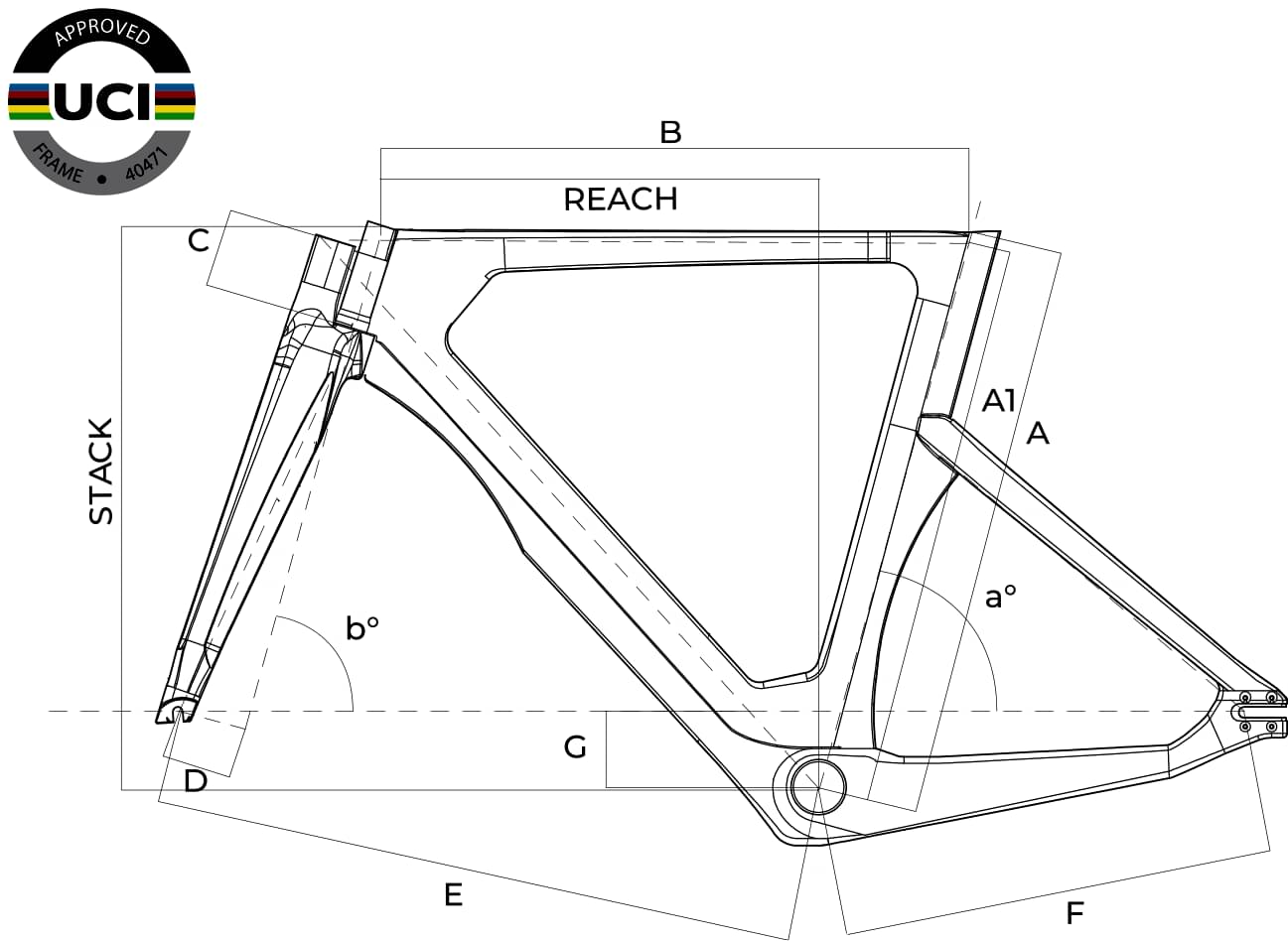

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.29 mm | 1.29 mm | 1.28 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 579 mm | 585 mm | 597 mm | 617.5 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 67 mm | 60 mm | 53 mm | 54 mm |
| Stack | 493 mm | 504 mm | 521.5 mm | 539.5 mm |
| Reach | 373 mm | 390.5 mm | 405.5 mm | 422 mm |
| Top Tube Length | 515 mm | 527 mm | 547 mm | 567 mm |
| Seat Tube Length | 480 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71 ° | 72.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 60 mm | 67.5 mm | 82 mm | 100 mm |
| Chainstay Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Wheelbase | 969 mm | 975 mm | 987 mm | 1008 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

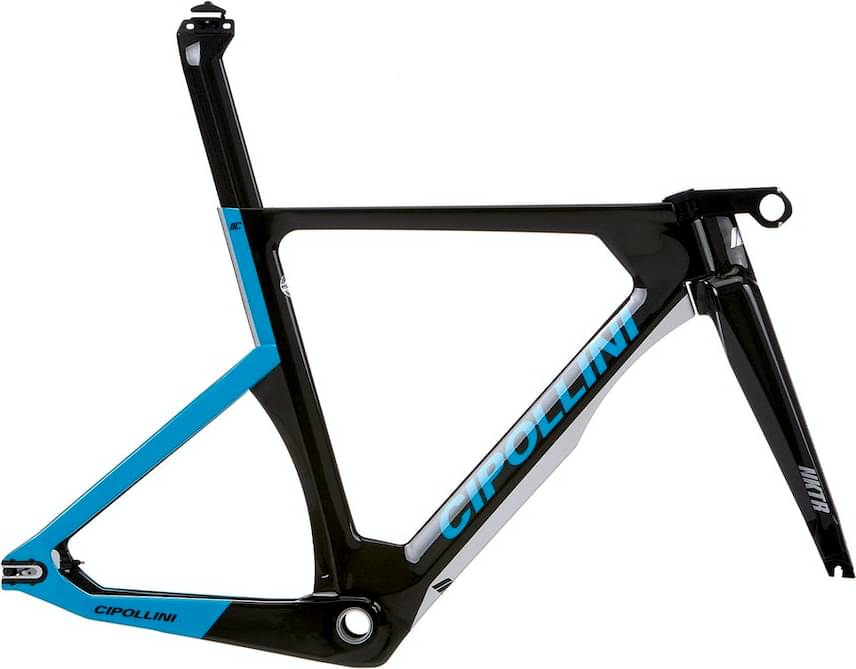

NKTR BISCAY-BAY FRAMESET completes the Cipollini Nktr model. Cipollini released 4 frames variations of this model so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Track frames average price
Our math shows that the average cost of a dependable Track frame is 2508$. However, even though the average price of a Track frame is lower, you might still be able to get a top-quality frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Average weight for Track frames
Track frames have an average weight of 1.9 kg (4.19 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Cipollini NKTR BISCAY-BAY FRAMESET it’s weighing 1.8 kg (3.97 lbs). At this weight, is a bit lighter than average. In short, the average Track frame weight is 5.56% higher than this one.
NKTR BISCAY-BAY FRAMESET components
Fork material
NKTR BISCAY-BAY FRAMESET has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Sizes
NKTR BISCAY-BAY FRAMESET comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
