Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Toray's T1000.M46J HM Carbon
Suspension Fork
Speed Carbon, 1 1/8"
Drivetrain
Bottom Bracket
BSA 68mm, English Thread
Cockpit
Headset
1 1/8" Integrated
Seat
Seatpost
Cipollini Speed Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.34 mm | 1.35 mm | 1.35 mm | 1.37 mm |
| Stack | 484.9 mm | 504.1 mm | 518.5 mm | 534 mm | 558.2 mm |
| Reach | 366.9 mm | 376.9 mm | 384.5 mm | 395.3 mm | 408.9 mm |
| Top Tube Length | 496 mm | 509 mm | 529 mm | 549 mm | 569 mm |
| Seat Tube Angle | 75.3 ° | 75 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 416 mm | 436 mm | 459 mm | 481 mm | 506 mm |
| Head Tube Angle | 74.5 ° | 73.5 ° | 74 ° | 74 ° | 74.5 ° |
| Head Tube Length | 98 mm | 115 mm | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 374 mm | 374 mm | 374 mm | 374 mm | 374 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

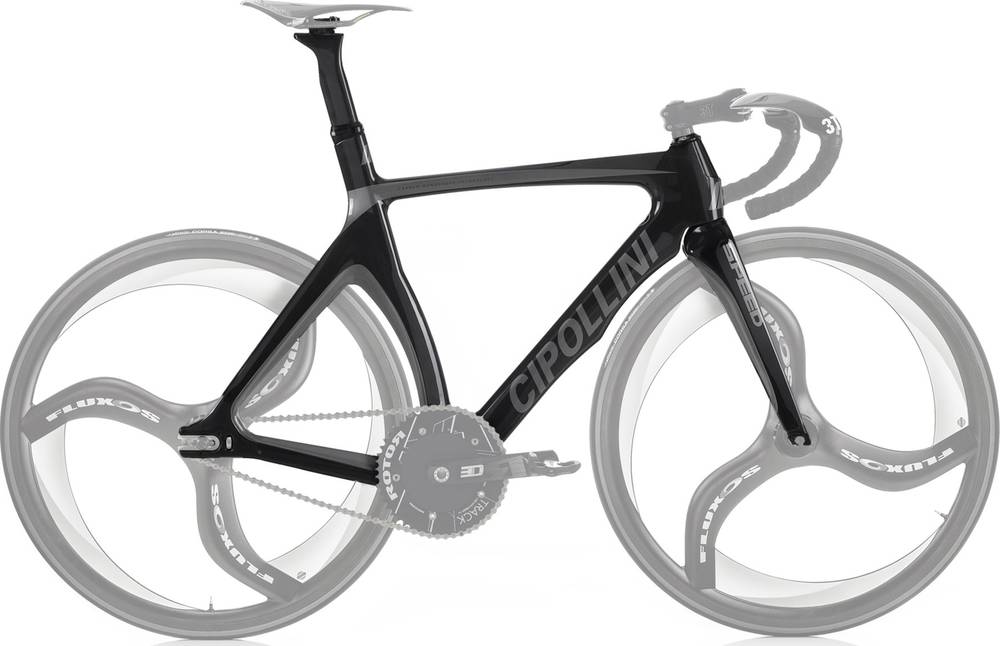

Model Overview
Speed Frameset completes the Cipollini Speed model. Cipollini released 4 frames variations of this model so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Track frames average price
If you want to purchase a solid Track frame, it is important to know that the average cost is 2508$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Track frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5390$. In conclusion, this frame price is 114.91% higher than the price of the average Track frame.
Speed Frameset components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
Sizes
Speed Frameset comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
