Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Monocoque Carbon
Suspension Fork
Colnago AC-R Carbon Disc
Drivetrain
Rear Derailleur
Shimano 105 5800
Front Derailleur
Shimano 105 5800
Shift Levers
Shimano BR-RS505
Cassette
Shimano 105 5800, 11-28
Crank
Shimano FC-RS500, 50/34
Bottom Bracket
Shimano
Chain
Shimano
Pedals
Not Included
Wheels
Rims
Colnago Disc CXD26
Tires
Vittoria Zafiro, 700x23c
Brakes
Brakes
Shimano BR-R785
Disk Rotors
Shimano SM-RT81, 140mm CL
Cockpit
Stem
Deda Zero One
Handlebar
Deda RHM 01
Headset
FSA No63/51E
Seat
Saddle
Selle Italia Q-Bik
Seatpost
Colnago Alloy, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 45cm | 48cm | 50cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.39 mm | 1.38 mm | 1.42 mm | 1.48 mm | 1.5 mm | 1.48 mm | 1.5 mm |
| Stack | 526 mm | 531 mm | 537 mm | 553 mm | 574 mm | 589 mm | 599 mm | 614 mm |
| Reach | 378 mm | 383 mm | 388 mm | 389 mm | 389 mm | 392 mm | 404 mm | 408 mm |
| Top Tube Length | 511 mm | 522 mm | 534 mm | 544 mm | 557 mm | 572 mm | 587 mm | 597 mm |
| Seat Tube Angle | 75.6 ° | 75.1 ° | 74.5 ° | 74 ° | 73.57 ° | 72.83 ° | 72.72 ° | 72.77 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 470 mm | 490 mm | 515 mm | 525 mm | 540 mm |
| Head Tube Length | 124 mm | 127 mm | 130 mm | 146 mm | 166 mm | 181 mm | 190 mm | 206 mm |
| Chainstay Length | 405 mm | 406 mm | 409 mm | 412 mm | 415 mm | 418 mm | 419 mm | 421 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

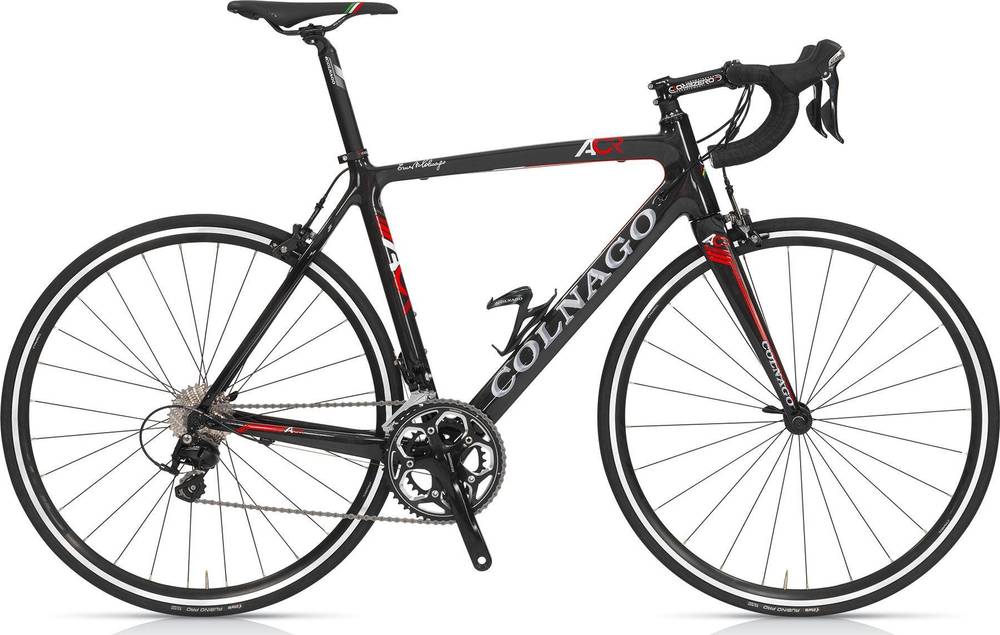

AC-R 105 Disc Bike is a Colnago Ac R model. Colnago released 3 bikes variations of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2016 and its price was 3399$. If we compare this with the average Race bike cost we notice that the price is 1.46% higher.
AC-R 105 Disc Bike components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The AC-R 105 Disc Bike 2016 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The AC-R 105 Disc Bike comes with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
