Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Groupset RED XPLR eTap -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes SRAM RED Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain

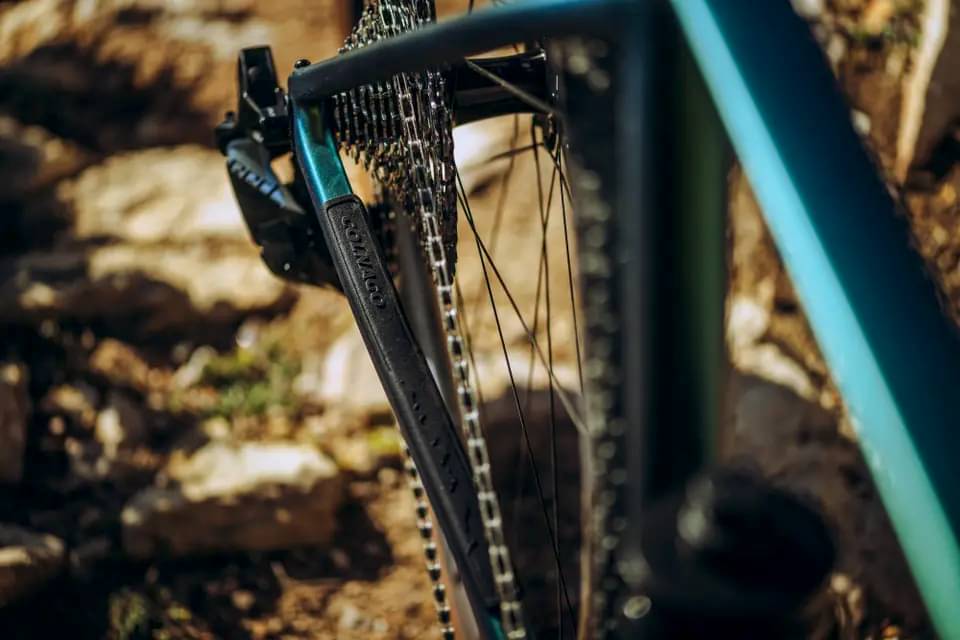

Rear Derailleur
SRAM RED XPLR eTap AXS - RD-RED-E-D1, SRAM RED XPLR eTap AXS - RD-RED-E-D1
Front Derailleur
This goupset has a single chainring, This goupset has a single chainring
Shift Levers
Drivetrain, SRAM RED XPLR D1 eTAP AXS, SRAM RED XPLR D1 eTAP AXS
Cassette
10-44T 12s, 10-44T 12s
Crank
40T, 40T
Bottom Bracket
T47 SRAM DUB Road, T47 SRAM DUB Road
Chain
RED Chain - CN-RED-D1 12s, RED Chain - CN-RED-D1 12s
Wheels
Front Hub
176D, 76D, 176D, 76D
Rear Hub
176D, 76D, 176D, 76D
Rims
45mm, 45mm
Tires
Pirelli Cinturato Gravel H TLR (40-622), Pirelli Cinturato Gravel H TLR (40-622)
Brakes
Brakes

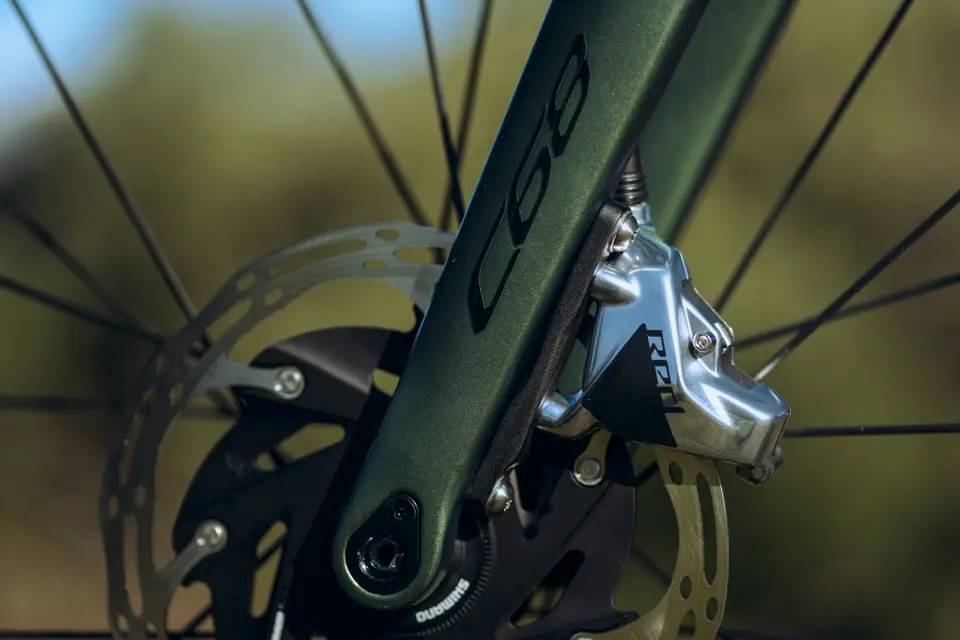

Brakes, Disc brakes SRAM Red eTap AXS HRD SHIFT-BRAKE SYSTEM - CenterLine XR Rotor, Disc brakes SRAM Red eTap AXS HRD SHIFT-BRAKE SYSTEM - CenterLine XR Rotor
Brake Levers
SRAM Red eTap AXS HRD SHIFT-BRAKE SYSTEM, SRAM Red eTap AXS HRD SHIFT-BRAKE SYSTEM
Cockpit
Stem

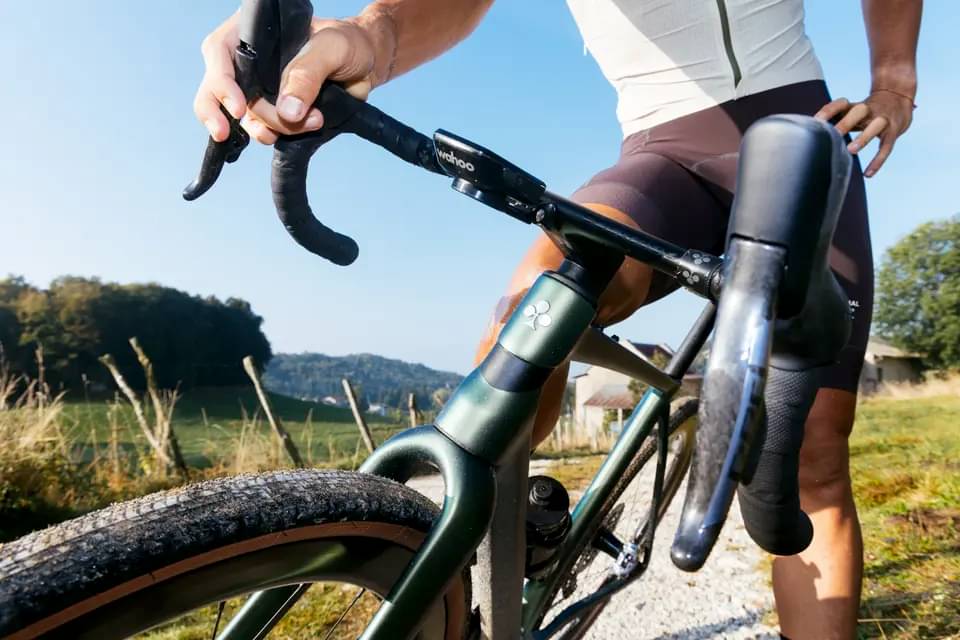

CC01 integrated cockpit, CC01 integrated cockpit
Handlebar
Colnago CC.01 integrated Cockpit - Wide geometry. Colnago CC.01 integrated Cockpit - Wide geometry.
Headset
ACROS ss 1"1/4 3547 steel bearing, ACROS ss 1"1/4 3547 steel bearing
Seat
Saddle
Components, Option 1, Prologo Scratch M5 Nack 140 Hard Black, Option 2, Selle Italia SLR Boost SuperFlow Carbon Rail, Option 1, Prologo Scratch M5 Nack 140 Hard Black, Option 2, Selle Italia SLR Boost SuperFlow Carbon Rail
Seatpost
Carbon seatpost, 0.15 offset, "D-Shape" section, Carbon seatpost, 0.15 offset, "D-Shape" section
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 48cm | 51cm | 54cm | 57cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.443 mm | 1.438 mm | 1.461 mm | 1.483 mm | 1.504 mm |
| Bottom Bracket Height | 264 mm | 262 mm | 264 mm | 264 mm | 264 mm |
| Stack | 541 mm | 555 mm | 580 mm | 605 mm | 630 mm |
| Reach | 375 mm | 386 mm | 397 mm | 408 mm | 419 mm |
| Top Tube Length | 520 mm | 545 mm | 569 mm | 590 mm | 600 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73.2 ° | 73 ° |
| Head Tube Angle | 75 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 130 mm | 157 mm | 185 mm | 212 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Bottom Bracket Drop | 72 mm | 74 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
