Bike details
Overview
Key information split into simple groups.

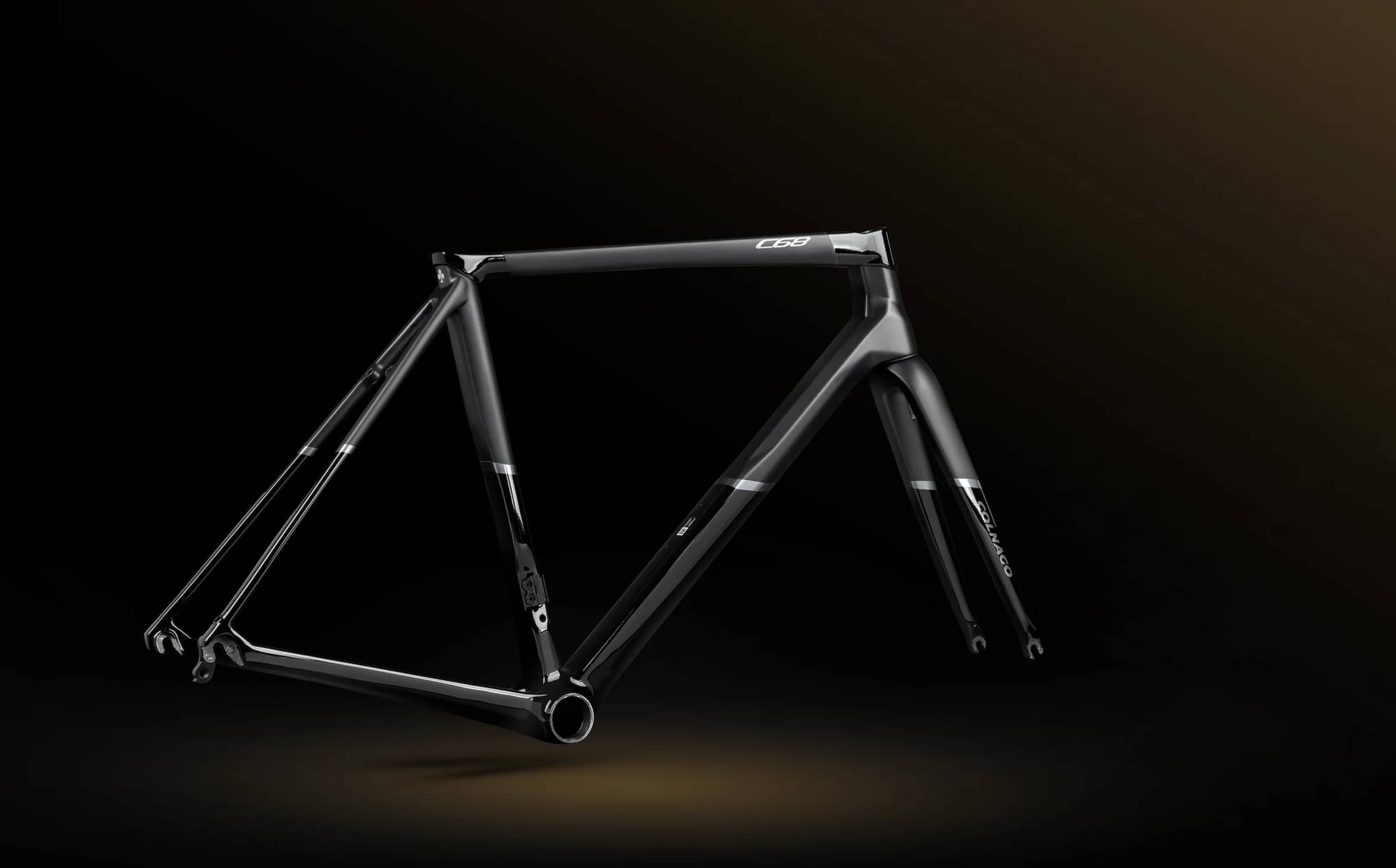

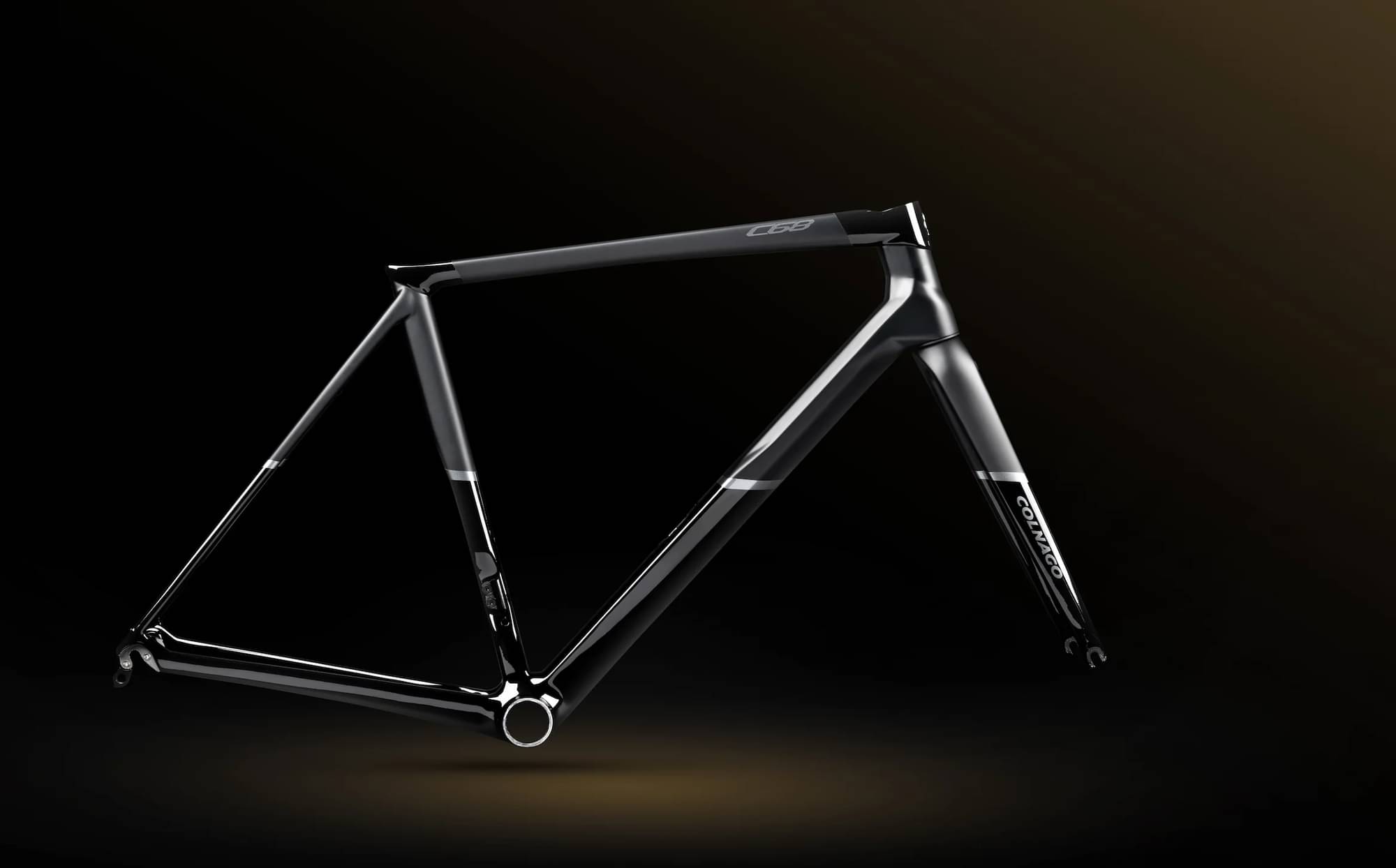

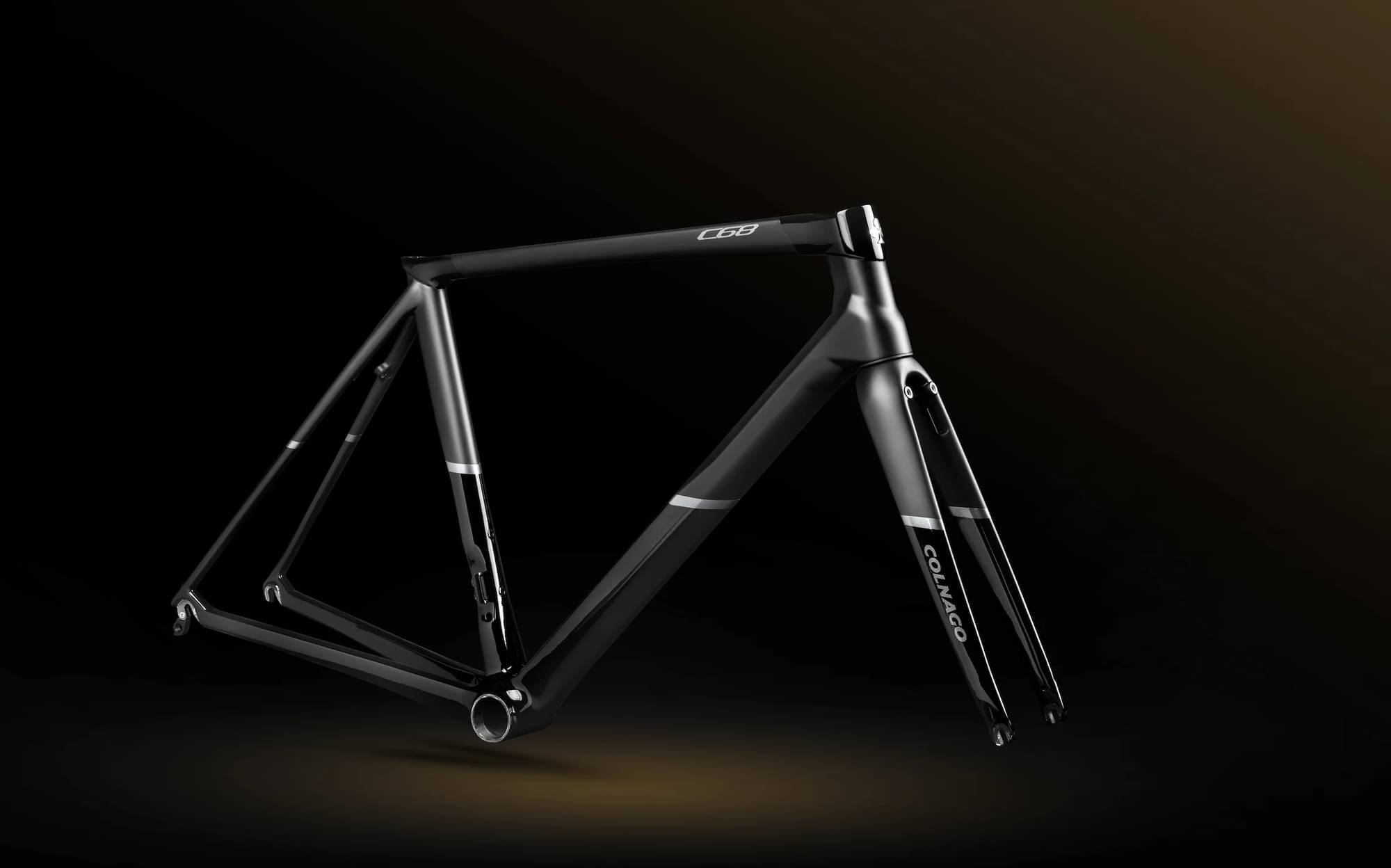

Frame summary
-
-
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Cockpit
Headset
ID:35 OD:47 36°/45° CeramicSpeed SLT Treated Bearings, ID:35 OD:47 36°/45° CeramicSpeed SLT Treated Bearings
Seat
Seatpost
Carbon seatpost, 0.15 offset, "D-Shape" section, Carbon seatpost, 0.15 offset, "D-Shape" section
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 45.5cm | 48.5cm | 51cm | 53cm | 55cm | 57cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.378 mm | 1.392 mm | 1.407 mm | 1.436 mm | 1.456 mm | 1.471 mm | 1.493 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Stack | 510 mm | 522 mm | 539 mm | 557 mm | 575 mm | 593 mm | 612 mm |
| Reach | 370 mm | 375 mm | 383 mm | 388 mm | 395 mm | 403 mm | 410 mm |
| Top Tube Length | 504 mm | 517 mm | 535 mm | 550 mm | 567 mm | 586 mm | 599 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Head Tube Angle | 70.6 ° | 71 ° | 71.5 ° | 71.8 ° | 72.5 ° | 72.9 ° | 73.1 ° |
| Head Tube Length | 103 mm | 114 mm | 130 mm | 148 mm | 164 mm | 181 mm | 200 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 410 mm | 414 mm | 414 mm | 414 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
