Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Groupset Super Record, Super Record Wireless -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Campagnolo Super Record Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
Cambio Campagnolo Super Record WRL12v - RD23-SR12WRL, Cambio Campagnolo Super Record WRL12v - RD23-SR12WRL
Front Derailleur
Campagnolo Super Record WRL - FD23-SR12WRL, Campagnolo Super Record WRL - FD23-SR12WRL
Shift Levers
Drivetrain, Campagnolo Super Record WRL (Wireless) DB 12, Campagnolo Super Record WRL (Wireless) DB 12
Cassette
Option 1 (Default), 10-27T, Option 2, 10-29T, Option 1 (Default), 10-27T, Option 2, 10-29T
Crank
Option 1 (Default), 48-32T, Option 2, 45-29T, Option 1 (Default), 48-32T, Option 2, 45-29T
Bottom Bracket
T47 Campagnolo, T47 Campagnolo
Chain
Super Record WRL 12S, Super Record WRL 12S
Wheels
Front Hub
Carbon Hubs, CULT™ ceramic bearings, Integrated flanges, Carbon Hubs, CULT™ ceramic bearings, Integrated flanges
Rear Hub
Carbon Hubs, CULT™ ceramic bearings, Integrated flanges, Carbon Hubs, CULT™ ceramic bearings, Integrated flanges
Rims
45 mm, 45 mm
Tires
Enve WS SES 3.4 C, Pirelli PZero Race TLR 700x28, Shimano Dura Ace C50, Pirelli PZero Race 700x28, Fulcrum Wind 420 DB, Pirelli PZero Race 700x28, Fulcrum Racing 600 DB, Pirelli P7 Sport 700x28, Enve WS SES 3.4 C, Pirelli PZero Race TLR 700x28, Shimano Dura Ace C50, Pirelli PZero Race 700x28, Fulcrum Wind 420 DB, Pirelli PZero Race 700x28, Fulcrum Racing 600 DB, Pirelli P7 Sport 700x28
Brakes
Brakes
Brakes, Campagnolo Super Record WRL - Standard Flat Mount, Campagnolo Super Record WRL - Standard Flat Mount
Brake Levers
Campagnolo Ergopower DB Super Record WRL 12V, Campagnolo Ergopower DB Super Record WRL 12V
Cockpit
Stem

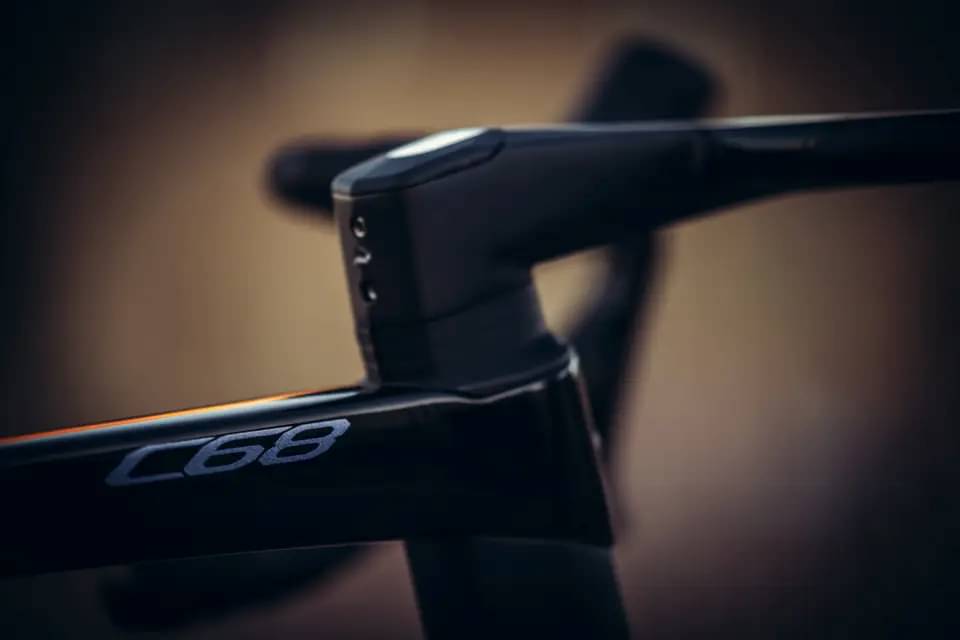

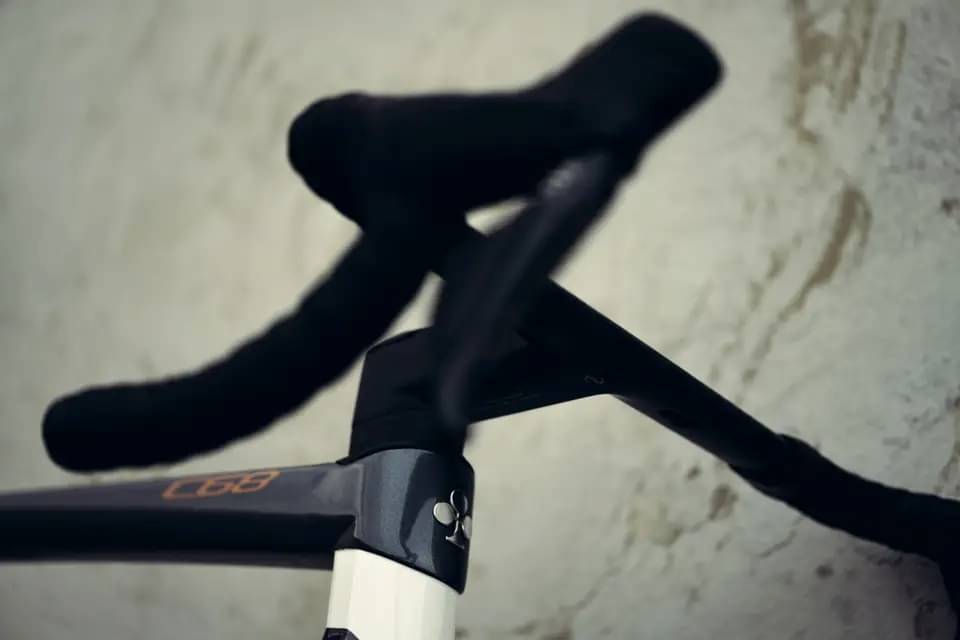

CC01 integrated cockpit, CC01 integrated cockpit
Handlebar
Colnago CC.01 integrated Cockpit - regular geometry. Colnago CC.01 integrated Cockpit - regular geometry.

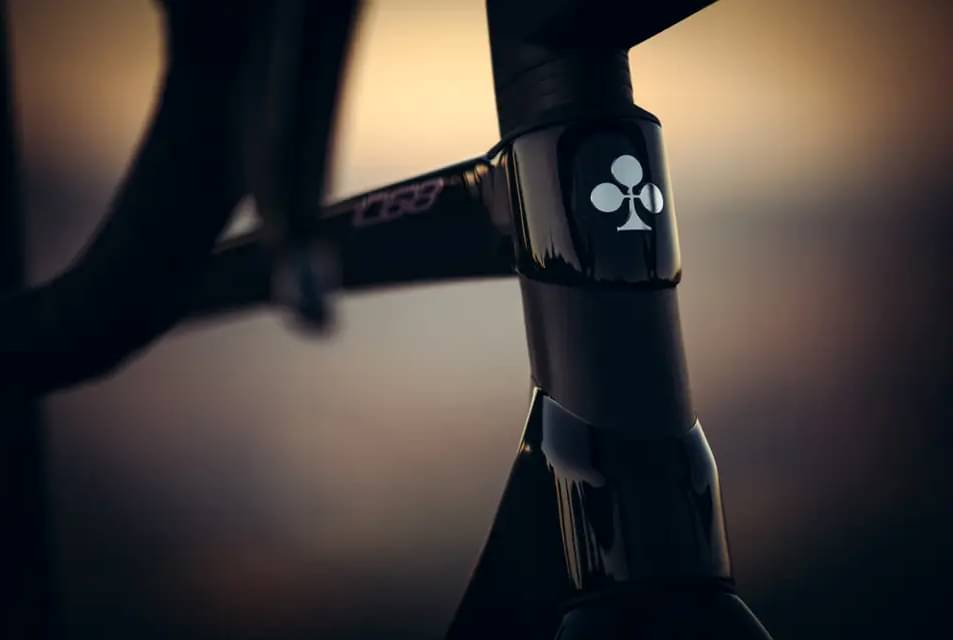

Headset
ID:35 OD:47 36°/45° CeramicSpeed SLT Treated Bearings, ID:35 OD:47 36°/45° CeramicSpeed SLT Treated Bearings
Seat
Saddle
Components, Option 1, Prologo Scratch M5 CPC Airing Tirox, Option 2, Selle Italia SLR Boost Superflow Carbon Rail, Option 1, Prologo Scratch M5 CPC Airing Tirox, Option 2, Selle Italia SLR Boost Superflow Carbon Rail
Seatpost
Carbon seatpost, 0.15 offset, "D-Shape" section, Carbon seatpost, 0.15 offset, "D-Shape" section
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 45.5cm | 48.5cm | 51cm | 53cm | 55cm | 57cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.378 mm | 1.392 mm | 1.407 mm | 1.436 mm | 1.456 mm | 1.471 mm | 1.493 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Stack | 510 mm | 522 mm | 539 mm | 557 mm | 575 mm | 593 mm | 612 mm |
| Reach | 370 mm | 375 mm | 383 mm | 388 mm | 395 mm | 403 mm | 410 mm |
| Top Tube Length | 504 mm | 517 mm | 535 mm | 550 mm | 567 mm | 586 mm | 599 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Head Tube Angle | 70.6 ° | 71 ° | 71.5 ° | 71.8 ° | 72.5 ° | 72.9 ° | 73.1 ° |
| Head Tube Length | 103 mm | 114 mm | 130 mm | 148 mm | 164 mm | 181 mm | 200 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 410 mm | 414 mm | 414 mm | 414 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
