Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Groupset Force eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes SRAM Force Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
SRAM FORCE eTap AXS - RD-FRC-E-D1, SRAM FORCE eTap AXS - RD-FRC-E-D1
Front Derailleur
SRAM FORCE eTap AXS - FD-FRC-E-D1, SRAM FORCE eTap AXS - FD-FRC-E-D1
Shift Levers
Drivetrain, SRAM FORCE eTap AXS Disc, SRAM FORCE eTap AXS Disc
Cassette
Option 1 (Default), 10-28T (12v), Option 2, 10-30T (12v), Option 1 (Default), 10-28T (12v), Option 2, 10-30T (12v)
Crank
48-35T, 48-35T
Bottom Bracket
T47 SRAM DUB, T47 SRAM DUB
Chain
FORCE Chain - CN-FRC-D1, FORCE Chain - CN-FRC-D1
Wheels
Front Hub
Fulcrum Wind 420 DB, Aluminum, Low flanges. Sealed bearing, Adjustable, Fulcrum Racing 600 DB, Aluminum, Aluminum flanges Sealed cartridge bearings, Fulcrum Wind 420 DB, Aluminum, Low flanges. Sealed bearing, Adjustable, Fulcrum Racing 600 DB, Aluminum, Aluminum flanges Sealed cartridge bearings
Rear Hub
Fulcrum Wind 420 DB, Aluminum, Low flanges. Sealed bearing, Adjustable, Fulcrum Racing 600 DB, Aluminum, Aluminum flanges Sealed cartridge bearings, Fulcrum Wind 420 DB, Aluminum, Low flanges. Sealed bearing, Adjustable, Fulcrum Racing 600 DB, Aluminum, Aluminum flanges Sealed cartridge bearings
Rims
Fulcrum Wind 420 DB, 42 mm, Fulcrum Racing 600 DB, 24 mm, Fulcrum Wind 420 DB, 42 mm, Fulcrum Racing 600 DB, 24 mm
Tires
Fulcrum Wind 420 DB, Pirelli PZero Race 700x28, Fulcrum Racing 600 DB, Pirelli P7 Sport 700x28, Fulcrum Wind 420 DB, Pirelli PZero Race 700x28, Fulcrum Racing 600 DB, Pirelli P7 Sport 700x28
Brakes
Brakes
Brakes, SRAM Force eTap AXS HRD SHIFT-BRAKE SYSTEM - CenterLine XR Rotor, SRAM Force eTap AXS HRD SHIFT-BRAKE SYSTEM - CenterLine XR Rotor
Brake Levers
SRAM Force eTap AXS HRD SHIFT-BRAKE SYSTEM, SRAM Force eTap AXS HRD SHIFT-BRAKE SYSTEM
Cockpit
Stem

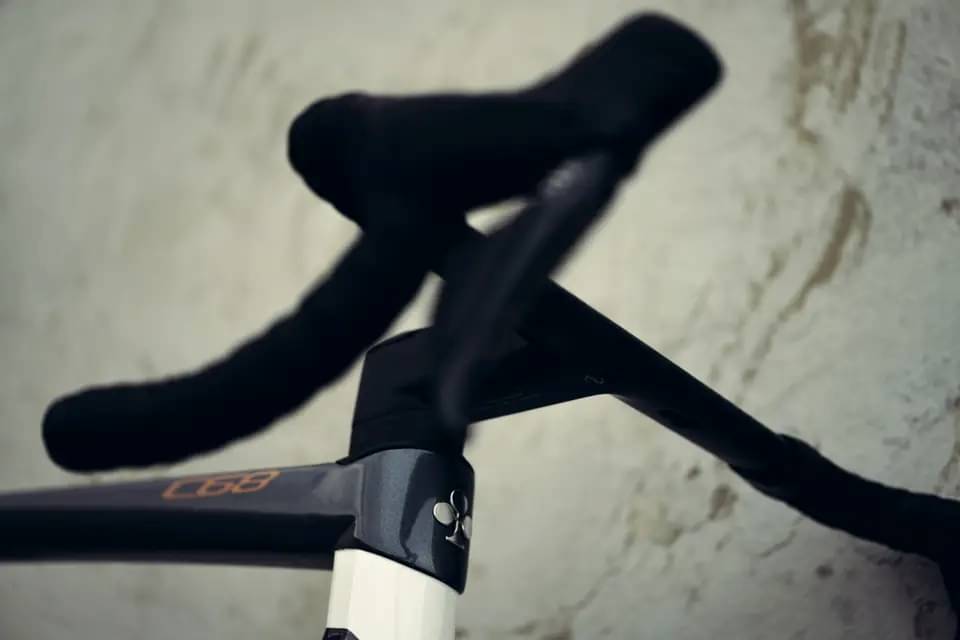

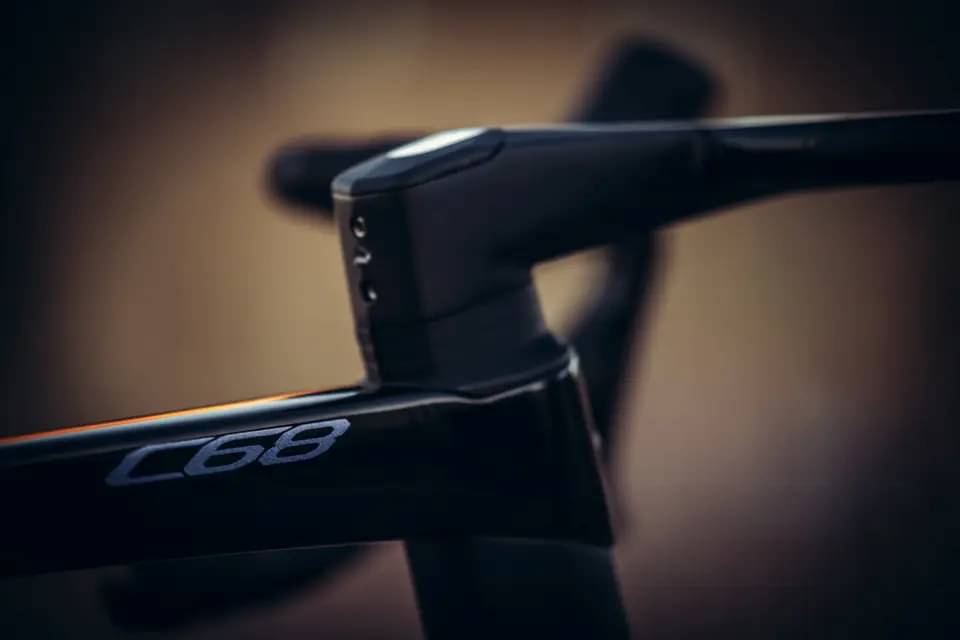

CC01 integrated cockpit, CC01 integrated cockpit
Handlebar
Colnago CC.01 integrated Cockpit - regular geometry. Colnago CC.01 integrated Cockpit - regular geometry.

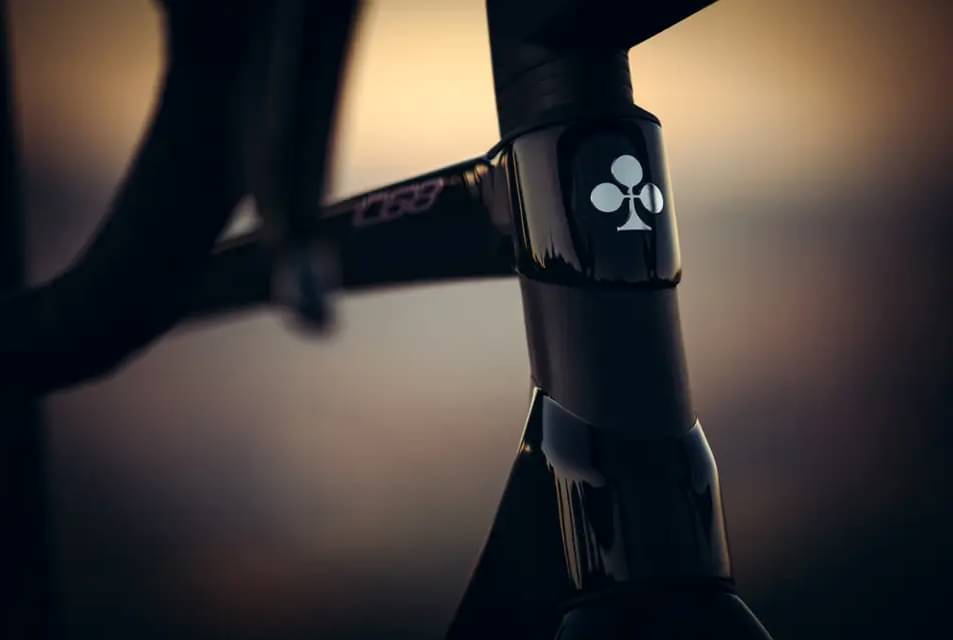

Headset
ID:35 OD:47 36°/45° CeramicSpeed SLT Treated Bearings, ID:35 OD:47 36°/45° CeramicSpeed SLT Treated Bearings
Seat
Saddle
Components, Option 1, Prologo Scratch M5 Tirox, Option 2, Selle Italia Novus Boost EVO TI316 Superflow, Option 1, Prologo Scratch M5 Tirox, Option 2, Selle Italia Novus Boost EVO TI316 Superflow
Seatpost
Carbon seatpost, 0.15 offset, "D-Shape" section, Carbon seatpost, 0.15 offset, "D-Shape" section
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 45.5cm | 48.5cm | 51cm | 53cm | 55cm | 57cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.378 mm | 1.392 mm | 1.407 mm | 1.436 mm | 1.456 mm | 1.471 mm | 1.493 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Stack | 510 mm | 522 mm | 539 mm | 557 mm | 575 mm | 593 mm | 612 mm |
| Reach | 370 mm | 375 mm | 383 mm | 388 mm | 395 mm | 403 mm | 410 mm |
| Top Tube Length | 504 mm | 517 mm | 535 mm | 550 mm | 567 mm | 586 mm | 599 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Head Tube Angle | 70.6 ° | 71 ° | 71.5 ° | 71.8 ° | 72.5 ° | 72.9 ° | 73.1 ° |
| Head Tube Length | 103 mm | 114 mm | 130 mm | 148 mm | 164 mm | 181 mm | 200 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 410 mm | 414 mm | 414 mm | 414 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
