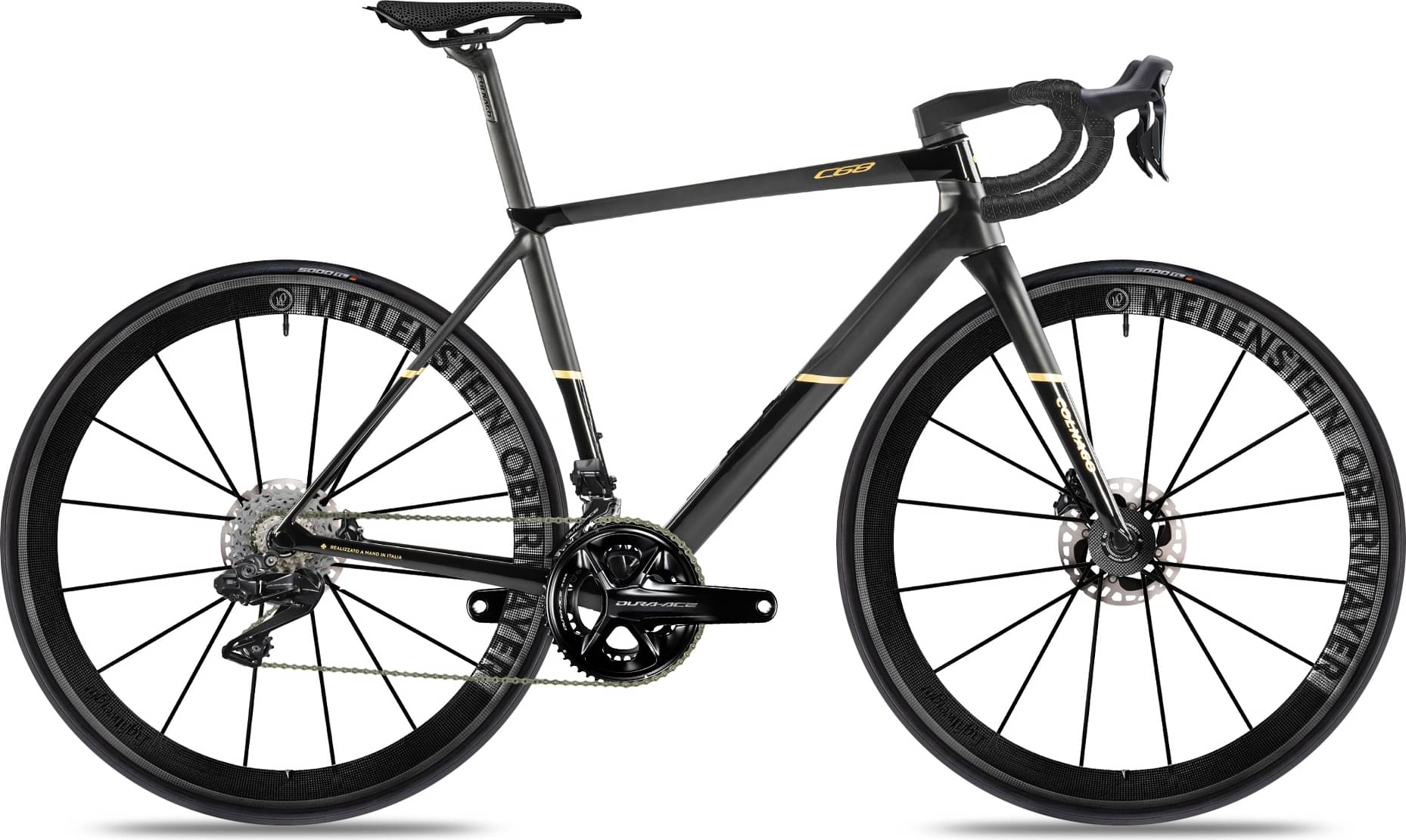

Colnago C68 Ti Disc Kaizen Pro Black Bike 2024
2024 Road
Estimate price |
22,950$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High Modulus Carbon Fiber/Titanium Lugs - Handmade in Italy
Suspension Fork
High Modulus Carbon Fiber - Handmade in Italy
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2 9250
Front Derailleur
Shimano Dura-Ace Di2 9250
Shift Levers
Shimano Dura-Ace Di2 9270
Cassette
Shimano Dura-Ace 9200, 12s
Crank
Shimano Dura-Ace 9200
Bottom Bracket
CeramicSpeed Ceramic Race - T47/86 to Shimano 24mm
Chain
Shimano M9100, 12s
Pedals
Not Included
Wheels
Rims
Lightweight Obermeyer Evo Disc - Schwarz Edition -
Tires
Continental Grand Prix 5000 TR
Brakes
Brakes
Shimano Dura-Ace 9270 Caliper
Cockpit
Stem
Colnago CC.01 Integrated
Handlebar
Colnago CC.01 Integrated
Seat
Saddle
Fizik Antares Versus Evo R1 Adaptive
Seatpost
Colnago C68 Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 45.5cm | 48.5cm | 51cm | 53cm | 55cm | 57cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.378 mm | 1.392 mm | 1.407 mm | 1.436 mm | 1.456 mm | 1.471 mm | 1.493 mm |
| Stack | 510 mm | 522 mm | 539 mm | 557 mm | 575 mm | 593 mm | 612 mm |
| Reach | 370 mm | 375 mm | 383 mm | 388 mm | 395 mm | 403 mm | 410 mm |
| Top Tube Length | 504 mm | 517 mm | 535 mm | 550 mm | 567 mm | 586 mm | 599 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 455 mm | 485 mm | 510 mm | 530 mm | 550 mm | 570 mm |
| Head Tube Angle | 70.6 ° | 71 ° | 71.5 ° | 71.8 ° | 72.5 ° | 72.9 ° | 73.1 ° |
| Head Tube Length | 103 mm | 114 mm | 130 mm | 148 mm | 164 mm | 181 mm | 200 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 410 mm | 414 mm | 414 mm | 414 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
