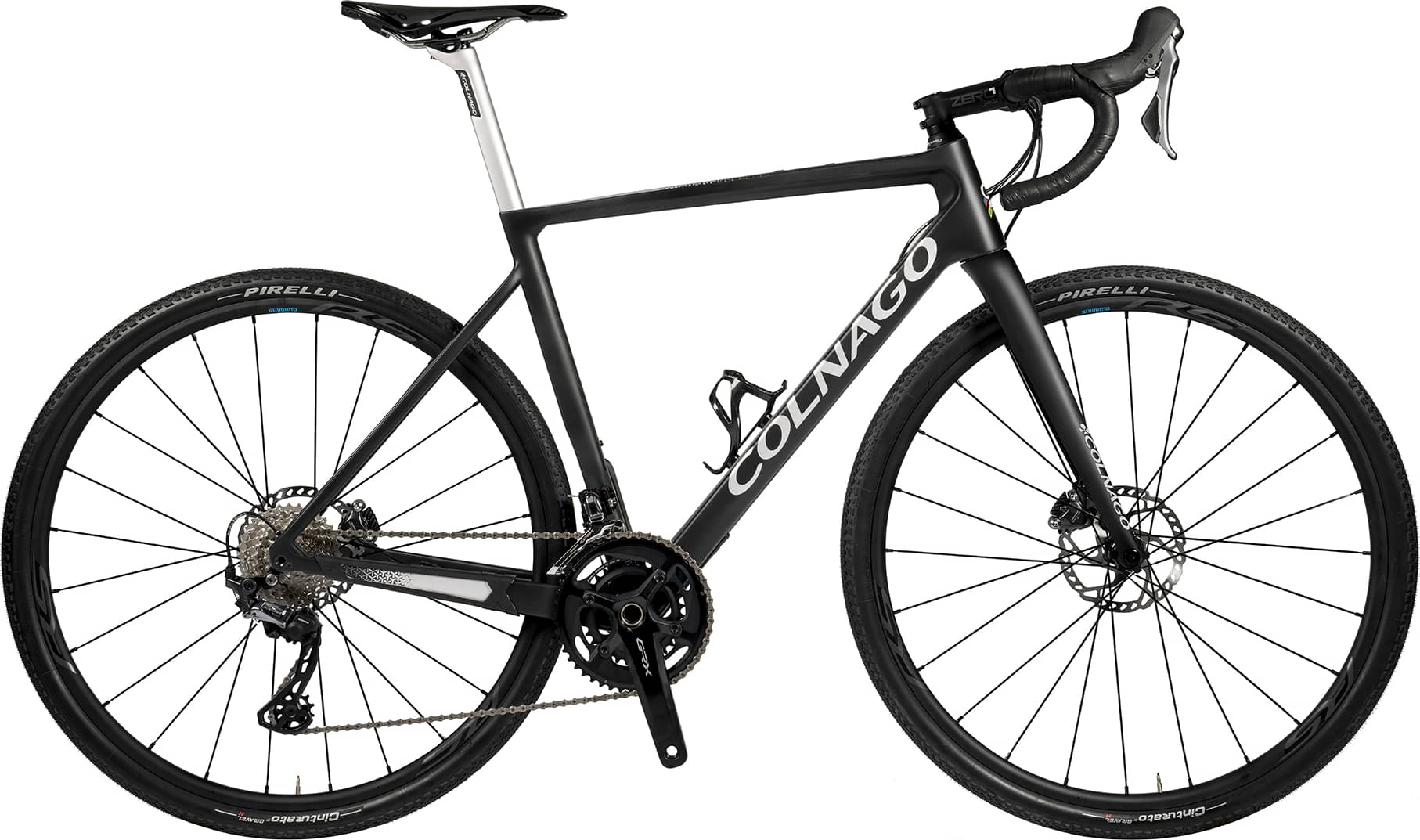

Colnago G3-X GRX 810 2X Disc Bike 2024
2024 Road
Estimate price |
4,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon
Suspension Fork
Carbon
Drivetrain
Rear Derailleur
Shimano GRX 812
Front Derailleur
Shimano GRX 810
Shift Levers
Shimano GRX 810
Cassette
Shimano M8000 11-40 11-speed
Crank
Shimano GRX 810 48/31
Bottom Bracket
Shimano SM-BB72-41B
Chain
Shimano HG701 11-speed
Pedals
Not Included
Wheels
Rims
Shimano WH-370
Tires
Pirelli Cinturato Gravel H TLR 700x40
Brakes
Brakes
Shimano GRX 810
Cockpit
Stem
Deda Elementi Attacco
Handlebar
Deda Elementi Manubrio
Headset
Integrated
Seat
Saddle
Prologo Kappa
Seatpost
Colnago G3-X
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 52cm | 55cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.442 mm | 1.458 mm | 1.469 mm | 1.478 mm | 1.463 mm |
| Stack | 535 mm | 554 mm | 573 mm | 591 mm | 600 mm |
| Reach | 371 mm | 380 mm | 390 mm | 400 mm | 410 mm |
| Top Tube Length | 513 mm | 539 mm | 560 mm | 578 mm | 593 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73.2 ° | 73 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 70.8 ° | 71.5 ° | 71.5 ° | 71.6 ° | 71.9 ° |
| Head Tube Length | 102 mm | 122 mm | 140 mm | 159 mm | 167 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
