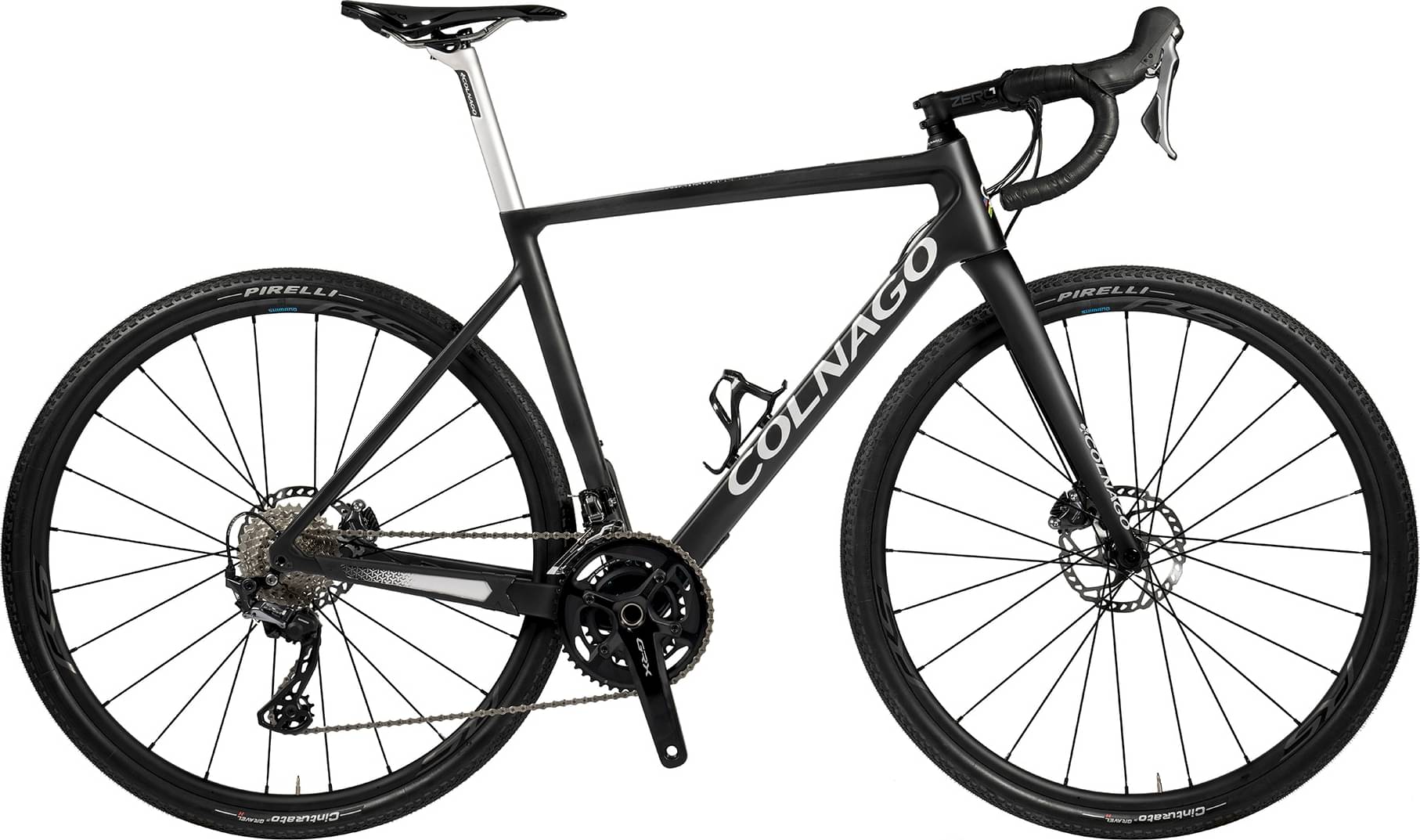

Colnago G3-X Rival AXS 1X Disc Bike 2024
2024 Road
Estimate price |
4,849$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival XPLR AXS, Rival AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon
Suspension Fork
Carbon
Drivetrain
Rear Derailleur
SRAM Rival XPLR AXS Max 44T
Front Derailleur
None
Shift Levers
SRAM Rival eTap AXS
Cassette
SRAM XG-1251 12-speed 10-44
Crank
SRAM Rival 1 AXS DUB Wide 40T
Bottom Bracket
SRAM DUB PF Road 86.5
Chain
SRAM Rival 12-speed
Pedals
Not Included
Wheels
Rims
Fulcrum Rapid Red 900
Tires
Pirelli Cinturato Gravel H Tubeless Ready 700x40
Brakes
Brakes
SRAM Rival AXS Hydraulic Disc
Cockpit
Stem
Deda Elementi Attacco
Handlebar
Deda Elementi Manubrio
Headset
Integrated
Seat
Saddle
Prologo Kappa
Seatpost
Colnago G3-X
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 52cm | 55cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.442 mm | 1.458 mm | 1.469 mm | 1.478 mm | 1.463 mm |
| Stack | 535 mm | 554 mm | 573 mm | 591 mm | 600 mm |
| Reach | 371 mm | 380 mm | 390 mm | 400 mm | 410 mm |
| Top Tube Length | 513 mm | 539 mm | 560 mm | 578 mm | 593 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73.2 ° | 73 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 70.8 ° | 71.5 ° | 71.5 ° | 71.6 ° | 71.9 ° |
| Head Tube Length | 102 mm | 122 mm | 140 mm | 159 mm | 167 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
