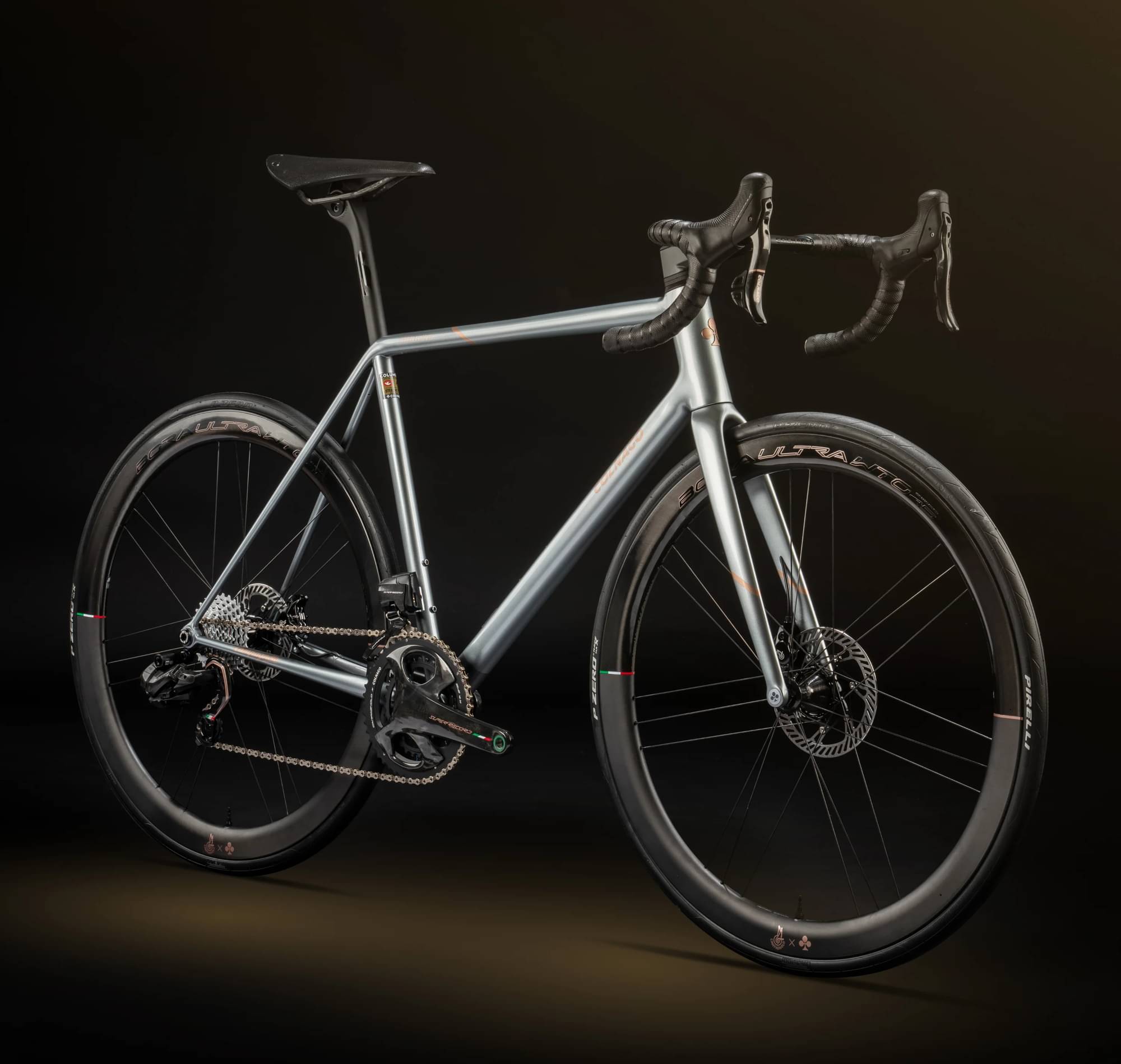

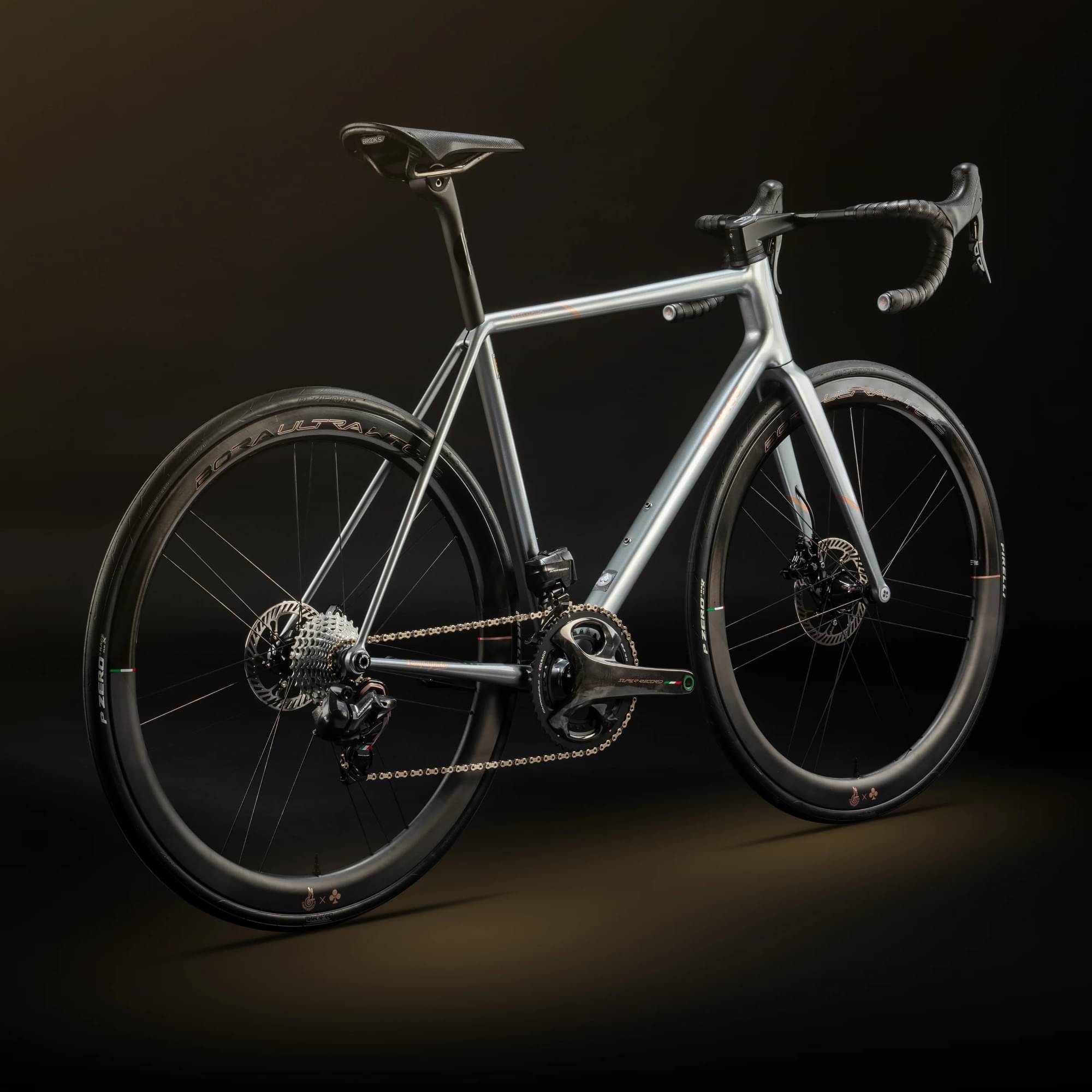

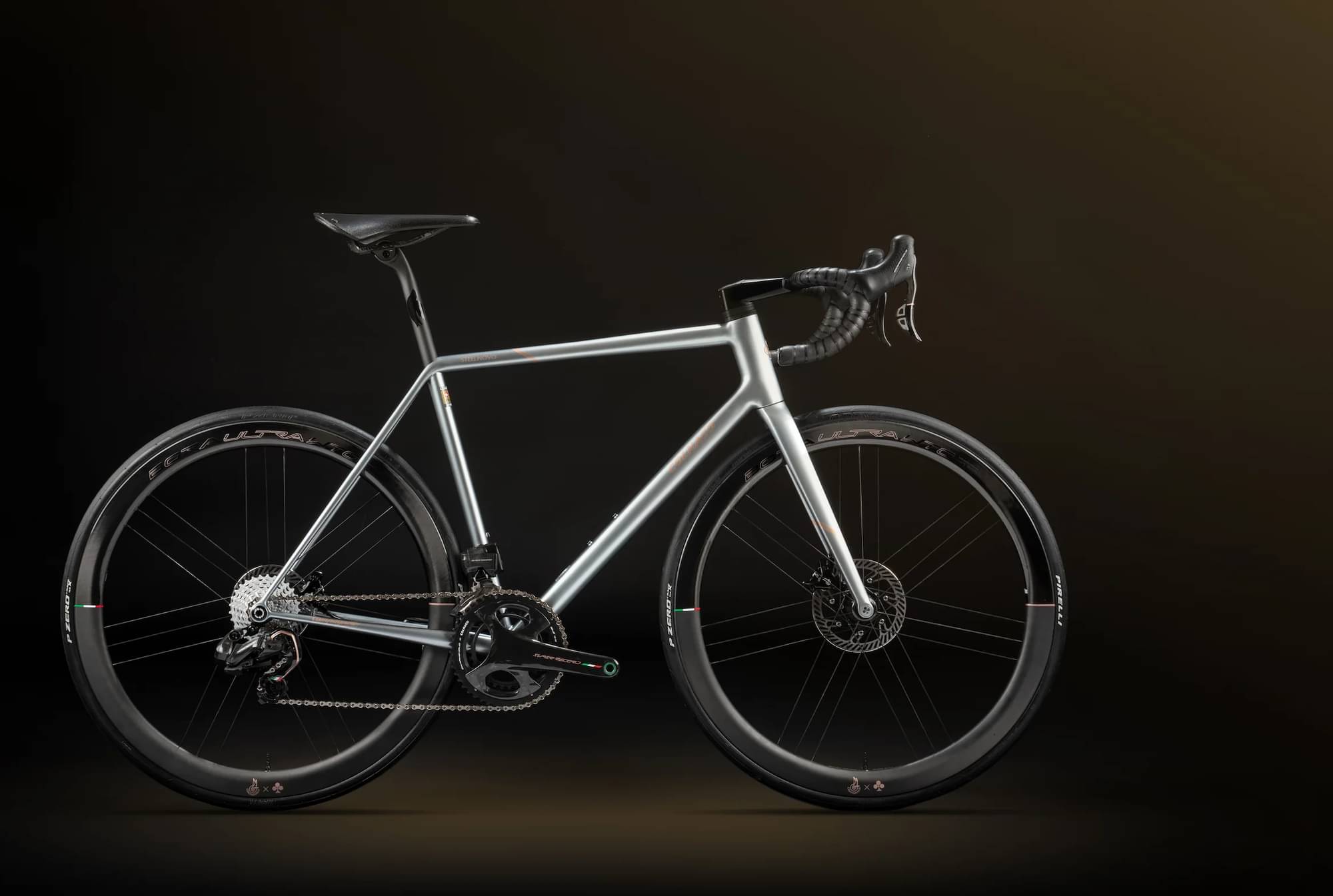

Colnago Steelnovo Steelnovo Settanta – limited edition 2025
2025 Road
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Groupset Super Record, Super Record Wireless -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Campagnolo Super Record Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
Cambio Campagnolo Super Record WRL12v - RD23-SR12WRL, Cambio Campagnolo Super Record WRL12v - RD23-SR12WRL
Front Derailleur
Campagnolo Super Record WRL - FD23-SR12WRL, Campagnolo Super Record WRL - FD23-SR12WRL
Shift Levers
Drivetrain, Campagnolo Super Record WRL (Wireless) DB 12, Campagnolo Super Record WRL (Wireless) DB 12
Cassette
10-29T, 10-29T
Crank
48-32T, 48-32T
Bottom Bracket
T47 Campagnolo - 68 mm, T47 Campagnolo - 68 mm
Chain
Super Record WRL 12S, Super Record WRL 12S
Wheels
Front Hub
Carbon Hubs, CULT™ ceramic bearings, Integrated flanges, Carbon Hubs, CULT™ ceramic bearings, Integrated flanges
Rear Hub
Carbon Hubs, CULT™ ceramic bearings, Integrated flanges, Carbon Hubs, CULT™ ceramic bearings, Integrated flanges
Rims
45 mm, 45 mm
Tires
Pirelli PZero Race TLR 700x28, Pirelli PZero Race TLR 700x28
Brakes
Brakes
Brakes, Campagnolo Super Record WRL - Standard Flat Mount, Campagnolo Super Record WRL - Standard Flat Mount
Brake Levers
Campagnolo Ergopower DB Super Record WRL 12V, Special Edition Campagnolo x Colnago 70th Anniversary, Campagnolo Ergopower DB Super Record WRL 12V, Special Edition Campagnolo x Colnago 70th Anniversary
Cockpit
Stem
CC.01 integrated cockpit, CC.01 integrated cockpit
Handlebar
Colnago CC.01 integrated Cockpit - regular geometry. Colnago CC.01 integrated Cockpit - regular geometry.
Headset
1"1/8 - 1"1-4 (conic), 1"1/8 - 1"1-4 (conic)
Seat
Saddle
Components, Brooks Cambium C13, Brooks Cambium C13
Seatpost
Carbon seatpost, round section 27.2mm, Carbon seatpost, round section 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 45.5cm | 48.5cm | 51cm | 53cm | 55cm | 57cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.384 mm | 1.4 mm | 1.421 mm | 1.452 mm | 1.472 mm | 1.49 mm | 1.513 mm |
| Bottom Bracket Height | 262 mm | 262 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Stack | 512 mm | 525 mm | 543 mm | 562 mm | 580 mm | 599 mm | 619 mm |
| Reach | 370 mm | 375 mm | 382 mm | 387 mm | 394 mm | 402 mm | 409 mm |
| Seat Tube Angle | 75.5 ° | 75.3 ° | 74.8 ° | 74.5 ° | 73.8 ° | 73.5 ° | 73.3 ° |
| Head Tube Angle | 70.8 ° | 71.6 ° | 72.5 ° | 72.9 ° | 72.9 ° | 72.9 ° | 72.9 ° |
| Head Tube Length | 106 mm | 117 mm | 135 mm | 153 mm | 172 mm | 192 mm | 213 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 415 mm | 415 mm | 415 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
