Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Groupset Super Record, Super Record Wireless -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Campagnolo Super Record Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
Cambio Campagnolo Super Record WRL12v - RD23-SR12WRL, Cambio Campagnolo Super Record WRL12v - RD23-SR12WRL
Front Derailleur
Campagnolo Super Record WRL - FD23-SR12WRL, Campagnolo Super Record WRL - FD23-SR12WRL
Shift Levers
Drivetrain, Campagnolo Super Record WRL (Wireless) DB 12, Campagnolo Super Record WRL (Wireless) DB 12
Cassette
Option 1 (Default), 10-27T, Option 2, 10-29T, Option 1 (Default), 10-27T, Option 2, 10-29T
Crank
Option 1 (Default), 48-32T, Option 2, 45-29T, Option 1 (Default), 48-32T, Option 2, 45-29T
Bottom Bracket
BSA, BSA
Chain
Super Record WRL 12S, Super Record WRL 12S
Wheels
Front Hub
Carbon Hubs, CULT™ ceramic bearings, Integrated flanges, Carbon Hubs, CULT™ ceramic bearings, Integrated flanges
Rear Hub
Carbon Hubs, CULT™ ceramic bearings, Integrated flanges, Carbon Hubs, CULT™ ceramic bearings, Integrated flanges
Rims
45 mm, 45 mm
Tires
Enve WS SES 3.4 C, Pirelli PZero Race TLR 700x28, Shimano Dura Ace C50, Pirelli PZero Race 700x28, Fulcrum Wind 420 DB, Pirelli PZero Race 700x28, Fulcrum Racing 600 DB, Pirelli P7 Sport 700x28, Enve WS SES 3.4 C, Pirelli PZero Race TLR 700x28, Shimano Dura Ace C50, Pirelli PZero Race 700x28, Fulcrum Wind 420 DB, Pirelli PZero Race 700x28, Fulcrum Racing 600 DB, Pirelli P7 Sport 700x28
Brakes
Brakes
Brakes, Campagnolo Super Record WRL - Standard Flat Mount, Campagnolo Super Record WRL - Standard Flat Mount
Brake Levers
Campagnolo Ergopower DB Super Record WRL 12V, Campagnolo Ergopower DB Super Record WRL 12V
Cockpit
Stem

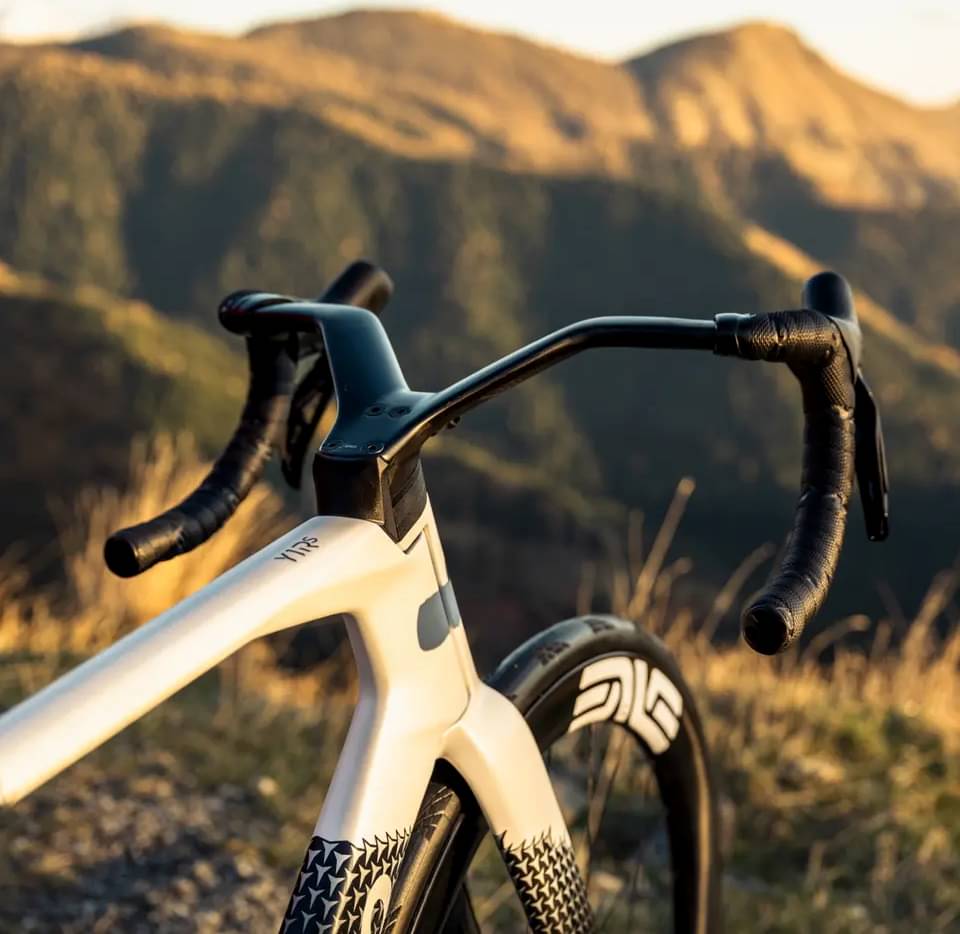

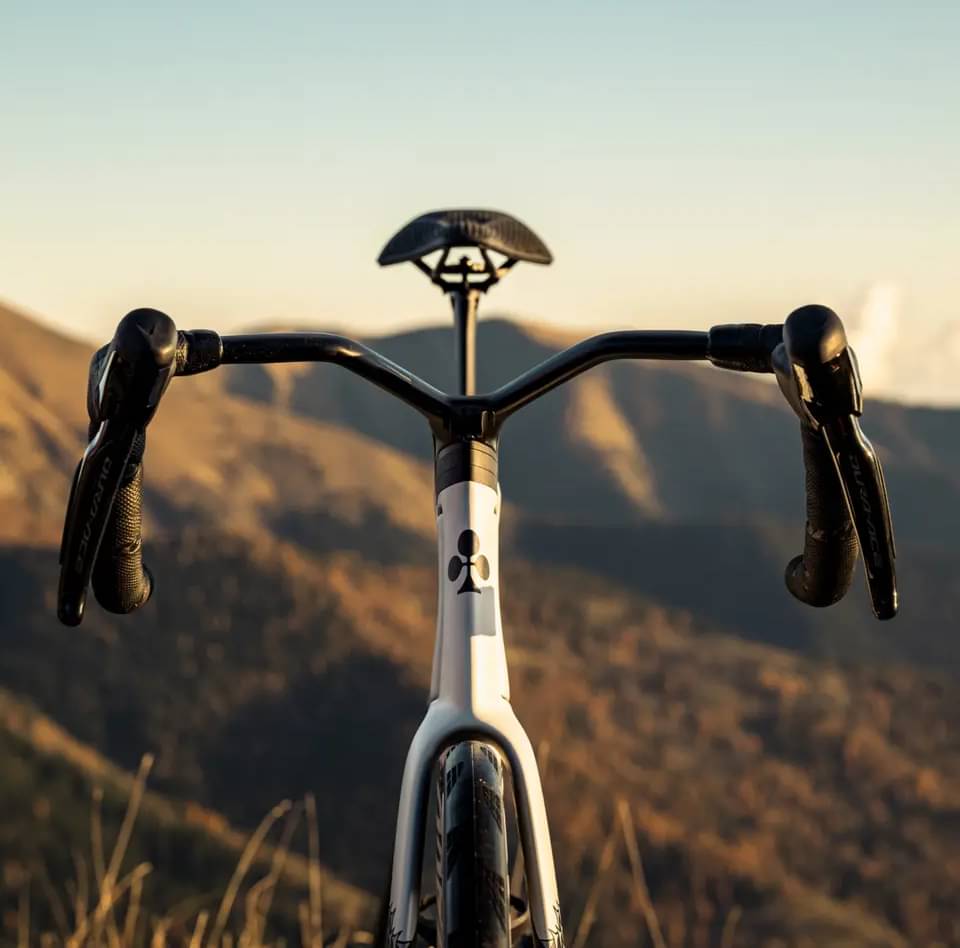

CCY1 integrated cockpit, CCY1 integrated cockpit
Handlebar
Colnago CC.Y1 integrated Cockpit - regular geometry. Colnago CC.Y1 integrated Cockpit - regular geometry.
Headset
ID:35 OD:47 36°/45° CeramicSpeed SLT Treated Bearings, ID:35 OD:47 36°/45° CeramicSpeed SLT Treated Bearings
Seat

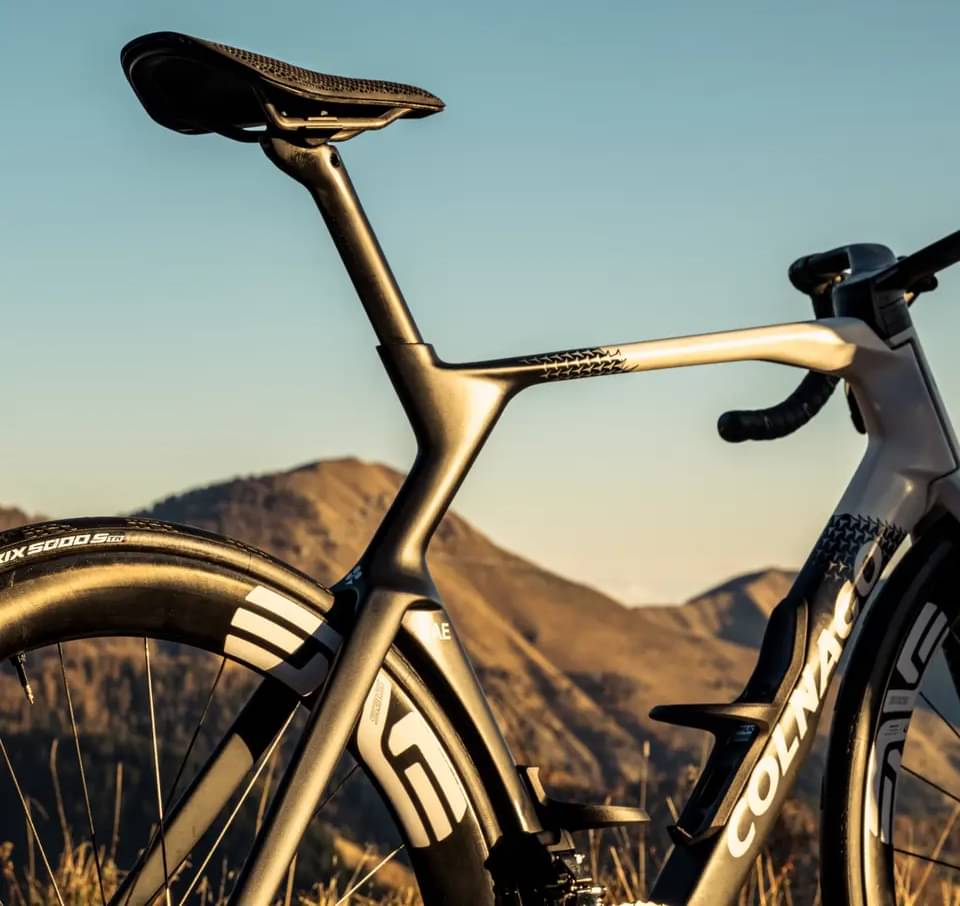

Saddle
Components, Scratch M5 Nack 140 Hard Black, Selle Italia SLR Boost Superflow Carbon Rail, (subject to stock availability), Scratch M5 Nack 140 Hard Black, Selle Italia SLR Boost Superflow Carbon Rail, (subject to stock availability)
Seatpost
Carbon seatpost, 0 or 15 offset mm, Carbon seatpost, 0 or 15 offset mm,
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.345 mm | 1.379 mm | 1.399 mm | 1.43 mm | 1.46 mm |
| Bottom Bracket Height | 262 mm | 262 mm | 264 mm | 264 mm | 264 mm |
| Rake | 55 mm | 49.5 mm | 45 mm | 42.5 mm | 42.5 mm |
| Trail | 61 mm | 59.5 mm | 57.5 mm | 57 mm | 57 mm |
| Stack | 495 mm | 520 mm | 540 mm | 565 mm | 590 mm |
| Reach | 368 mm | 377 mm | 386 mm | 395 mm | 404 mm |
| Head Tube Angle | 70.8 ° | 71.9 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 88.5 mm | 108.5 mm | 126.5 mm | 150.5 mm | 176.5 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
