Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano Dura-Ace Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
Shimano Shadow RD-R9250 12v, Shimano Shadow RD-R9250 12v
Front Derailleur
Shimano Dura Ace FD-R9250, Shimano Dura Ace FD-R9250
Shift Levers
Drivetrain, Shimano Dura Ace R9270 Di2 Disc - 12v, Shimano Dura Ace R9270 Di2 Disc - 12v
Cassette
Option 1 (Default), 11-30T, Option 2, 11-34T, Option 1 (Default), 11-30T, Option 2, 11-34T
Crank
Option 1 (Default), 52-36T, Option 2, 50-34T, Option 1 (Default), 52-36T, Option 2, 50-34T
Bottom Bracket
BSA (Threaded), BSA (Threaded)
Chain
Shimano CN-M9100 12V, Shimano CN-M9100 12V
Wheels
Front Hub
Enve WS SES 3.4 C, ENVE INNERDRIVE™ Premium Straight-Pull, Shimano Dura Ace C50, E-Thru Contact Hub, Fulcrum Wind 420 DB, Aluminum, Low flanges. Sealed bearing, Adjustable, Fulcrum Racing 600 DB, Aluminum, Aluminum flanges Sealed cartridge bearings, Enve WS SES 3.4 C, ENVE INNERDRIVE™ Premium Straight-Pull, Shimano Dura Ace C50, E-Thru Contact Hub, Fulcrum Wind 420 DB, Aluminum, Low flanges. Sealed bearing, Adjustable, Fulcrum Racing 600 DB, Aluminum, Aluminum flanges Sealed cartridge bearings
Rear Hub
Enve WS SES 3.4 C, ENVE INNERDRIVE™ Premium Straight-Pull, Shimano Dura Ace C50, E-Thru Contact Hub, Fulcrum Wind 420 DB, Aluminum, Low flanges. Sealed bearing, Adjustable, Fulcrum Racing 600 DB, Aluminum, Aluminum flanges Sealed cartridge bearings, Enve WS SES 3.4 C, ENVE INNERDRIVE™ Premium Straight-Pull, Shimano Dura Ace C50, E-Thru Contact Hub, Fulcrum Wind 420 DB, Aluminum, Low flanges. Sealed bearing, Adjustable, Fulcrum Racing 600 DB, Aluminum, Aluminum flanges Sealed cartridge bearings
Rims
Enve WS SES 3.4 C, Front: 39 mm - Rear: 43 mm, Shimano Dura Ace C50, 50 mm, Vision 45 Carbon, 45mm, Enve WS SES 3.4 C, Front: 39 mm - Rear: 43 mm, Shimano Dura Ace C50, 50 mm, Vision 45 Carbon, 45mm
Tires
Enve WS SES 3.4 C, Pirelli PZero Race TLR 700x28, Shimano Dura Ace C50, Pirelli PZero Race 700x28, Fulcrum Wind 420 DB, Pirelli PZero Race 700x28, Fulcrum Racing 600 DB, Pirelli P7 Sport 700x28, Enve WS SES 3.4 C, Pirelli PZero Race TLR 700x28, Shimano Dura Ace C50, Pirelli PZero Race 700x28, Fulcrum Wind 420 DB, Pirelli PZero Race 700x28, Fulcrum Racing 600 DB, Pirelli P7 Sport 700x28
Brakes
Brakes
Brakes, Shimano Dura Ace R9270, 160 mm Front / 140 mm Rear, RT-CL900 rotors, Shimano Dura Ace R9270, 160 mm Front / 140 mm Rear, RT-CL900 rotors
Brake Levers
Shimano DURA-ACE ST-R9270, Shimano DURA-ACE ST-R9270
Cockpit
Stem
CCY1 integrated cockpit, CCY1 integrated cockpit

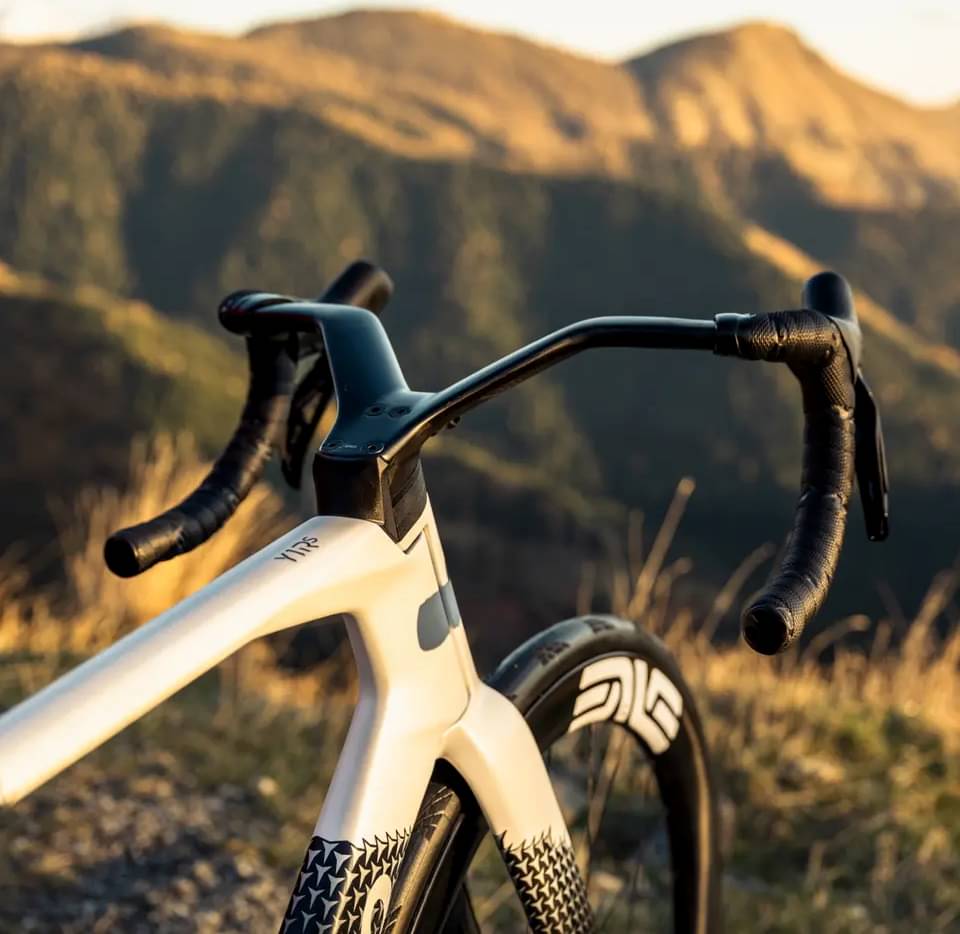

Handlebar
Colnago CC.Y1 integrated Cockpit - regular geometry. Colnago CC.Y1 integrated Cockpit - regular geometry.
Headset
ID:35 OD:47 36°/45° CeramicSpeed SLT Treated Bearings, ID:35 OD:47 36°/45° CeramicSpeed SLT Treated Bearings
Seat
Saddle
Components, Scratch M5 Nack 140 Hard Black, Selle Italia SLR Boost Superflow Carbon Rail, (subject to stock availability), Scratch M5 Nack 140 Hard Black, Selle Italia SLR Boost Superflow Carbon Rail, (subject to stock availability)
Seatpost
Carbon seatpost, 0 or 15 offset mm, Carbon seatpost, 0 or 15 offset mm,
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.345 mm | 1.379 mm | 1.399 mm | 1.43 mm | 1.46 mm |
| Bottom Bracket Height | 262 mm | 262 mm | 264 mm | 264 mm | 264 mm |
| Rake | 55 mm | 49.5 mm | 45 mm | 42.5 mm | 42.5 mm |
| Trail | 61 mm | 59.5 mm | 57.5 mm | 57 mm | 57 mm |
| Stack | 495 mm | 520 mm | 540 mm | 565 mm | 590 mm |
| Reach | 368 mm | 377 mm | 386 mm | 395 mm | 404 mm |
| Head Tube Angle | 70.8 ° | 71.9 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 88.5 mm | 108.5 mm | 126.5 mm | 150.5 mm | 176.5 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
