Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Groupset RED AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes SRAM RED Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
SRAM RED eTap AXS - RD-RED-E-D1, SRAM RED eTap AXS - RD-RED-E-D1
Front Derailleur
SRAM RED eTap AXS - FD-RED-E-D1, SRAM RED eTap AXS - FD-RED-E-D1
Shift Levers
Drivetrain, SRAM RED eTap AXS Disc 12v, SRAM RED eTap AXS Disc 12v
Cassette
Option 1 (Default), 10-28T, Option 2, 10-30T, Option 1 (Default), 10-28T, Option 2, 10-30T
Crank
48-35T, 48-35T
Bottom Bracket
BSA (Threaded), BSA (Threaded)
Chain
RED Chain - CN-RED-D1, RED Chain - CN-RED-D1
Wheels
Front Hub
Fulcrum Wind 420 DB, Aluminum, Low flanges. Sealed bearing, Adjustable, Fulcrum Racing 600 DB, Aluminum, Aluminum flanges Sealed cartridge bearings, Fulcrum Wind 420 DB, Aluminum, Low flanges. Sealed bearing, Adjustable, Fulcrum Racing 600 DB, Aluminum, Aluminum flanges Sealed cartridge bearings
Rear Hub
Fulcrum Wind 420 DB, Aluminum, Low flanges. Sealed bearing, Adjustable, Fulcrum Racing 600 DB, Aluminum, Aluminum flanges Sealed cartridge bearings, Fulcrum Wind 420 DB, Aluminum, Low flanges. Sealed bearing, Adjustable, Fulcrum Racing 600 DB, Aluminum, Aluminum flanges Sealed cartridge bearings
Rims
Fulcrum Wind 420 DB, 42 mm, Fulcrum Racing 600 DB, 24 mm, Fulcrum Wind 420 DB, 42 mm, Fulcrum Racing 600 DB, 24 mm
Tires
Fulcrum Wind 420 DB, Pirelli PZero Race 700x28, Fulcrum Racing 600 DB, Pirelli P7 Sport 700x28, Fulcrum Wind 420 DB, Pirelli PZero Race 700x28, Fulcrum Racing 600 DB, Pirelli P7 Sport 700x28
Brakes
Brakes
Brakes, Disc brakes SRAM Red eTap AXS HRD SHIFT-BRAKE SYSTEM - CenterLine XR Rotor, Disc brakes SRAM Red eTap AXS HRD SHIFT-BRAKE SYSTEM - CenterLine XR Rotor
Brake Levers
SRAM Red eTap AXS HRD SHIFT-BRAKE SYSTEM, SRAM Red eTap AXS HRD SHIFT-BRAKE SYSTEM
Cockpit
Stem

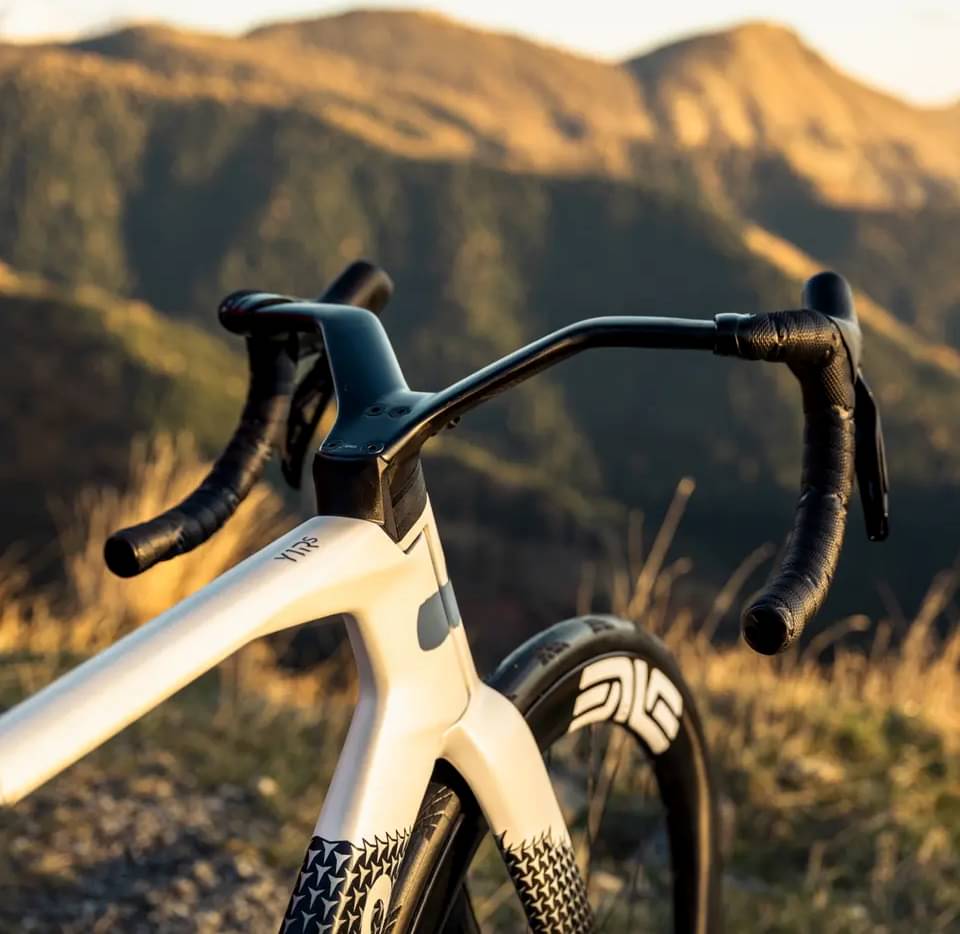

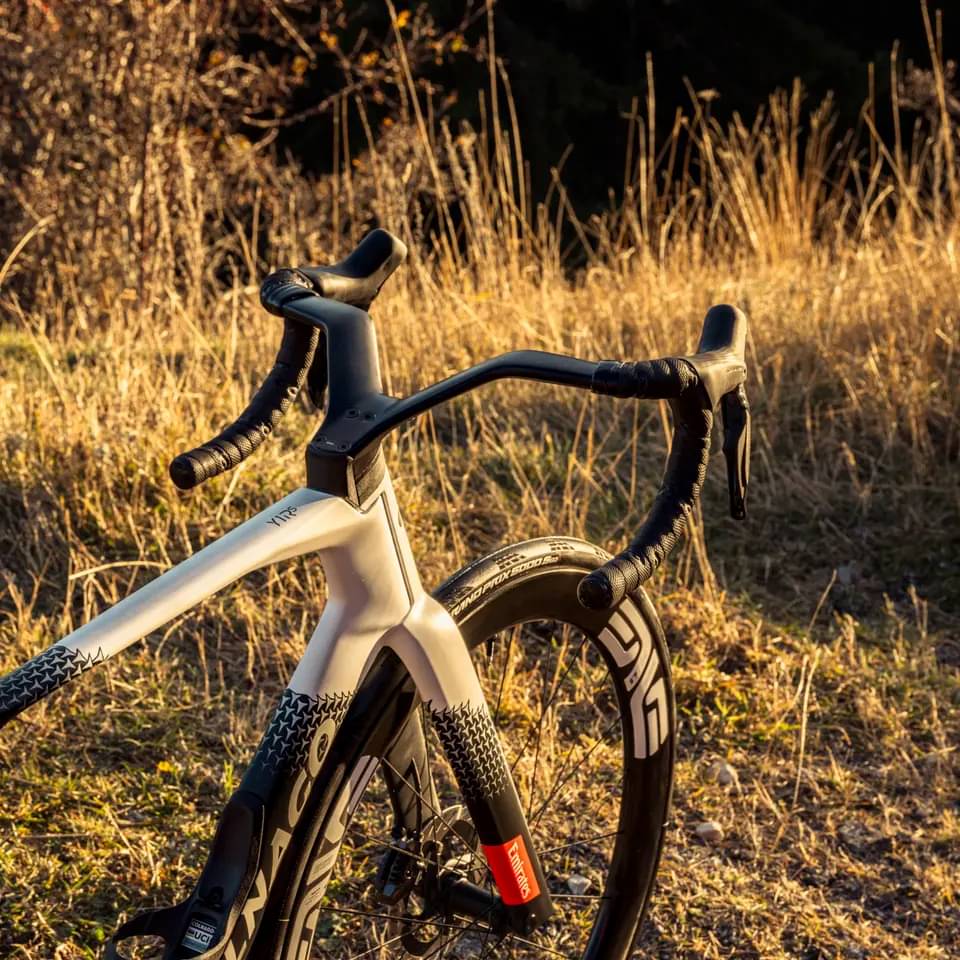

CCY1 integrated cockpit, CCY1 integrated cockpit
Handlebar
Colnago CC.Y1 integrated Cockpit - regular geometry. Colnago CC.Y1 integrated Cockpit - regular geometry.
Headset
ID:35 OD:47 36°/45° CeramicSpeed SLT Treated Bearings, ID:35 OD:47 36°/45° CeramicSpeed SLT Treated Bearings
Seat
Saddle
Components, Scratch M5 Nack 140 Hard Black, Selle Italia SLR Boost Superflow Carbon Rail, (subject to stock availability), Scratch M5 Nack 140 Hard Black, Selle Italia SLR Boost Superflow Carbon Rail, (subject to stock availability)
Seatpost
Carbon seatpost, 0 or 15 offset mm, Carbon seatpost, 0 or 15 offset mm,
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.345 mm | 1.379 mm | 1.399 mm | 1.43 mm | 1.46 mm |
| Bottom Bracket Height | 262 mm | 262 mm | 264 mm | 264 mm | 264 mm |
| Rake | 55 mm | 49.5 mm | 45 mm | 42.5 mm | 42.5 mm |
| Trail | 61 mm | 59.5 mm | 57.5 mm | 57 mm | 57 mm |
| Stack | 495 mm | 520 mm | 540 mm | 565 mm | 590 mm |
| Reach | 368 mm | 377 mm | 386 mm | 395 mm | 404 mm |
| Head Tube Angle | 70.8 ° | 71.9 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 88.5 mm | 108.5 mm | 126.5 mm | 150.5 mm | 176.5 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
