Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset RED AXS, Force -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
148cm - 160cm
SM
158cm - 170cm
MD
168cm - 180cm
LG
178cm - 190cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
365, 650b, Alloy 6069, triple butted tubes, T4, T6 on XS, 700c, Alloy 6069, triple butted tubes, T4, T6 on S, M, L, XL
Suspension Fork
365, Internal brake hose routing, Alloy 6069

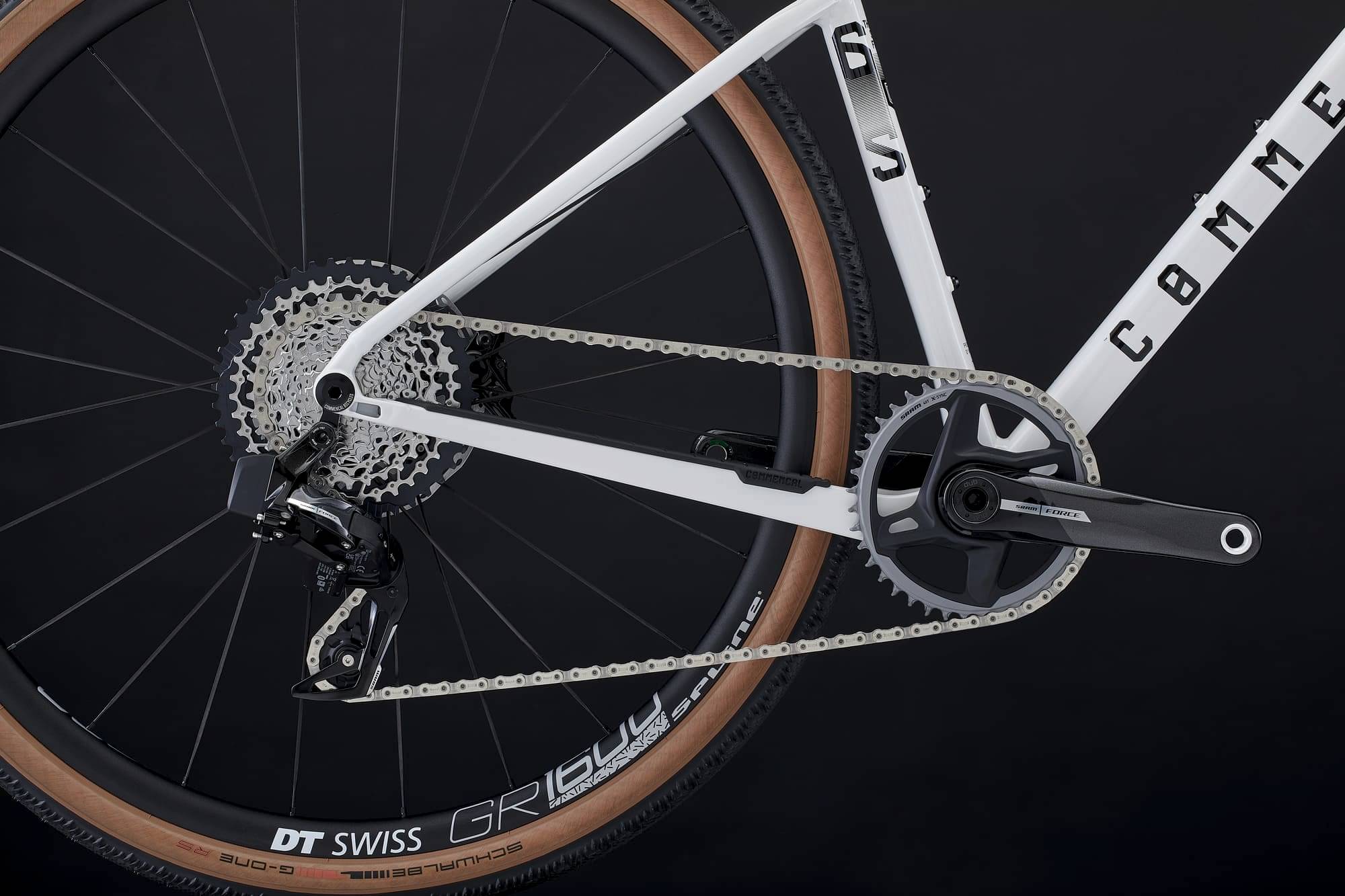

Drivetrain
Rear Derailleur
SRAM Force XPLR eTap AXS, 12s
Shift Levers
SRAM eTap AXS, 12s / dropper shifter
Cassette
SRAM XPLR XG-1271, 12s, 10-44t
Crank
SRAM Force 1 Wide, 170 mm crank arms on XS/S, 172.5 mm on M/L, 175 mm on XL, Chainring: SRAM Force 1 Wide, 40t
Bottom Bracket
Press fit 86.5 mm
Chain
SRAM Force, 12s
Wheels
Front Hub
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear: 24h, sealed bearings, Ratchet System 18, 12 x 142 mm, SRAM XDR - Front: 24h, sealed bearings, 12 x 100 mm
Rear Hub
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear: 24h, sealed bearings, Ratchet System 18, 12 x 142 mm, SRAM XDR - Front: 24h, sealed bearings, 12 x 100 mm
Rims
DT SWISS GR1600 Spline, 650b, 24h, 24 mm inner width, 25 mm profile height on XS - 700c, 24h, 24 mm inner width, 25 mm profile height on S / M / L / XL
Tires
Rear: SCHWALBE G-ONE R on XS / SCHWALBE G-ONE RS on S / M / L / XL - Front: SCHWALBE G-ONE R, Rear & Front: 650 x 47b, Evo, Super Race, Tubeless Ready on XS - 700 x 45c, Evo, Super race, Tubeless Ready on S / M / L / XL
Brakes
Brakes
SRAM eTap AXS, Flat Mount, steel-backed organic pads, Rotors: SRAM Centerline X 180 mm, Centerlock
Cockpit

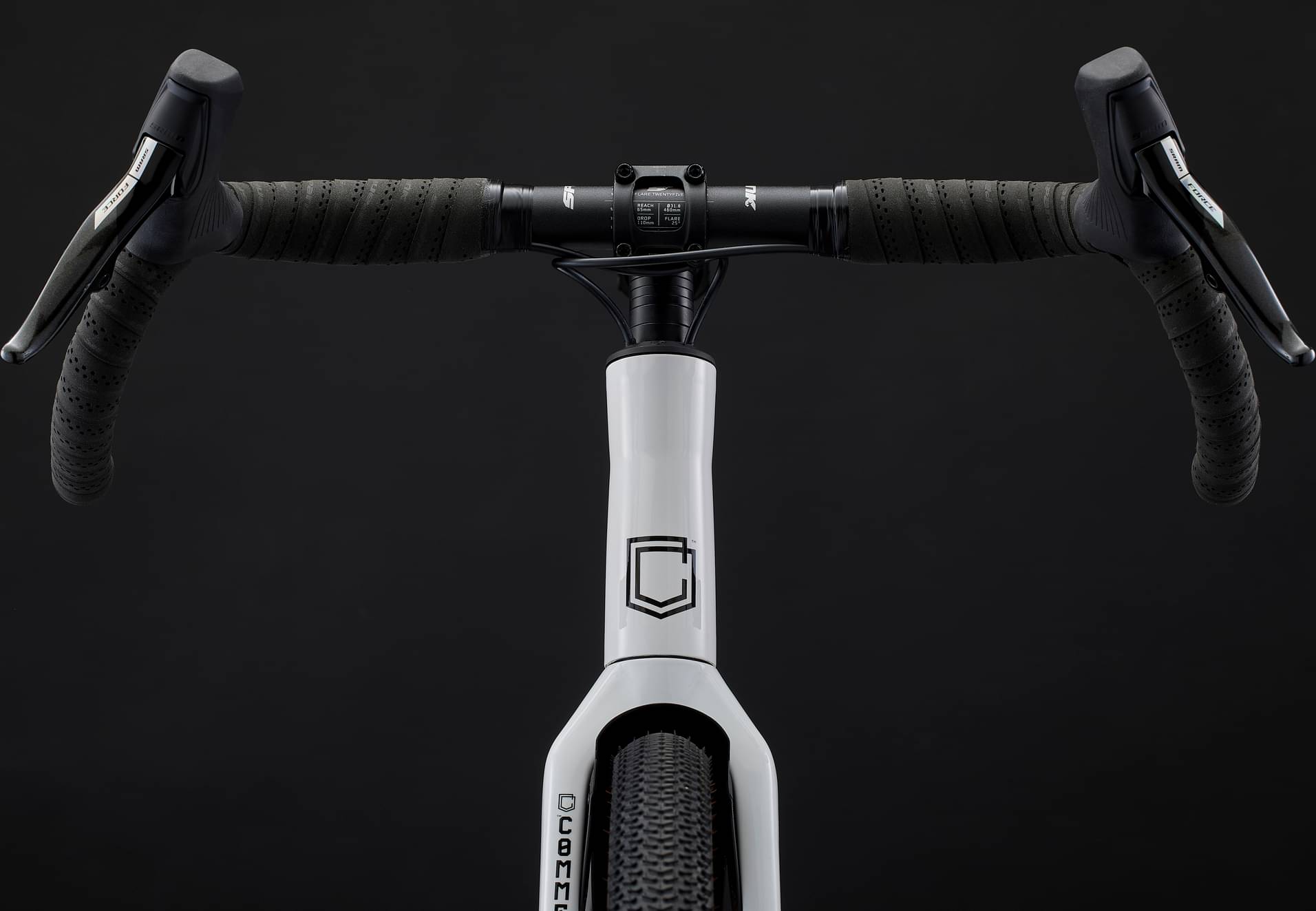

Stem
RIDE ALPHA Gravel 70, 70 mm extension, 31.8 mm

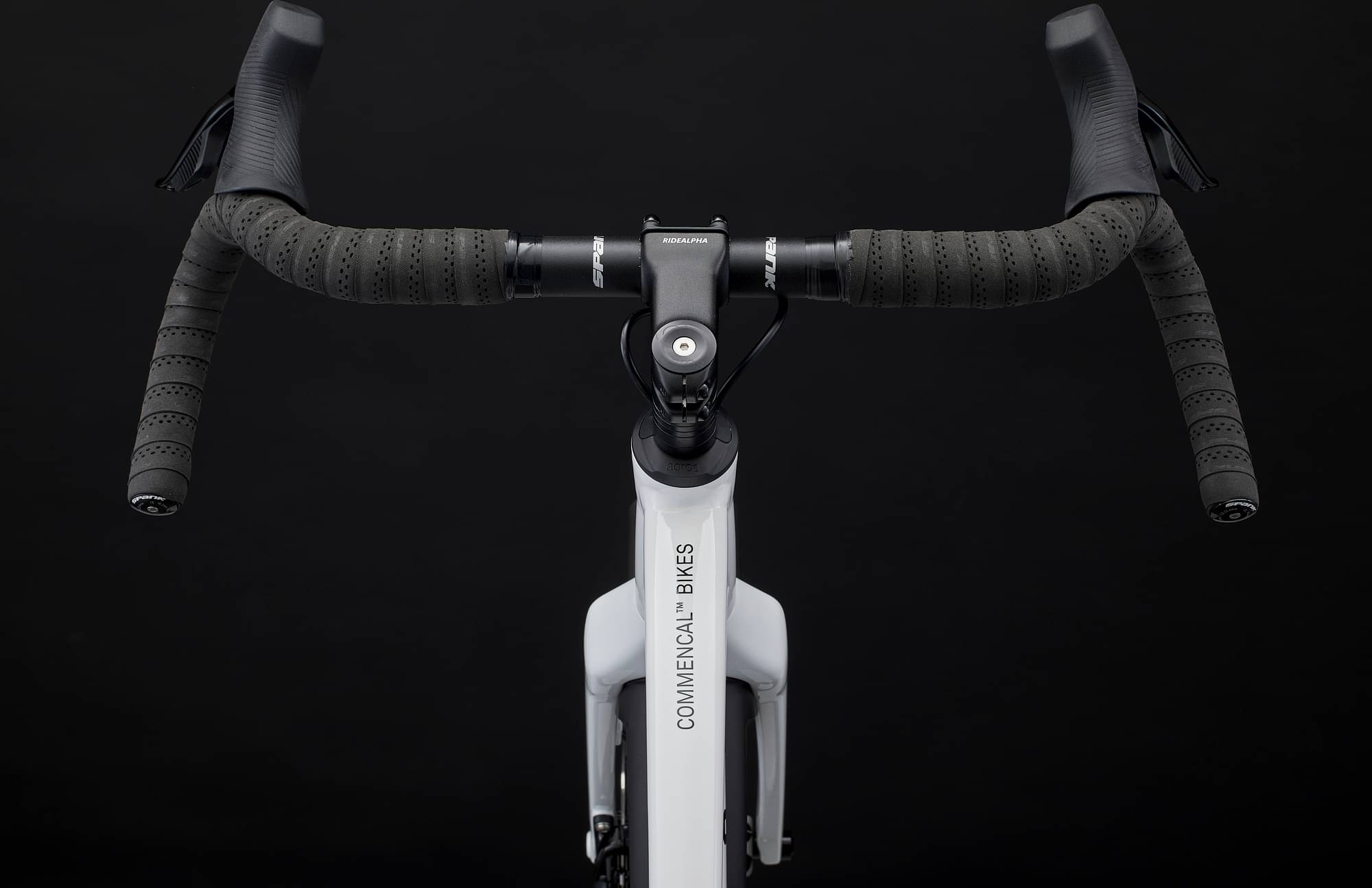

Handlebar
SPANK Flare 25 Drop Bar, 31.8 mm, 440 mm width, 65 mm reach, 110 mm drop, 25° flare on XS, S, 31.8 mm, 460 mm width, 65 mm reach, 110 mm drop, 25° flare on M, 31.8 mm, 480 mm width, 65 mm reach, 110 mm drop, 25° flare on L, XL
Grips
SPANK Wing Gravel Dropbar Tape & Plug, 220 cm, Black
Headset
ACROS IS52 / IS52, Integrated cable routing
Seat
Saddle
FIZIK Terra Alpaca X5, 145 mm width, S-alloy rails
Seatpost
ROCKSHOX Reverb XPLR, 27.2 mm, 75 mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.567 mm | 1.526 mm | 1.475 mm | 1.44 mm | 1.393 mm |
| Bottom Bracket Height | 284 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 599 mm | 620 mm | 641 mm | 664 mm | 692 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 65 mm | 63 mm | 62 mm | 61 mm | 59 mm |
| Stack | 564 mm | 580 mm | 590 mm | 605 mm | 620 mm |
| Reach | 360 mm | 380 mm | 400 mm | 420 mm | 445 mm |
| Top Tube Length | 522.3 mm | 547 mm | 570.3 mm | 595.5 mm | 625 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.9 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 70.8 ° | 71 ° | 71.2 ° | 71.4 ° |
| Head Tube Length | 135 mm | 145 mm | 155 mm | 170 mm | 185 mm |
| Chainstay Length | 420 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1010 mm | 1035 mm | 1056 mm | 1079 mm | 1107 mm |
| Bottom Bracket Drop | 65 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 739 mm | 749 mm | 767 mm | 774 mm | 800 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 148 cm | 158 cm | 168 cm | 178 cm | 188 cm |
| Rider Max Height | 160 cm | 170 cm | 180 cm | 190 cm | 200 cm |
