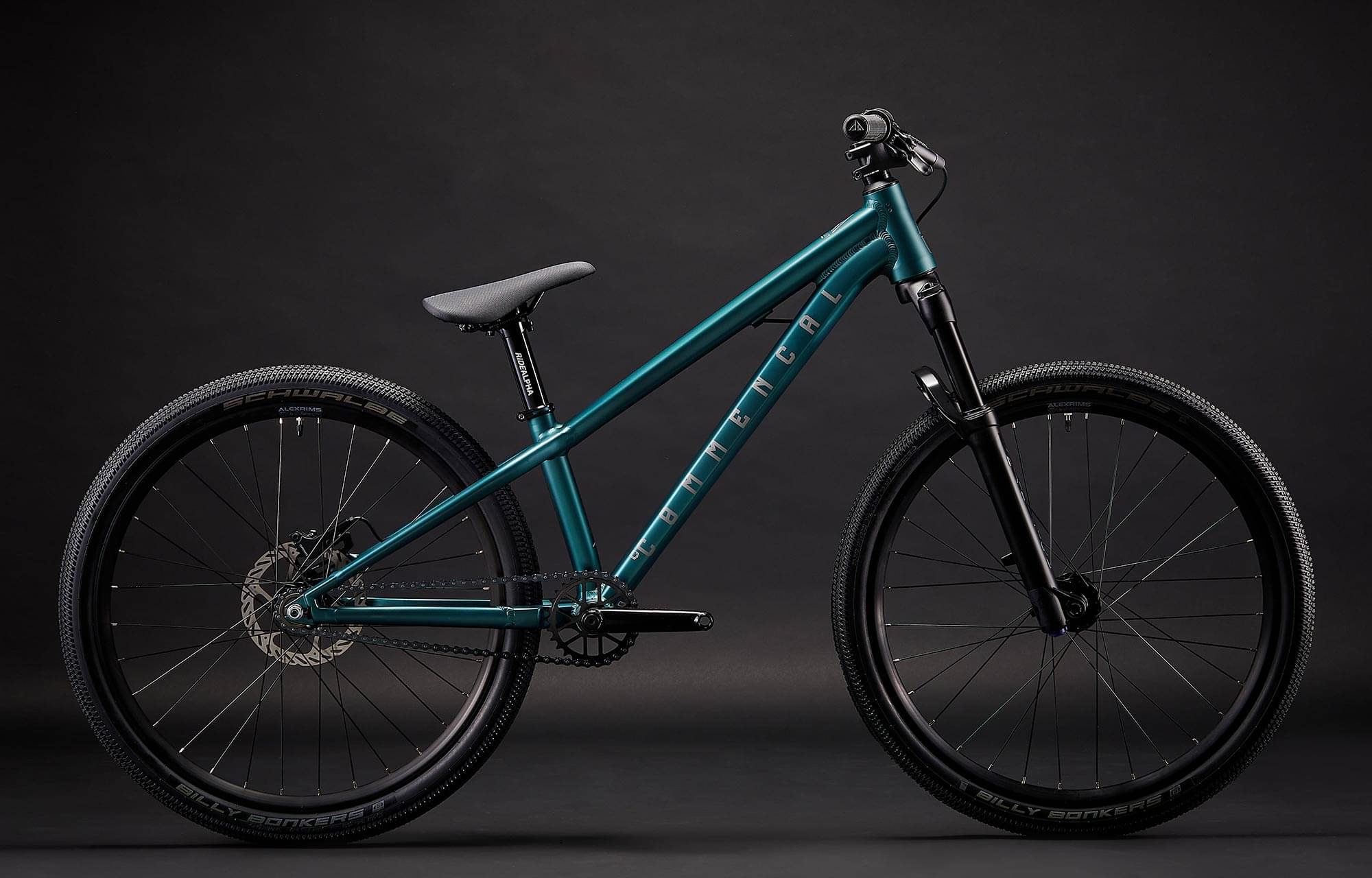

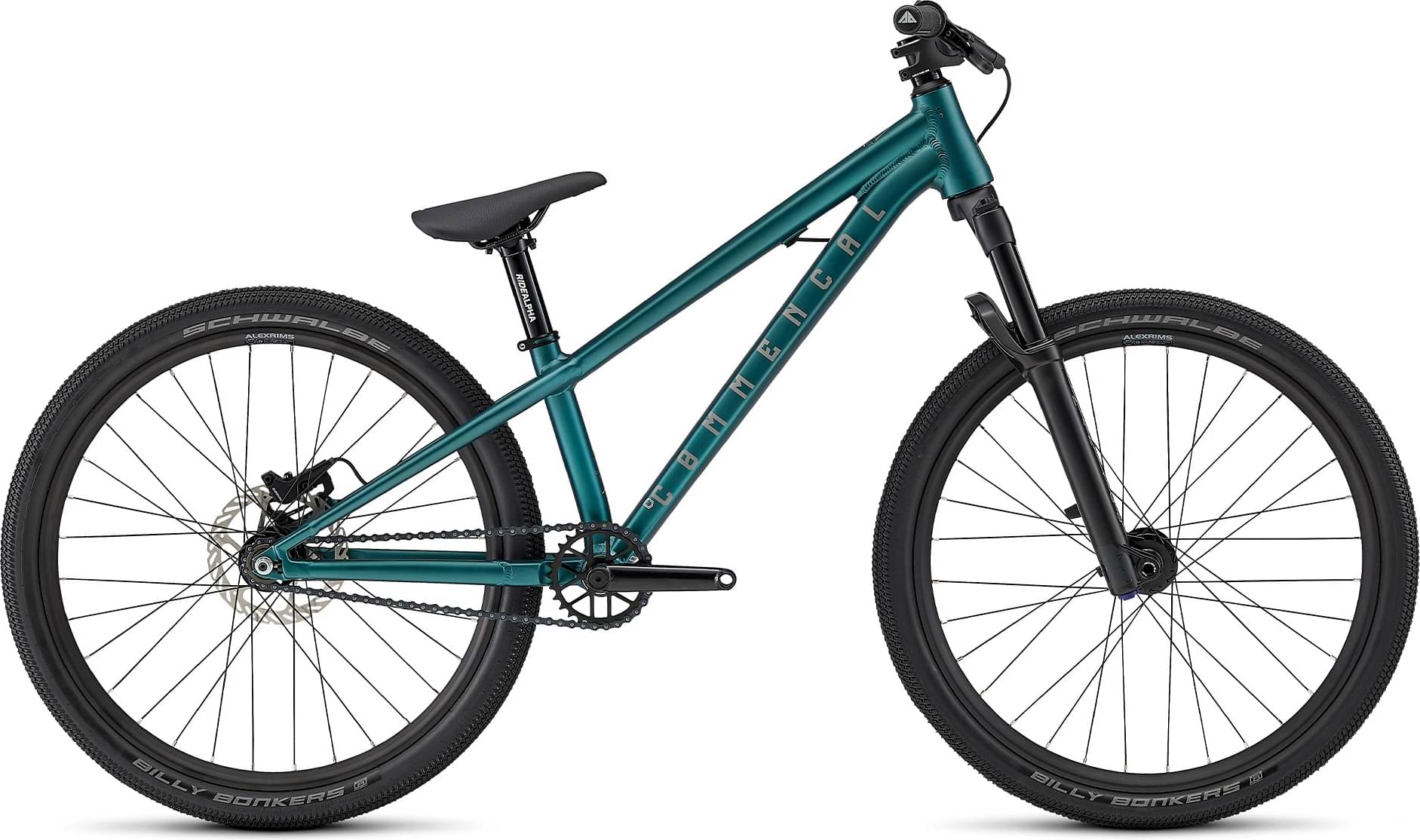

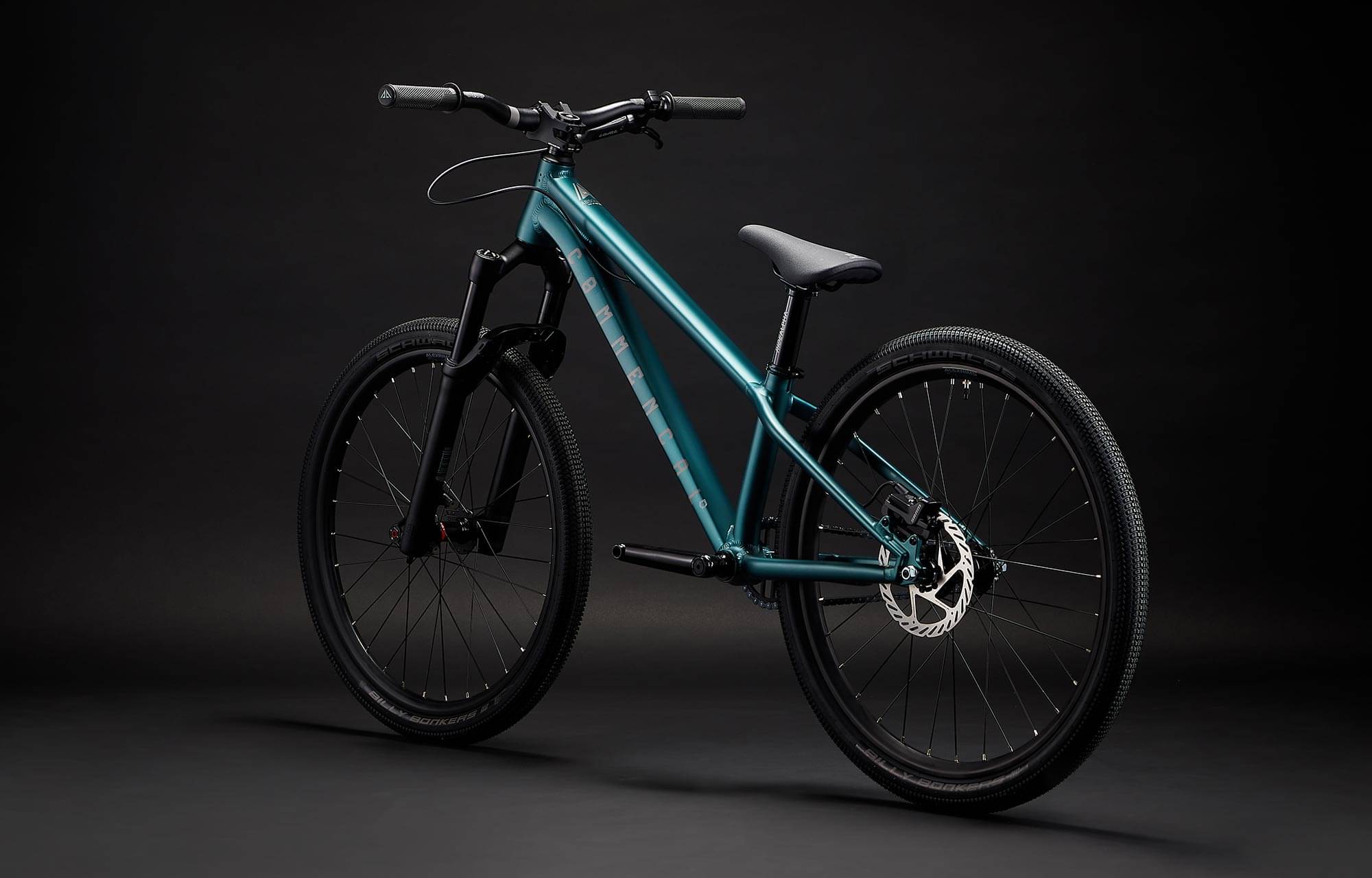

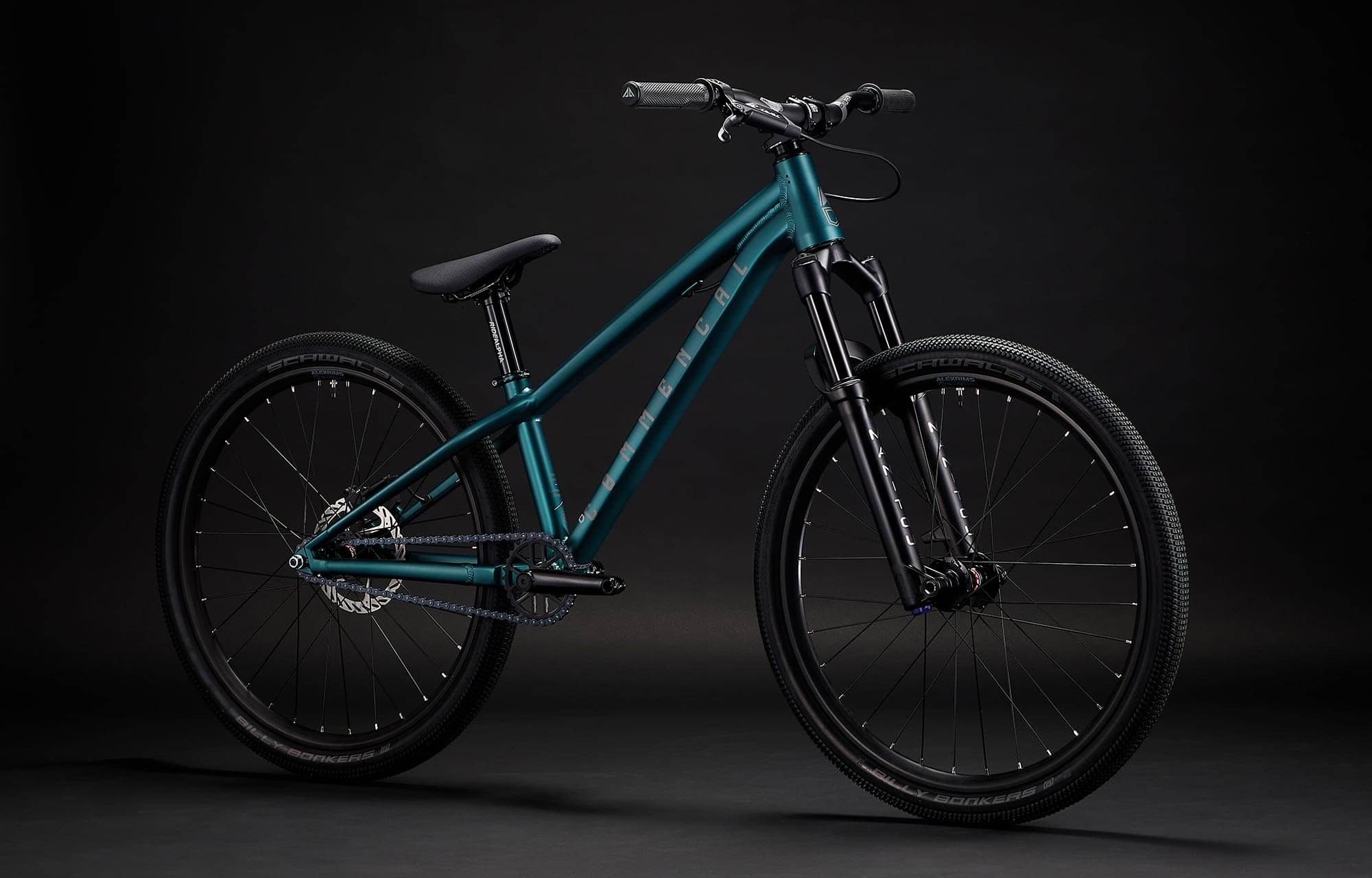

Commençal ABSOLUT 24 2023
2023 Youth
Estimate price |
1,100$
Weight | 9.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Manitou Circus Expert
-
Suspension Hardtail -
Drivetrain Single Speed -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
24"
135cm - 155cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ABSOLUT 24", 24'', Alloy 6061, triple butted (T4, T6), with adjustable horizontal dropouts
Suspension Fork
MANITOU Circus Expert 24'', 100mm travel, 24'', ABS+ damper (compression & rebound), ACT air spring, tapered
Drivetrain
Cassette
NOVATEC 12t, Crmo sprocket
Crank
BMX 3-pcs, 140mm, Crmo, 19mm spindle, Chainring: 28t, Alloy 6061
Bottom Bracket
BSA 73 mm
Chain
KMC Z1 - BUBU, 1/2'' x 1/8''
Wheels
Front Hub
Rear: NOVATEC D256SBT - Front: NOVATEC D041SB-B15, Rear: 32h, 4 sealed bearings, Crmo axle (M10 x 180 x 135 mm), black - Front: 32h, 2 sealed bearings, 15 x 110 mm, black
Rear Hub
Rear: NOVATEC D256SBT - Front: NOVATEC D041SB-B15, Rear: 32h, 4 sealed bearings, Crmo axle (M10 x 180 x 135 mm), black - Front: 32h, 2 sealed bearings, 15 x 110 mm, black
Rims
ALEXRIMS MD25, 24'', 32h, 25 mm inner width
Tires
Rear: SCHWALBE BILLY BONKERS - Front: SCHWALBE BILLY BONKERS, Rear: 24" x 2.0", Active Line - Front: 24" x 2.0", Active Line
Brakes
Brakes
SRAM Level, 2-pistons, hydraulic disc brake, steel backed organic pads, Rotor: SRAM G2 CleanSweep 160mm, 6-bolt
Cockpit
Stem
RIDE ALPHA Freeride 40 mm, 40 mm extension, 31,8 mm

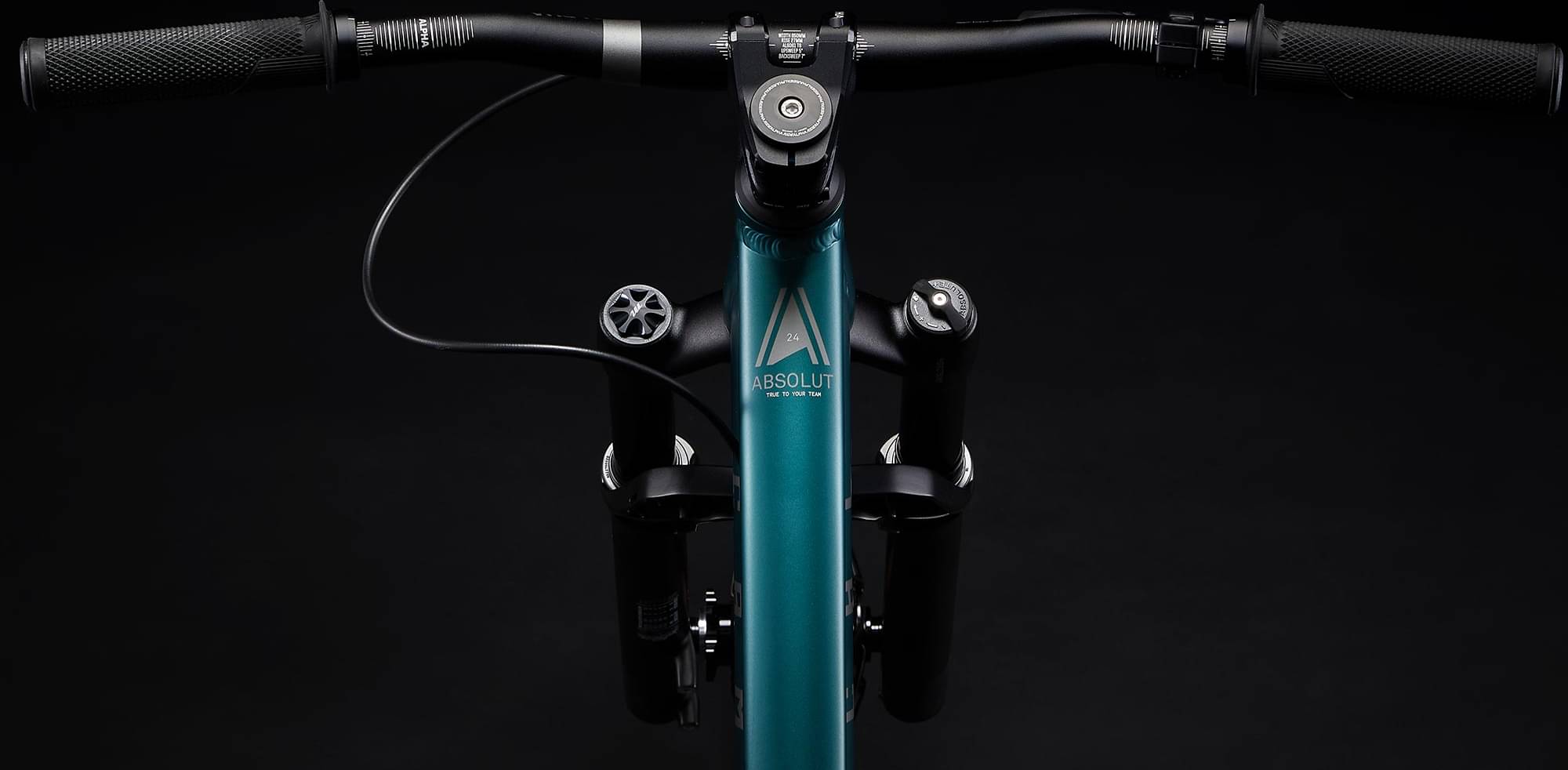

Handlebar
RIDE ALPHA R27, 31.8 mm, 650 mm width, 27 mm rise, Alloy 6061
Grips
RIDE ALPHA DH, Ultra-soft compound, single clamp, black
Headset
ACROS ZS44 / ZS56, Alloy cups, sealed bearings
Seat
Saddle
COMMENCAL, Soft padding, steel rails
Seatpost
RIDE ALPHA, 31.6 mm, 250 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 24" |
|---|---|
| Stack Reach Ratio | 1.464 mm |
| Front Center | 607 mm |
| Rake | 45 mm |
| Stack | 527 mm |
| Reach | 360 mm |
| Top Tube Length | 516 mm |
| Seat Tube Angle | 72.5 ° |
| Seat Tube Length | 270 mm |
| Head Tube Angle | 69 ° |
| Head Tube Length | 115 mm |
| Chainstay Length | 365 mm |
| Wheelbase | 972 mm |
| Bottom Bracket Drop | 8 mm |
| Standover Height | 345 mm |
| Wheels | 24" |
| Rider Min Height | 135 cm |
| Rider Max Height | 155 cm |
