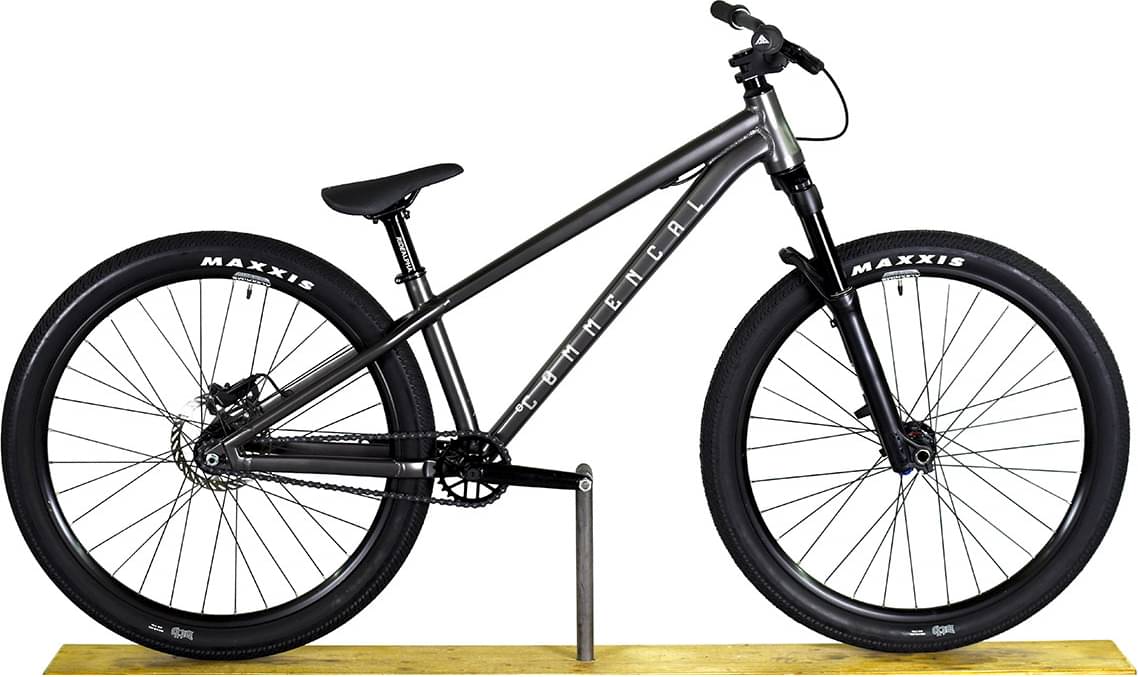

Commençal AN3454 2023
2023 Mountain
Estimate price |
1,280$
Weight | 10.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork Manitou Circus Expert
-
Suspension Hardtail -

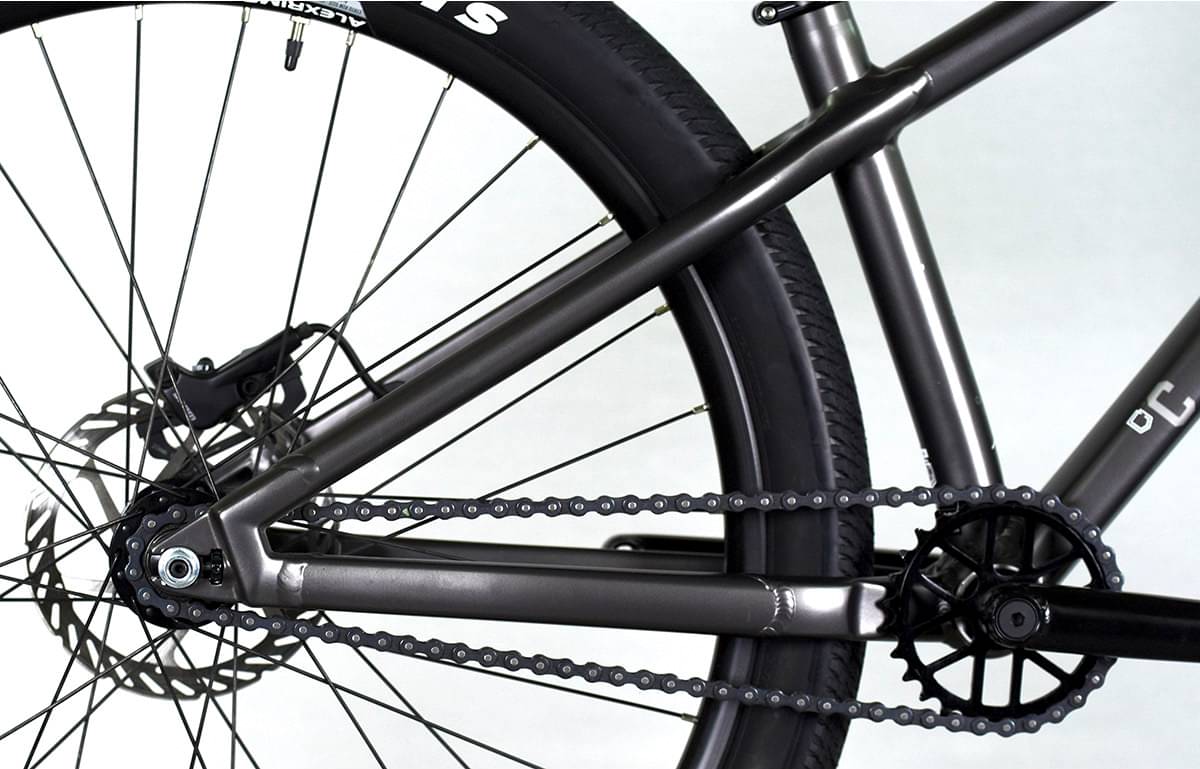

Drivetrain Single Speed -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 170cm
MD
165cm - 185cm
LG
180cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components

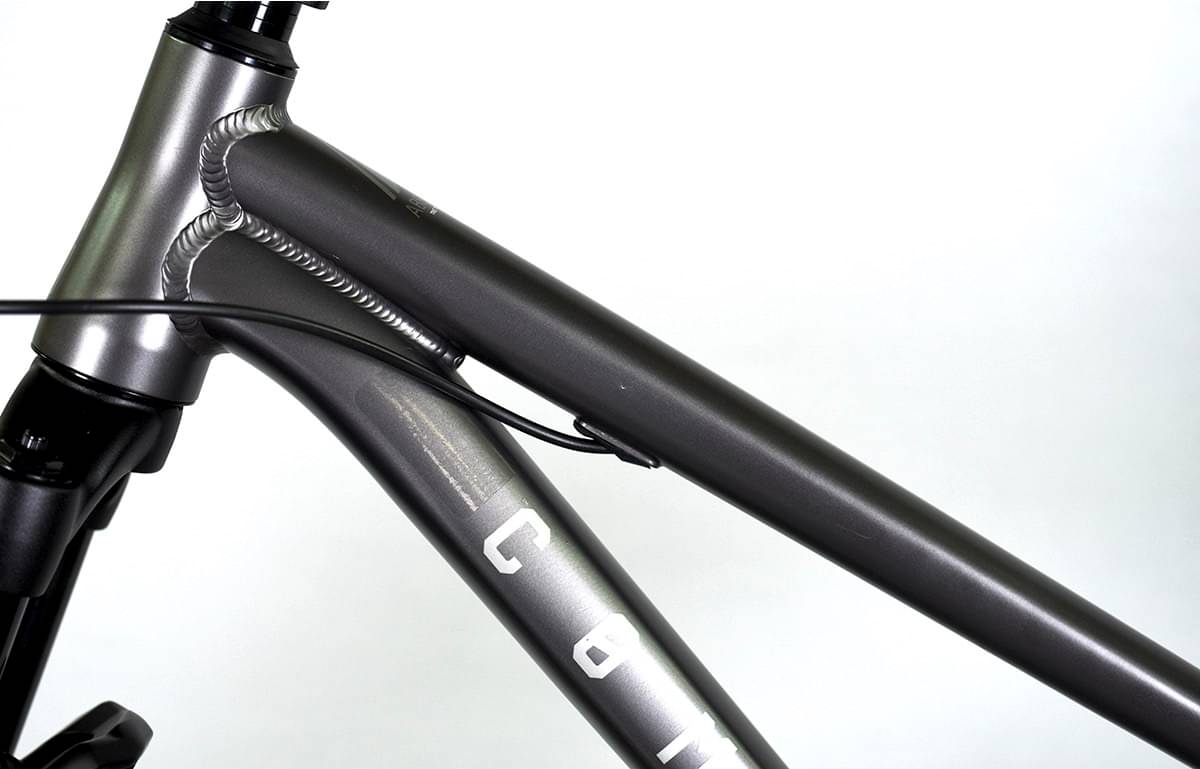

Frame
Frame

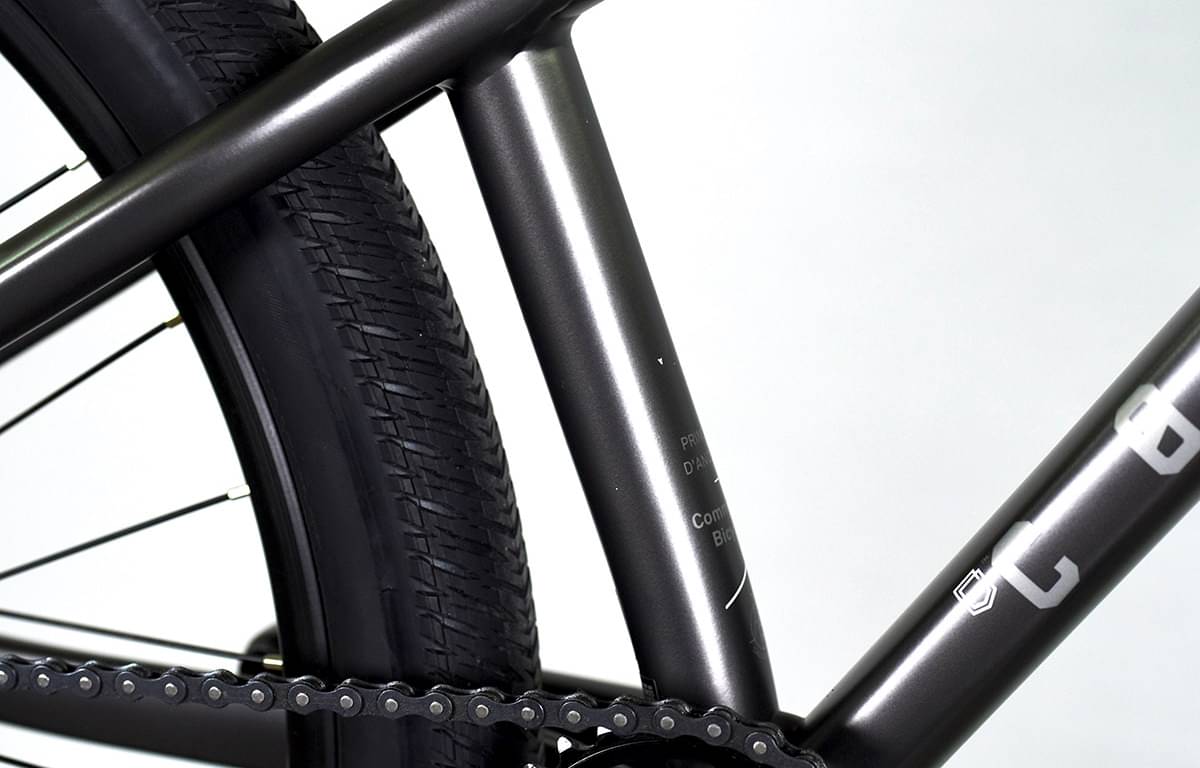

ABSOLUT 2022, 26", Alloy 6061, triple butted (T4, T6), with adjustable horizontal dropouts
Suspension Fork

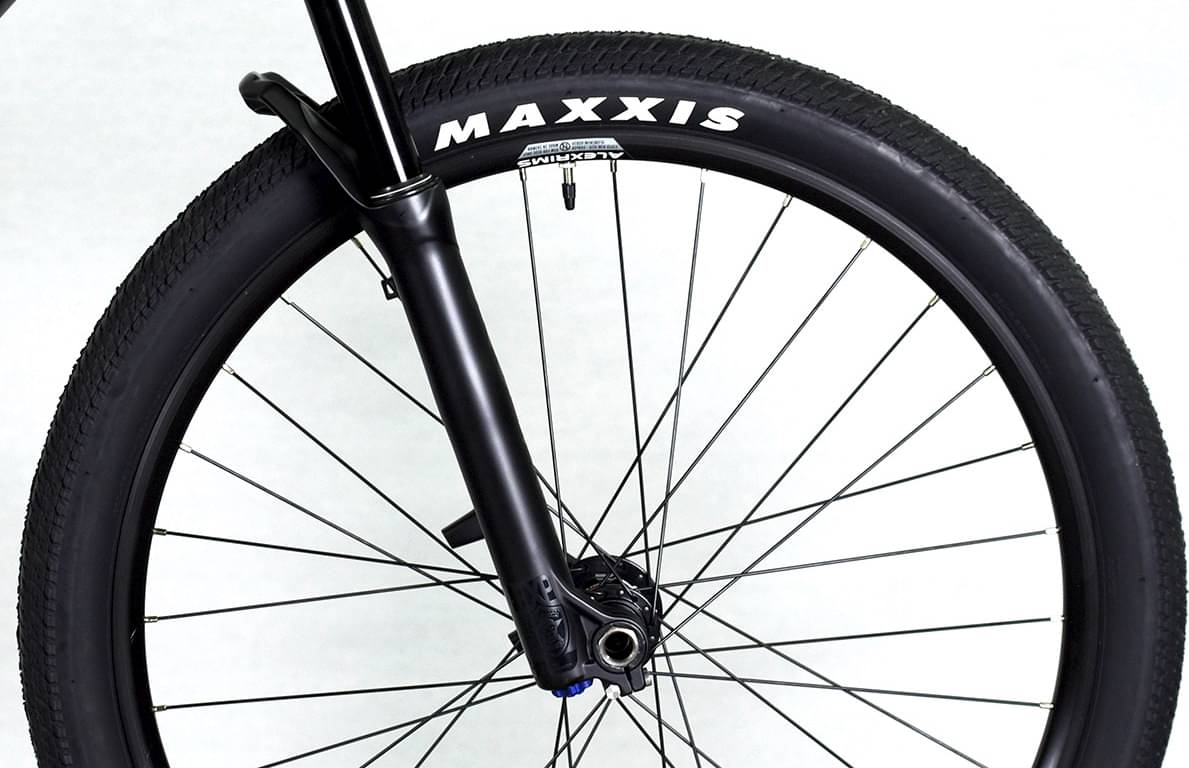

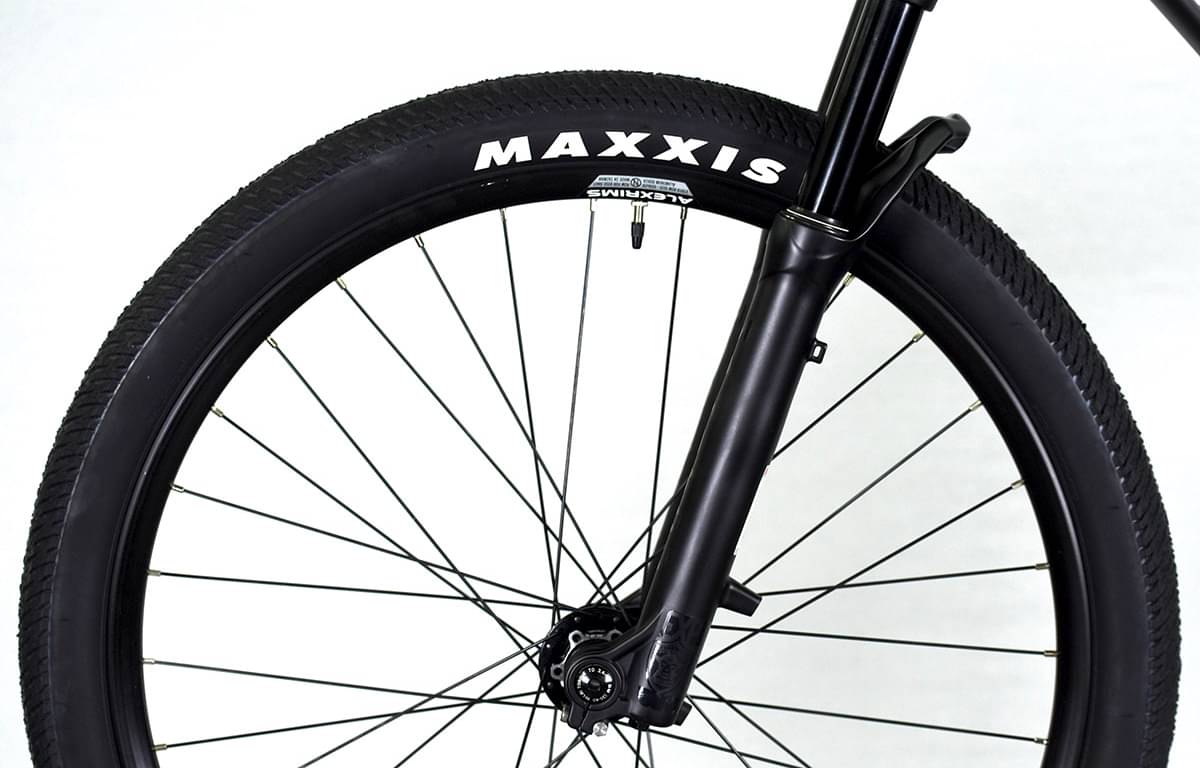

MANITOU Cirucs Expert, 100 mm travel, 26, ABS+ damper (compression & rebound), ACT air spring, tapered
Drivetrain
Cassette
NOVATEC 11t
Crank

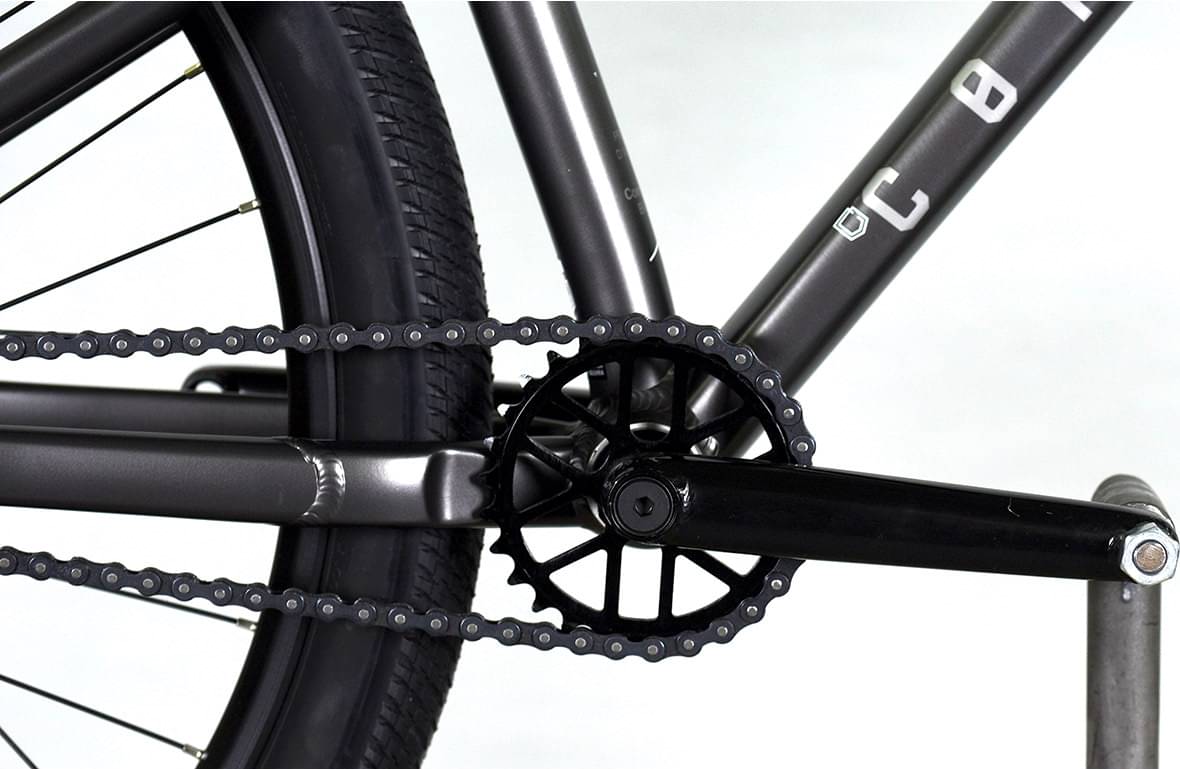

BMX 3-pcs, 170 mm, Crmo, 19 mm spindle, Chainring: 28t, Alloy 6061
Bottom Bracket
Threaded Euro, Alloy cups, 4 sealed bearings
Chain
KMC Z1 - BUBU, 1/2" x 1/8"
Wheels
Front Hub
Rear: NOVATEC D256SBT - Front: NOVATEC DH61SB-HL, Rear: 32h, 4 sealed bearings, Crmo axle (M10 x 180 x 135 mm), black - Front: 32h, 2 sealed bearings, 20 x 110 mm, black
Rear Hub
Rear: NOVATEC D256SBT - Front: NOVATEC DH61SB-HL, Rear: 32h, 4 sealed bearings, Crmo axle (M10 x 180 x 135 mm), black - Front: 32h, 2 sealed bearings, 20 x 110 mm, black
Rims
ALEXRIMS FR30, 26, 32h, 23 mm inner width
Tires
Rear: MAXXIS DTH - Front: MAXXIS DTH, Rear: 26" x 2.30, Foldable, 60tpi, TubeType - Front: 26" x 2.30, Foldable, 60tpi, TubeType
Brakes
Brakes

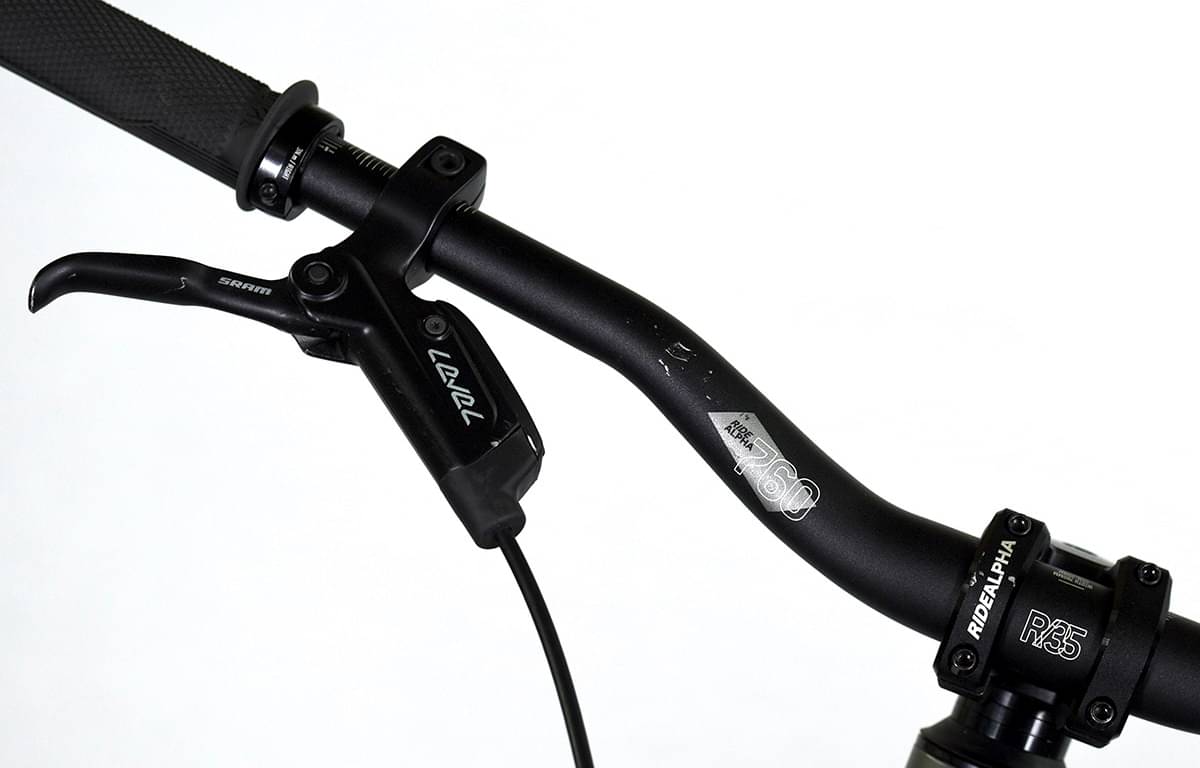

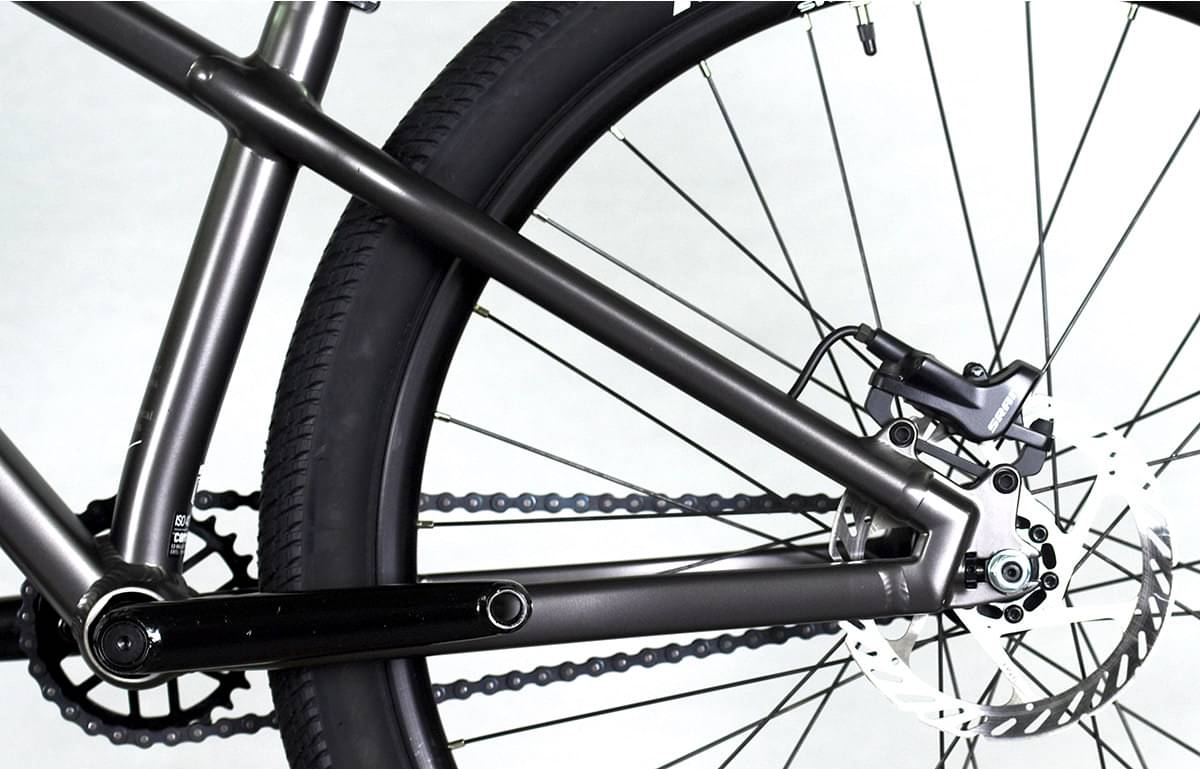

SRAM Level, 2-pistons, hydraulic disc brake, Rotors: SRAM G2 CleanSweep 160 mm, 6-bolt

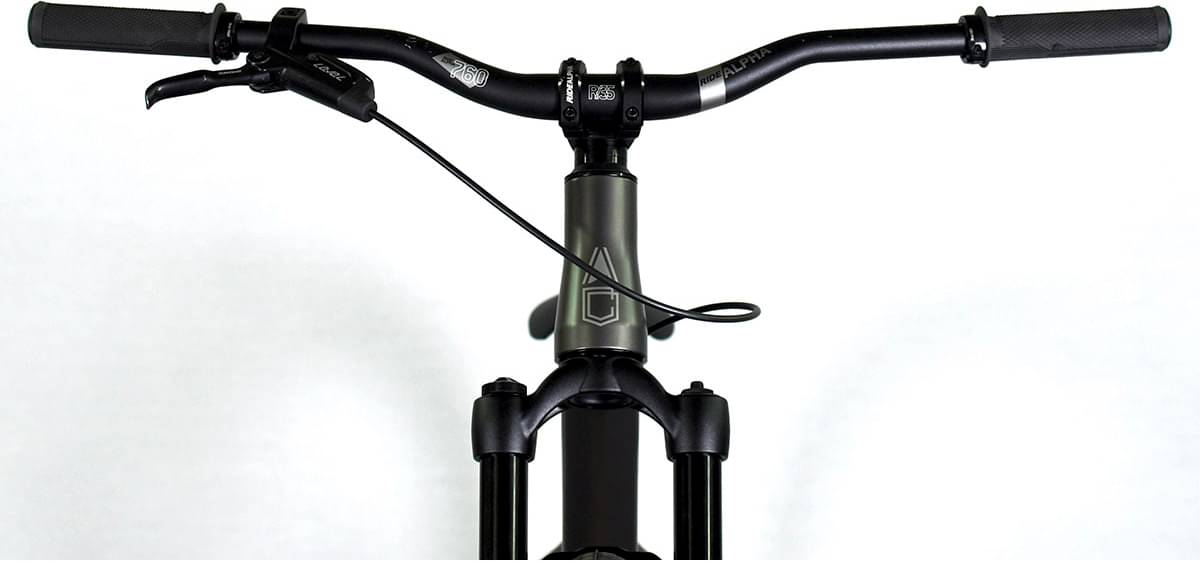

Cockpit
Stem
RIDE ALPHA Freeride 40 mm, 40 mm extension, 31,8 mm
Handlebar
RIDE ALPHA R35, 31,8 mm, 760 mm width, 35 mm rise, Alloy 6061
Grips
RIDE ALPHA DH, Ultra-soft compound, single clamp, black
Headset
ACROS ZS44 / ZS56, Alloy cups, sealed bearings
Seat
Saddle
COMMENCAL, Soft padding, steel rails
Seatpost
RIDE ALPHA, 31,6 mm, 250 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.37 mm | 1.29 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm |
| Front Center | 648 mm | 668 mm | 693 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 87 mm | 87 mm | 87 mm |
| Stack | 561 mm | 561 mm | 561 mm |
| Reach | 390 mm | 410 mm | 435 mm |
| Top Tube Length | 572 mm | 592 mm | 617 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 310 mm | 310 mm | 310 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 385 mm | 385 mm | 385 mm |
| Wheelbase | 1032 mm | 1052 mm | 1077 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm |
| Standover Height | 667 mm | 667 mm | 667 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 155 cm | 165 cm | 180 cm |
| Rider Max Height | 170 cm | 185 cm | 200 cm |
Model Overview
AN3454 completes the Commencal An3454 model. Commençal released 1 bike variation of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1168$. If we compare this with the average Crosscountry bike cost we notice that the price is 63.1% smaller.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.31 kg (27.14 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Commençal AN3454 it’s weighing 10.9 kg (24.03 lbs). At this weight, is considerably lighter than average. In other words, this model is 12.94% lighter than the average Crosscountry bike.
Overview of components
Fork
This bike has the Manitou Circus Expert fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The AN3454 2023 bike is equipped with 26″ aluminum wheels when leaving the factory. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 3 sizes. They vary from 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
