Bike details
Overview
Key information split into simple groups.

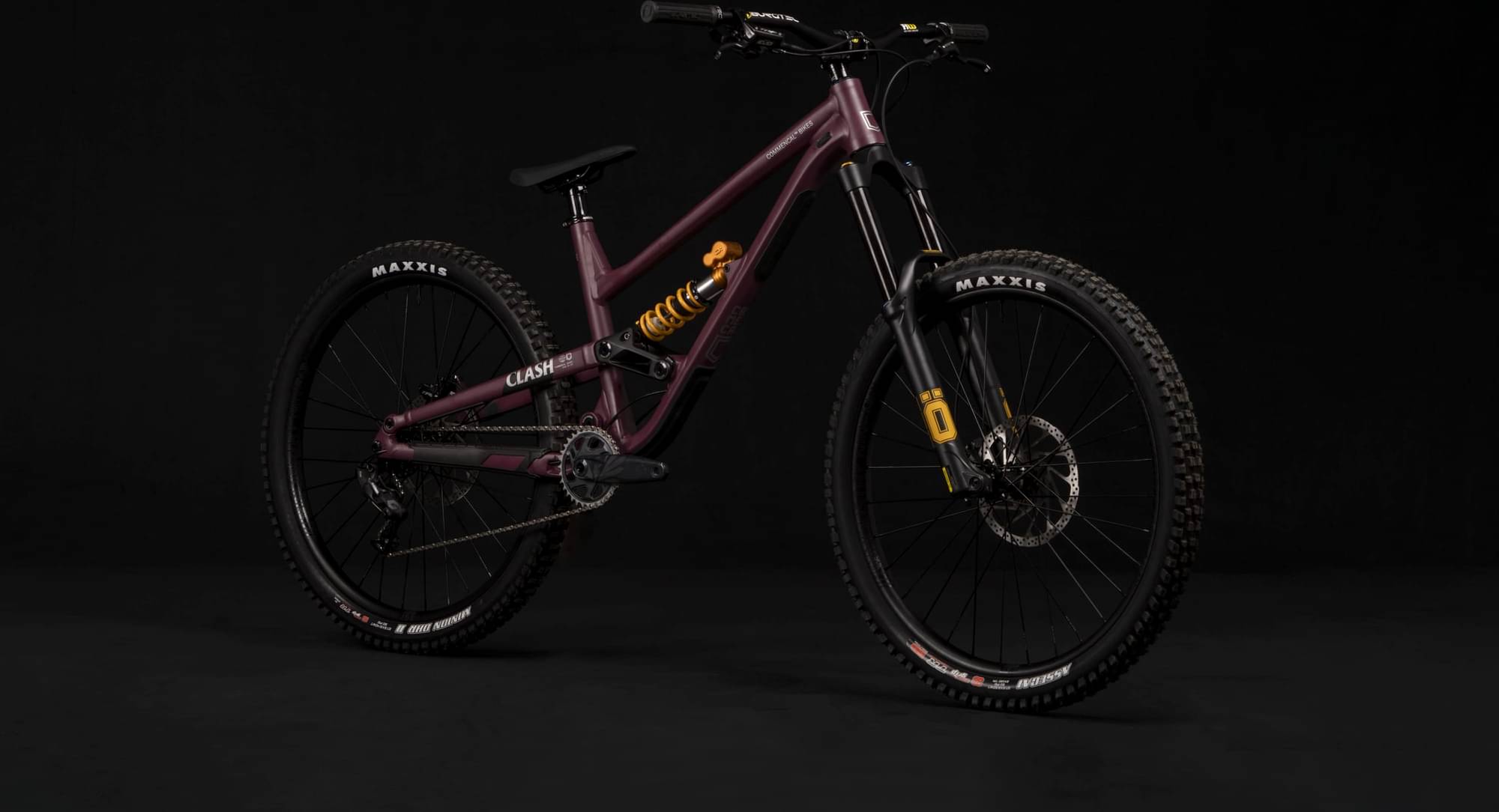

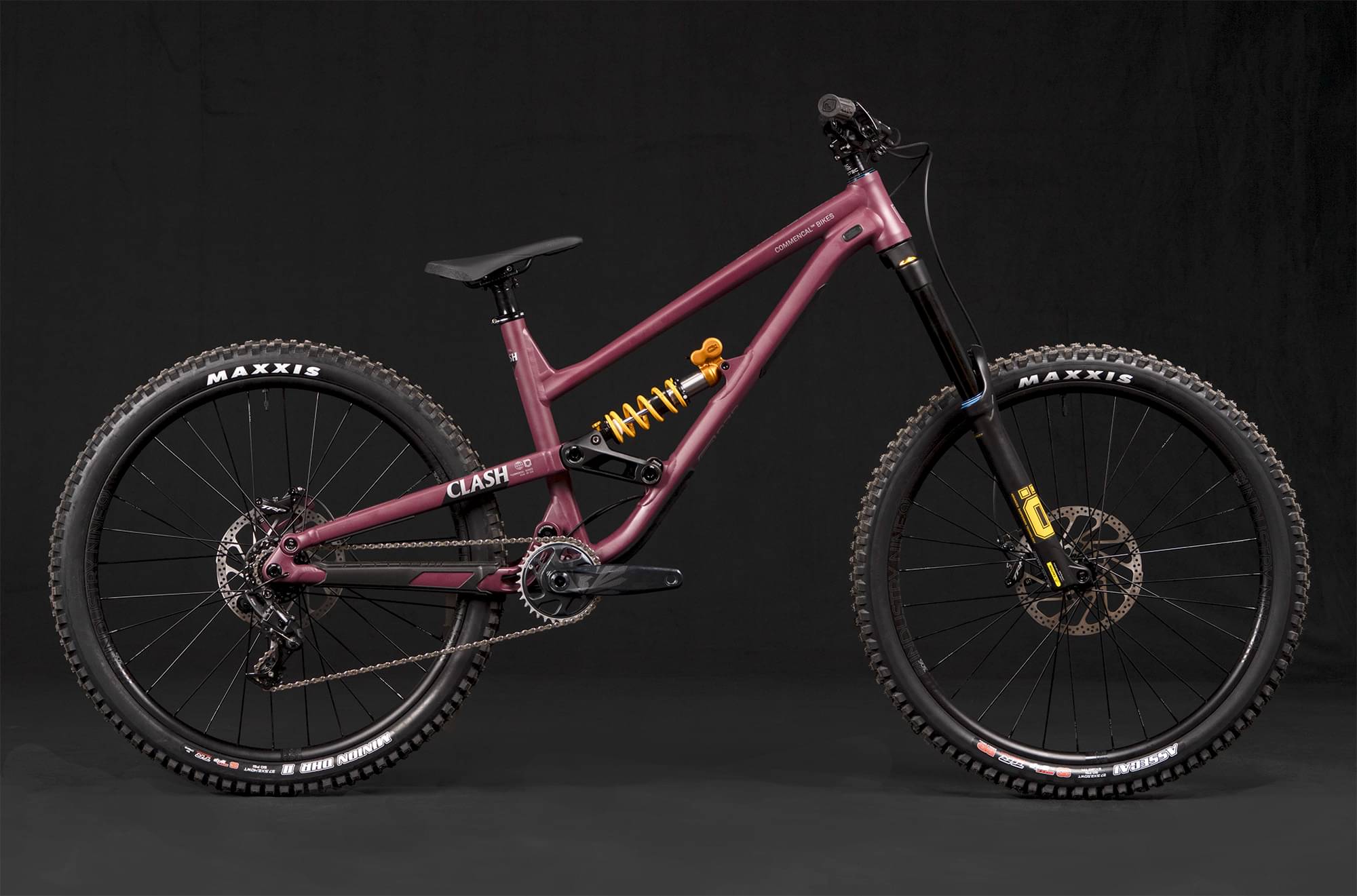

Bike summary
-
-
Frame Aluminum -
Travel Front 180mm -
Travel Rear 170mm -
Fork Öhlins RXF36
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 180cm
LG
178cm - 190cm
XL
188cm - 210cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CLASH, 170 mm travel, 27.5'', Alloy 6069, triple butted tubes, T4, T6. Enduro bearings

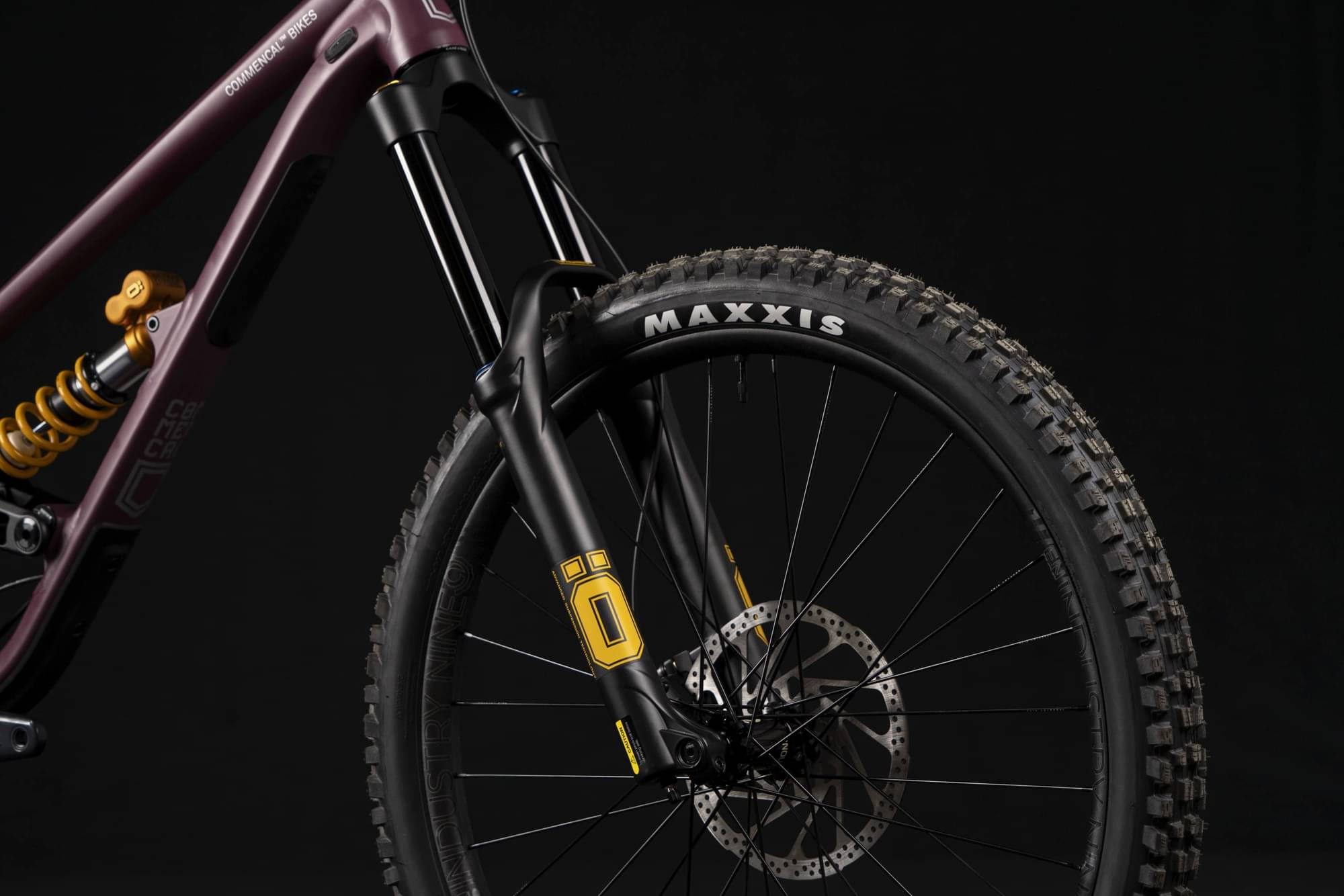

Suspension Fork
OHLINS RXF36 m.2 Air, 180 mm travel, 27.5", TTX 18 damper, Ramp Up chamber, LSC, HSC, rebound, Boost (15 x 110 mm), 38 mm offset

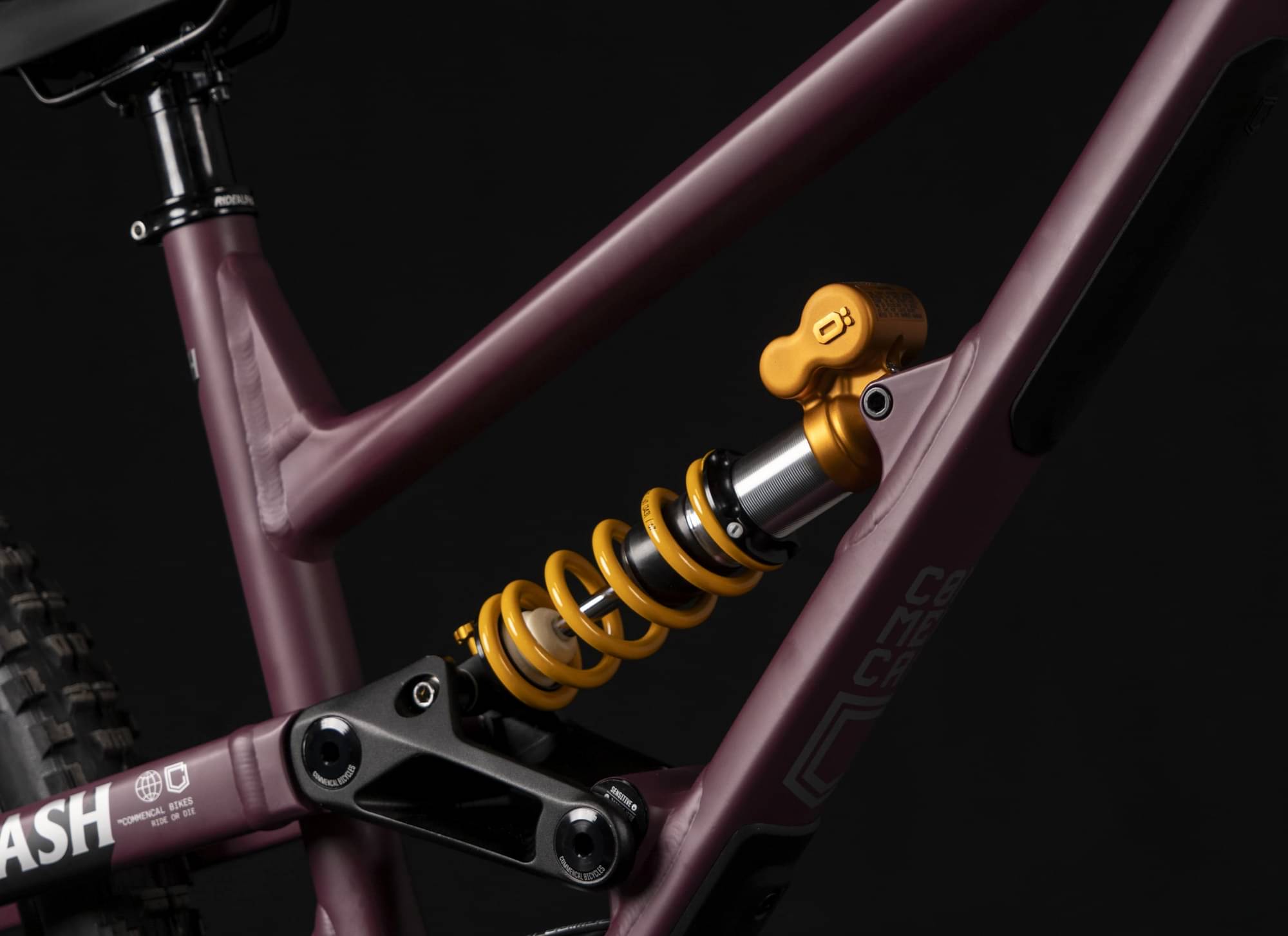

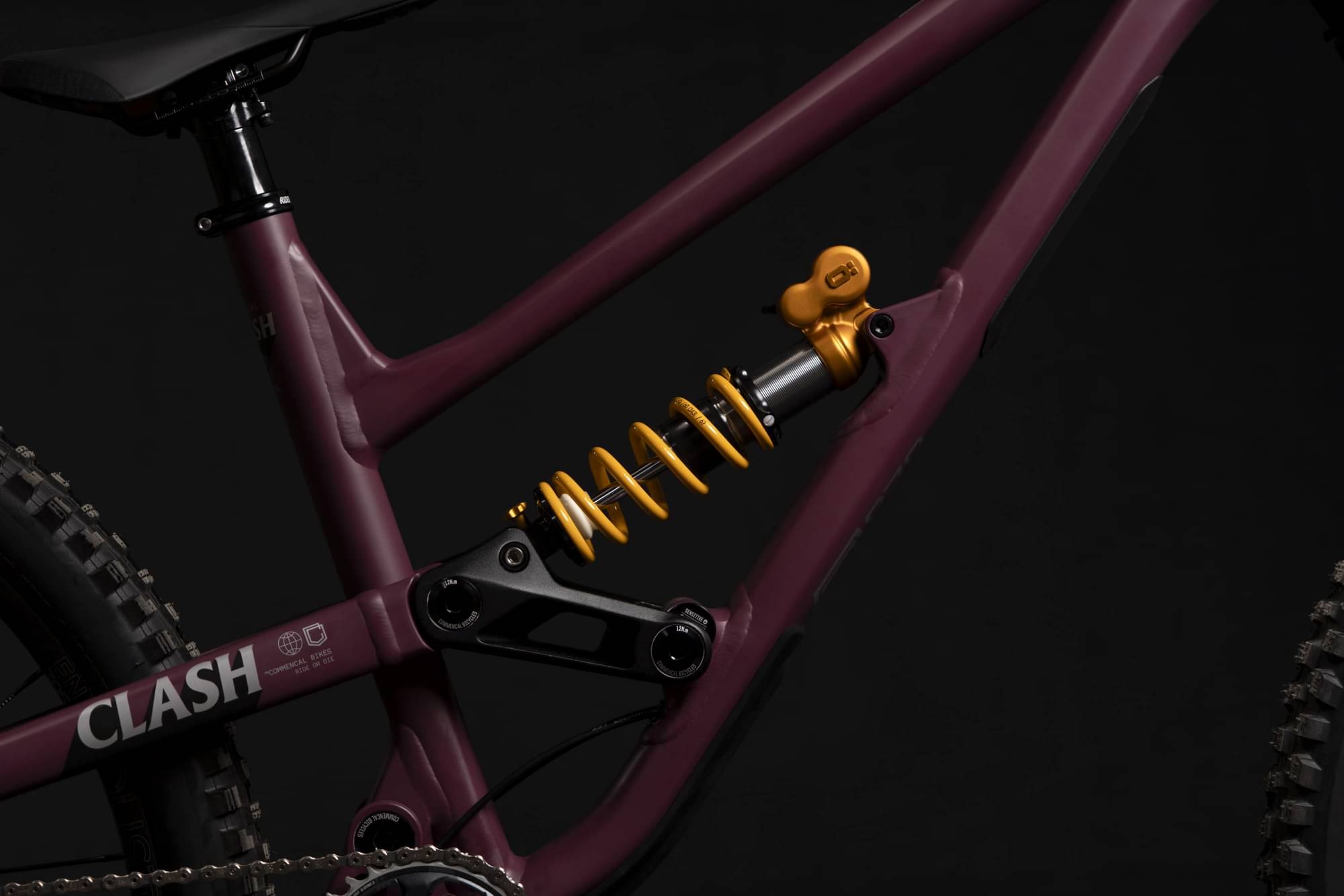

Rear Shock
OHLINS TTX22 M.2 Coil, 230 x 65 mm, HSC, LSC, rebound, climb mode. Spring rates: 343 lbs
Drivetrain

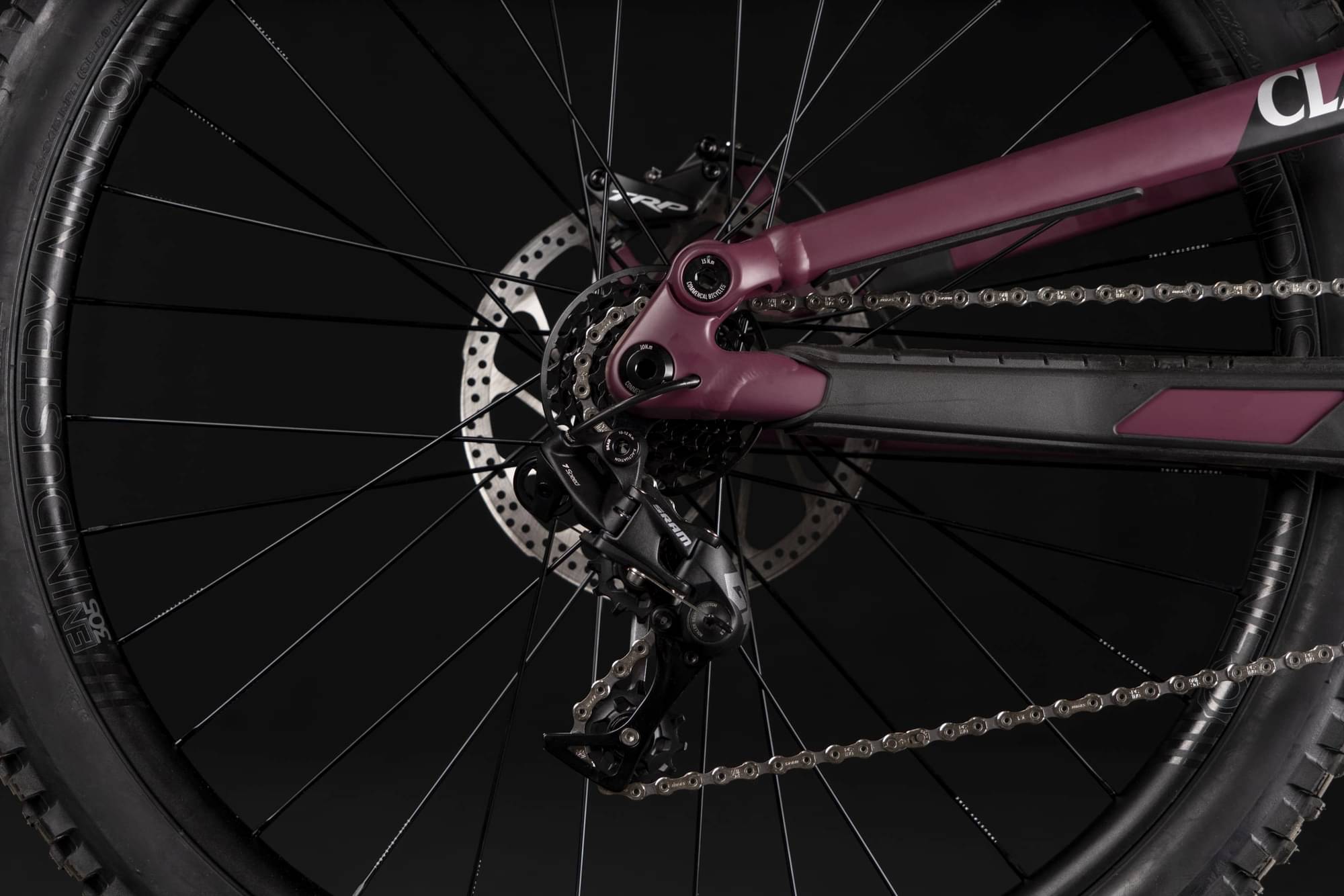

Rear Derailleur
SRAM GX DH, 7s
Shift Levers
SRAM GX DH, 7s
Cassette
SRAM X01 DH, 7s, 10-24t
Crank
SRAM GX EAGLE 170 mm, Chainring: SRAM GX EAGLE, 32t
Bottom Bracket
Press Fit BB 92
Chain
SRAM PC-1170, 11s
Wheels

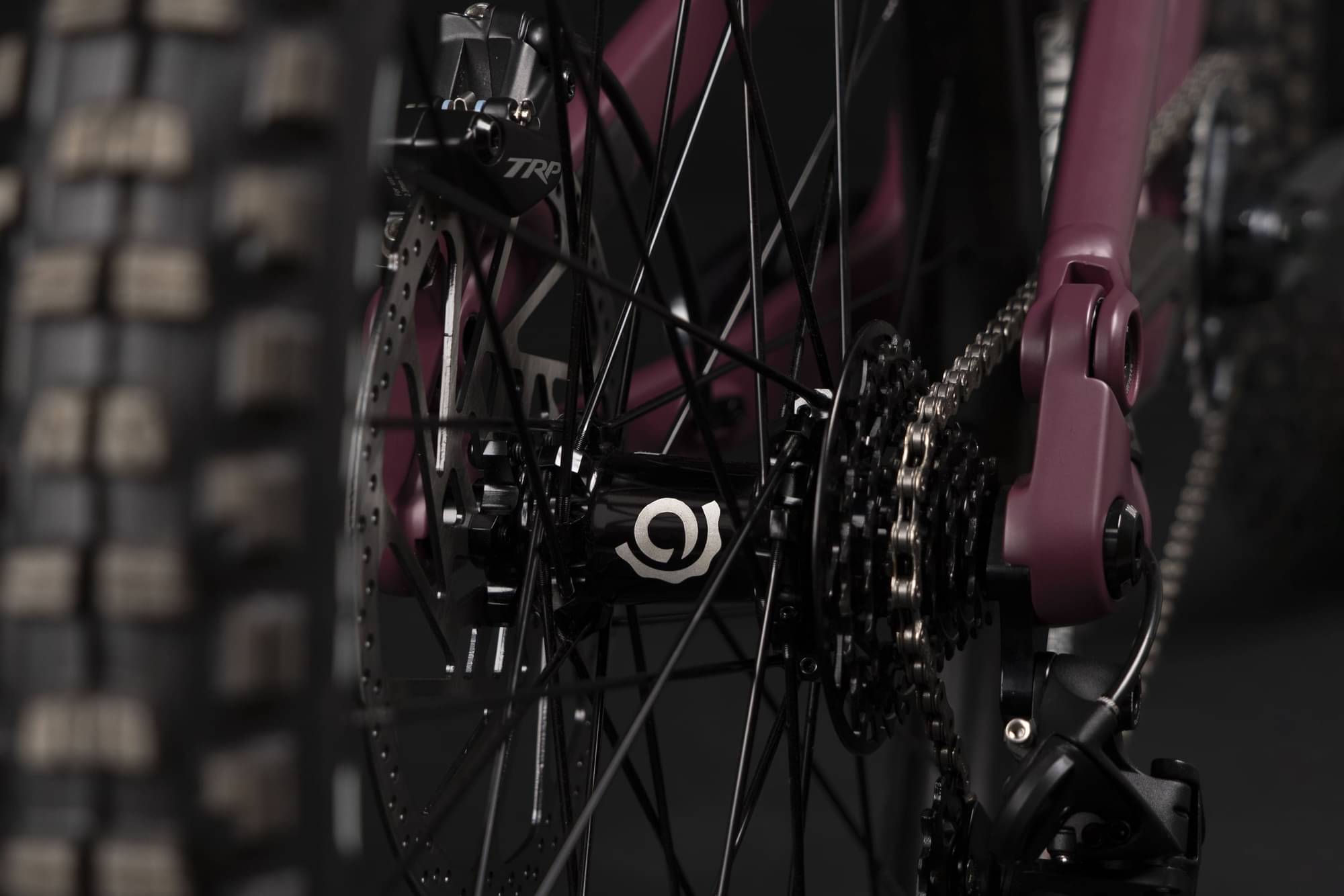

Front Hub
I9 Hydra, Rear: 32h, sealed bearings, 12 x 148 mm, SRAM XD - Front: 32h, sealed bearings, 15 x 110 mm
Rear Hub
I9 Hydra, Rear: 32h, sealed bearings, 12 x 148 mm, SRAM XD - Front: 32h, sealed bearings, 15 x 110 mm
Rims
INDUSTRY NINE HYDRA EN305, 27.5", 32h, 30.5 mm inner width, Tubeless Ready
Tires
Rear: MAXXIS DHR II - Front: MAXXIS Assegai, Rear: 27.5" x 2.4", WT, 3C MaxxTerra, Double Down, Tubeless Ready - Front: 27.5" x 2.5", WT, 3C MaxxGrip, Double Down, Tubeless Ready
Brakes

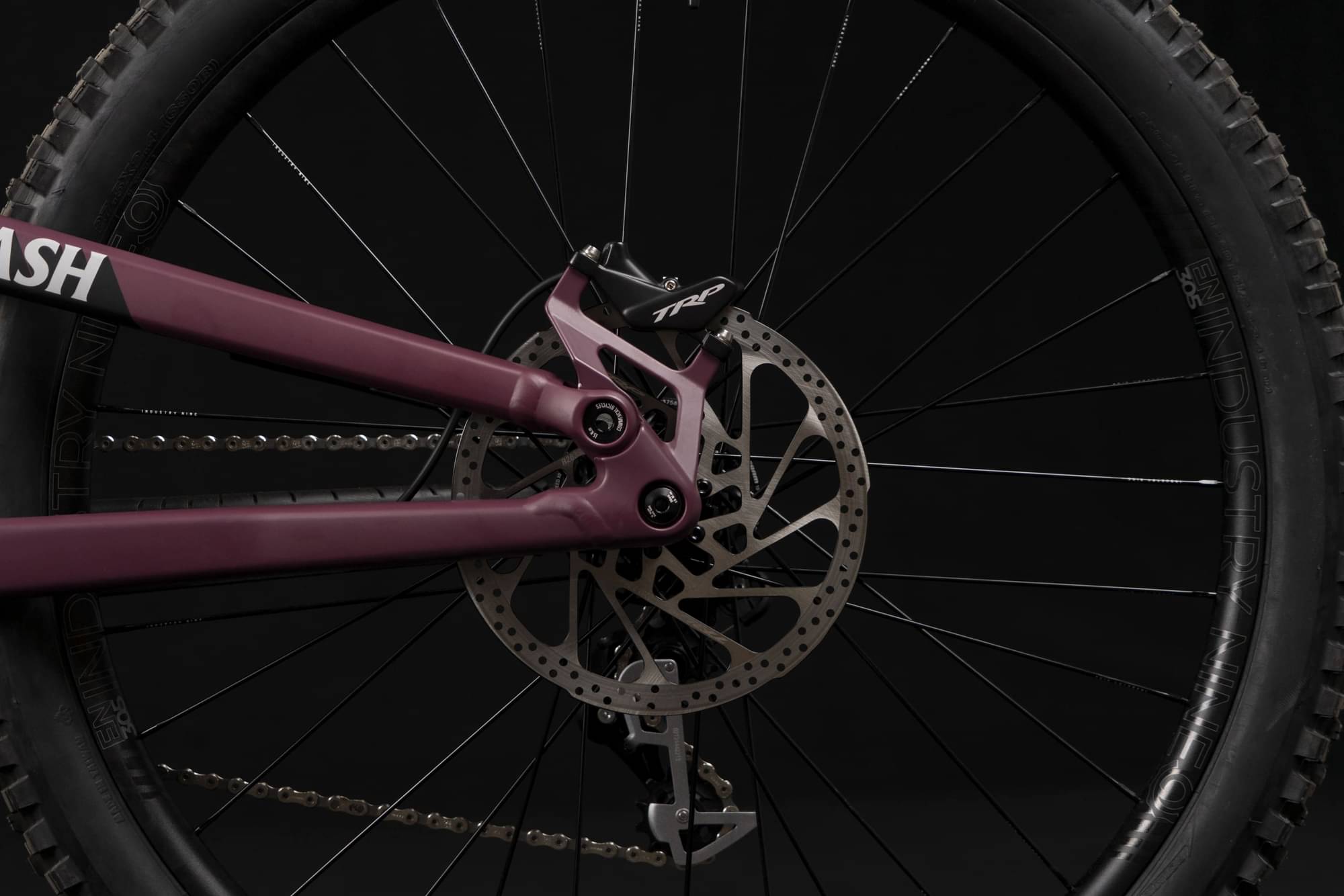

Brakes
TRP DH-R EVO, 4 pistons, resin pads, Rotors: TRP R1 203 mm, 6-bolt, 2.3 mm width

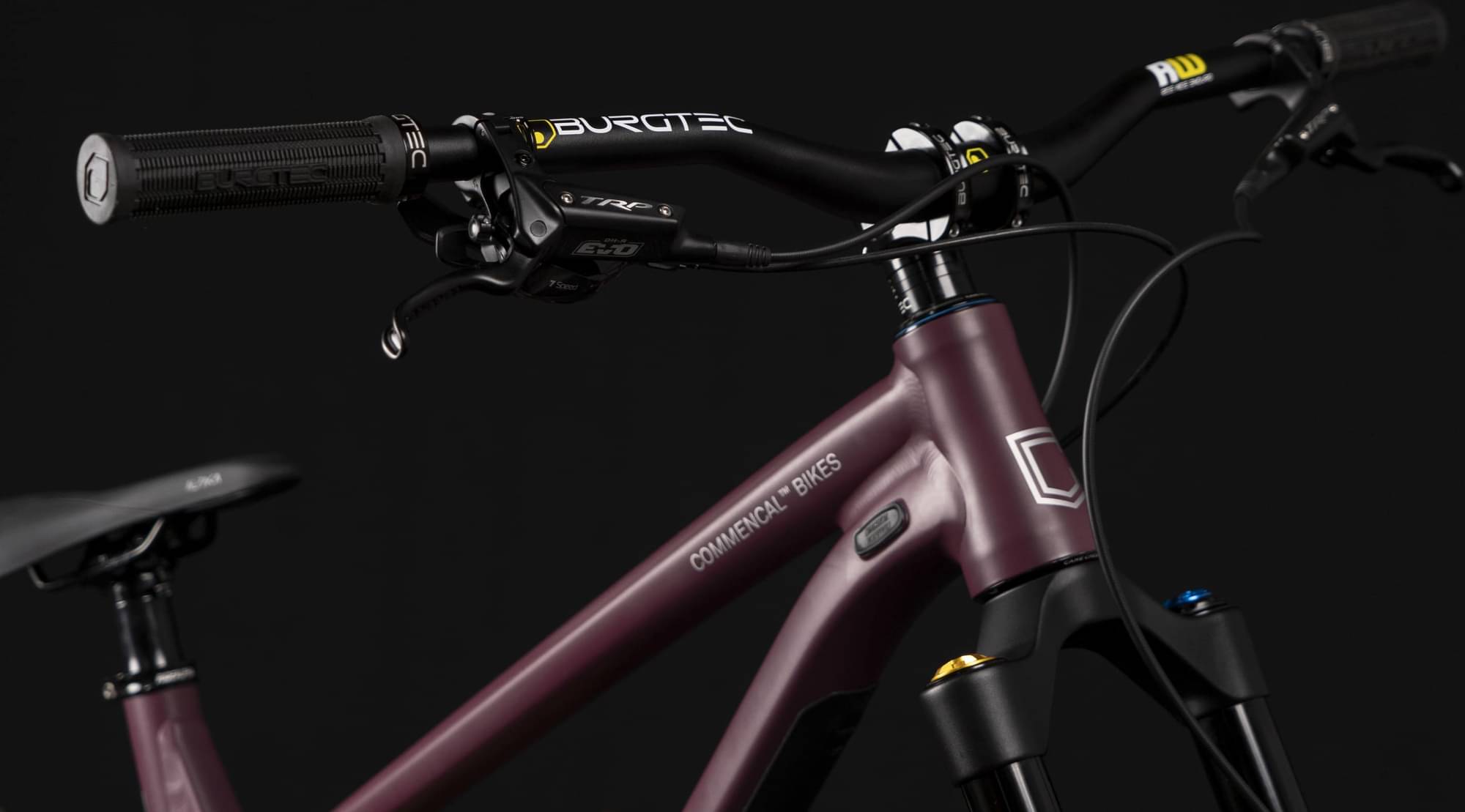

Cockpit
Stem
BURGTEC ENDURO MK3, Ø31.8 mm - 35 mm
Handlebar
BURGTEC RIDE WIDE ENDURO, Ø31.8 mm - Rise: 30 mm
Grips
BURGTEC BARTENDER PRO SUPER SOFT MINNAAR SIGNATURE, Black
Headset
CANE CREEK 40 SERIES ZS44/ZS56, Alloy cups, sealed bearings
Seat
Saddle
FIZIK TERRA ALPACA X5, 145 mm width, S-Alloy rails
Seatpost
RIDE ALPHA, 34.9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.391 mm | 1.342 mm | 1.282 mm | 1.221 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 782 mm | 804 mm | 831 mm | 858 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 132 mm | 132 mm | 132 mm | 129 mm |
| Stack | 619 mm | 624 mm | 628 mm | 635 mm |
| Reach | 445 mm | 465 mm | 490 mm | 520 mm |
| Top Tube Length | 586 mm | 607 mm | 633 mm | 666 mm |
| Seat Tube Angle | 77.2 ° | 77.2 ° | 77.2 ° | 77.1 ° |
| Seat Tube Length | 380 mm | 418 mm | 440 mm | 465 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64.5 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm | 125 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1216 mm | 1238 mm | 1265 mm | 1292 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 728 mm | 733 mm | 730 mm | 735 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 188 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm | 210 cm |
