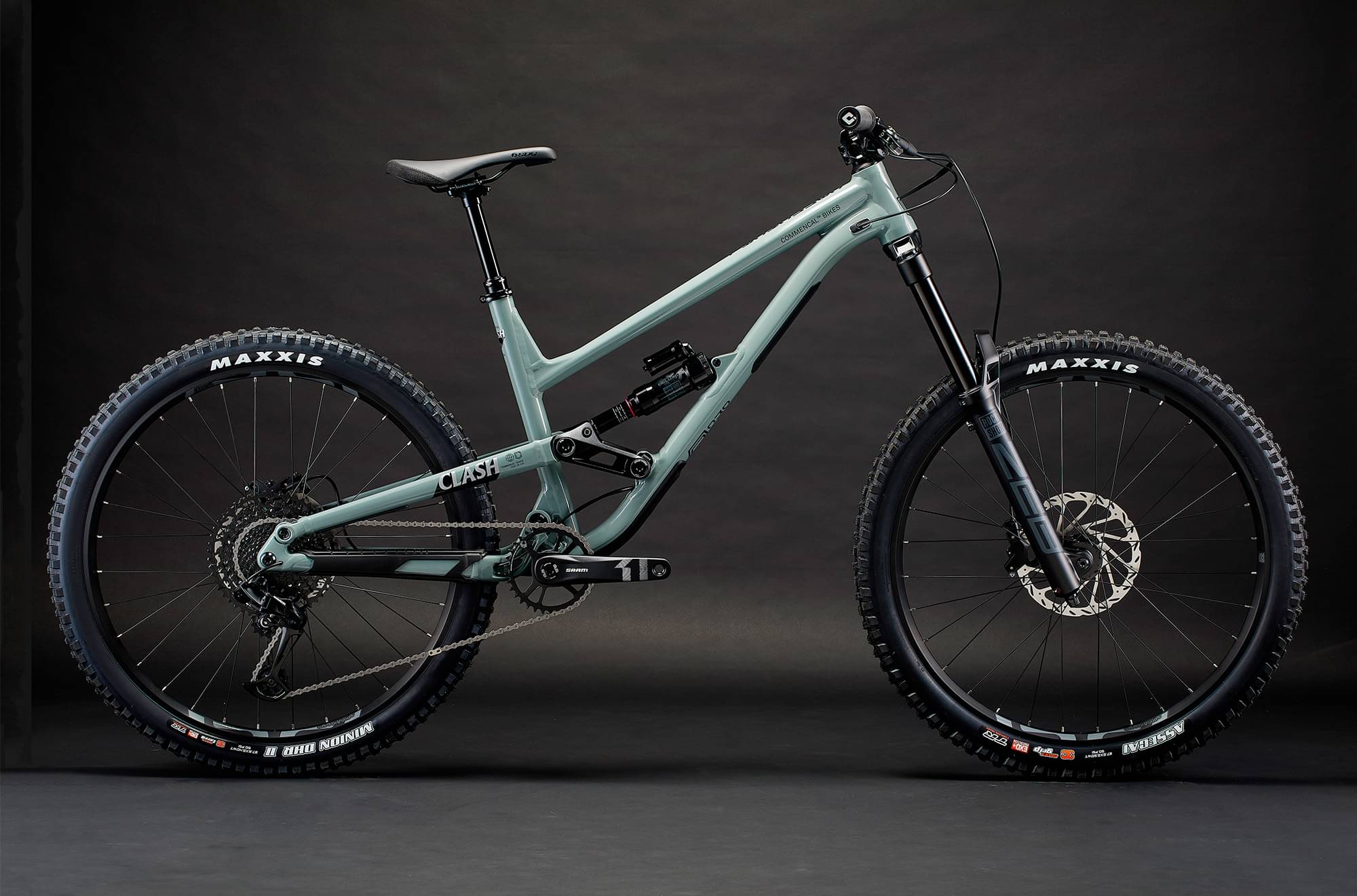

Commençal CLASH RIDE NEW ROCKSHOX 2024
2024 Mountain
Estimate price |
4,153$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 180mm -
Travel Rear 170mm -
Fork RockShox ZEB
-
Groupset X1, SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 180cm
LG
178cm - 190cm
XL
188cm - 210cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CLASH, 170 mm travel, 27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

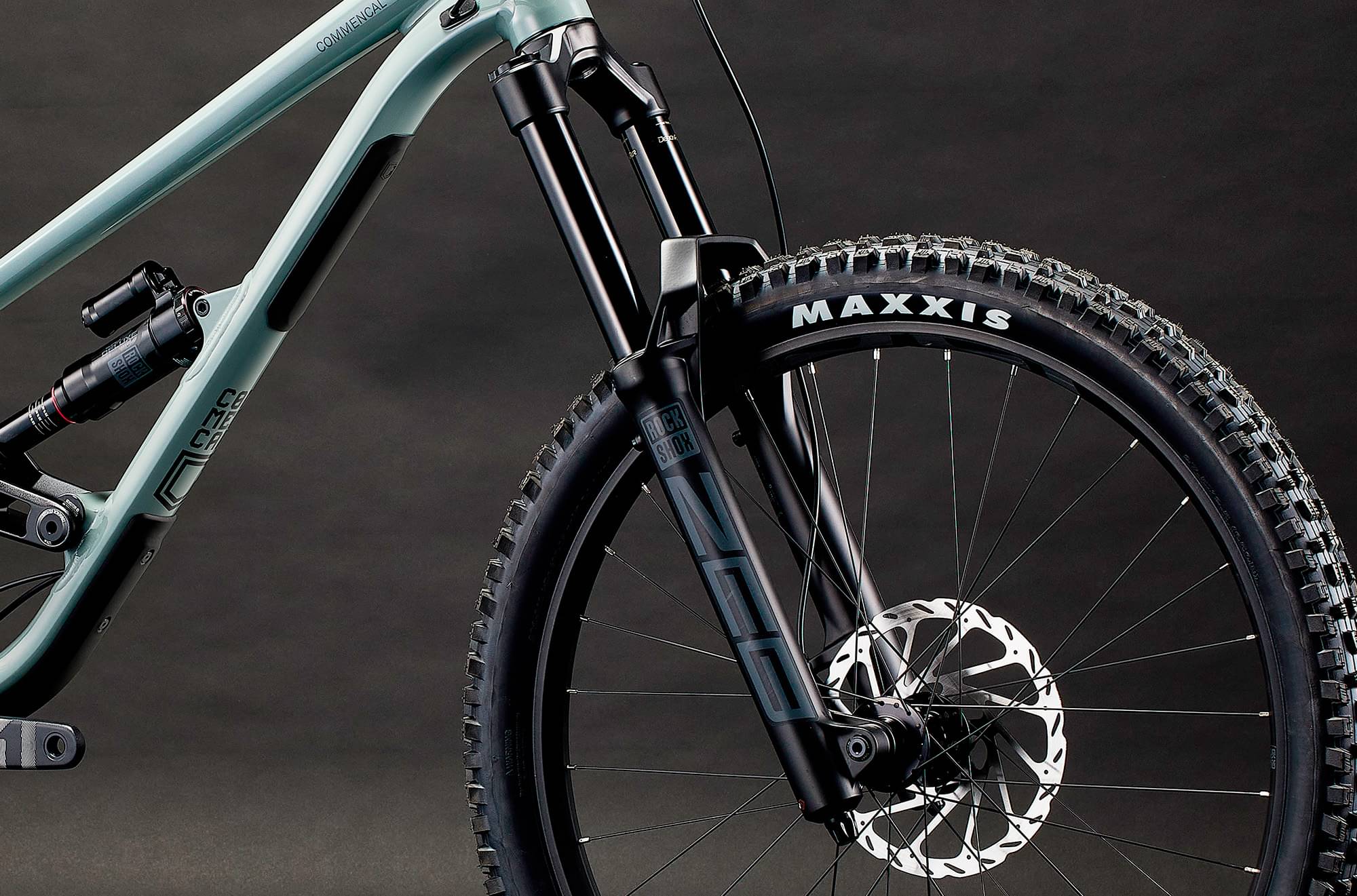

Suspension Fork

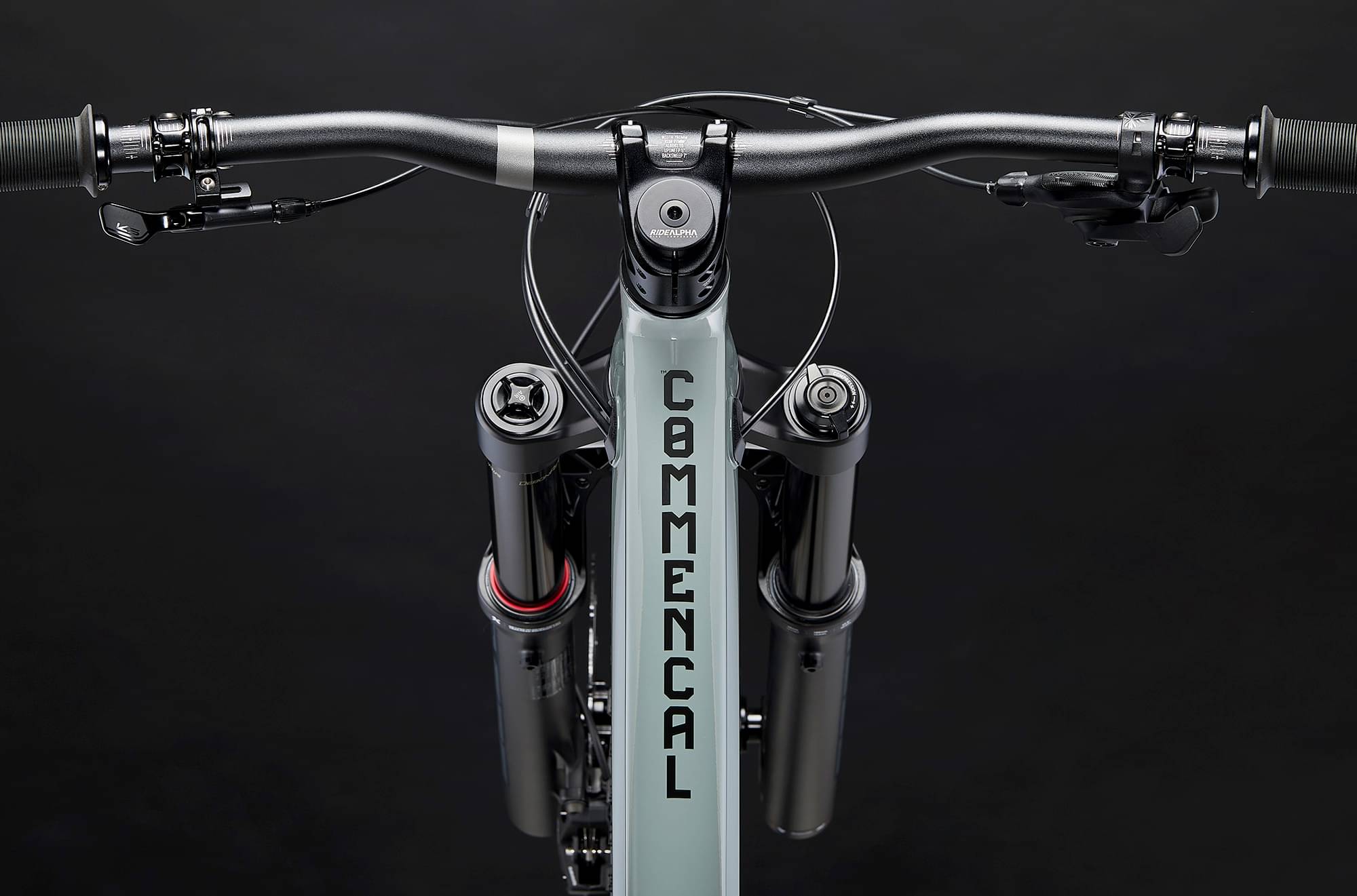

ROCKSHOX Zeb Base, 180 mm travel, 27.5", Rush RC damper, Debonair +, rebound, LSC, Boost (15 x 110 mm), 38 mm offset, 0 Token
Rear Shock

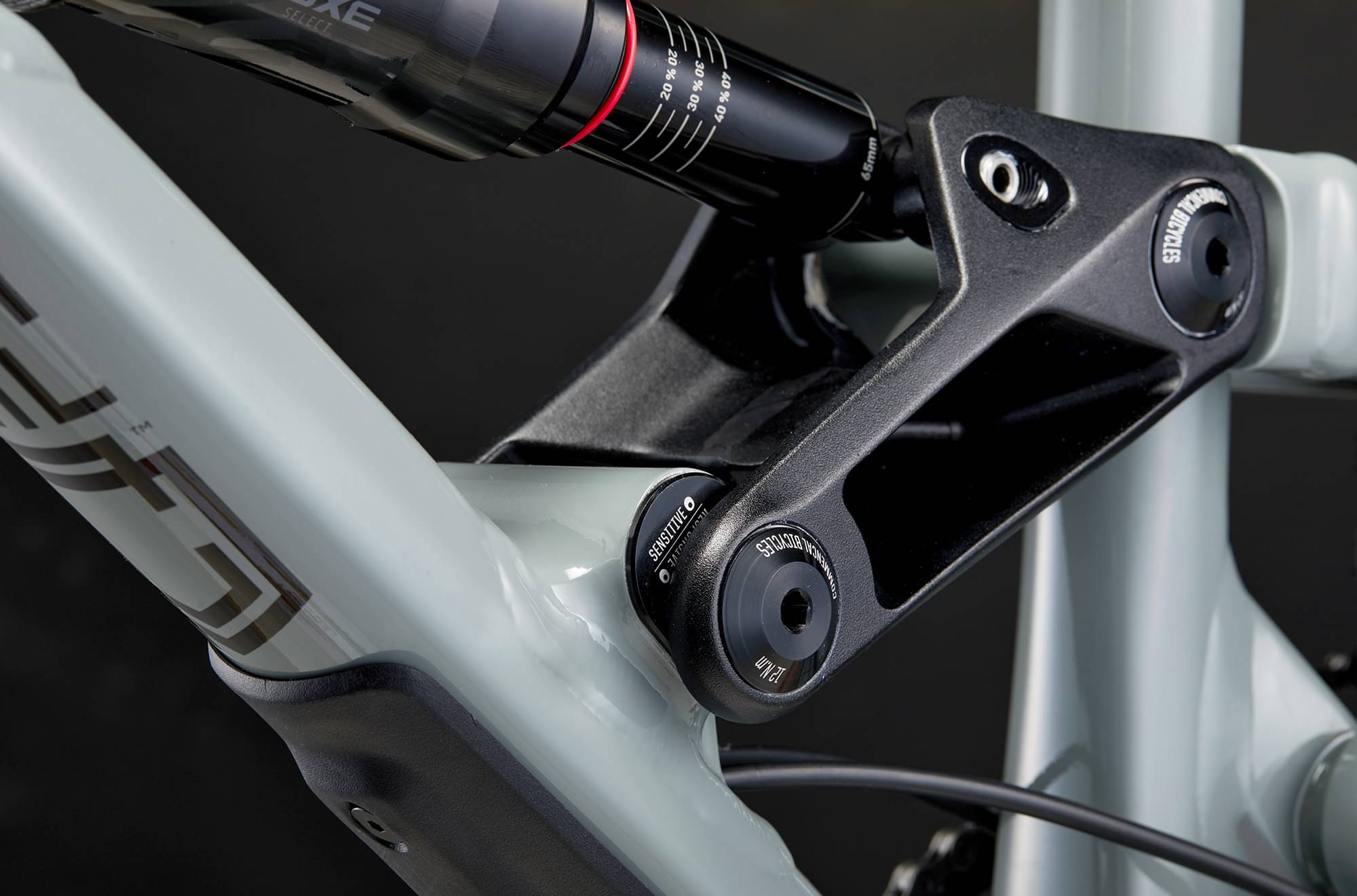

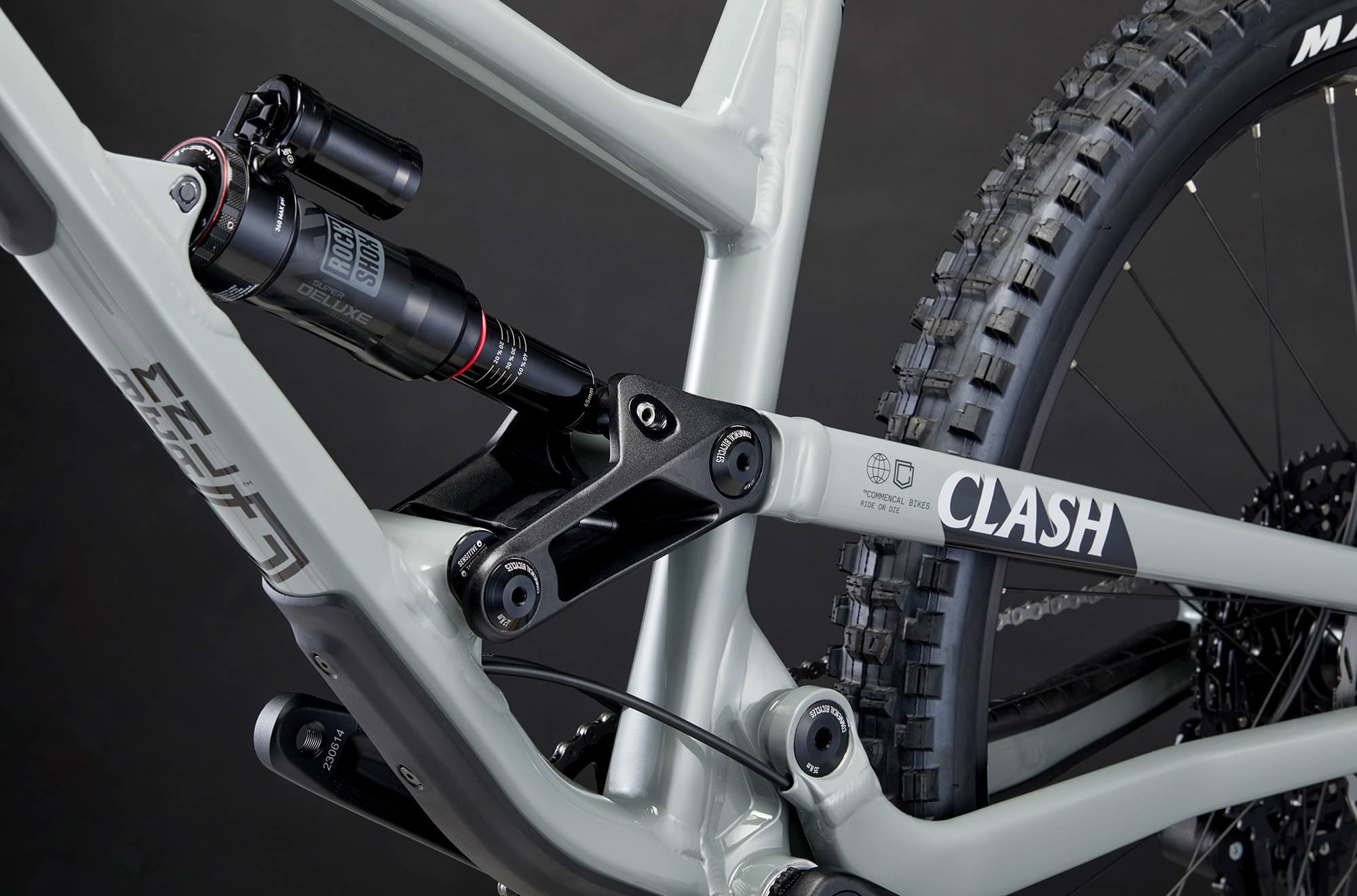

ROCKSHOX Super Deluxe Select, 230 x 65 mm, DebonAir Progressive, rebound

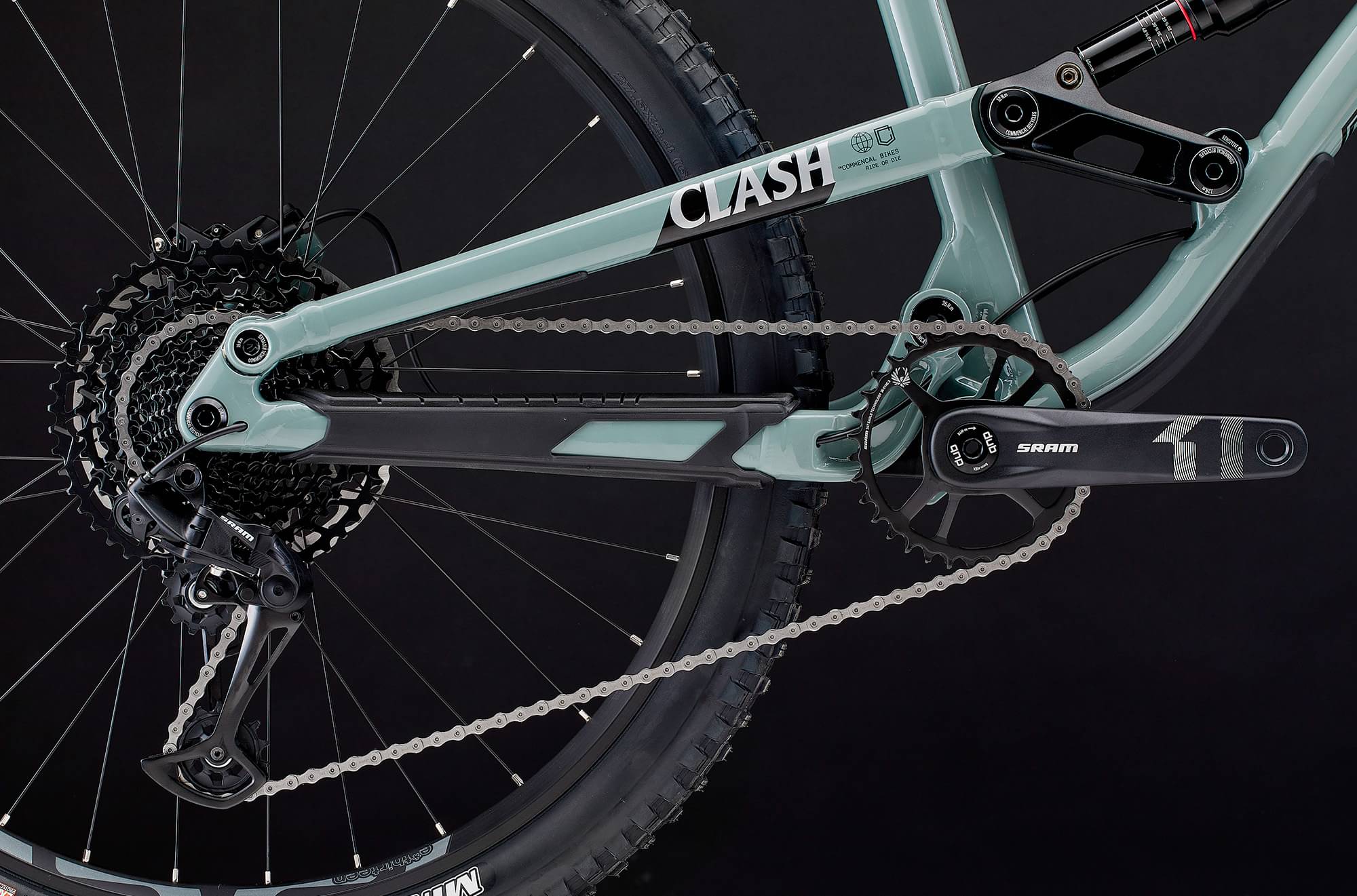

Drivetrain
Rear Derailleur
SRAM SX Eagle, 12s
Shift Levers
SRAM SX Eagle, 12s
Cassette
SRAM PG-1210, 12s, 11-50t
Crank
SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost, Chainring: SRAM X1 1000 Eagle, 34t, Narrow-Wide
Bottom Bracket
Press Fit BB 92
Chain
SRAM NX Eagle, 12s
Wheels
Front Hub
Rear: FORMULA DCL-348A - Front: FORMULA DC-711, 32h, sealed bearings
Rear Hub
Rear: FORMULA DCL-348A - Front: FORMULA DC-711, 32h, sealed bearings
Rims
E13 LG1 DH Base, 27.5'', 32h, 30 mm inner width
Tires
Rear: MAXXIS DHR II - Front: MAXXIS Assegai, Rear: 27.5"x2.4" WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 27.5"x2.5" WT, 3C MaxxGrip, EXO+, Tubeless Ready
Brakes
Brakes

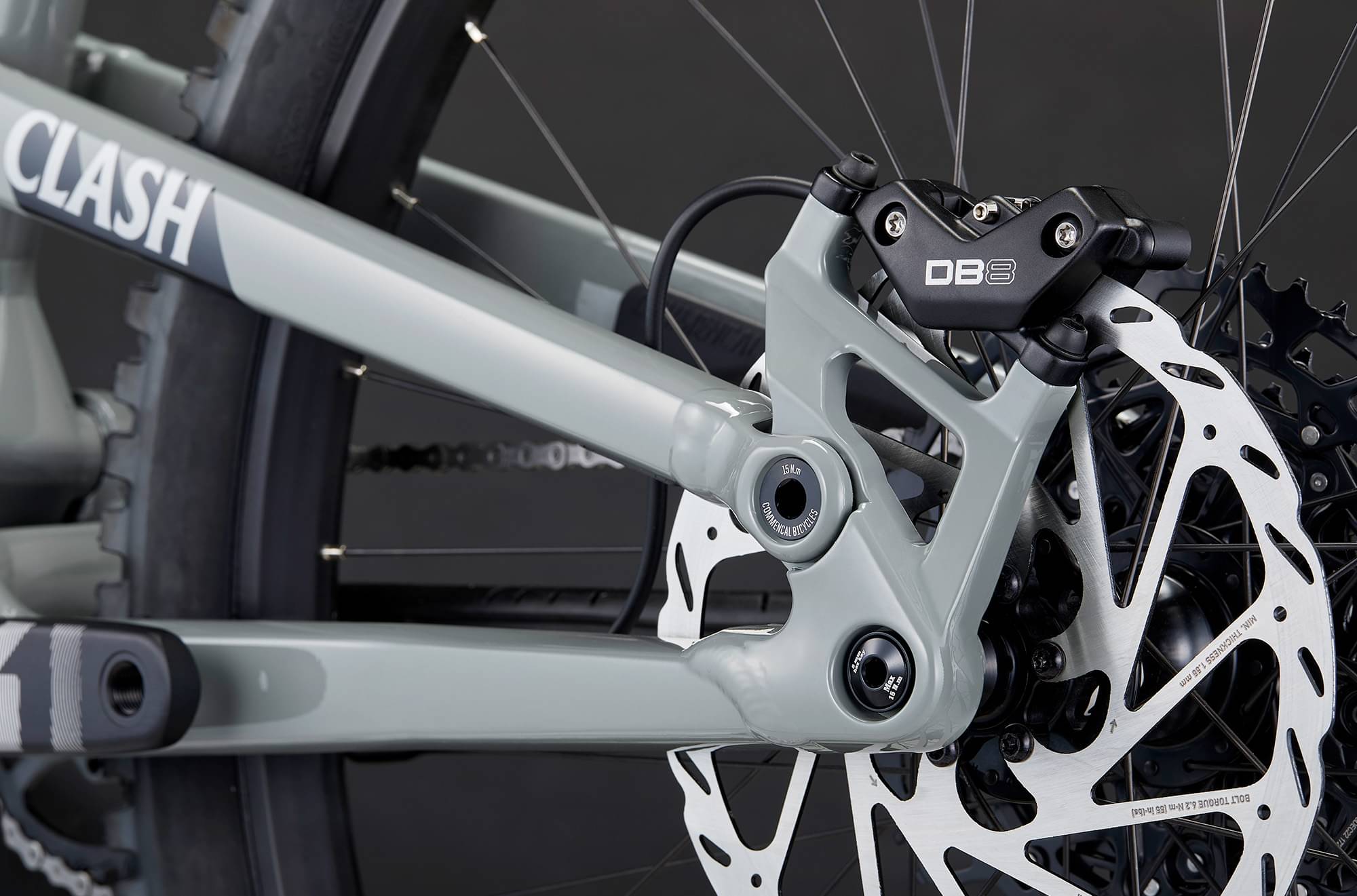

SRAM DB8, 4 pistons, MatchMaker compatible, Rotors: SRAM G2 CleanSweep 200 mm, 6-bolt
Cockpit
Stem

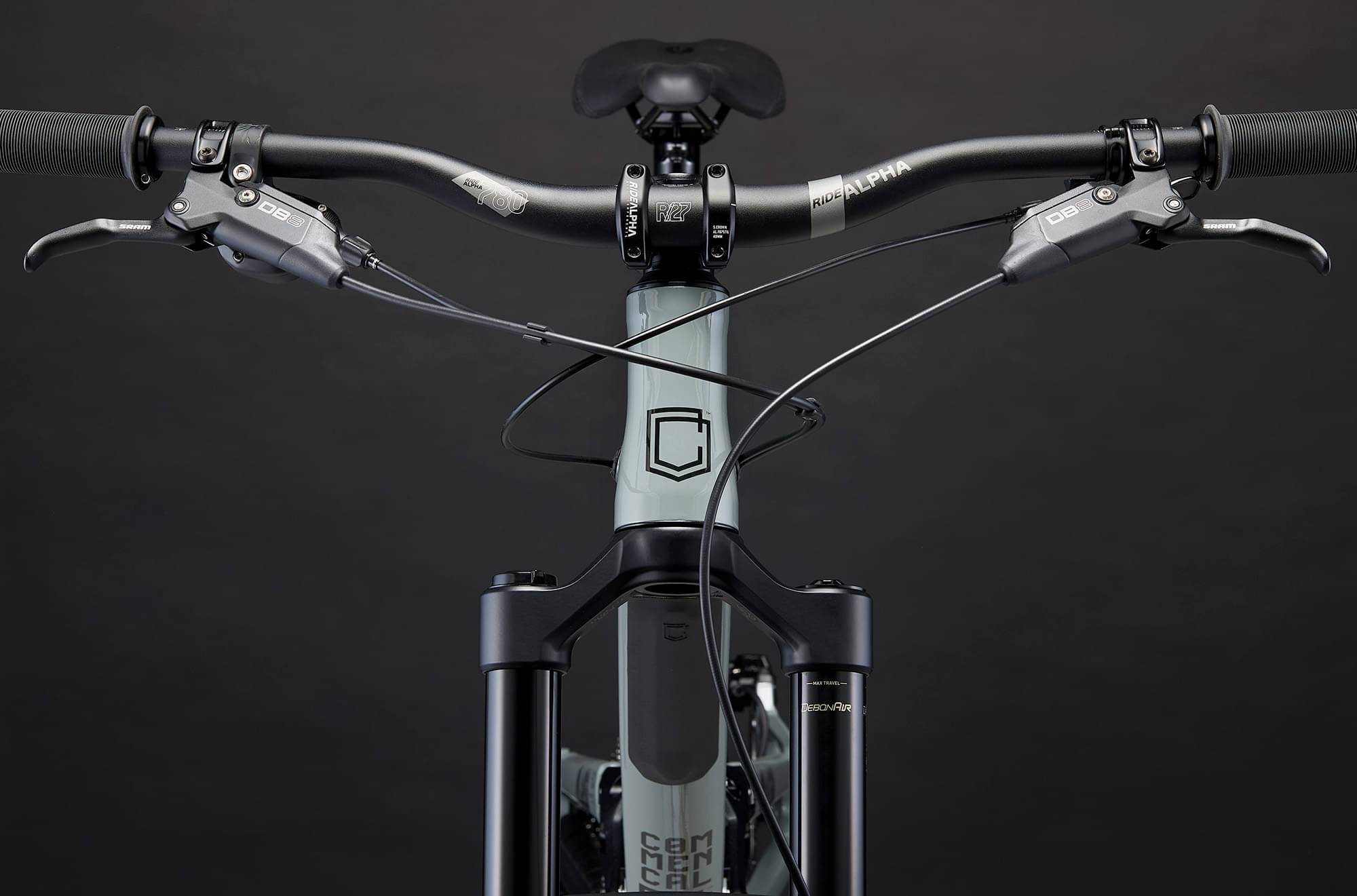

RIDE ALPHA 40 EXTERNAL, 40 mm extension, 31.8 mm
Handlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL, 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips
ODI Longneck, Soft compound, single clamp, black
Headset
ACROS ZS44/ZS56, Alloy cups, sealed bearings
Seat
Saddle
SDG Bel Air V3, Steel Rails
Seatpost
KS Rage-I, 34.9 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.391 mm | 1.342 mm | 1.282 mm | 1.221 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 782 mm | 804 mm | 831 mm | 858 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 132 mm | 132 mm | 132 mm | 129 mm |
| Stack | 619 mm | 624 mm | 628 mm | 635 mm |
| Reach | 445 mm | 465 mm | 490 mm | 520 mm |
| Top Tube Length | 586 mm | 607 mm | 633 mm | 666 mm |
| Seat Tube Angle | 77.2 ° | 77.2 ° | 77.2 ° | 77.1 ° |
| Seat Tube Length | 380 mm | 418 mm | 440 mm | 465 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64.5 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm | 125 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1216 mm | 1238 mm | 1265 mm | 1292 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 728 mm | 733 mm | 730 mm | 735 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 188 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm | 210 cm |
