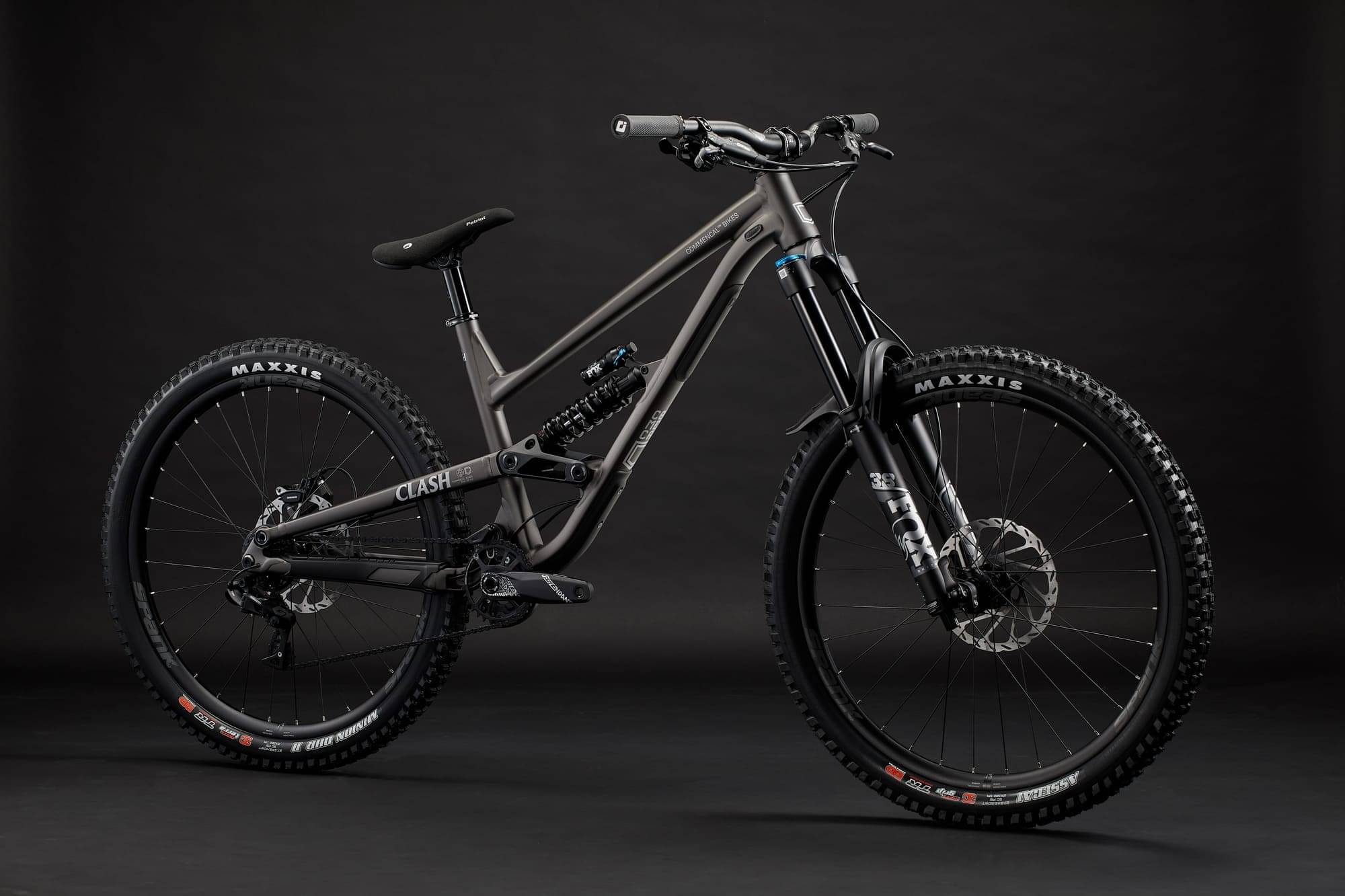

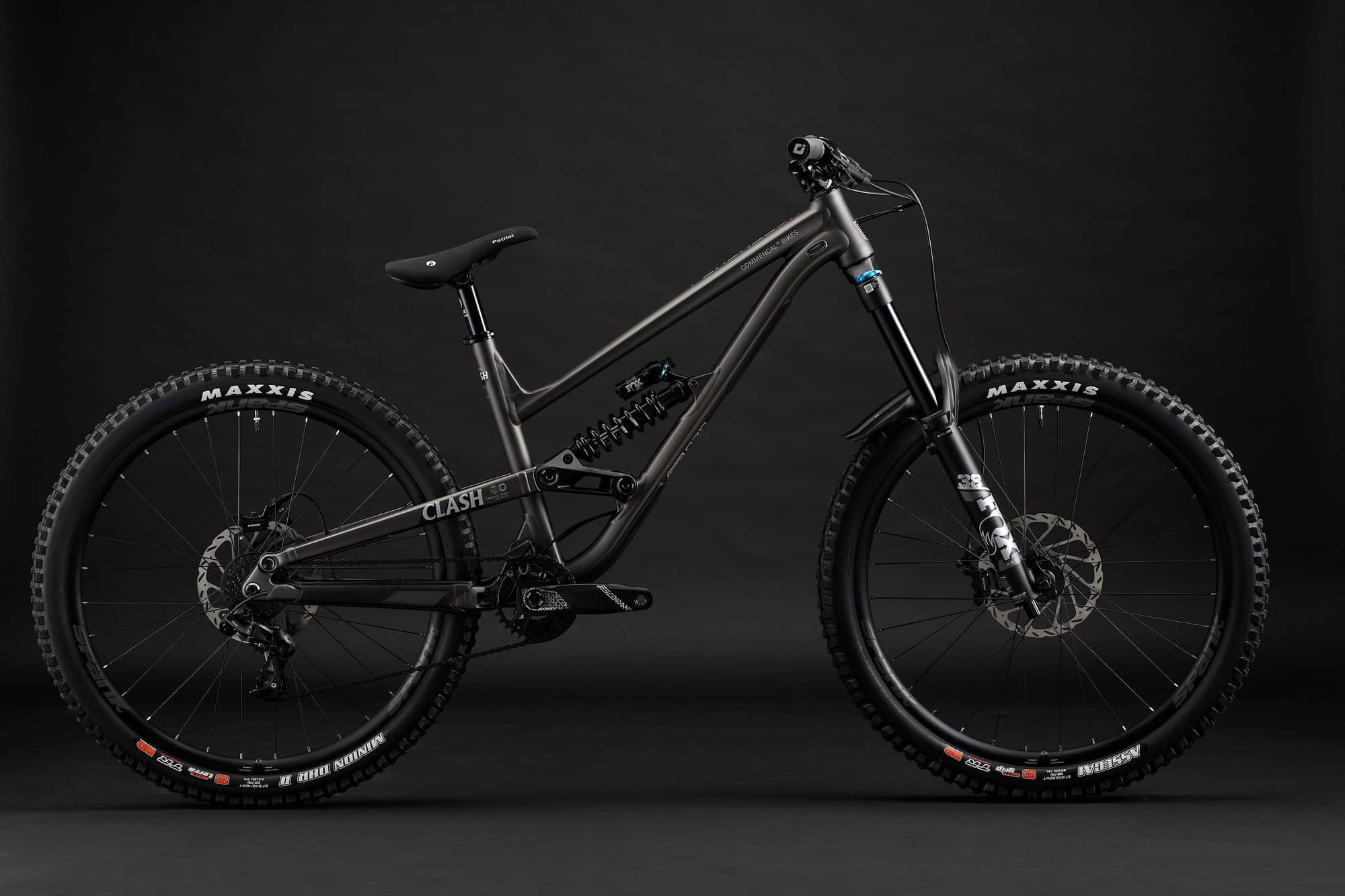

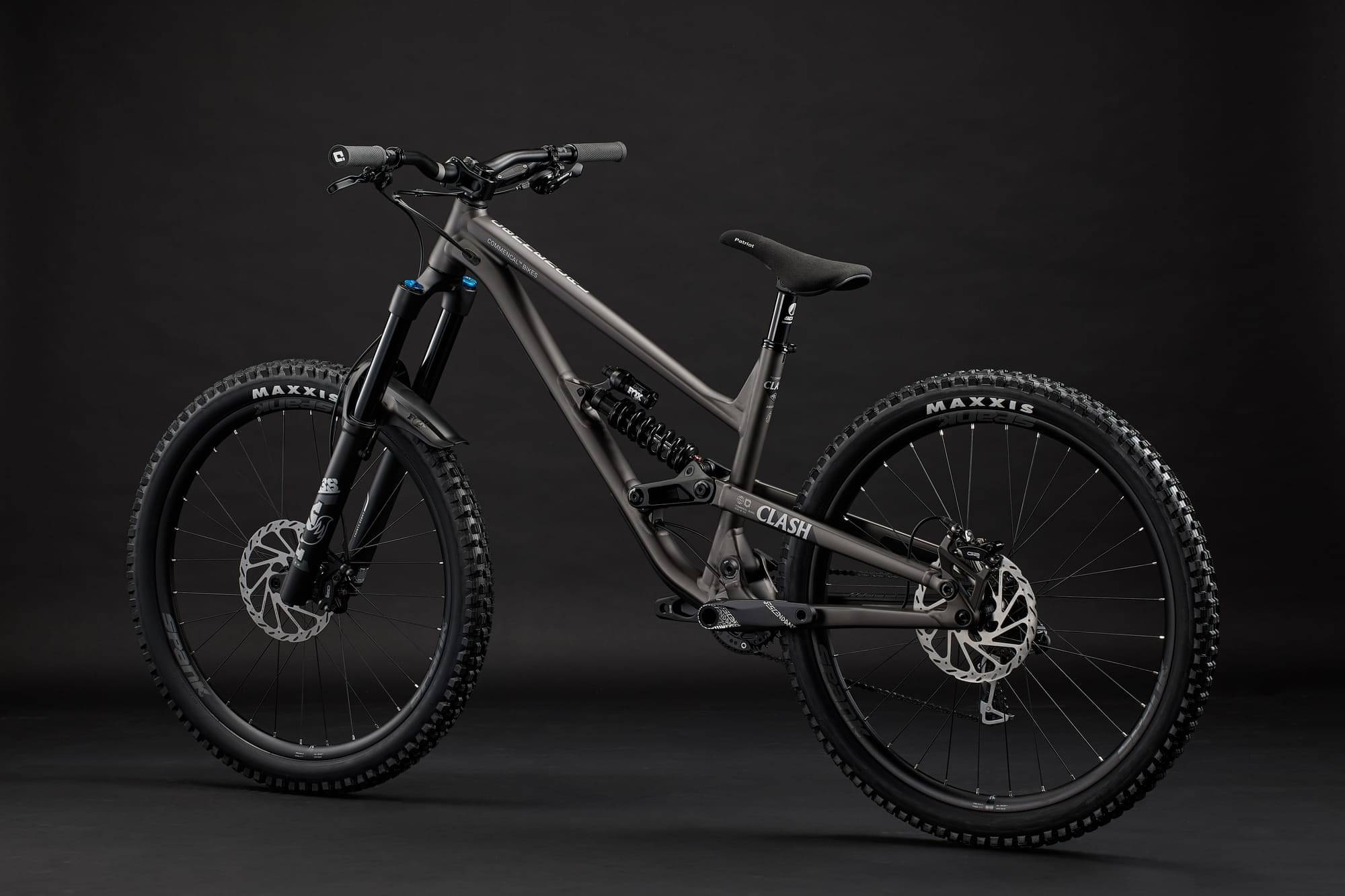

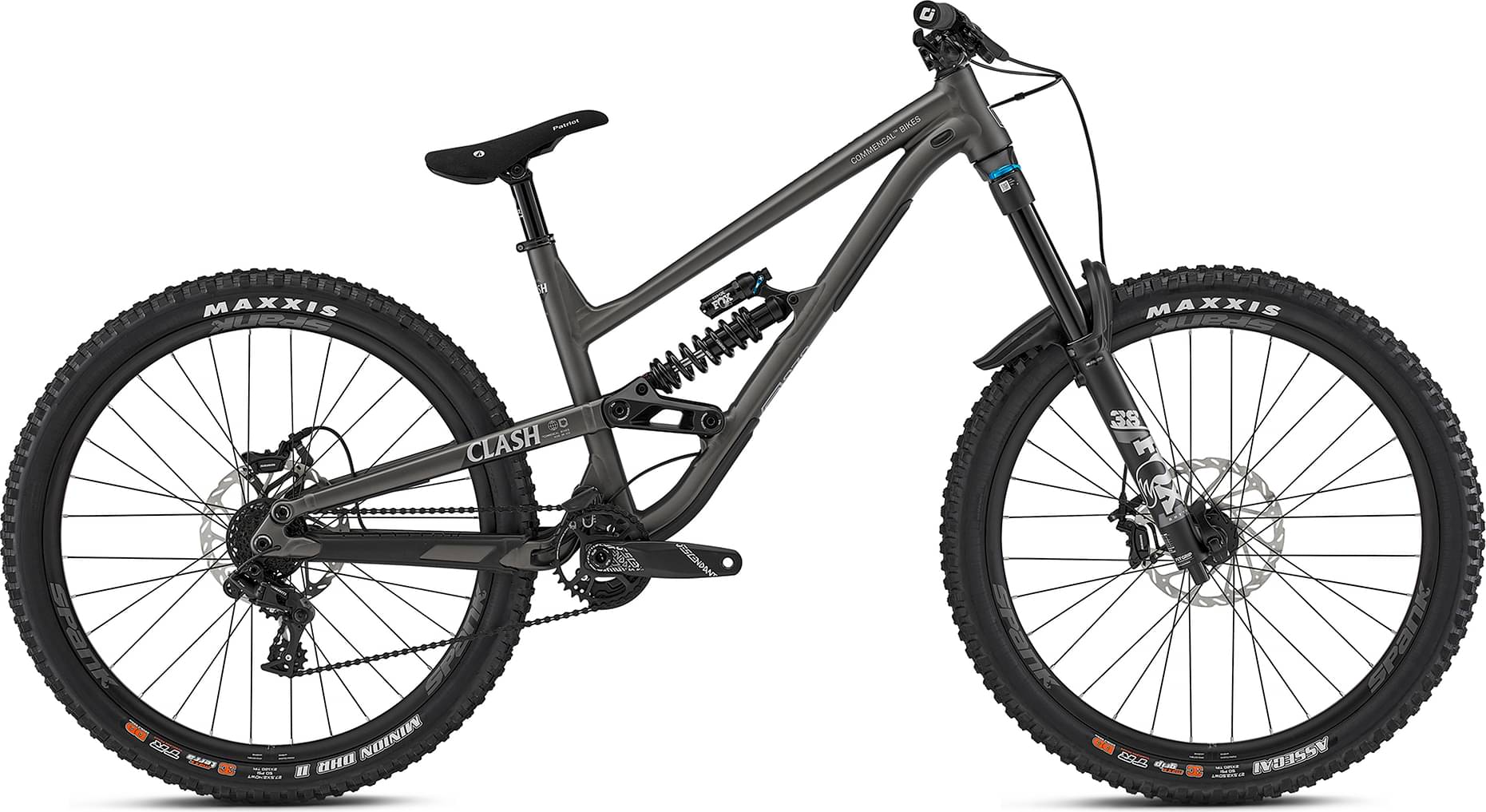

Commençal CLASH RIDE PARK 2024
2024 Mountain
Estimate price |
4,153$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 180mm -
Travel Rear 170mm -
Fork Fox Float 38
-
Groupset Truvativ Descendant, GX -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 180cm
LG
178cm - 190cm
XL
188cm - 210cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CLASH, 170 mm travel, 27.5'', Alloy 6069, triple butted tubes, T4, T6. Enduro bearings

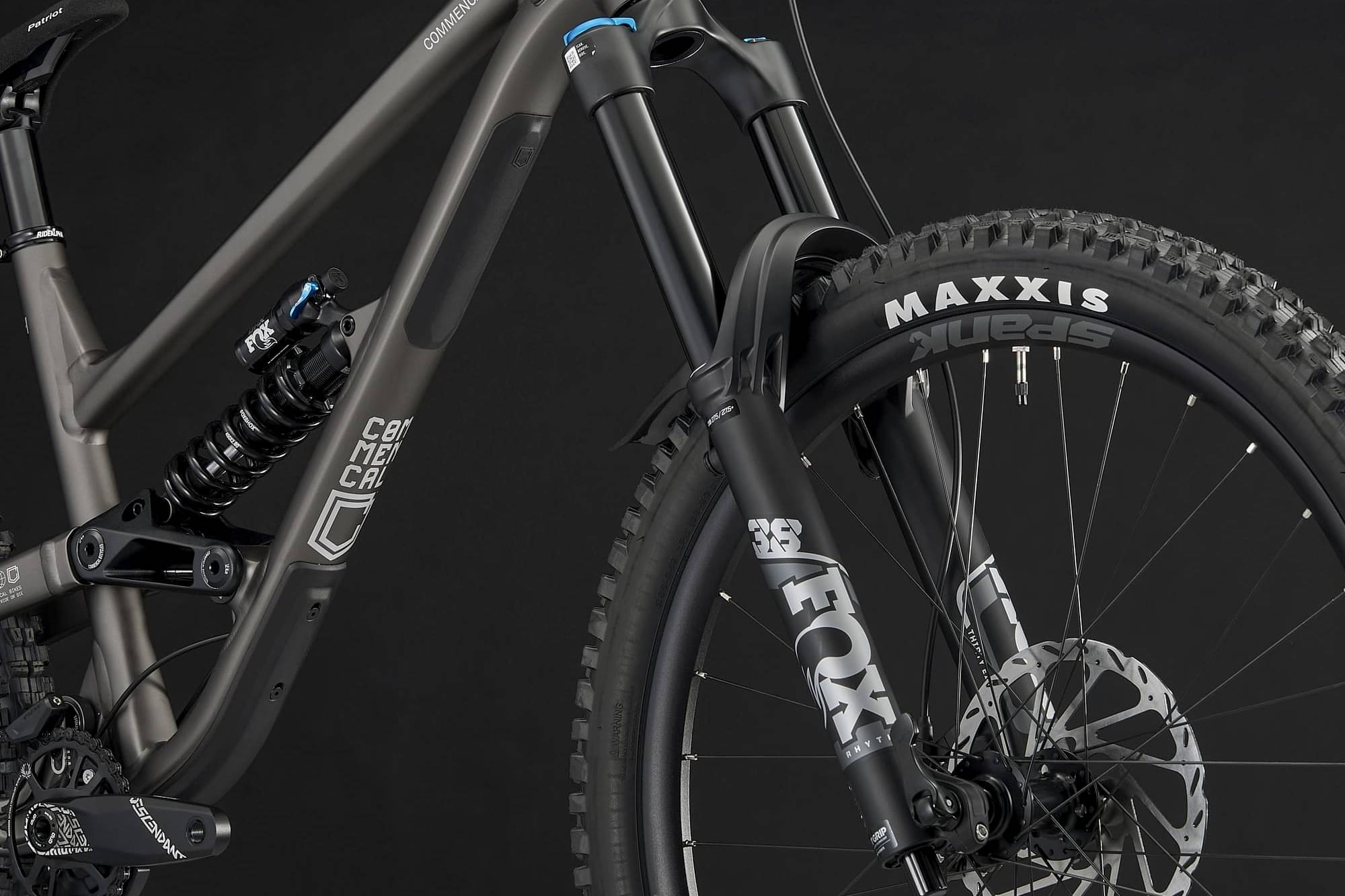

Suspension Fork
FOX 38 Rhythm, 180 mm travel, 27.5", Grip damper, rebound, Boost (15 x 110 mm), 37 mm offset
Rear Shock

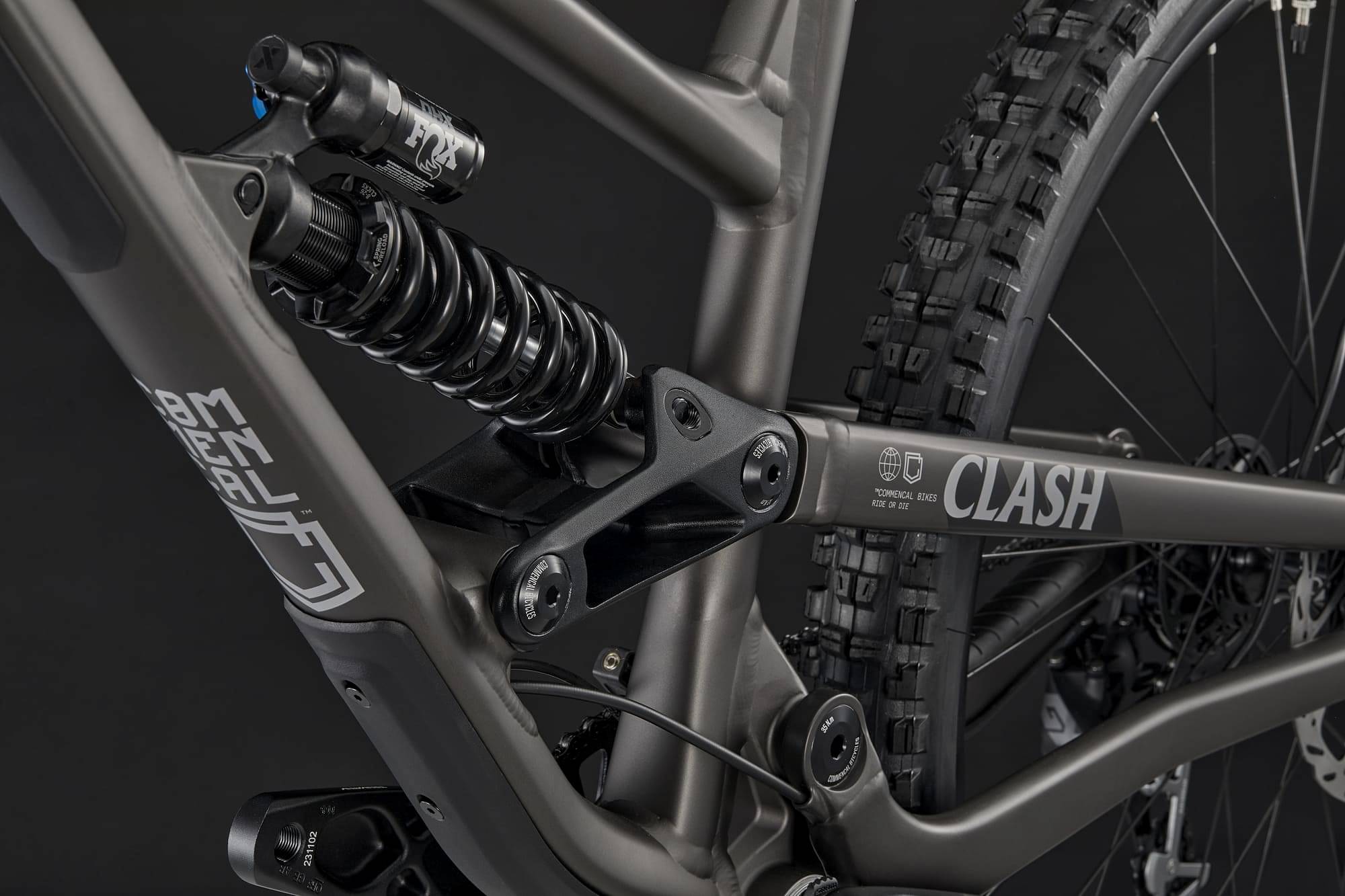

FOX DHX Performance, 230 x 65 mm, rebound, 2pos adjustment. Spring rates : 400 lbs on S, 450 lbs on M, 500 lbs on L

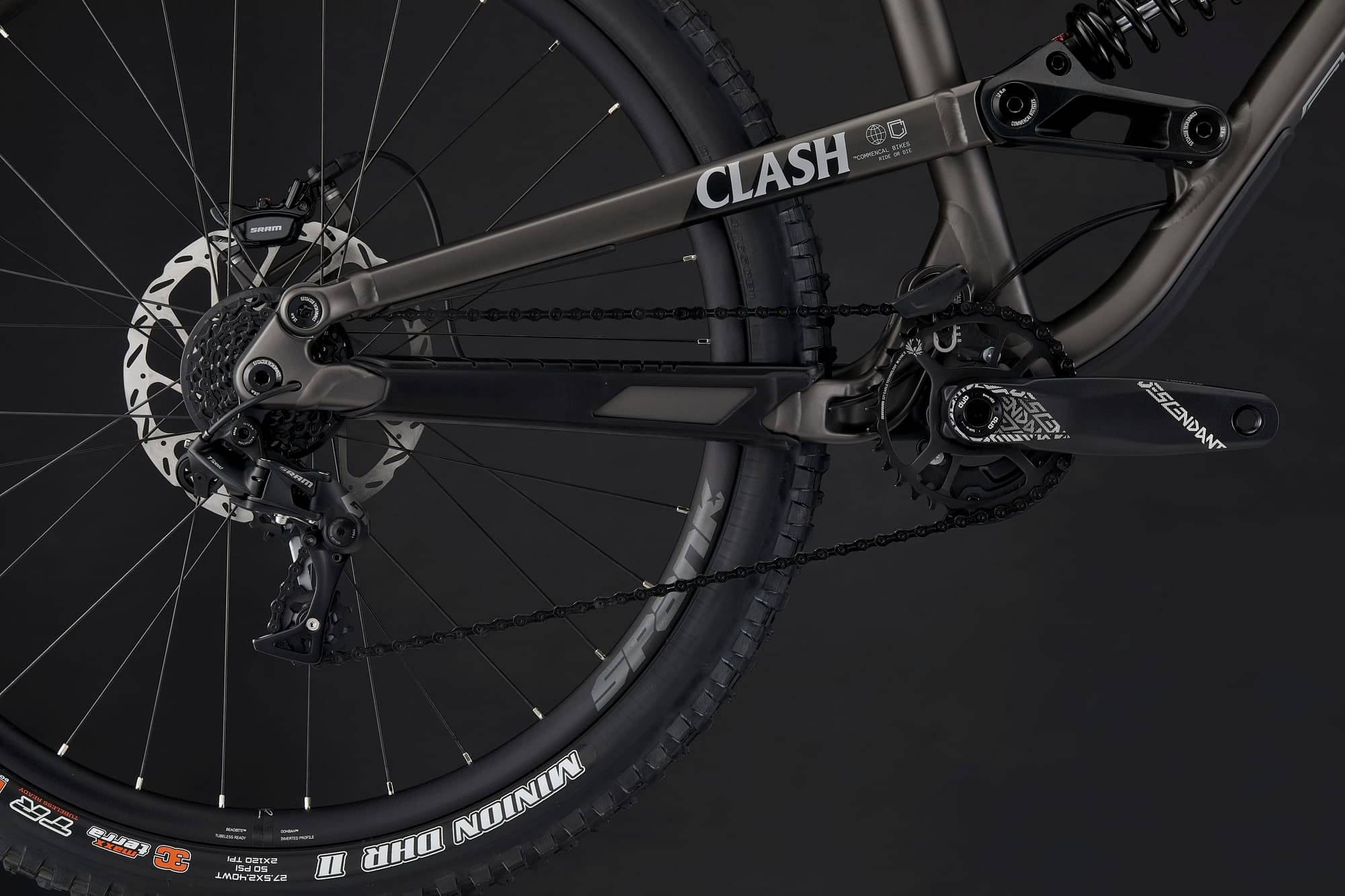

Drivetrain
Rear Derailleur
SRAM GX DH, 7s
Shift Levers
SRAM GX DH, 7s
Cassette
SRAM GX DH, 7s, 11-25t
Crank
TRUVATIV 6K Descendant, 165 mm crank arms, DUB, TRUVATIV Descendant X-Sync, 32t
Bottom Bracket
Press Fit BB 92
Chain
KMC X11EL, Black
Chain Guide
E13 Vario, 32-34t
Wheels
Front Hub
Rear: FORMULA DCL-348A - Front: FORMULA DC-711, 32h, sealed bearings
Rear Hub
Rear: FORMULA DCL-348A - Front: FORMULA DC-711, 32h, sealed bearings
Rims
SPANK Spike Race 33, 27.5'', 32h, 28 mm inner width, Tubeless Ready
Tires
Rear: MAXXIS DHR II - Front: MAXXIS Assegai, Rear: 27.5"x2.4" WT, 3C MaxxTerra, Double Down, Tubeless Ready - Front: 27.5"x2.5" WT, 3C MaxxGrip, Double Down, Tubeless Ready
Brakes
Brakes

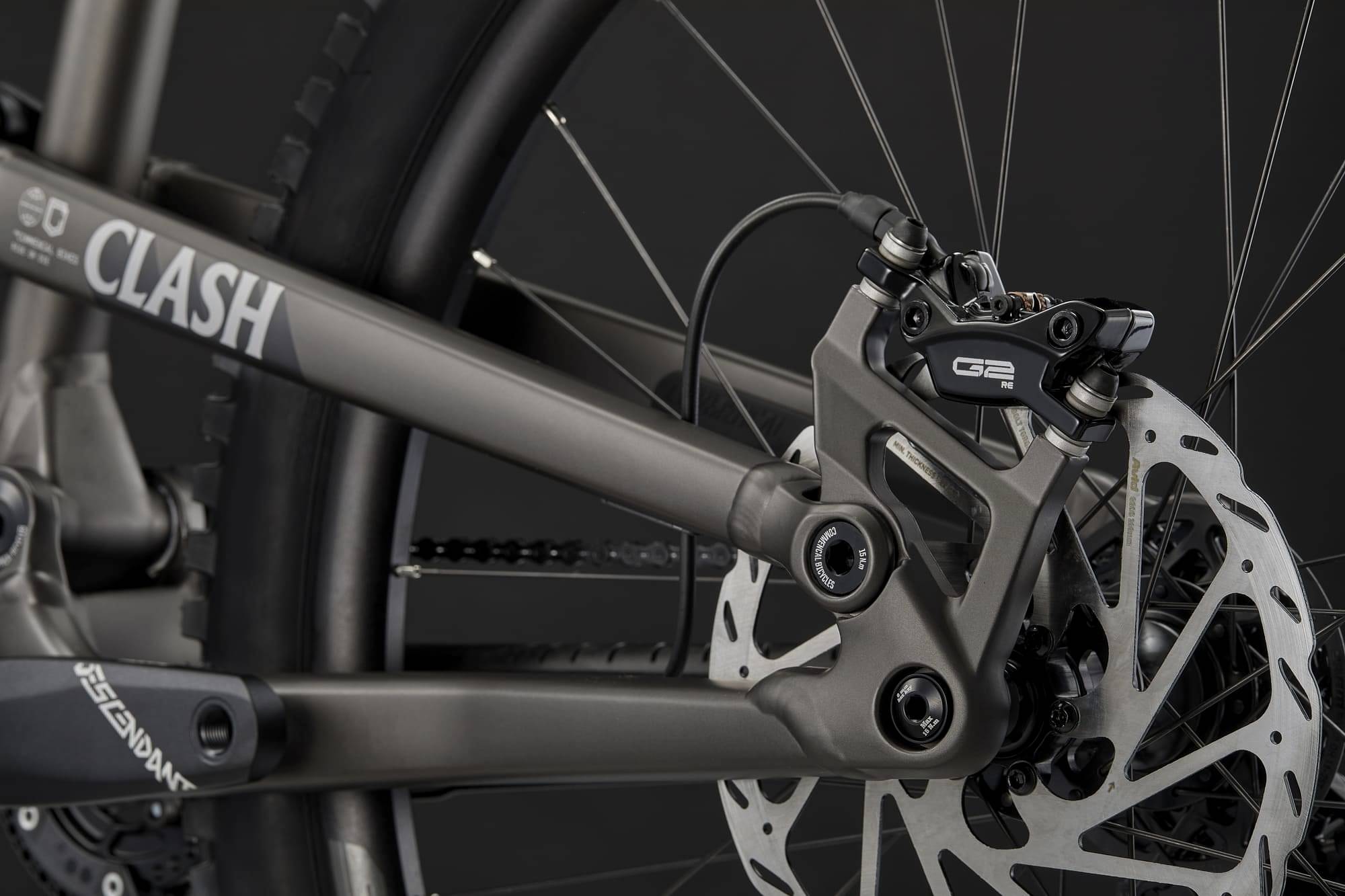

SRAM G2 RE, 4 pistons, MatchMaker compatible, Rotors: SRAM G2 CleanSweep 200 mm, 6-bolt
Cockpit

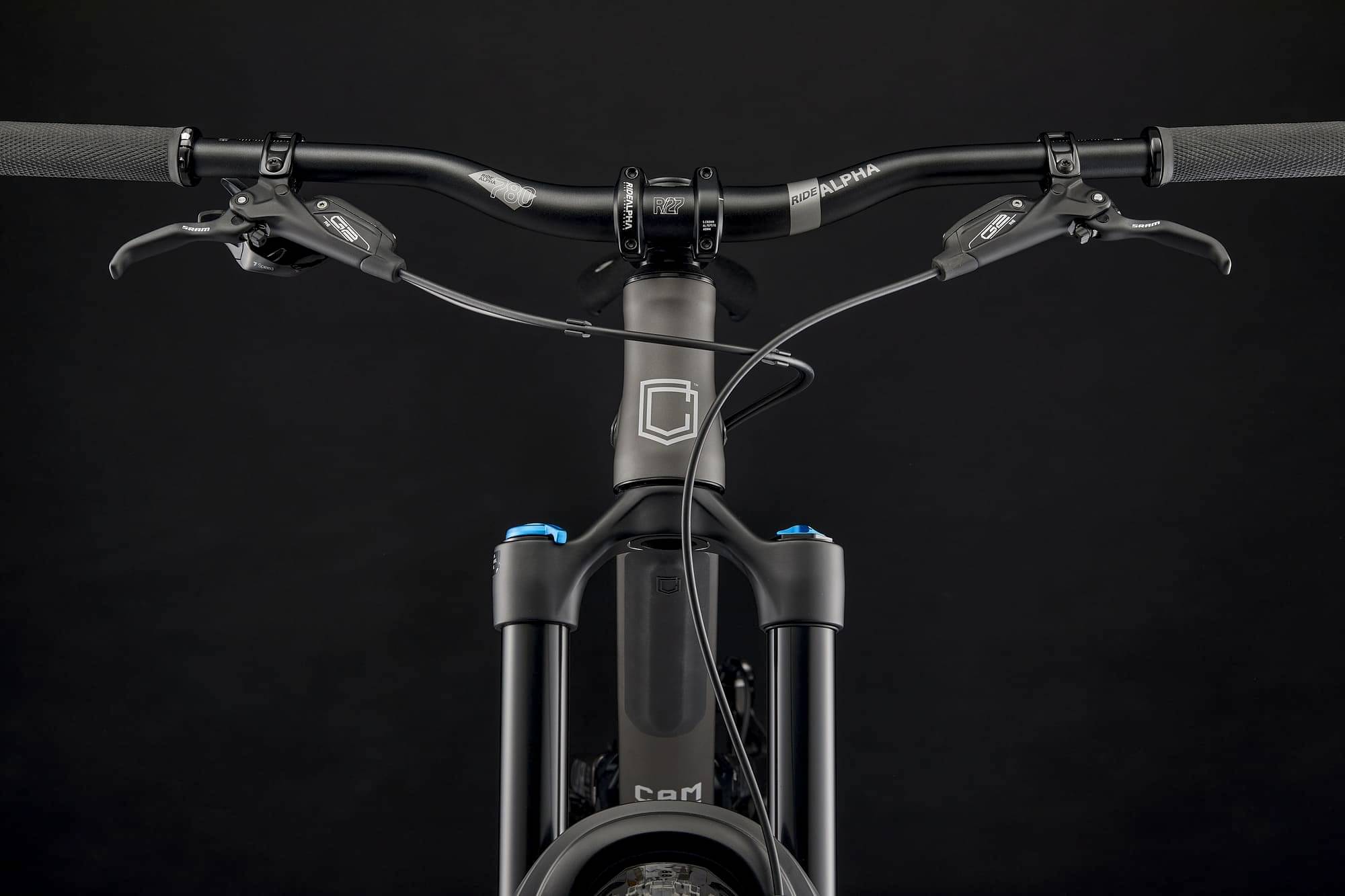

Stem
RIDE ALPHA 40 EXTERNAL, 40 mm extension, 31.8 mm

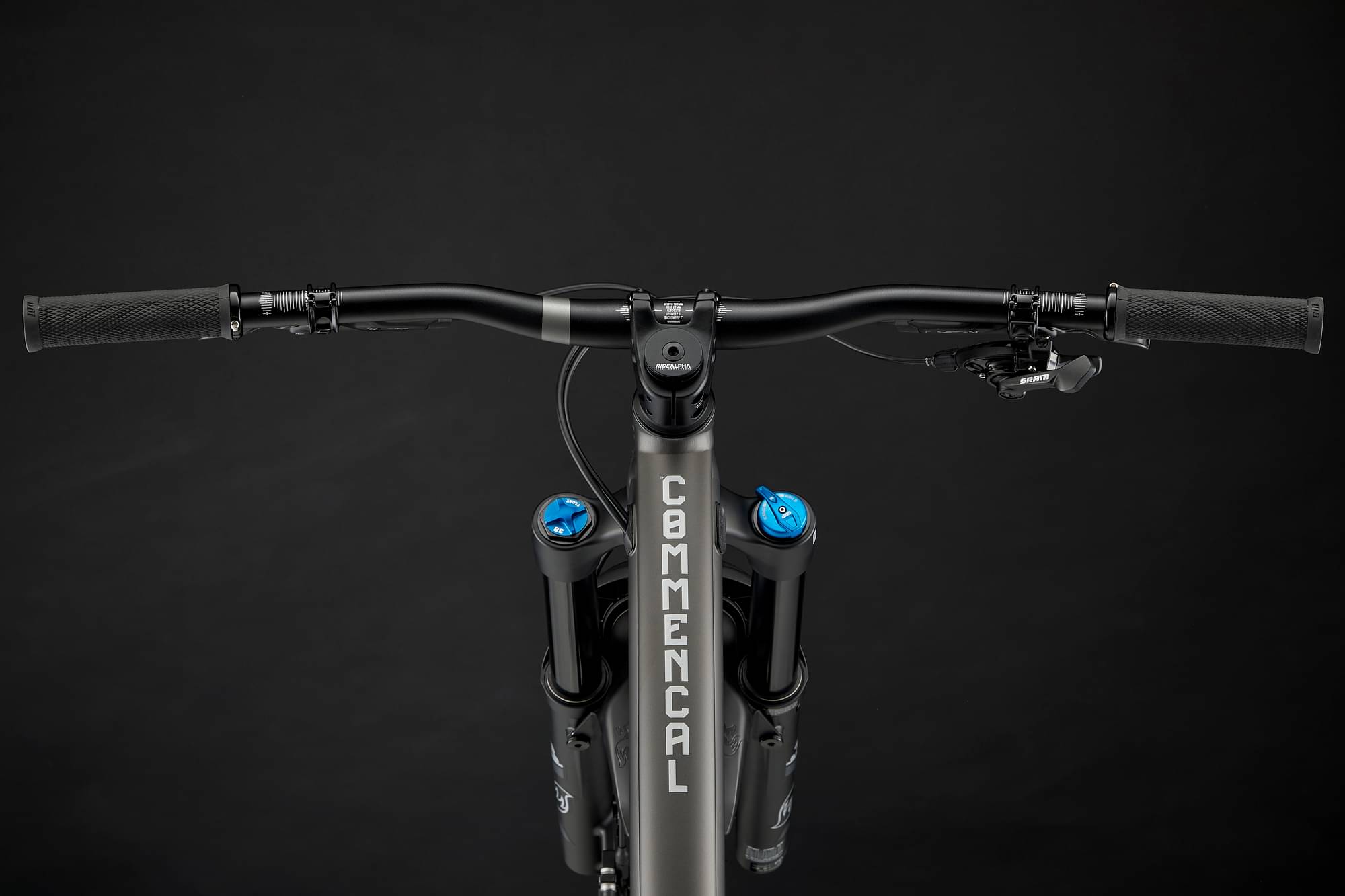

Handlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL, 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips
ODI Elite Motion, Soft pro compound, single clamp, black
Headset
ACROS ZS44/ZS56, Alloy cups, sealed bearings
Seat
Saddle
SDG Patriot I-Beam, Kevlar reinforced
Seatpost
SDG Micro I-Beam, 31.6 mm, 250 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.391 mm | 1.342 mm | 1.282 mm | 1.221 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 782 mm | 804 mm | 831 mm | 858 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 132 mm | 132 mm | 132 mm | 129 mm |
| Stack | 619 mm | 624 mm | 628 mm | 635 mm |
| Reach | 445 mm | 465 mm | 490 mm | 520 mm |
| Top Tube Length | 586 mm | 607 mm | 633 mm | 666 mm |
| Seat Tube Angle | 77.2 ° | 77.2 ° | 77.2 ° | 77.1 ° |
| Seat Tube Length | 380 mm | 418 mm | 440 mm | 465 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64.5 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm | 125 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1216 mm | 1238 mm | 1265 mm | 1292 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 728 mm | 733 mm | 730 mm | 735 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 188 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm | 210 cm |
