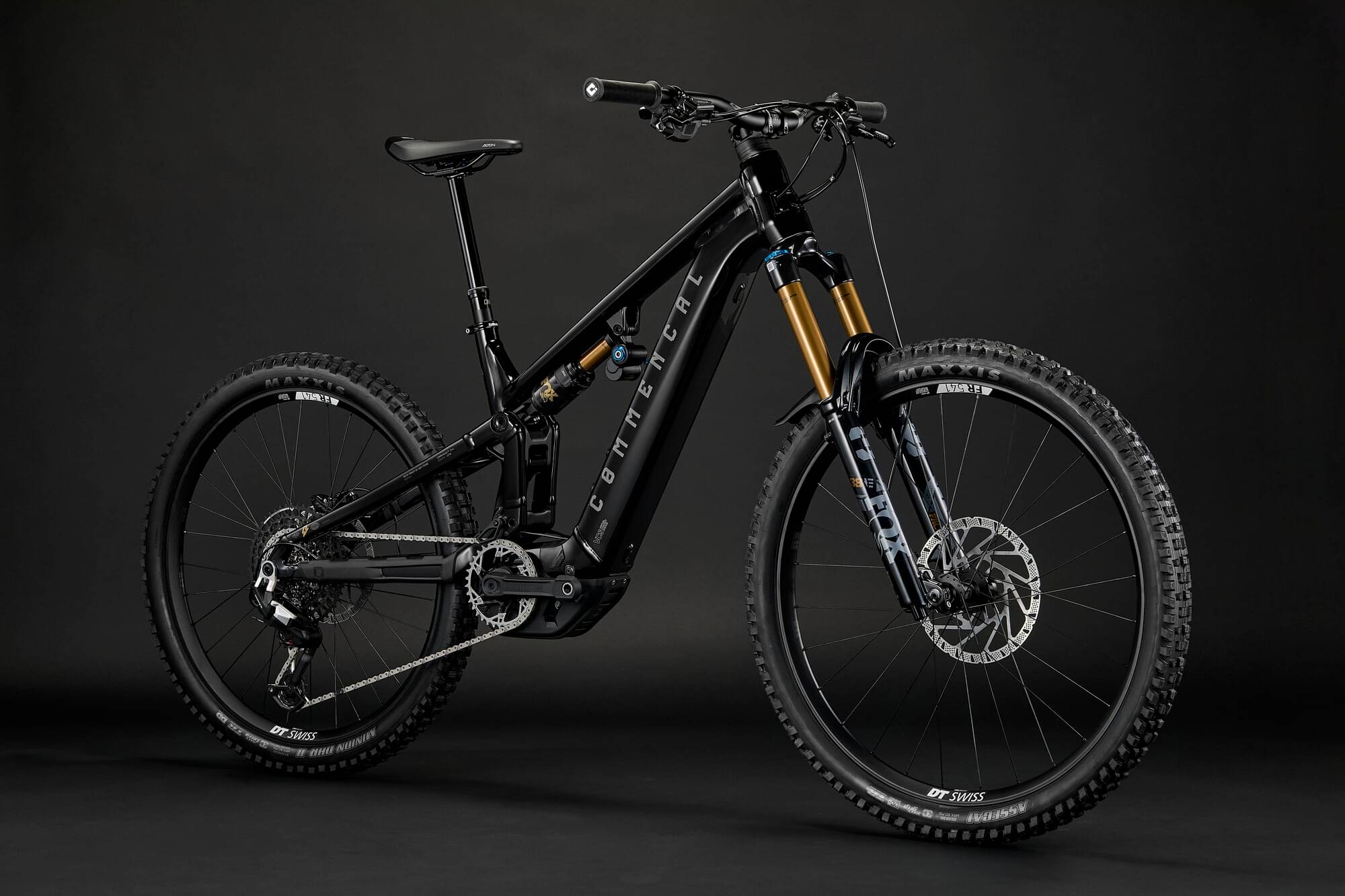

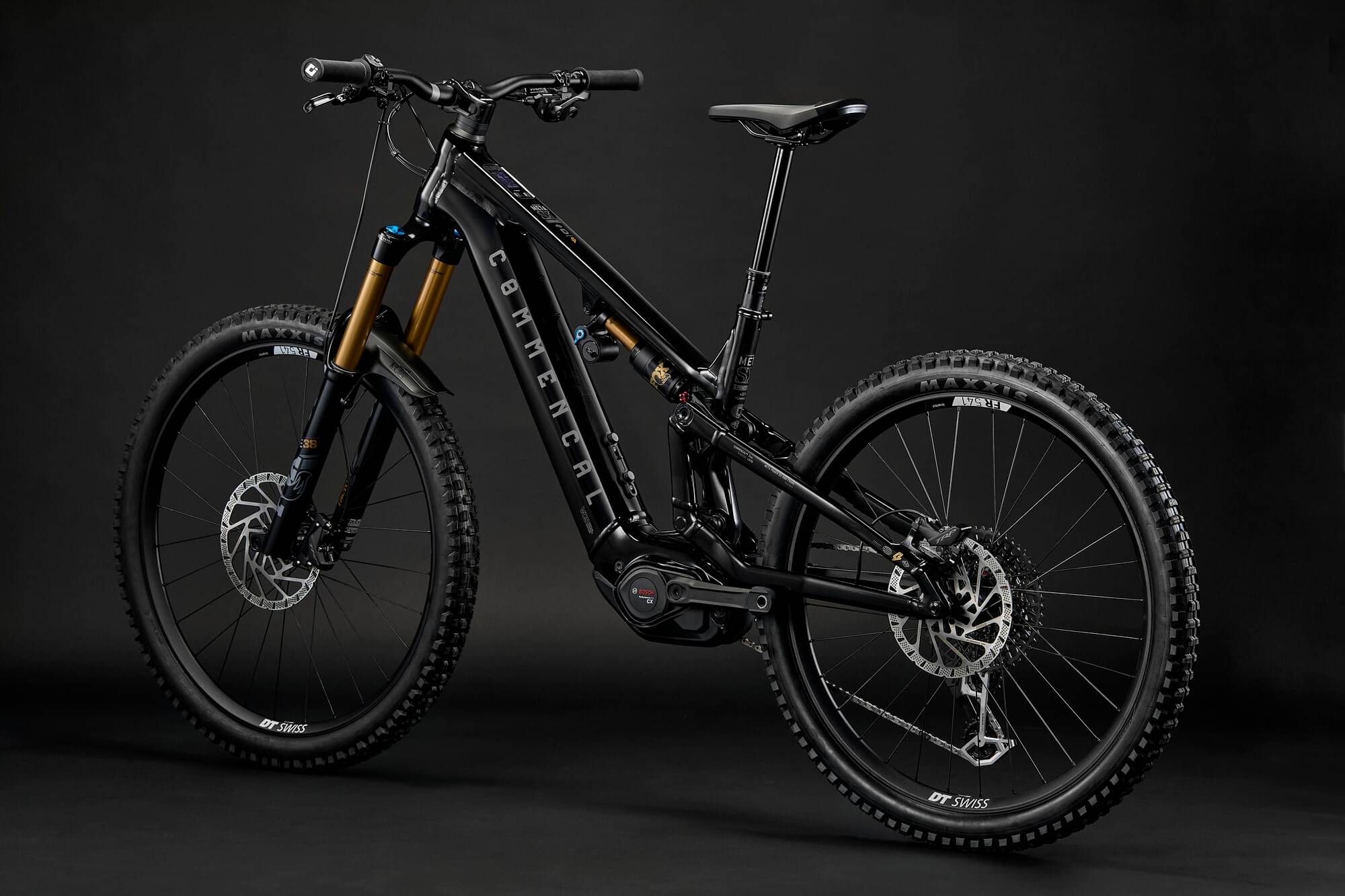

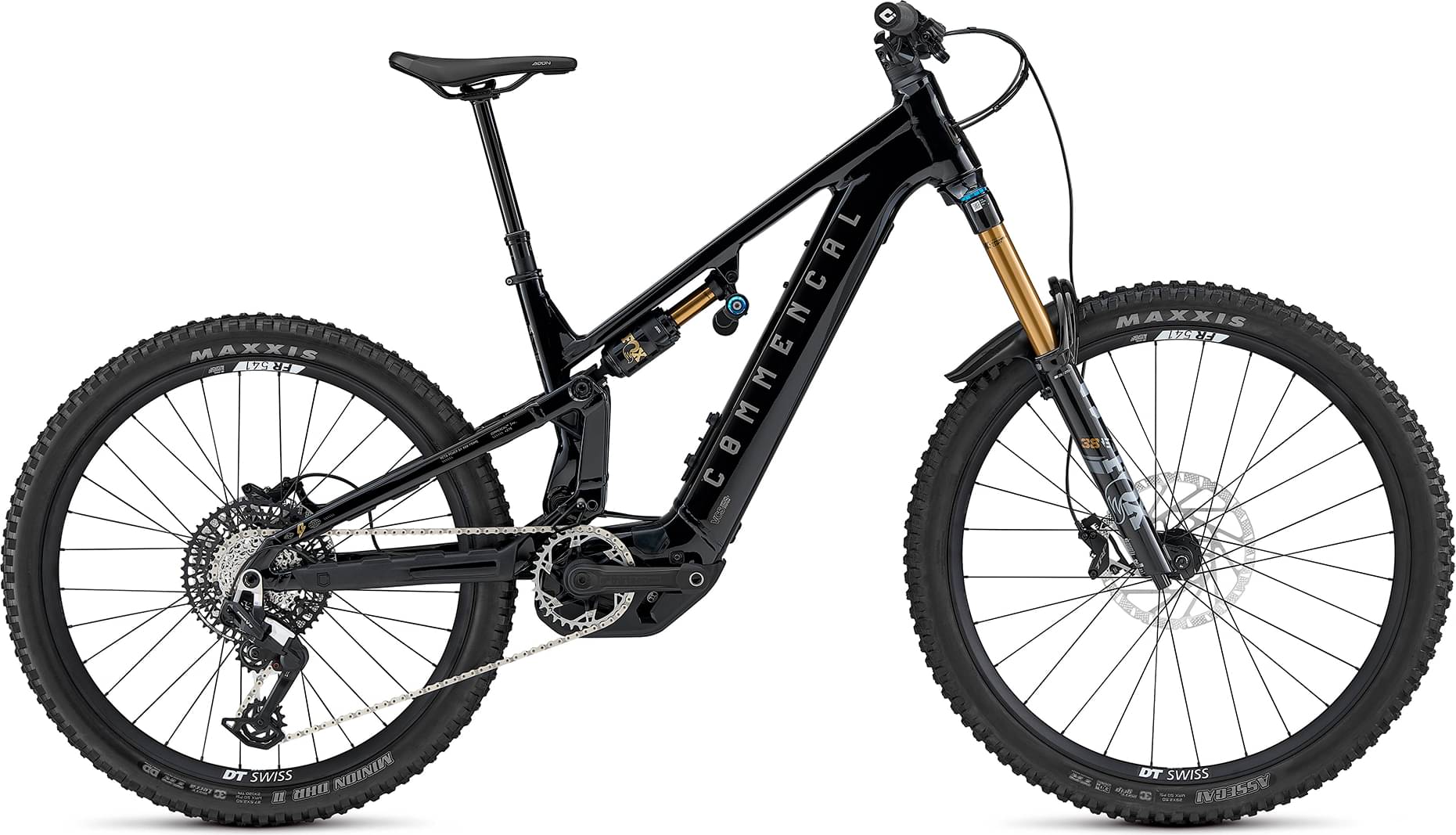

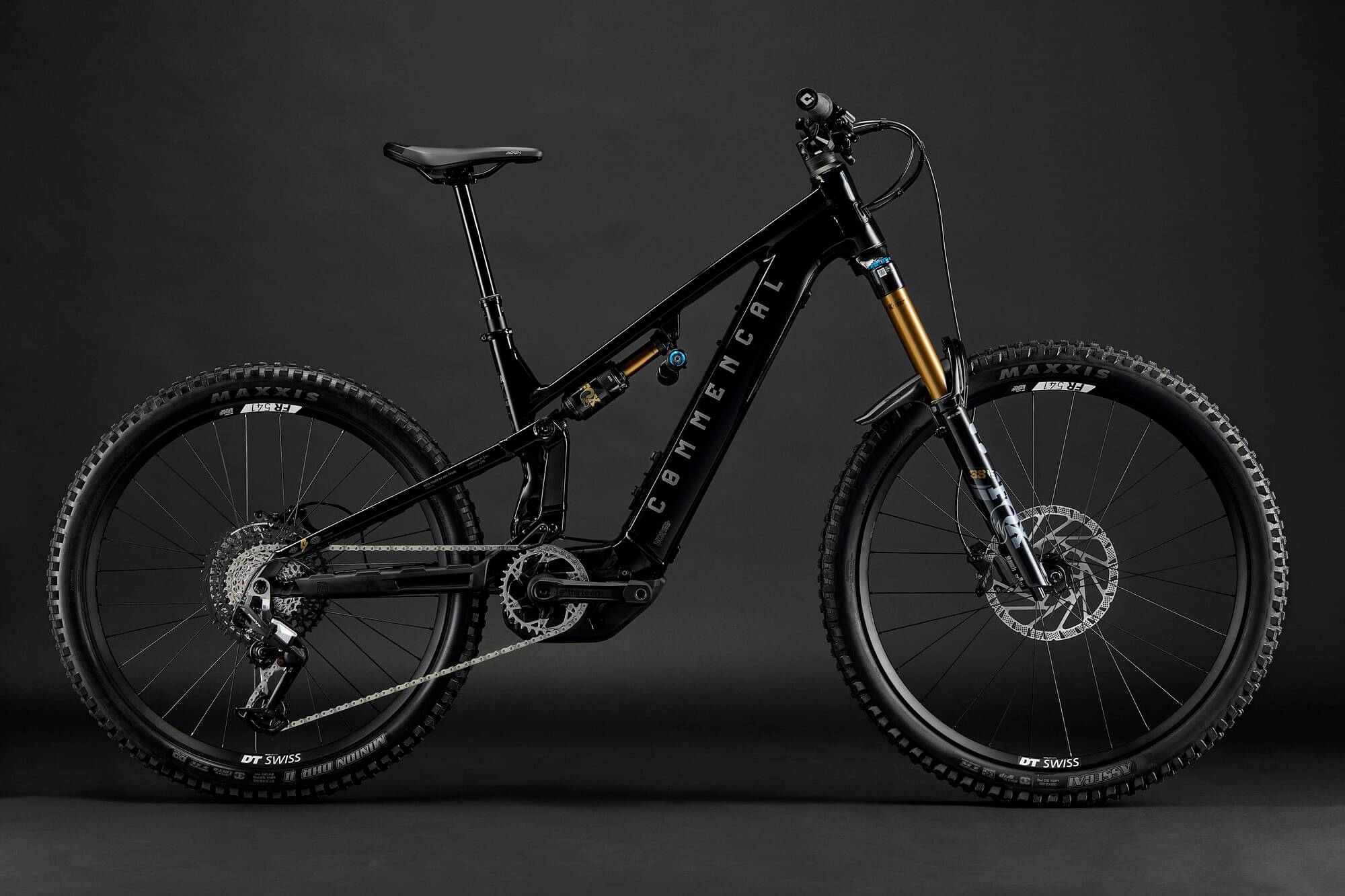

Commençal META POWER SX 800 SIGNATURE PURE 2026
2026 E-bike
Estimate price |
10,959$
Weight | 25.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 180mm -
Travel Rear 180mm -
Fork Fox Factory Float 38
-
Groupset Eagle 90 Transmission -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery BOSCH Powertube 800, Fully integrated main battery, 800 Wh -
Drivetrain 1 × 12 -
Brakes TRP DH-R EVO Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 172cm
MD
169cm - 182cm
LG
179cm - 192cm
XL
189cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
META POWER SX BOSCH, 180 mm travel, 29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearings

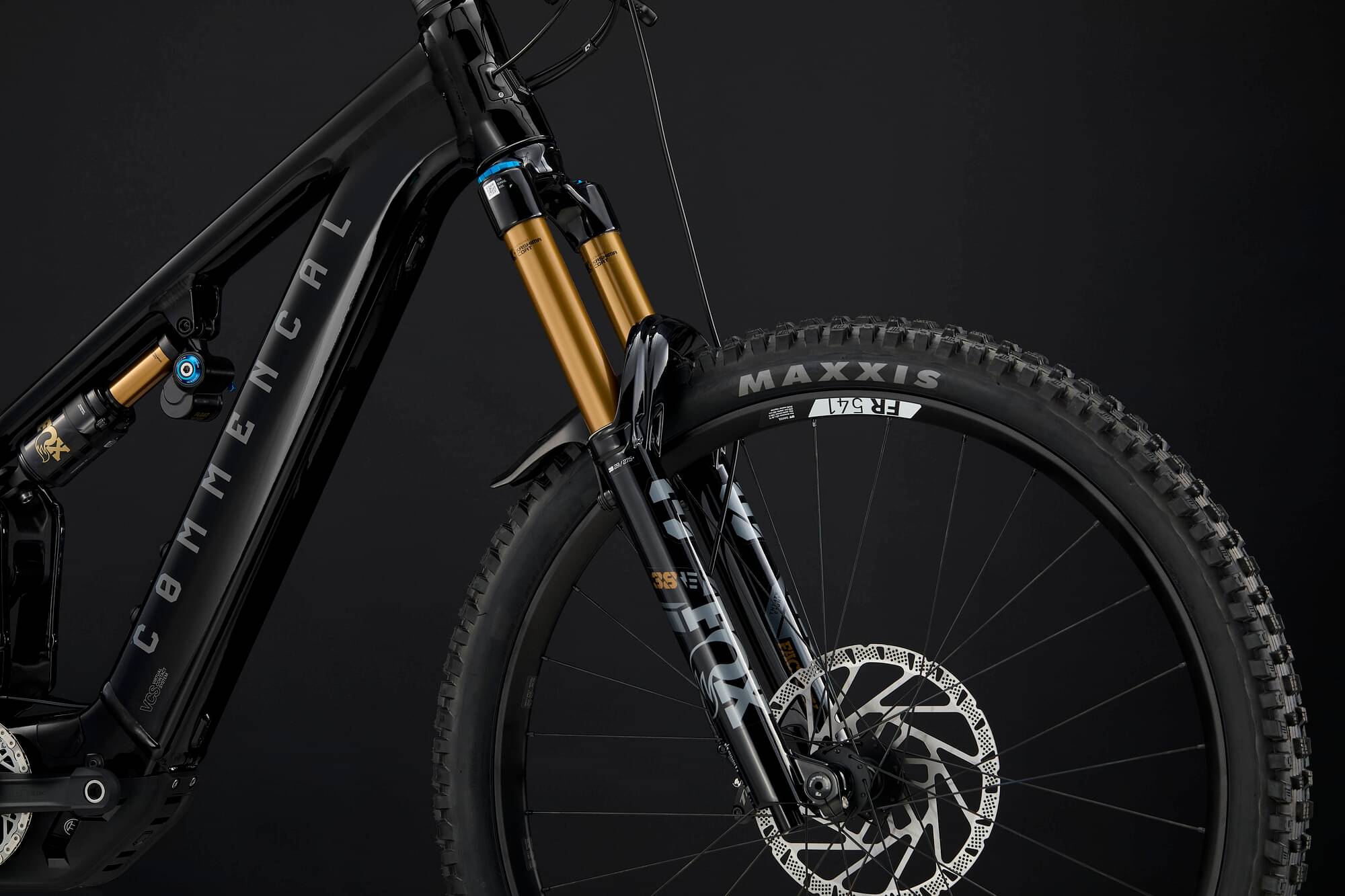

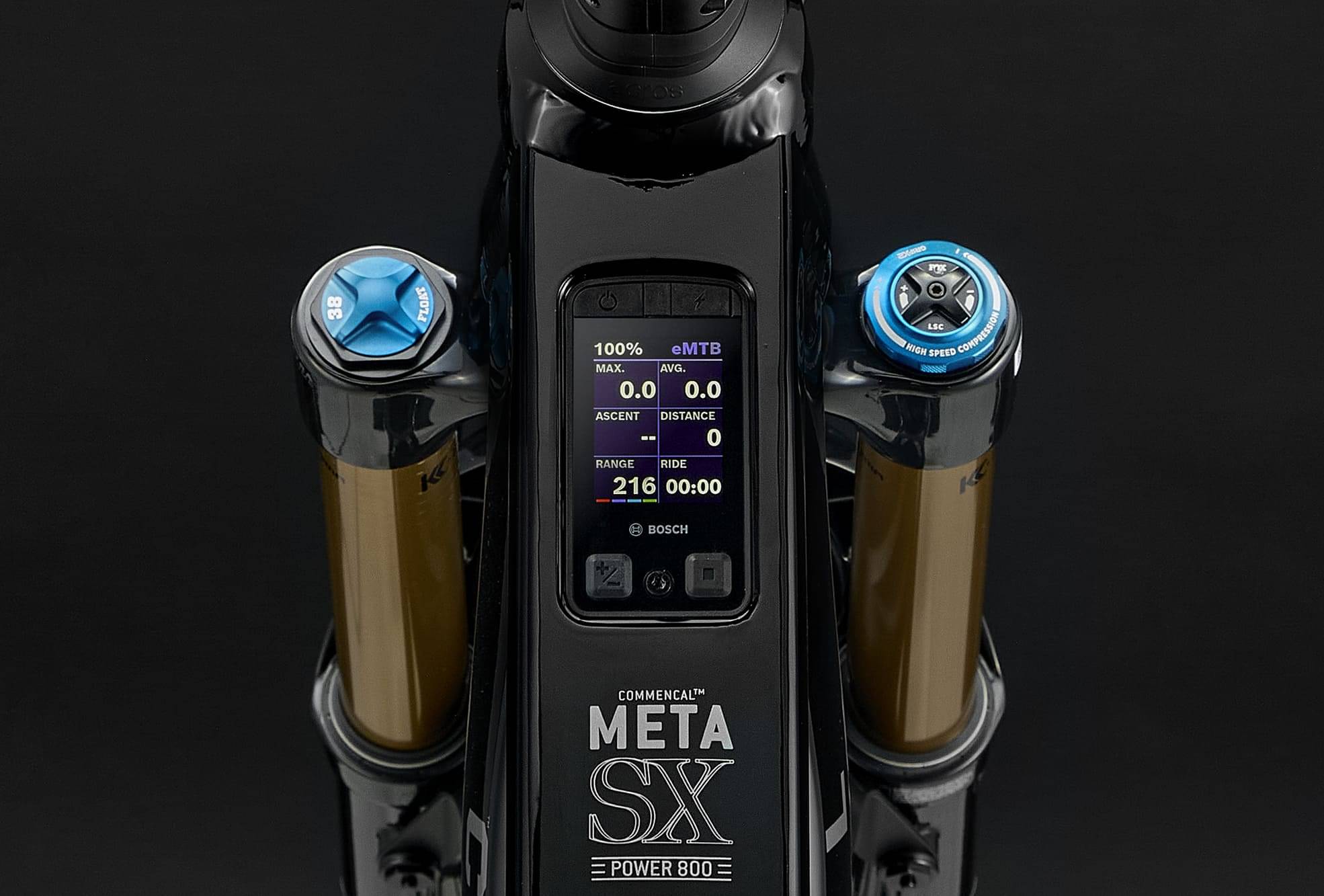

Suspension Fork
FOX 38 Factory E-Bike, 180 mm, 29", Grip X2 damper, HSR, LSR, HSC, LSC, Boost (15 x 110 mm), 44 mm offset, 3 spacers

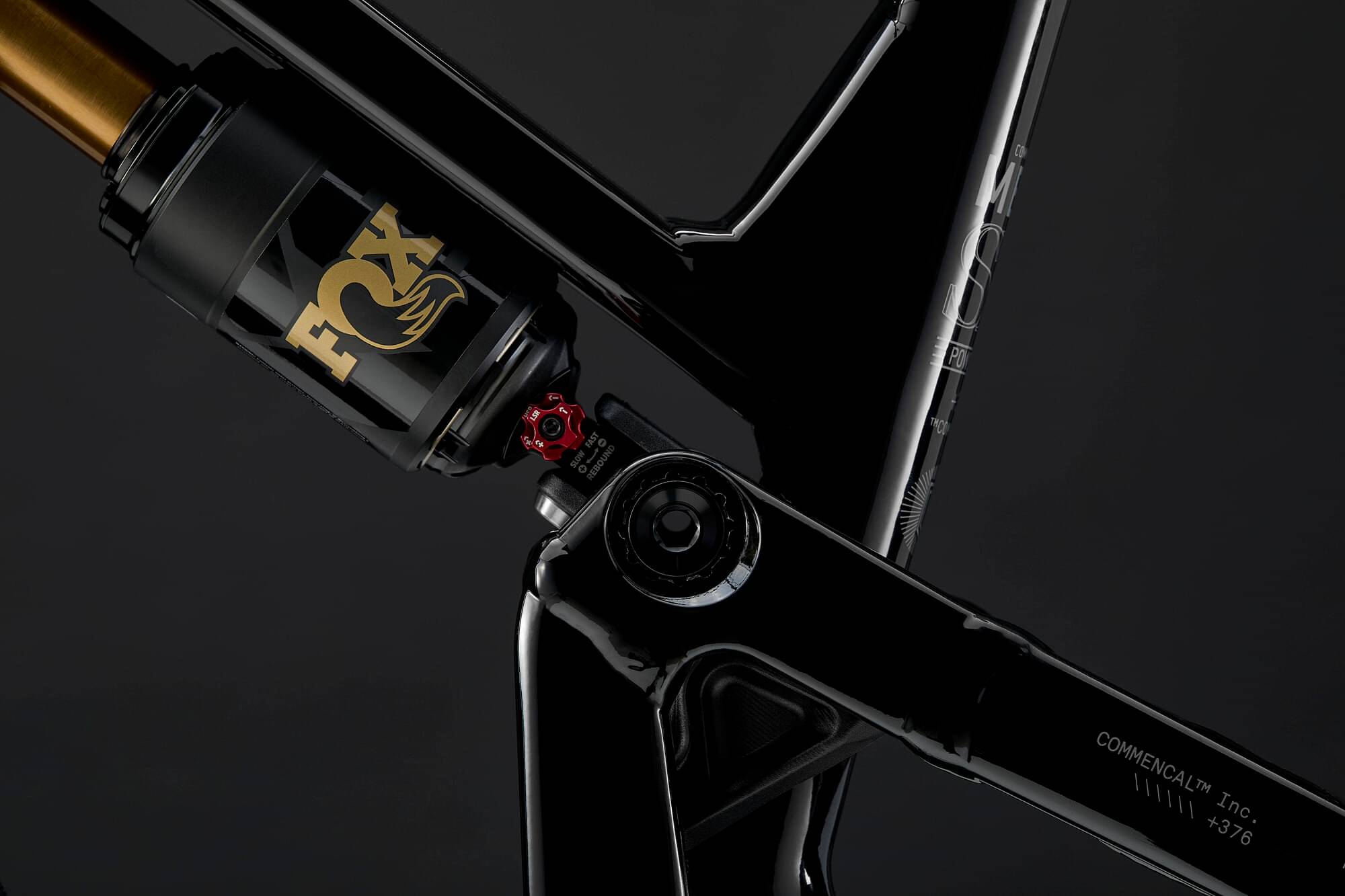

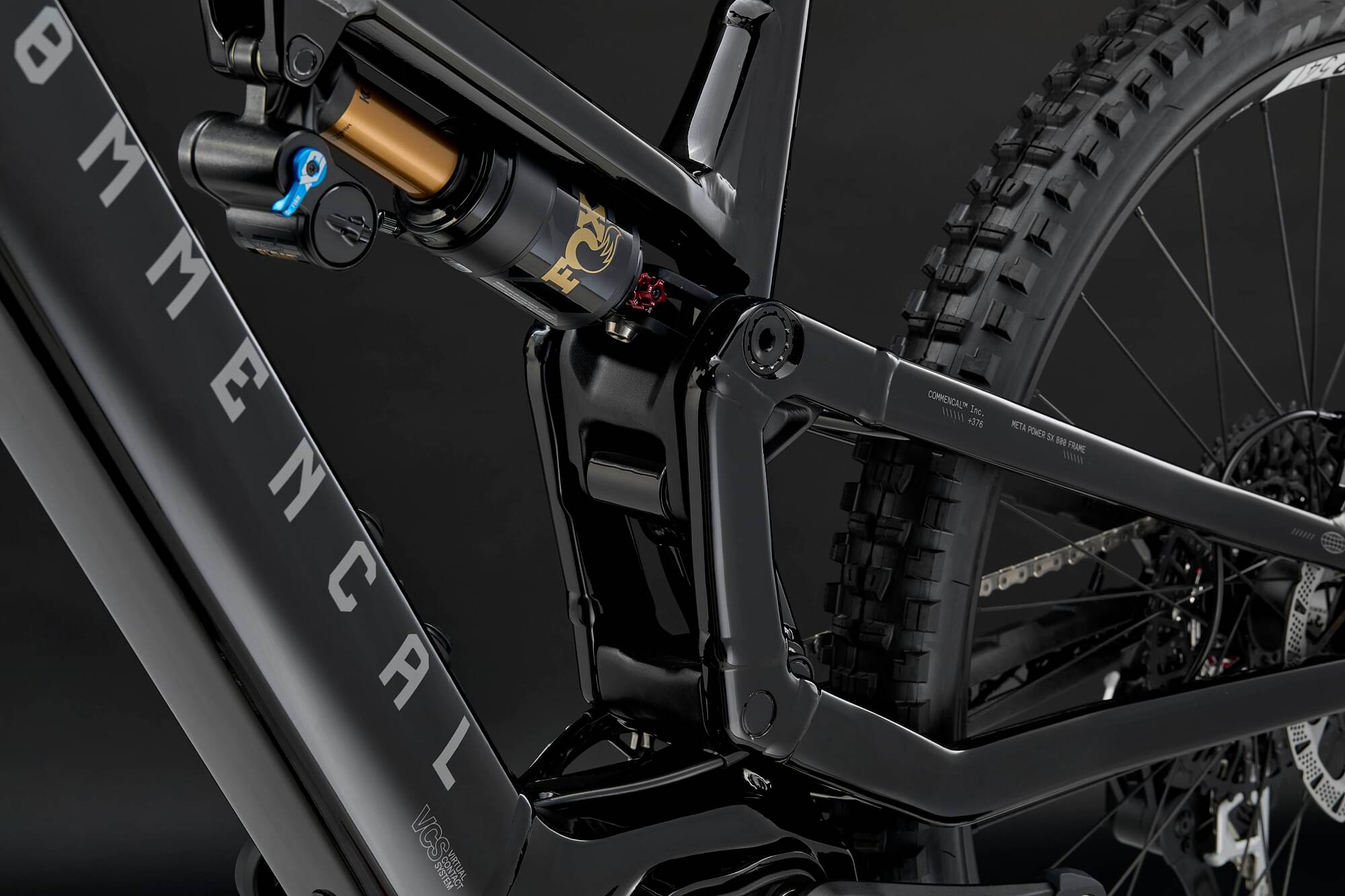

Rear Shock
FOX Float X2 Factory, 230 x 65 mm, 2-postion (open/firm) lever, HSC, LSC, HSR, LSR

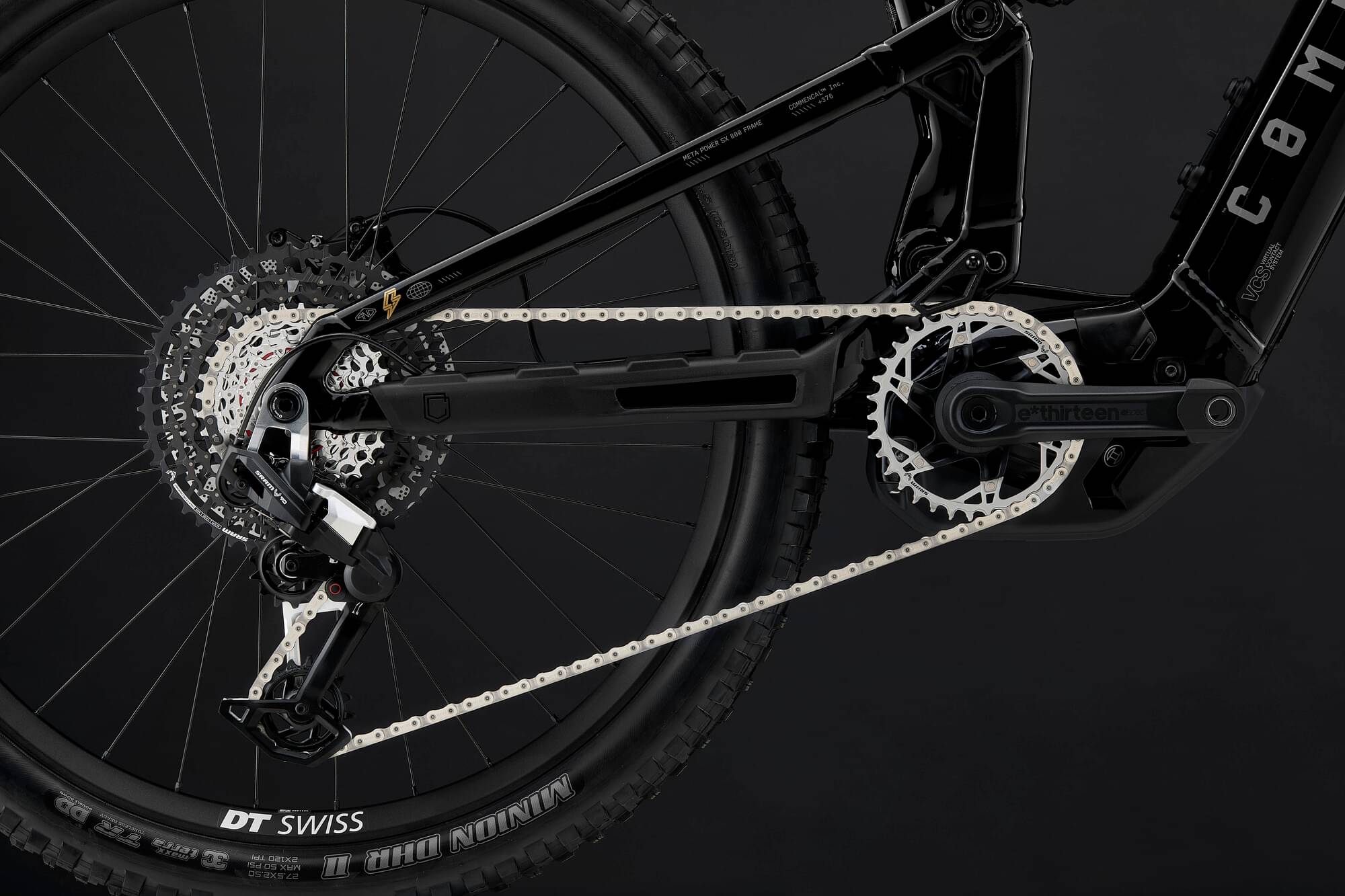

Drivetrain
Rear Derailleur
SRAM Eagle 90, 12s
Shift Levers
SRAM Eagle 90, 12s
Cassette
SRAM GX T-Type, 12s, 10-52t
Crank
E13 Helix Core E*Spec, 155 mm crank arms, Bosch, Chainring: SRAM XX T-Type E-MTB, 34t for Bosch system, direct mount
Bottom Bracket
Bosch, press-fit
Chain
SRAM GX T-Type, 12s, Flattop
Chain Guide
RIDE ALPHA, 32-34t
Wheels
Front Hub
Rear: DT SWISS 370 Hybrid - Front: DT SWISS 370, Rear: 28h, sealed bearings, 12 x 148 mm, 24t, SRAM XD - Front: 28h, sealed bearings, 15 x 110 mm
Rear Hub
Rear: DT SWISS 370 Hybrid - Front: DT SWISS 370, Rear: 28h, sealed bearings, 12 x 148 mm, 24t, SRAM XD - Front: 28h, sealed bearings, 15 x 110 mm
Rims
DT SWISS FR541, Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width
Tires
Rear: MAXXIS Minion DHRII 27.5'' - Front: MAXXIS ASSEGAI 29'', Rear: 27.5x2.50 WT, 3C MaxxTerra, Double Down, TR - Front: 29x2.50 WT, 3C MaxxGrip, New EXO+, TR
Brakes
Brakes
TRP DH-R EVO PRO, 4 pistons, resin pads, Rear rotor: TRP RS05 203 mm - Front rotor: TRP RS05 220 mm, 6-bolt, 2.3 mm width

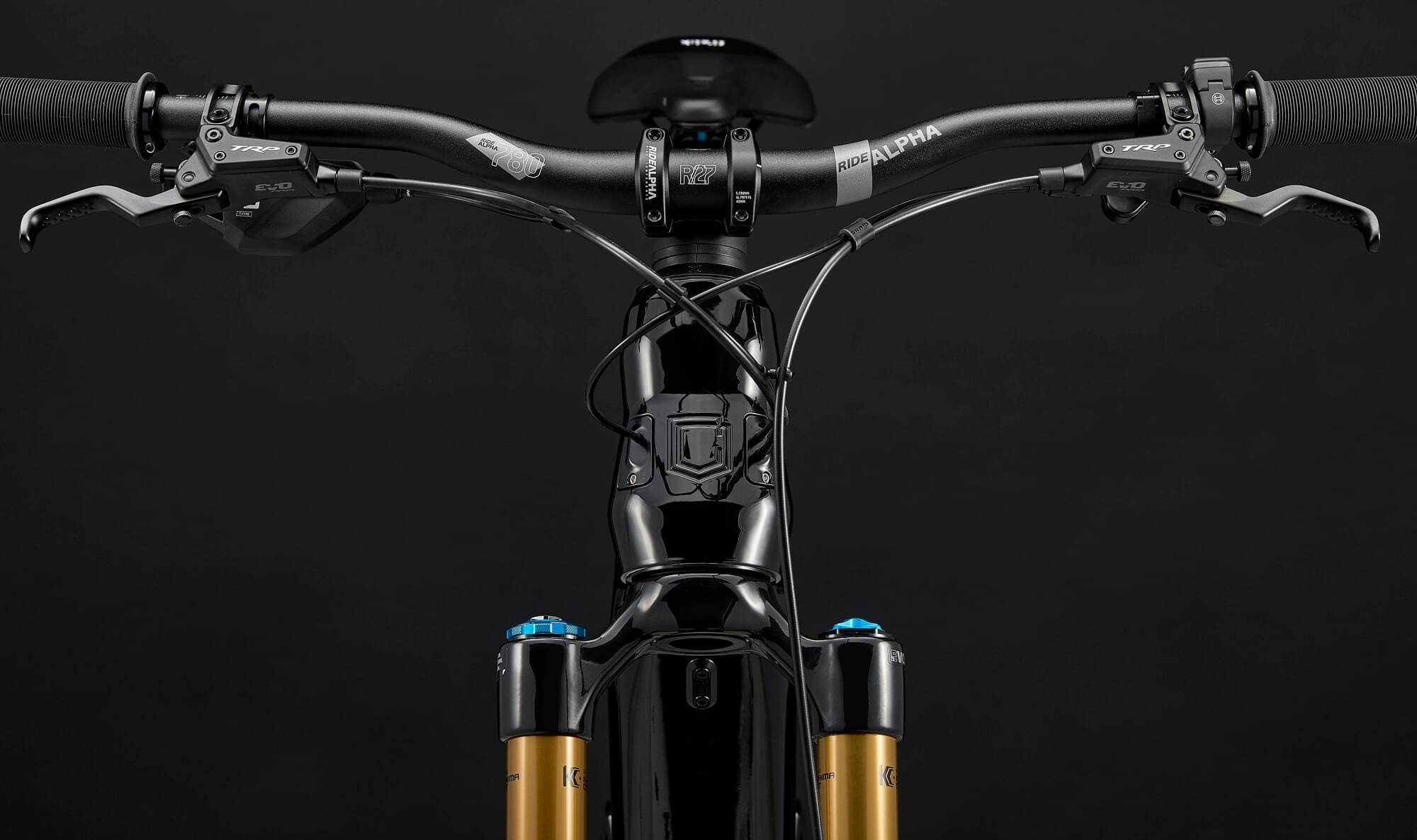

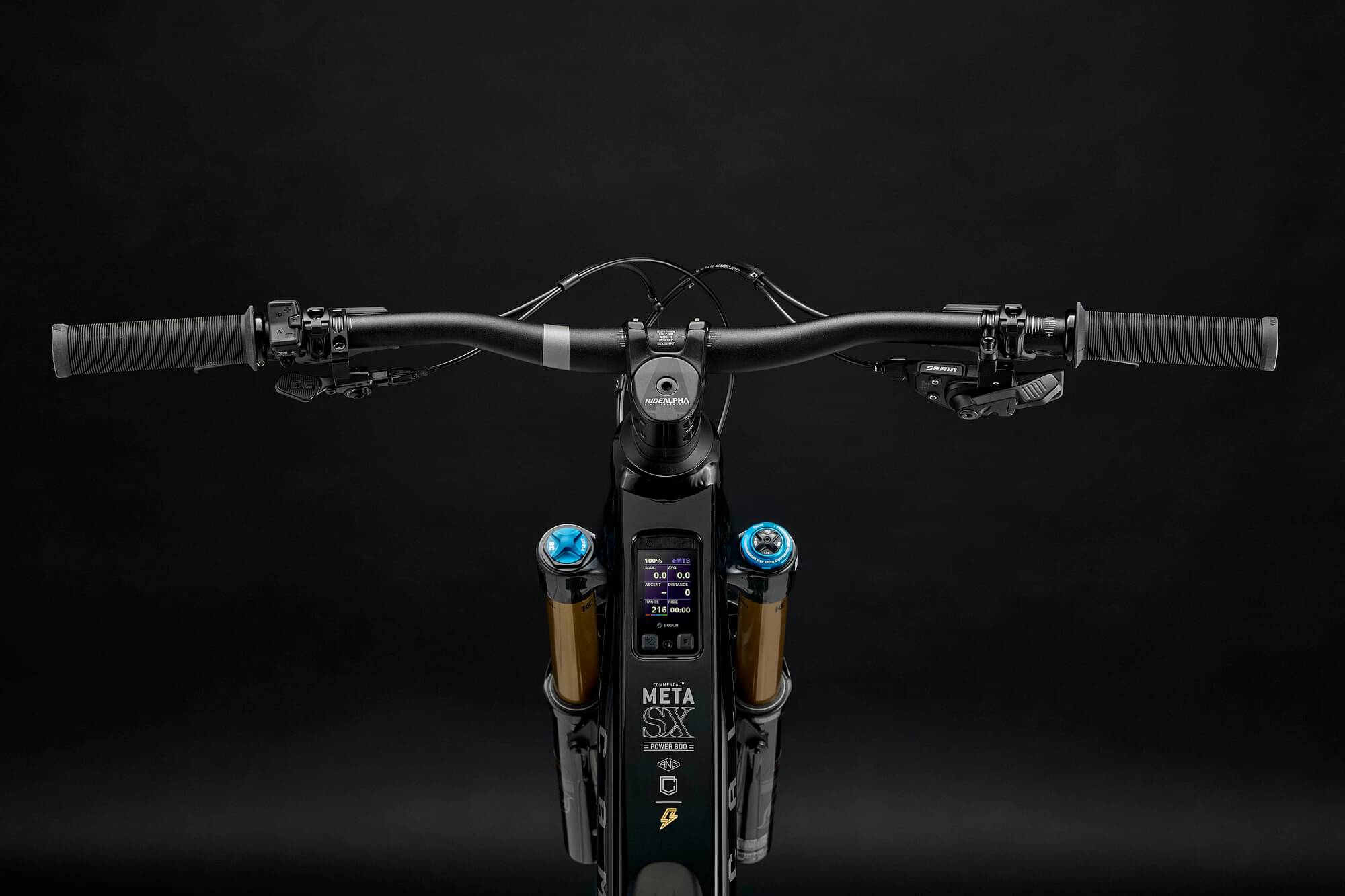

Cockpit
Stem
RIDE ALPHA 40, 40 mm extension, 31.8 mm
Handlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL, 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips
ODI Longneck 2.1, Soft compound, single clamp, black
Headset
ACROS ZS56/ZS66, Alloy cups, stainless steel & sealed bearings
Seat
Saddle
FIZIK Terra Aidon X5, 145 mm width, Kium Mobius rails
Seatpost
ONE UP V3, 31.6 mm, 150 mm on S, 180 mm on M, 210 mm on L/XL
Motor & Battery

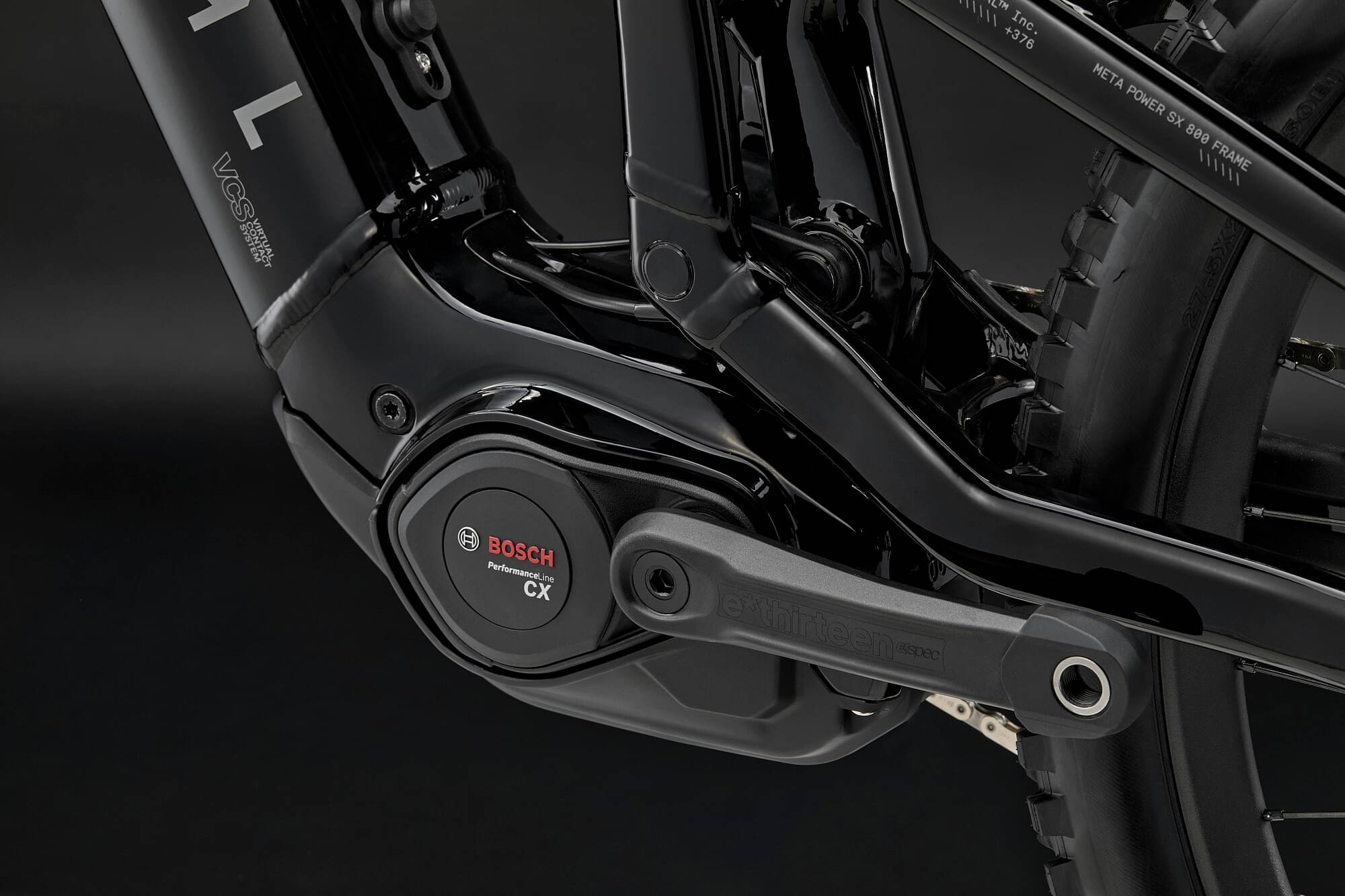

Motor
BOSCH Performance Line CX Gen5, 100 n.m
Battery
BOSCH Powertube 800, Fully integrated main battery, 800 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.526 mm | 1.469 mm | 1.385 mm | 1.317 mm |
| Front Center | 794 mm | 816 mm | 843 mm | 868 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 130 mm | 130 mm | 130 mm |
| Stack | 660.8 mm | 665.3 mm | 665.3 mm | 665.3 mm |
| Reach | 433 mm | 453 mm | 480.2 mm | 505.2 mm |
| Top Tube Length | 579.5 mm | 600.5 mm | 627.7 mm | 652.7 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 440 mm | 460 mm |
| Head Tube Angle | 64.2 ° | 64.2 ° | 64.2 ° | 64.2 ° |
| Head Tube Length | 135 mm | 140 mm | 140 mm | 140 mm |
| Chainstay Length | 445 mm | 445 mm | 450 mm | 450 mm |
| Wheelbase | 1238 mm | 1260 mm | 1293 mm | 1318 mm |
| Bottom Bracket Drop | 3 mm | 3 mm | 3 mm | 3 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 160 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 172 cm | 182 cm | 192 cm | 203 cm |
